Door Control Module Schematics

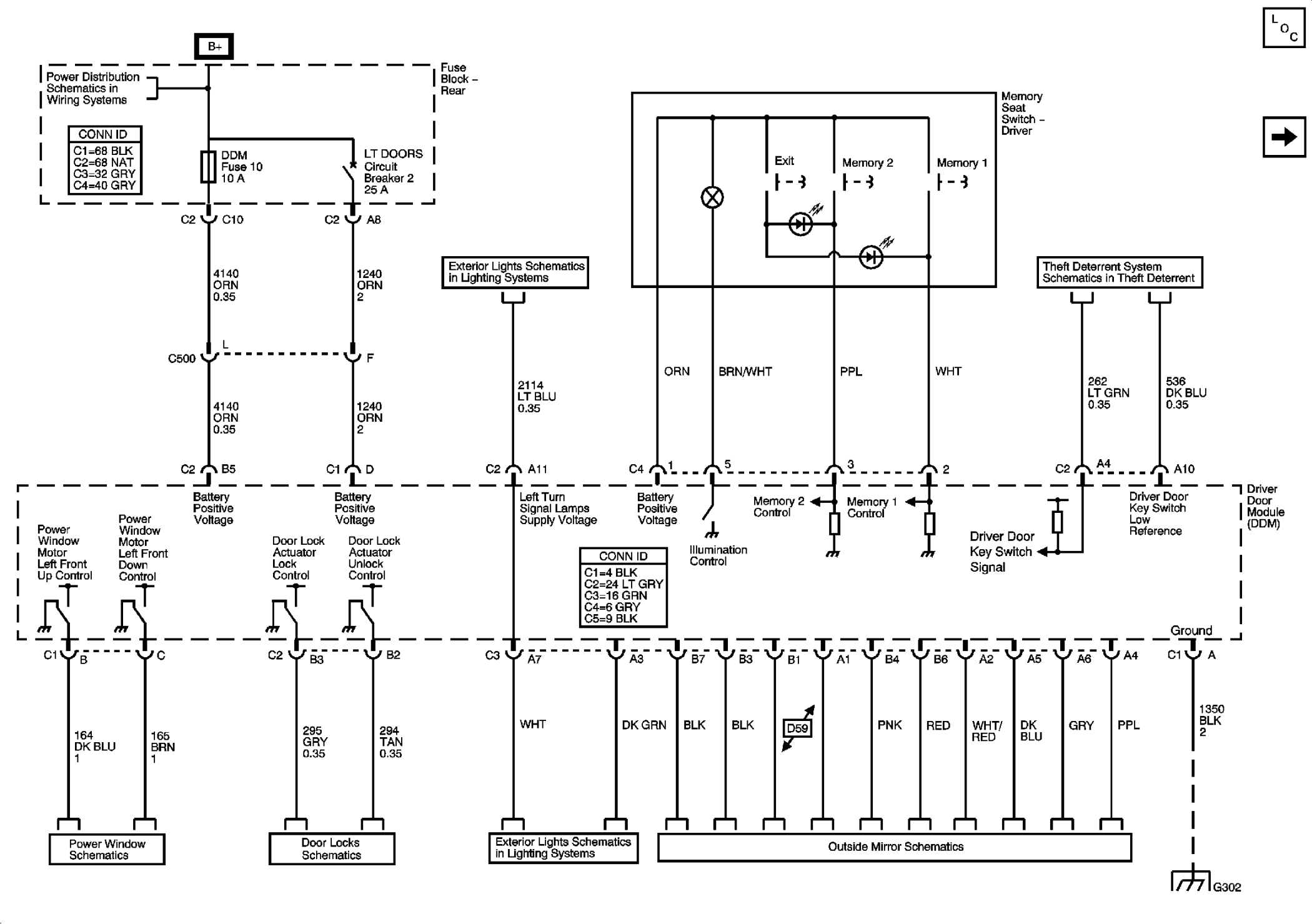

Fig 1: Driver Door Module Schematics
GM743601Courtesy of GENERAL MOTORS CORP.

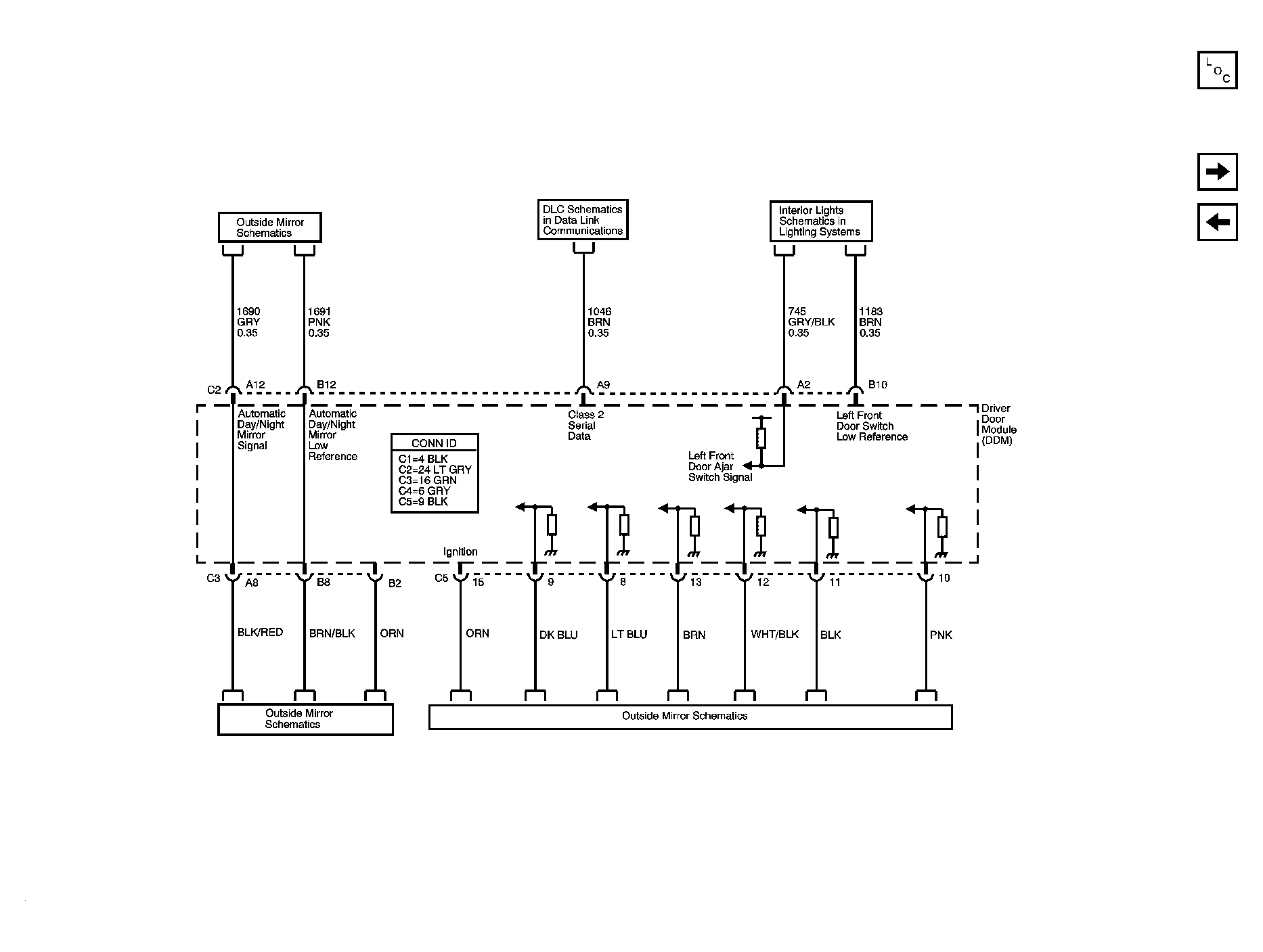

Fig 2: Serial Data and Subsystem References Schematics
GM743603Courtesy of GENERAL MOTORS CORP.

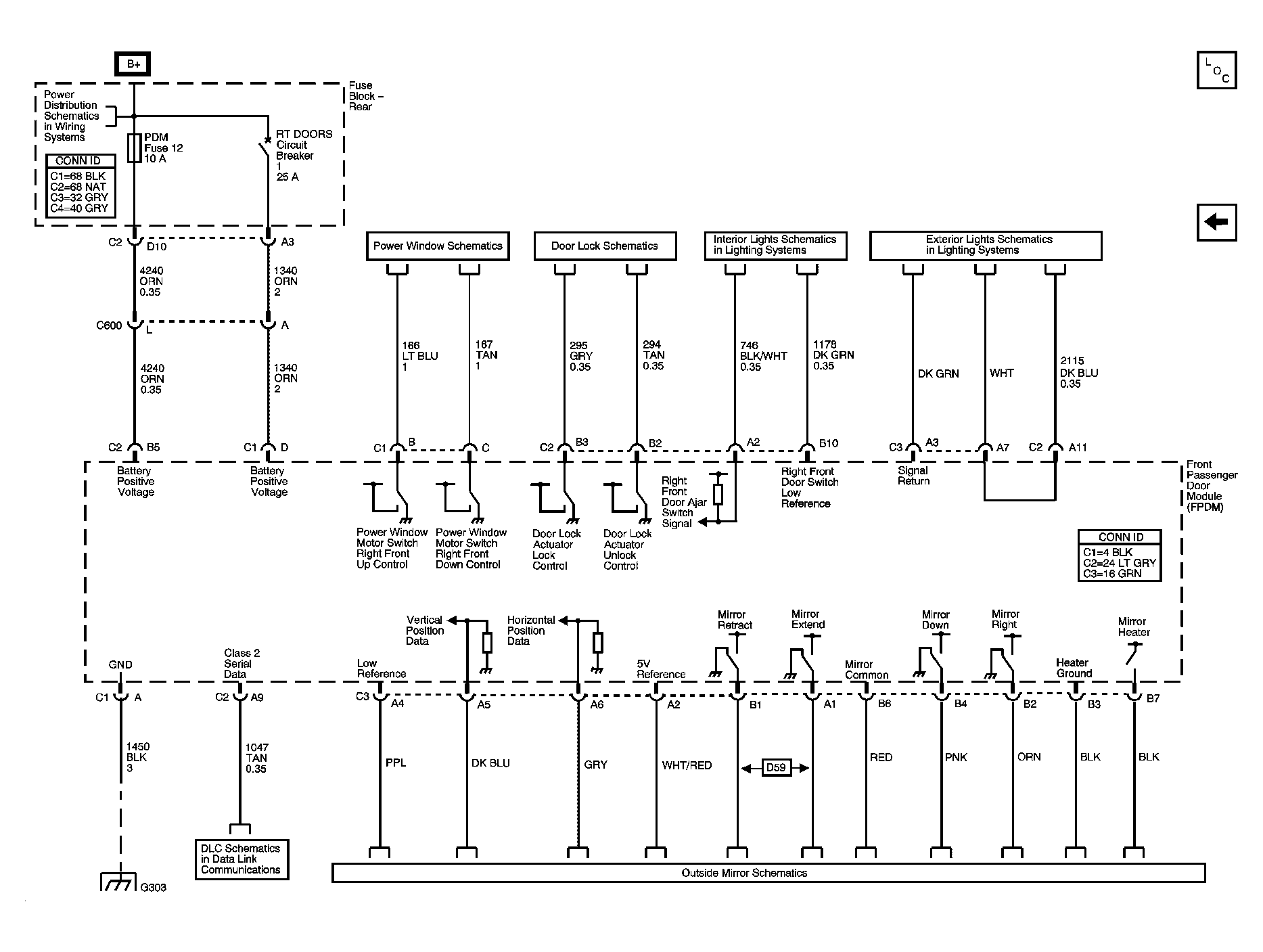

Fig 3: Front Passenger Door Module Schematics
GM743605Courtesy of GENERAL MOTORS CORP.
