Transfer Case Shift Control Module Connector End View - C2

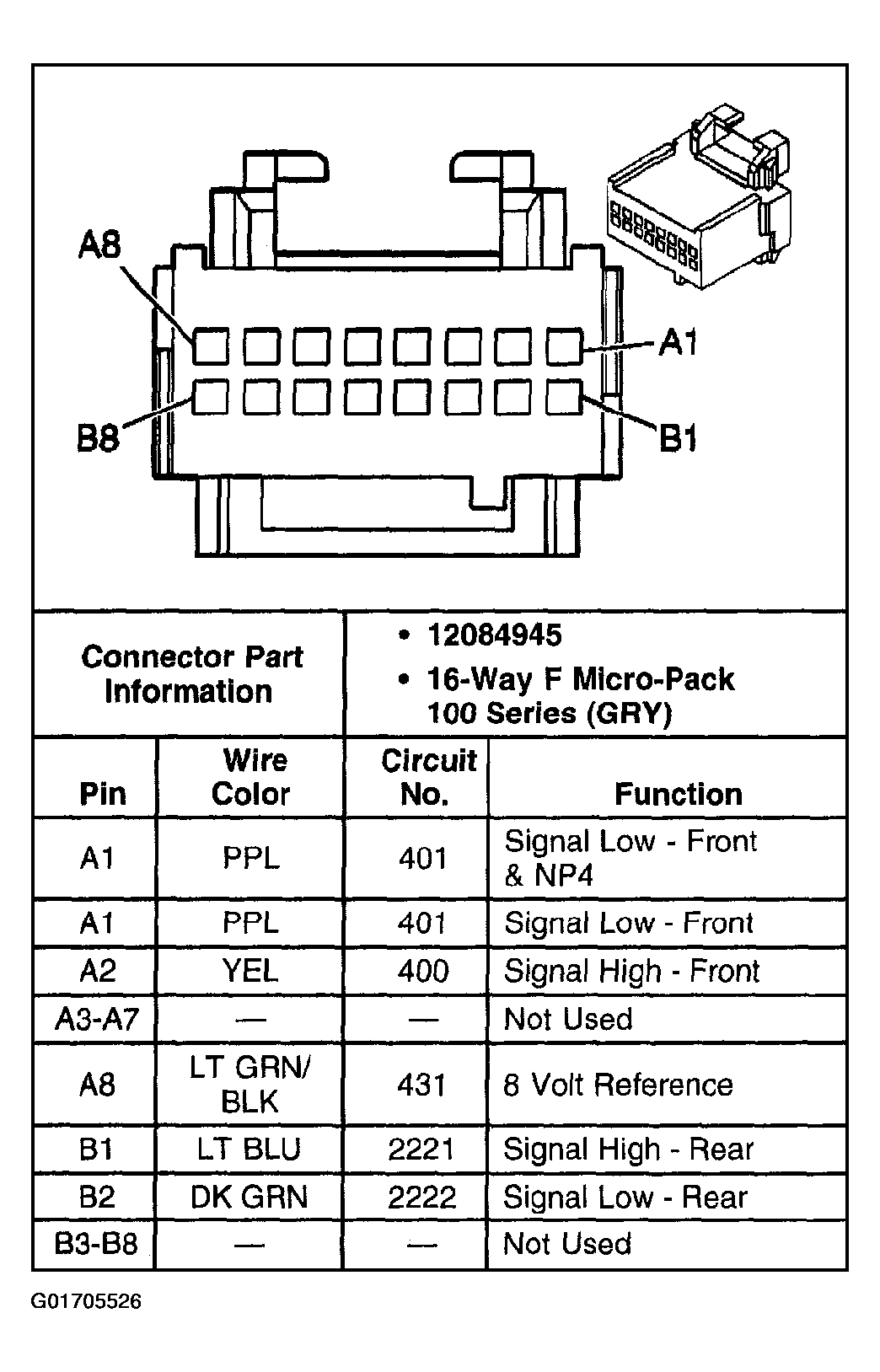

Fig 1: Transfer Case Shift Control Module - C2
G01705526Courtesy of GENERAL MOTORS CORP.

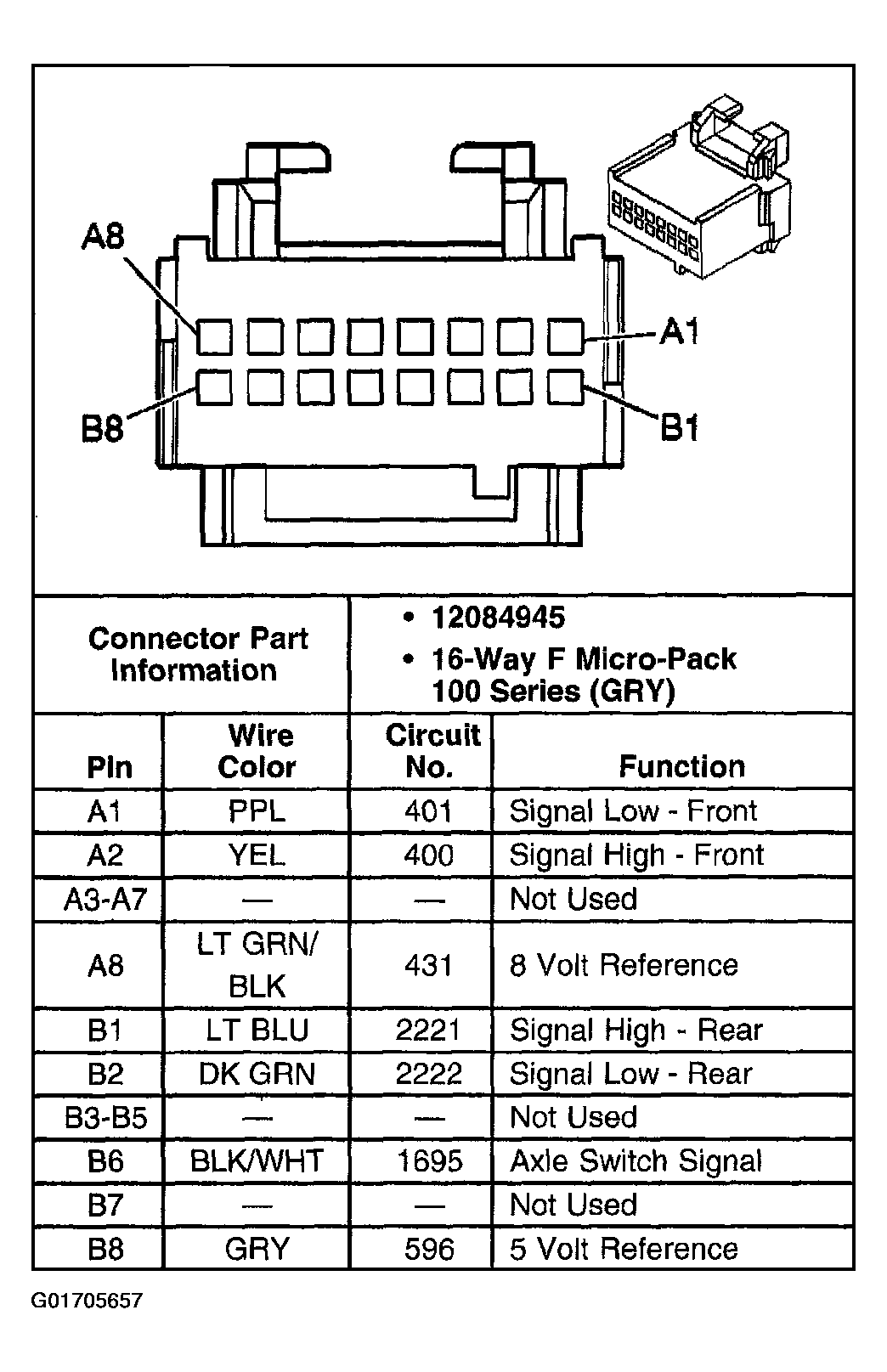

Fig 1: Transfer Case Shift Control Module - C2
G01705657Courtesy of GENERAL MOTORS CORP.
