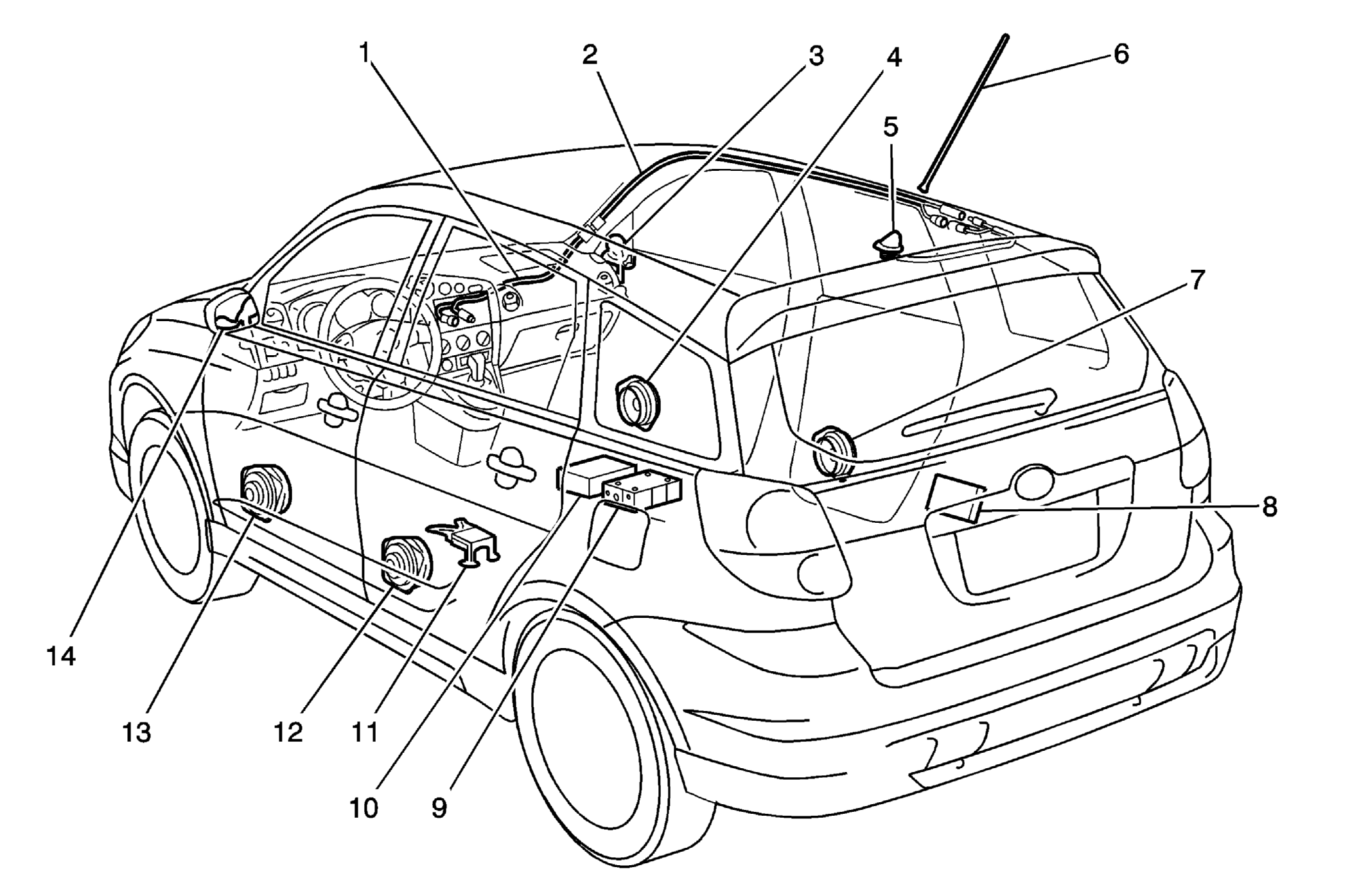

Entertainment Component Views
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Radio Antenna Front Harness |
| 2 | Radio Antenna Rear Harness |
| 3 | Front RH Door Upper Speaker |
| 4 | Front RH Door Lower Speaker |
| 5 | Antenna Base Assembly |
| 6 | Antenna Mast |
| 7 | Rear RH Door Speaker |
| 8 | XM Radio Digital Radio Reciever |
| 9 | Amplifier Module |
| 10 | Disc Player/Changer |
| 11 | Voltage Inverter Assembly |
| 12 | Rear LH Door Speaker |
| 13 | Front LH Door Lower Speaker |
| 14 | Front LH Door Upper Speaker |
