Cellular Communication Connector End Views

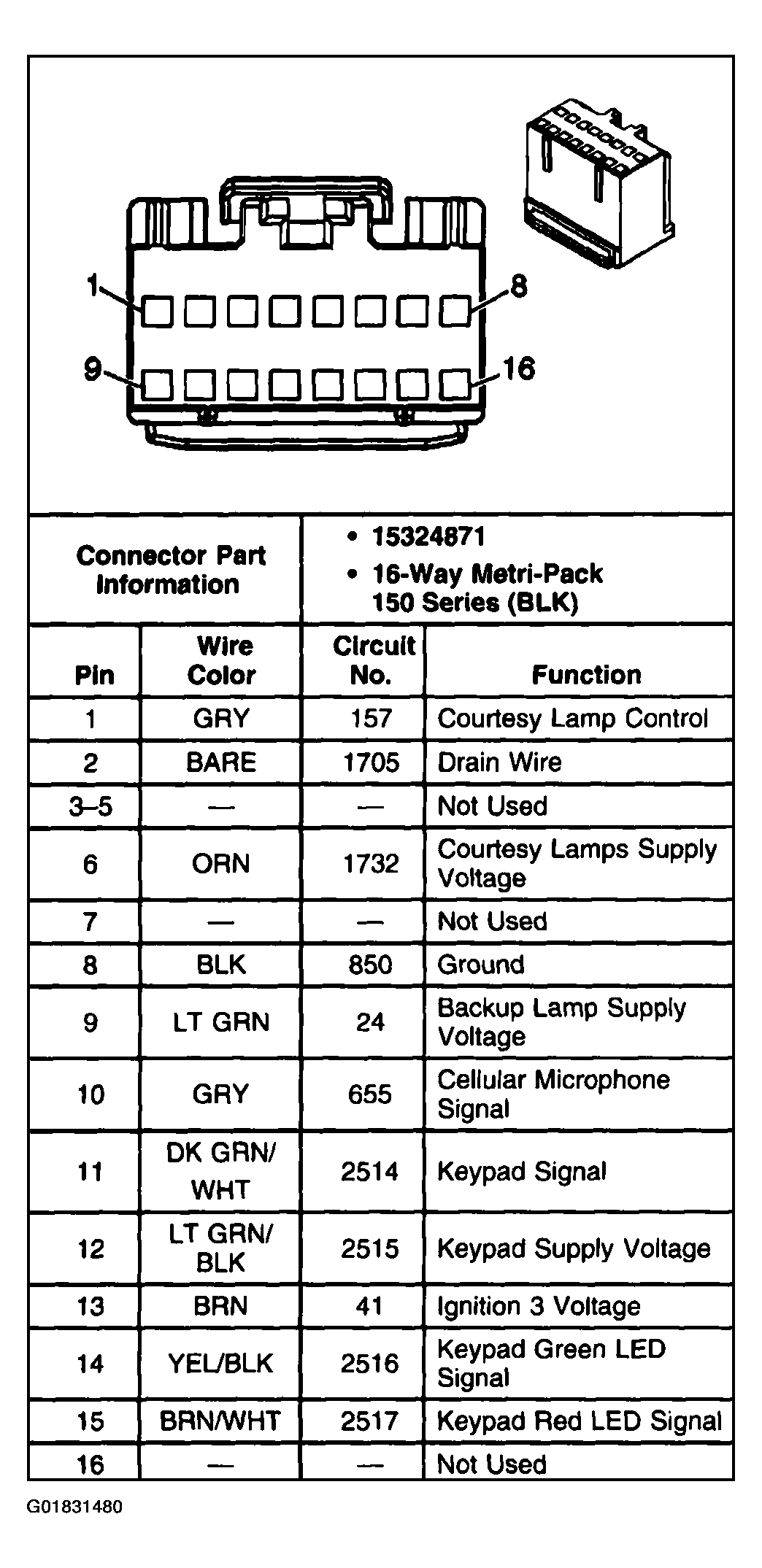

Fig 1: Inside Rearview Mirror (W/UE1) Connector End View
G01831480Courtesy of GENERAL MOTORS CORP.
Fig 2: OnStar Module C1 Connector End View
G01831481Courtesy of GENERAL MOTORS CORP.

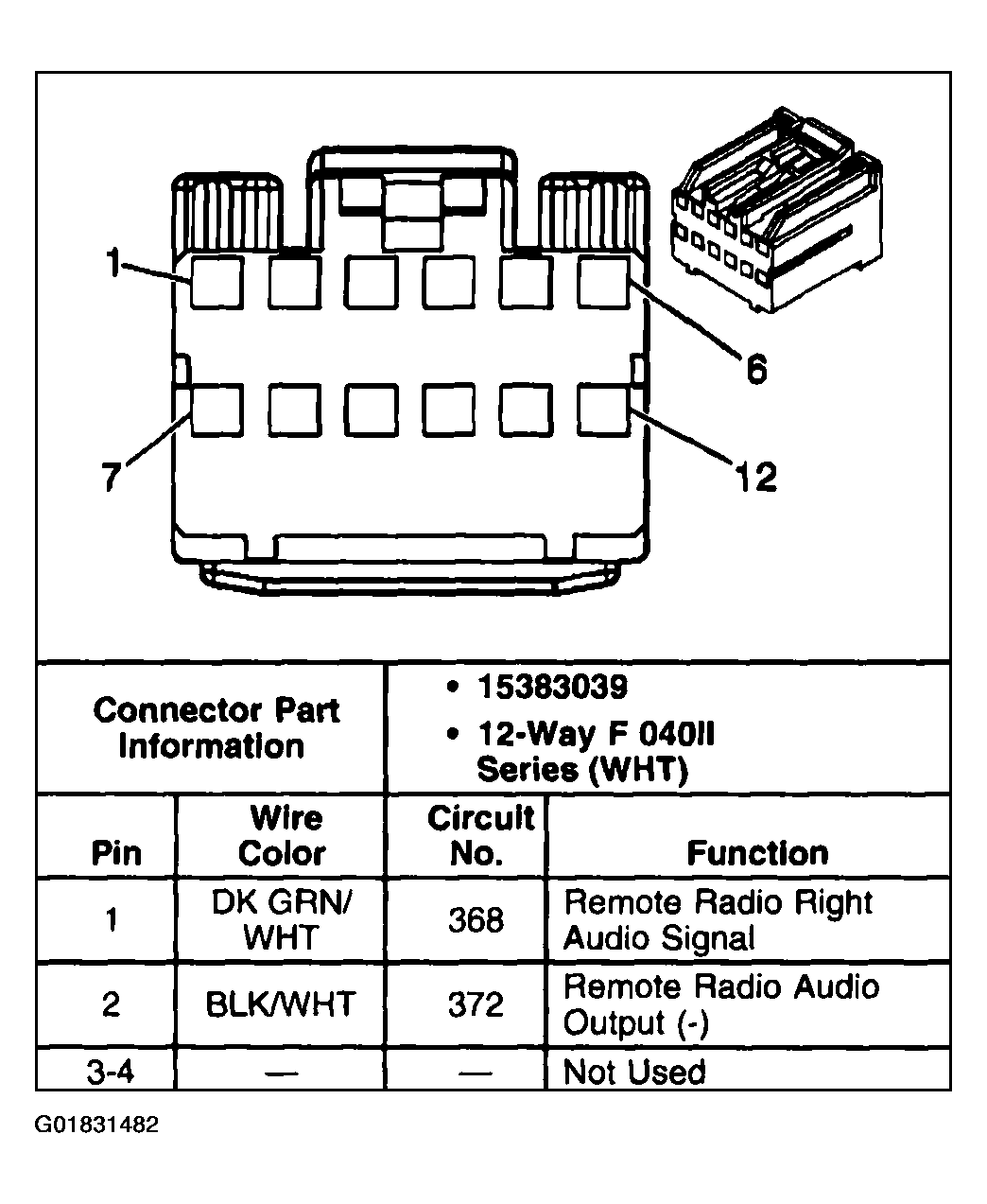

Fig 3: OnStar Module C2 (1 Of 2) Connector End View
G01831482Courtesy of GENERAL MOTORS CORP.

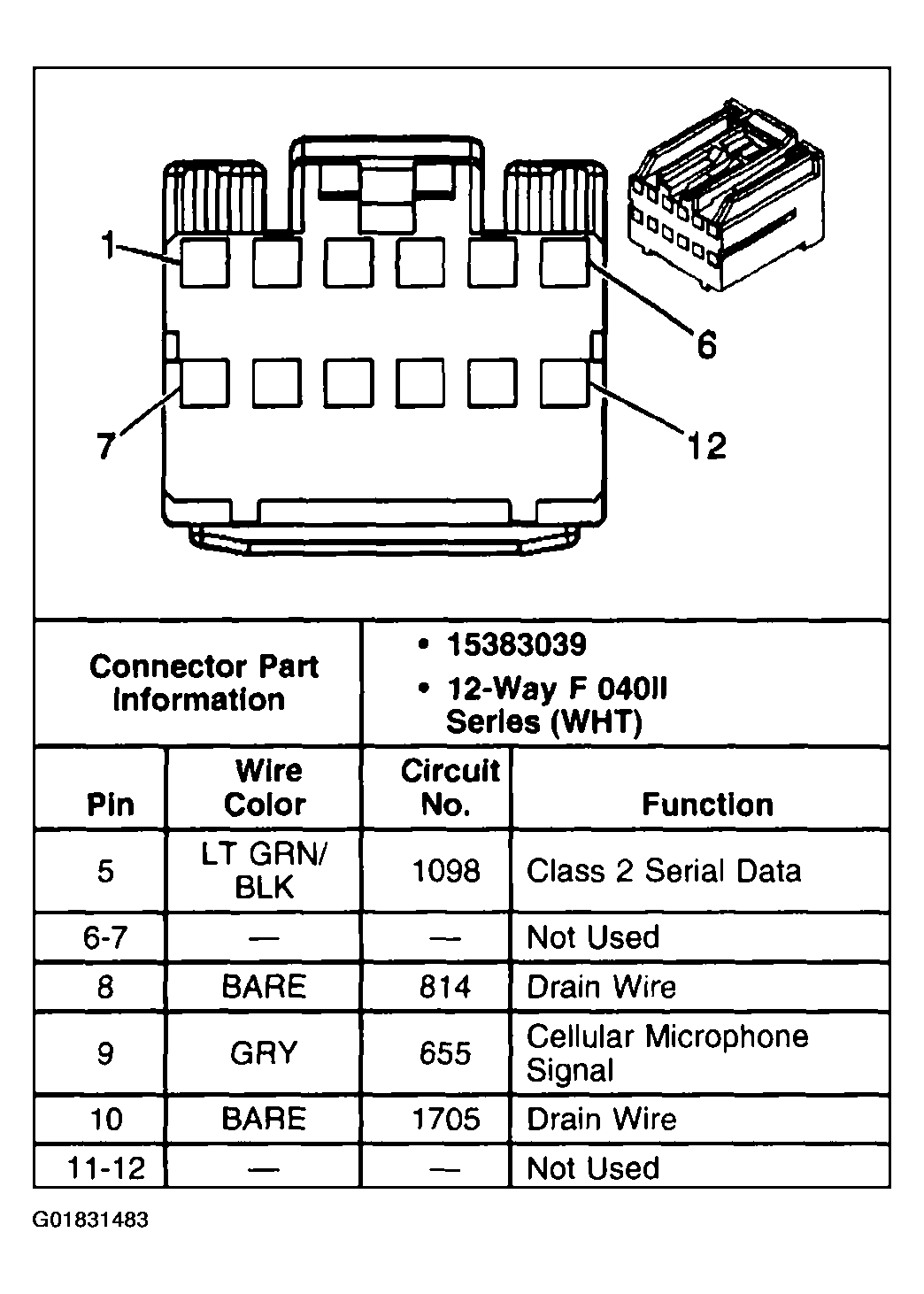

Fig 4: OnStar Module C2 (2 Of 2) Connector End View
G01831483Courtesy of GENERAL MOTORS CORP.
