Instrument Panel Fuse Block
NOTE:

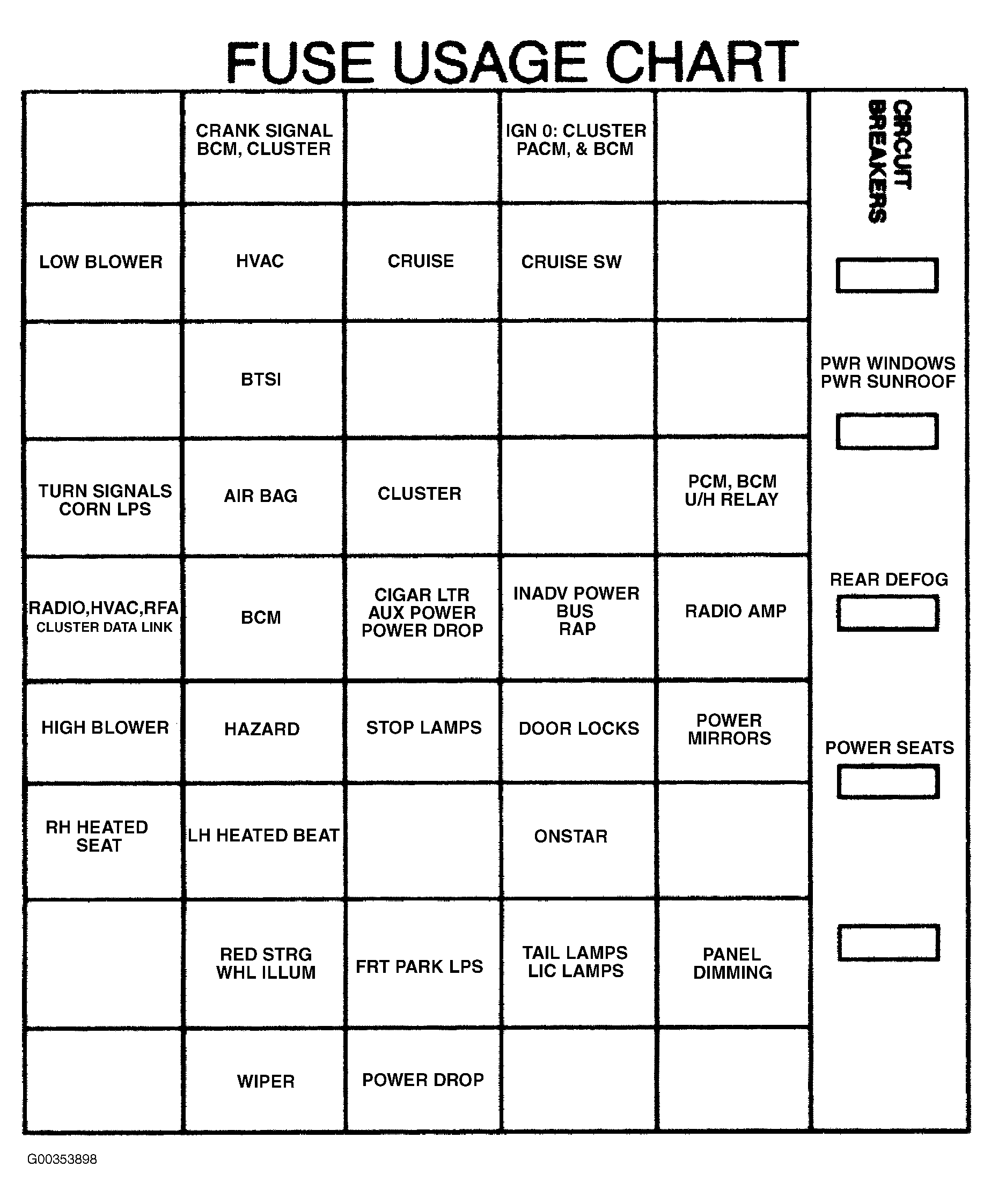

Instrument panel fuse block is located on passenger's side end of instrument panel. See Fig 1.
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION
| Fuse | Description |
|---|---|
| NOT USED | Not Used |
| CRANK SIGNAL BCM, CLUSTER | CRANK - Instrument Panel Cluster, Body Control Module, Body Control Module |
| NOT USED | Not Used |
| IGN 0: CLUSTER PCM, & BCM | Instrument Panel Cluster, Powertrain Control Module, Body Control |
| NOT USED | Not Used |
| LOW BLOWER | HVAC Control Assembly, Blower Motor |
| HVAC | Air Temperature Valve Motor, HVAC Control Assembly, Solenoid Box, Compass Mirror |
| CRUISE | Cruise Control Module |
| NOT USED | Not Used |
| NOT USED | Not Used |
| NOT USED | Not Used |
| BTSI | Automatic Transaxle Shift Lock Control System |
| NOT USED | Not Used |
| NOT USED | Not Used |
| NOT USED | Not Used |
| TURN SIGNALS, CORN LPS | Turn Signals, Cornering Lamps |
| AIR BAG | Air Bag System |
| CLUSTER | Instrument Panel Cluster |
| NOT USED | Not Used |
| PCM, BCM, U/H RELAY | Powertrain Control Module, Body Control Module, Underhood Ignition/Relay |
| RADIO, HVAC, RFA CLUSTER, DATA LINK | Radio, HVAC Control Assembly, Instrument Panel Cluster, Remote Keyless Entry Module, Data Link Connector, Bose Amplifier |
| BCM | Body Control Module |
| CIGAR LTR, AUX POWER | Auxiliary Power, Cigarette Lighter, Power Drop |
| INADV POWER BUS | Vanity Mirrors, Instrument Panel Courtesy Lamps, Instrument Panel Compartment Lamps, Trunk Courtesy Lamp, Header Courtesy and Reading Lamps, I/S Lighted Rearview Mirror |
| NOT USED | Not Used |
| HIGH BLOWER | High Blower Relay |
| HAZARD | Hazard Switch |
| STOP LAMPS | Stoplamps Switch |
| DOOR LOCKS | Door Lock Relays (Internal to Body Control Module) and External Driver Door Lock Relay |
| POWER | Left-hand and Right-hand |
| MIRRORS | Power Mirrors |
| RH HEATED SEAT | Passenger's Side Heated Seat |
| LH HEATED SEAT | Driver's Side Heated Seat |
| NOT USED | Not Used |
| ONSTAR | OnStar® System |
| NOT USED | Not Used |
| NOT USED | Not Used |
| RED STRG | Steering Wheel Radio |
| WHL ILLUM | Switch Illumination |
| FRT PARK LPS | Front Parking Lamps, Sidemarker Lamps |
| TAIL LAMPS, LIC LAMPS | Taillamps, License Lamps, Rear Sidemarker Lamps, Rear Sidemarker Lamps |
| PANEL DIMMING | Dimmable Instrument Panel Lamps |
| NOT USED | Not Used |
| WIPER | Wiper Switch |
| POWER DROP | Power Drop |
| RADIO, CRUISE | Radio, Steering Wheel Radio Controls, Cruise Control Switches |
| NOT USED | Not Used |
| Circuit Breaker | Description |
| NOT USED | Not Used |
| PWR WINDOWS, PWR SUNROOF | Power Windows, Power Sunroof |
| REAR DEFOG | Rear Defog |
| POWER SEATS | Power Seats |
| NOT USED | Not Used |
