Disassembled Views

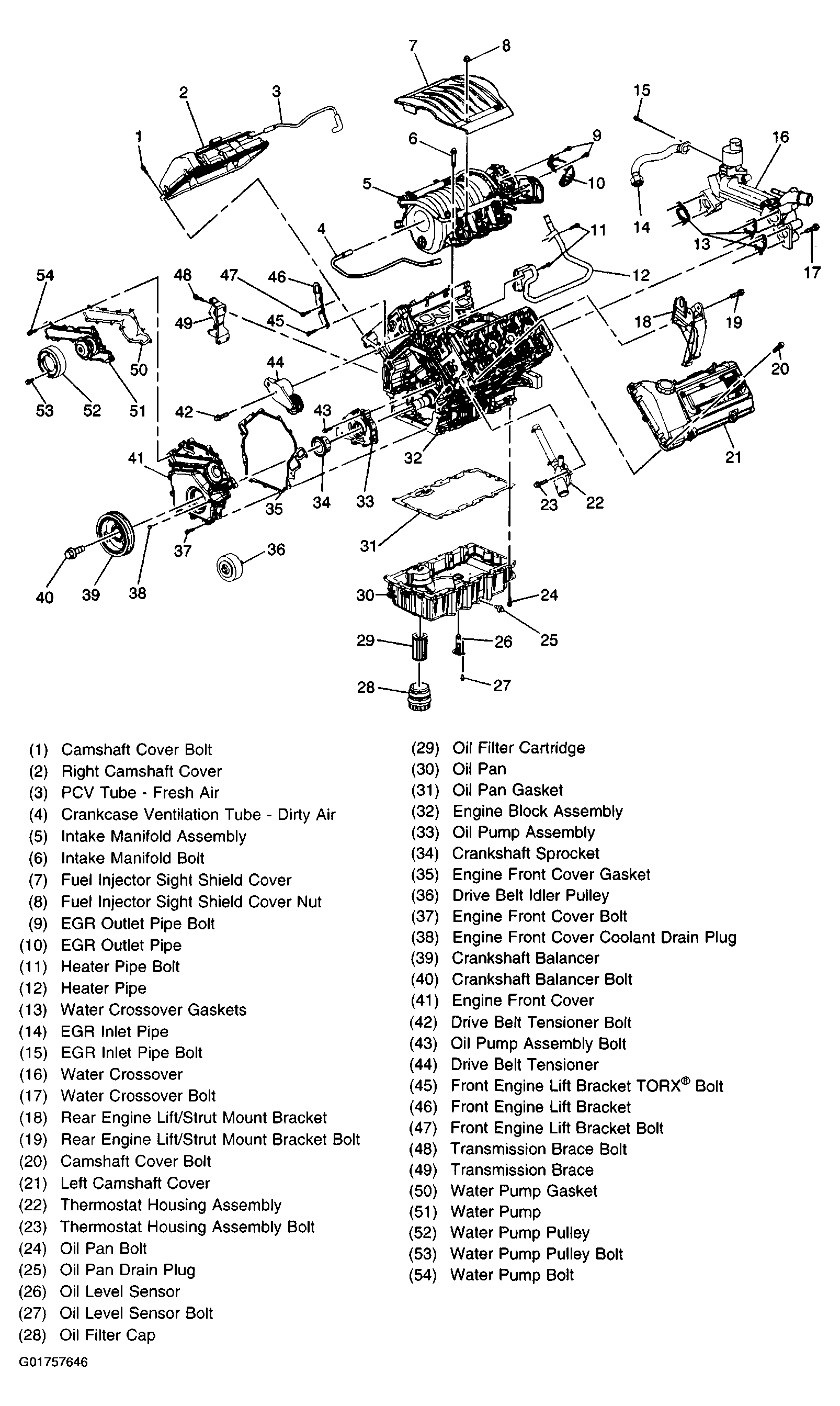

Fig 1: Engine Covers And Components Assemblies (1 Of 2)

Fig 2: Engine Covers And Components Assemblies (2 Of 2)

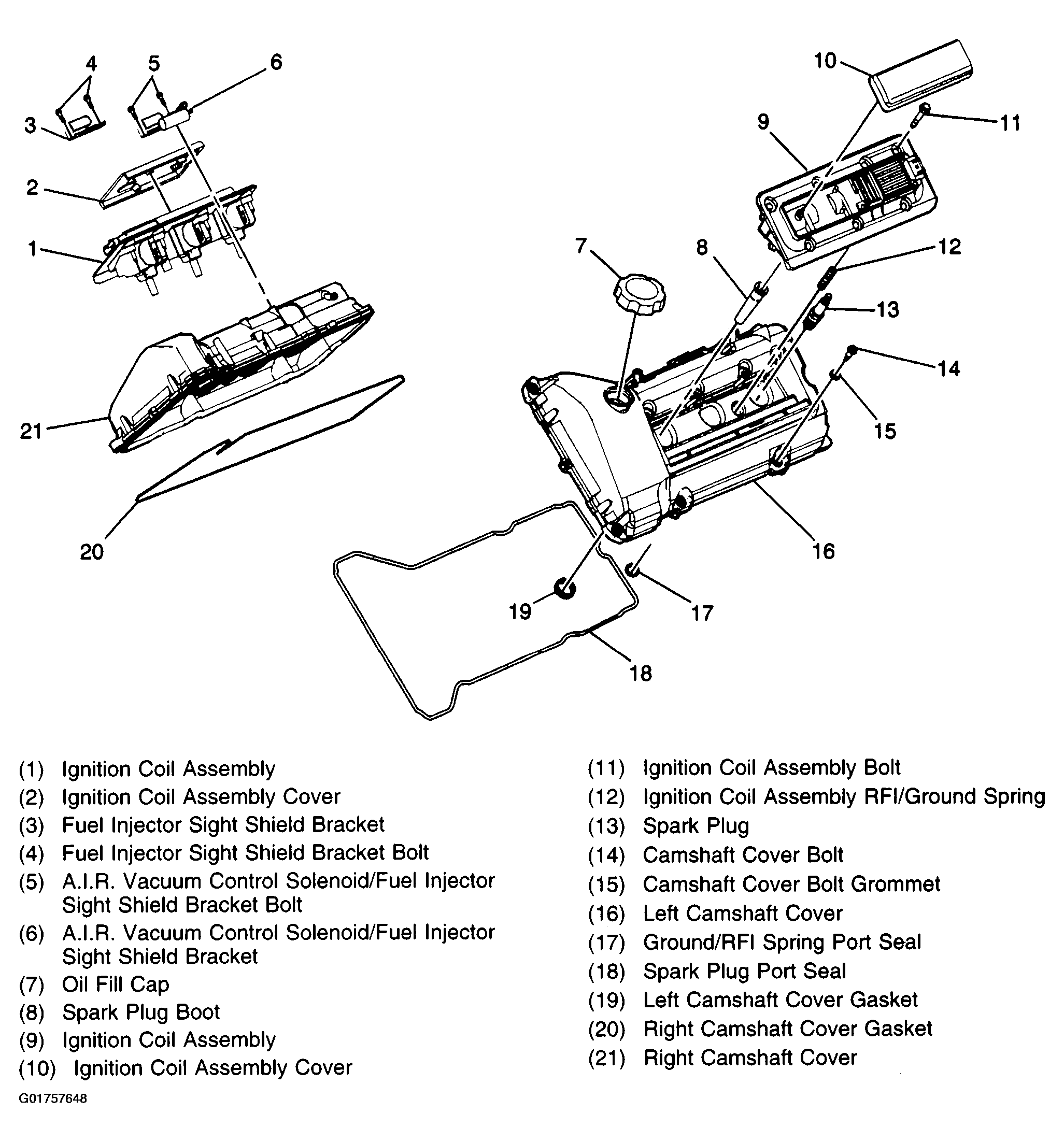

Fig 3: Camshaft Cover Assemblies

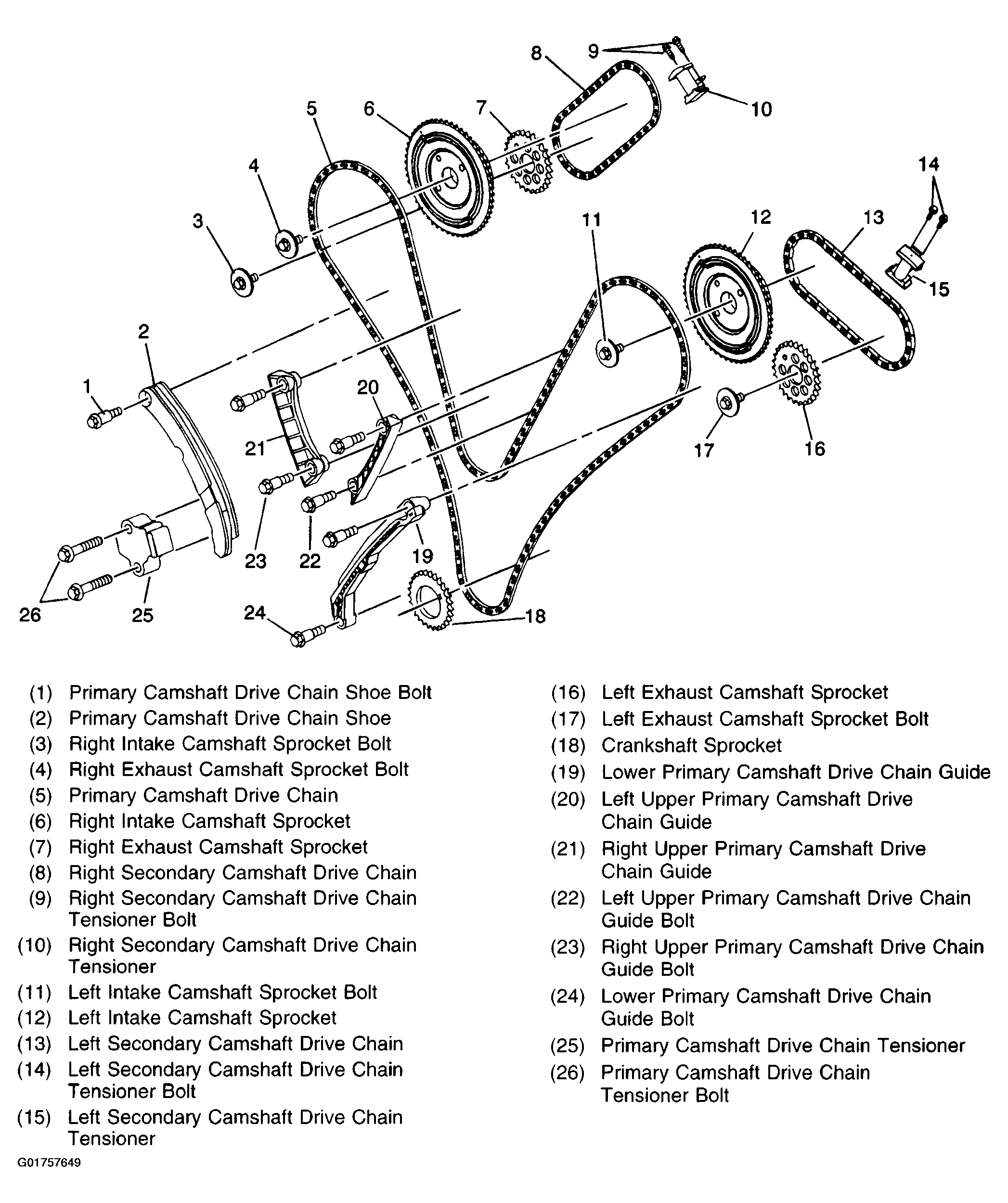

Fig 4: Camshaft Timing Components

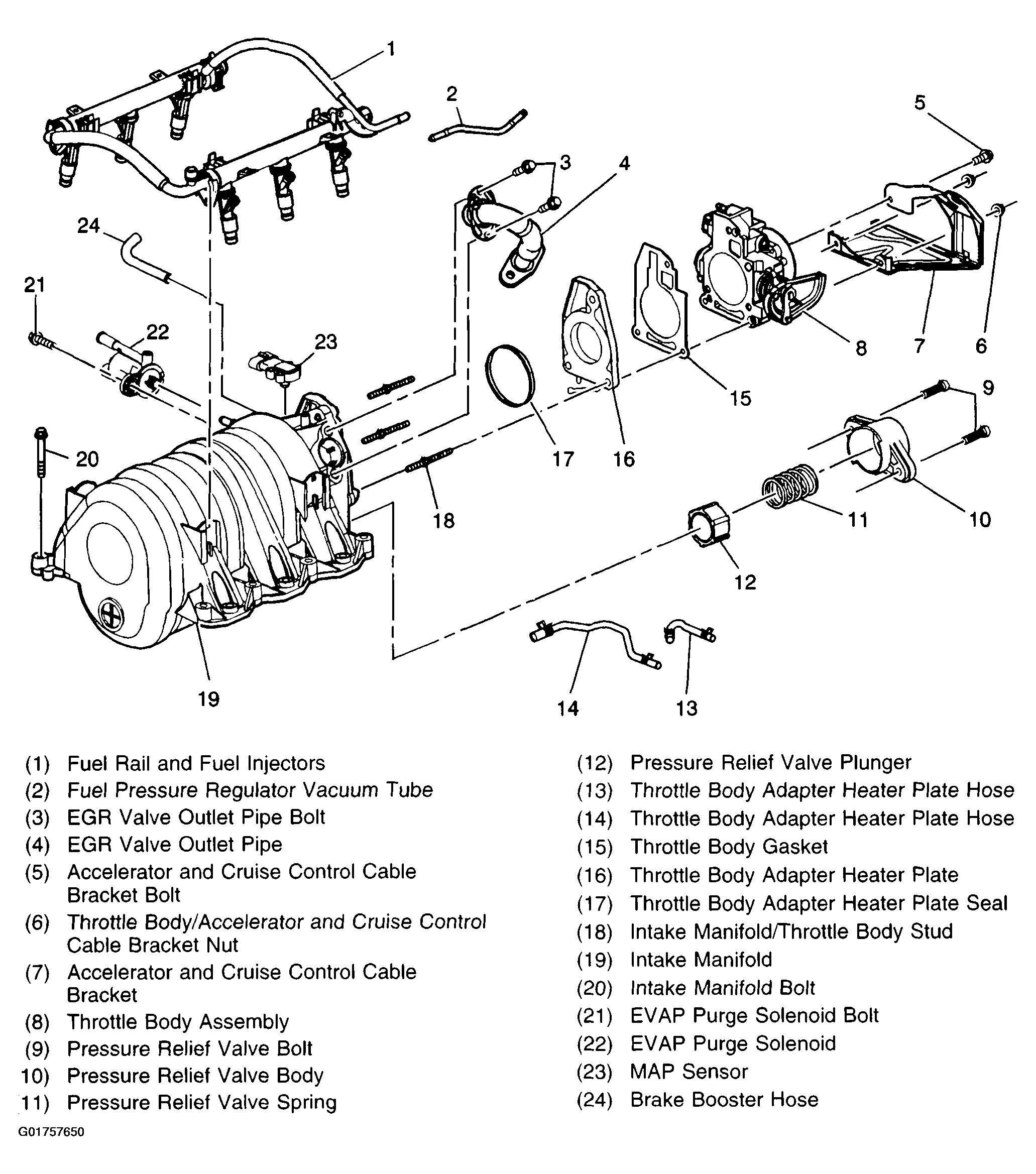

Fig 5: Intake Manifold and Fuel Components

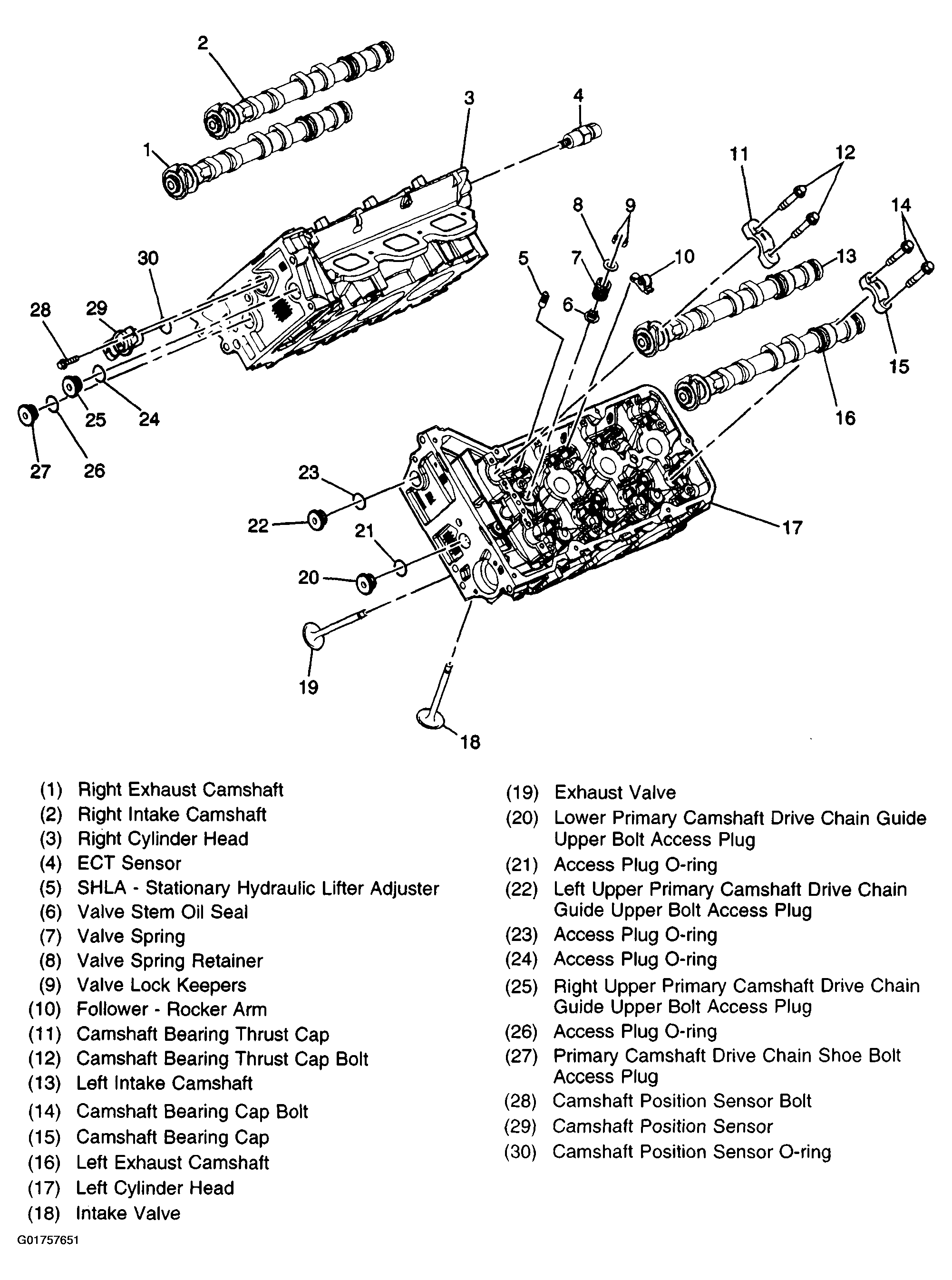

Fig 6: Cylinder Head Assemblies

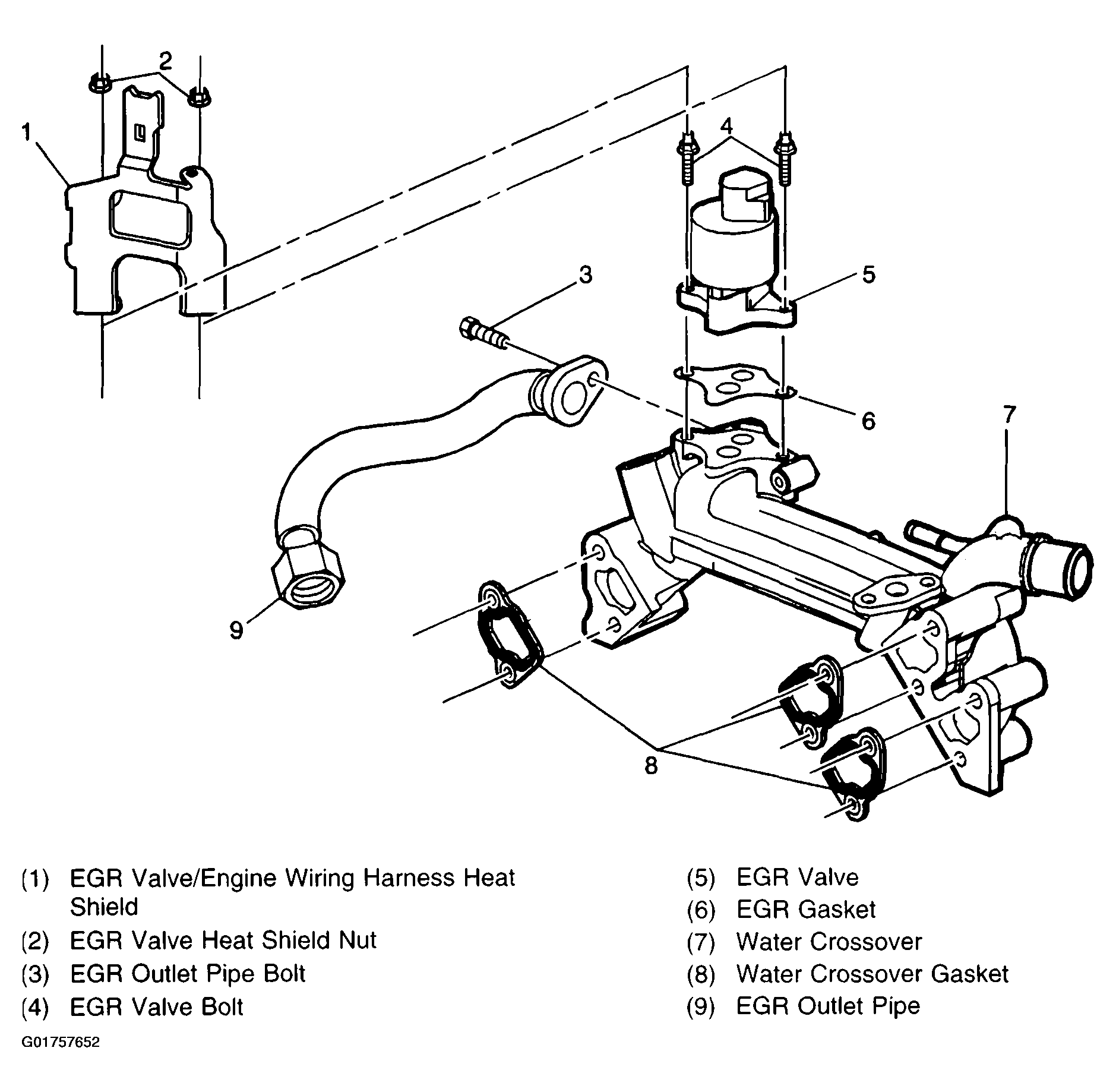

Fig 7: Water Crossover

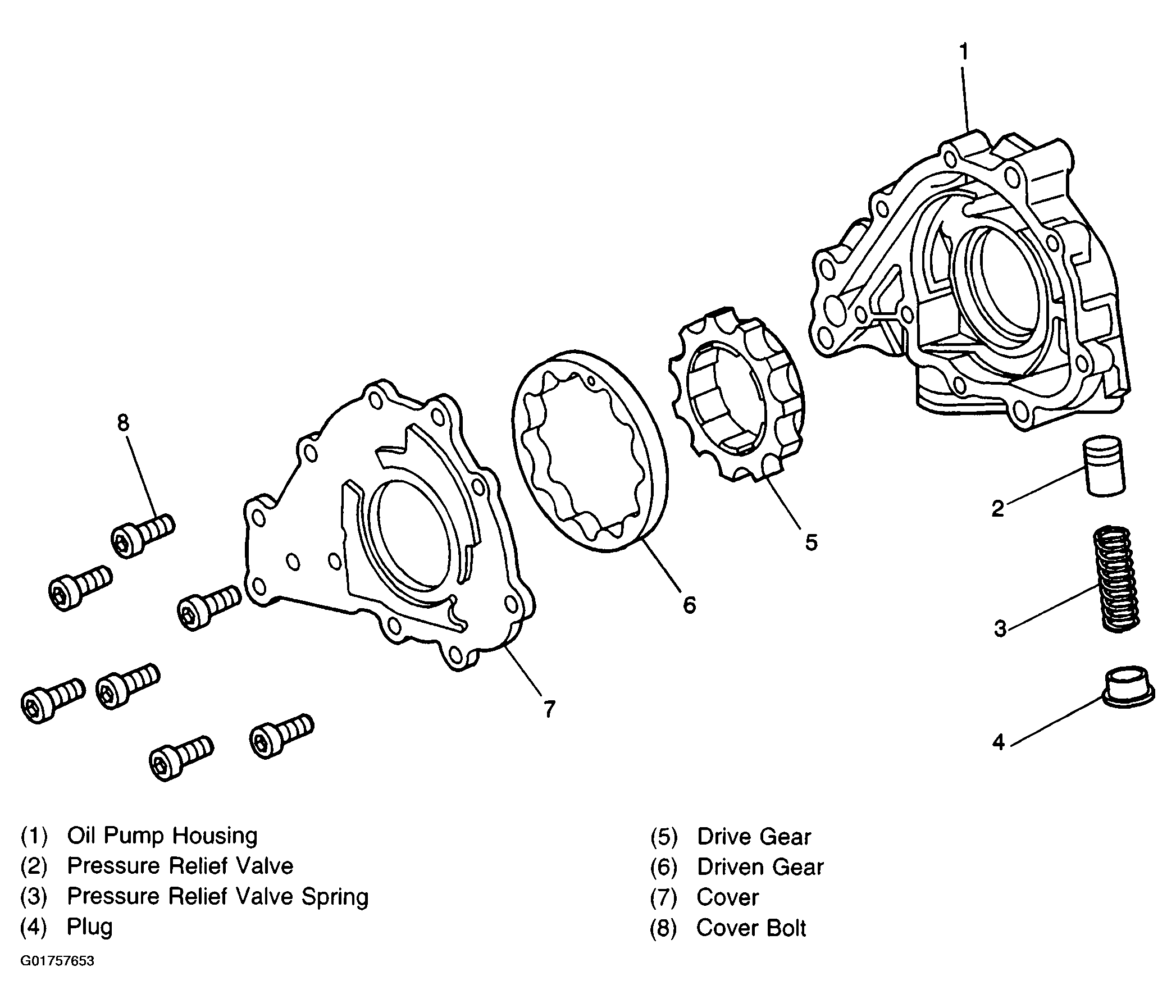

Fig 8: Oil Pump Assembly

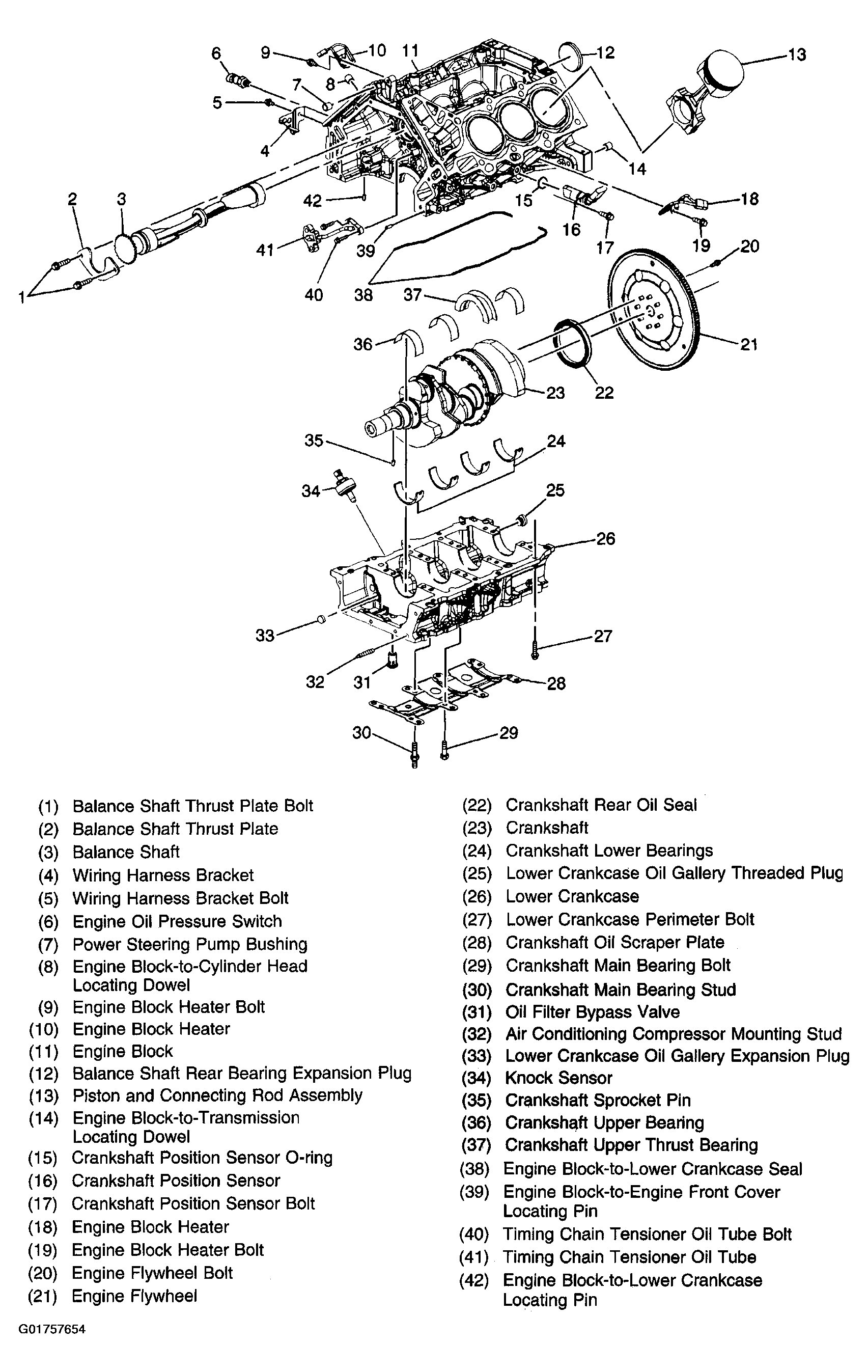

Fig 9: Engine Block Assembly

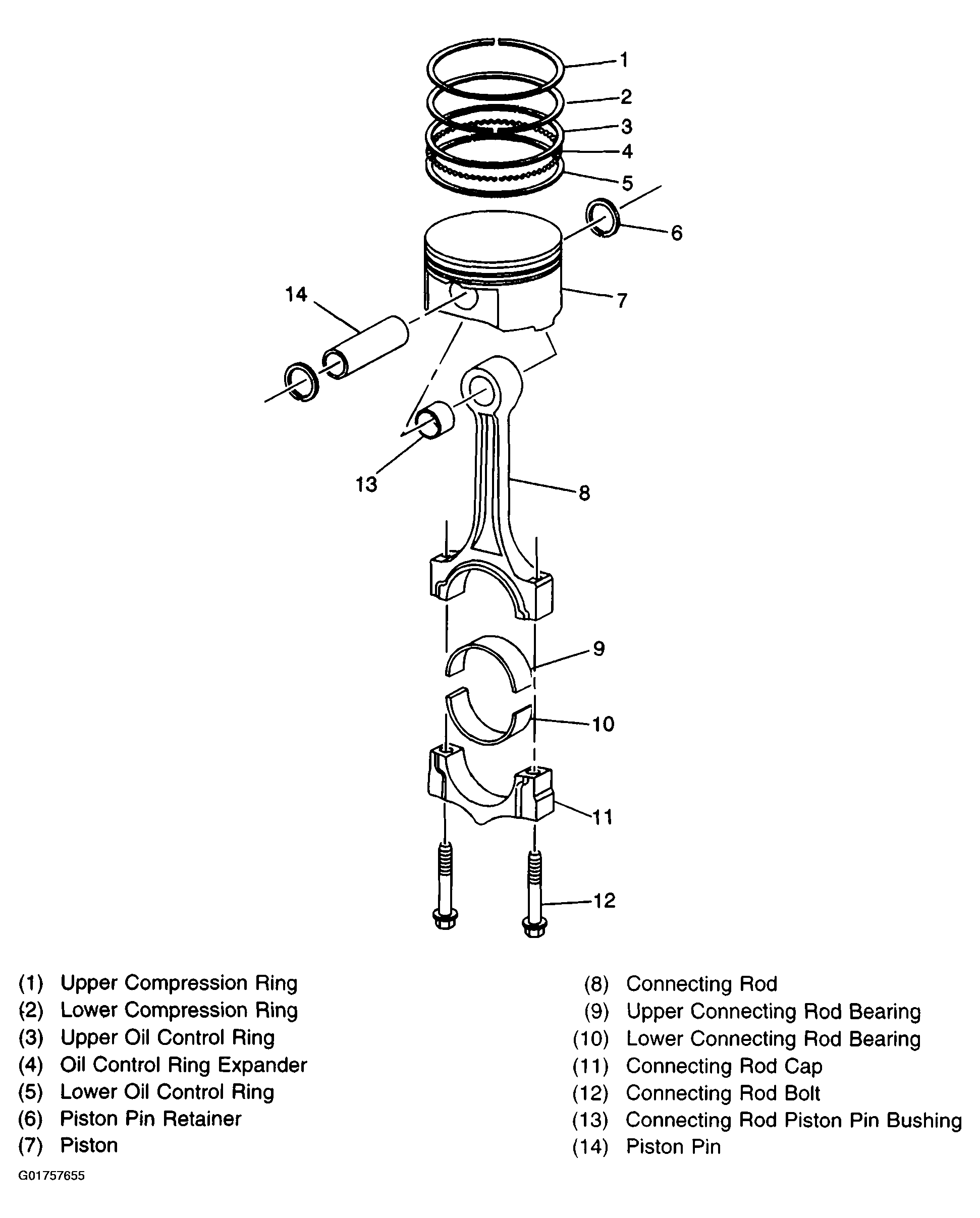

Fig 10: Piston, Rings, Bearing and Connecting Rod
