Ignition Module Installation - Left

  1. Press the spark plug boots onto the ignition coil assembly.

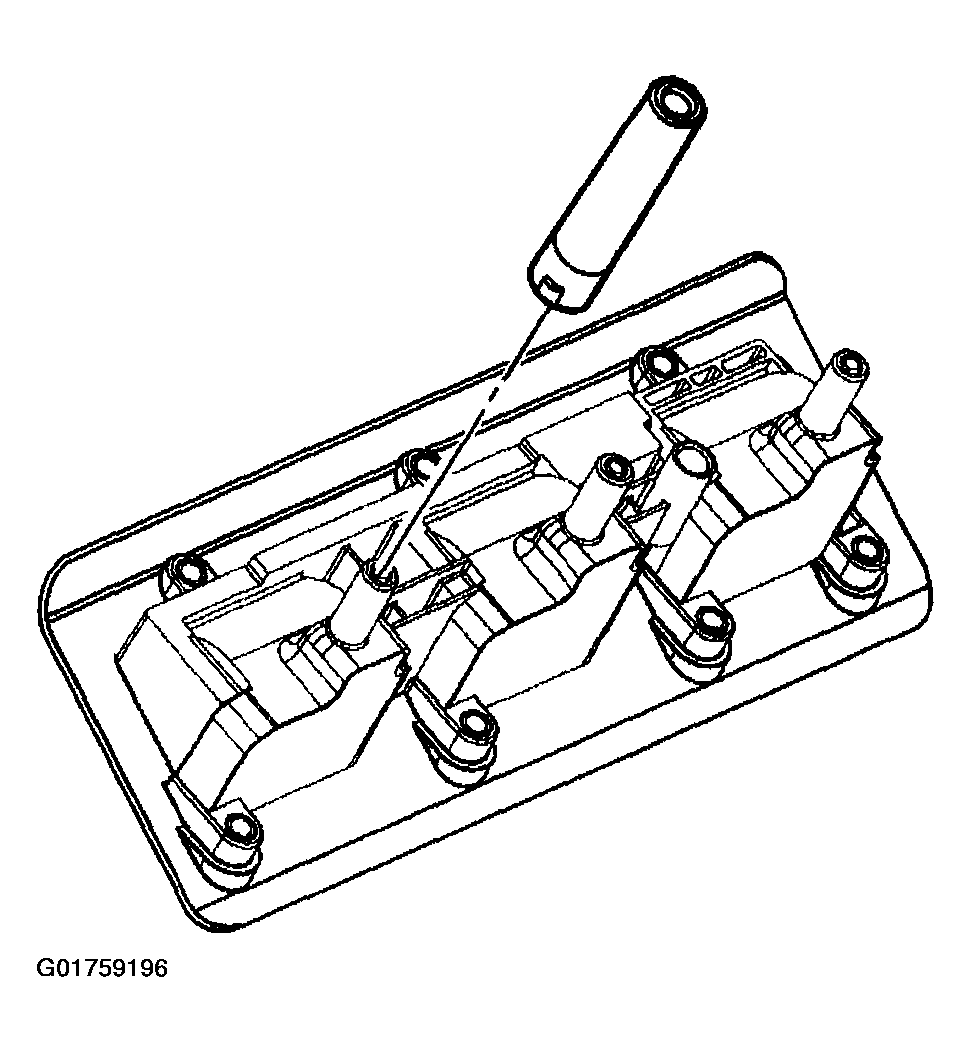

    Fig 1: Installing Spark Plug Boots Onto Ignition Coil Assembly (Left)
    G01759196
  2. Lower the ignition coil assembly into the camshaft cover valley. DO NOT damage the ignition coil assembly's perimeter seal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the ignition coil assembly bolts.

    Tighten

    Tighten the ignition coil assembly bolts to 9 N.m (80 lb in).

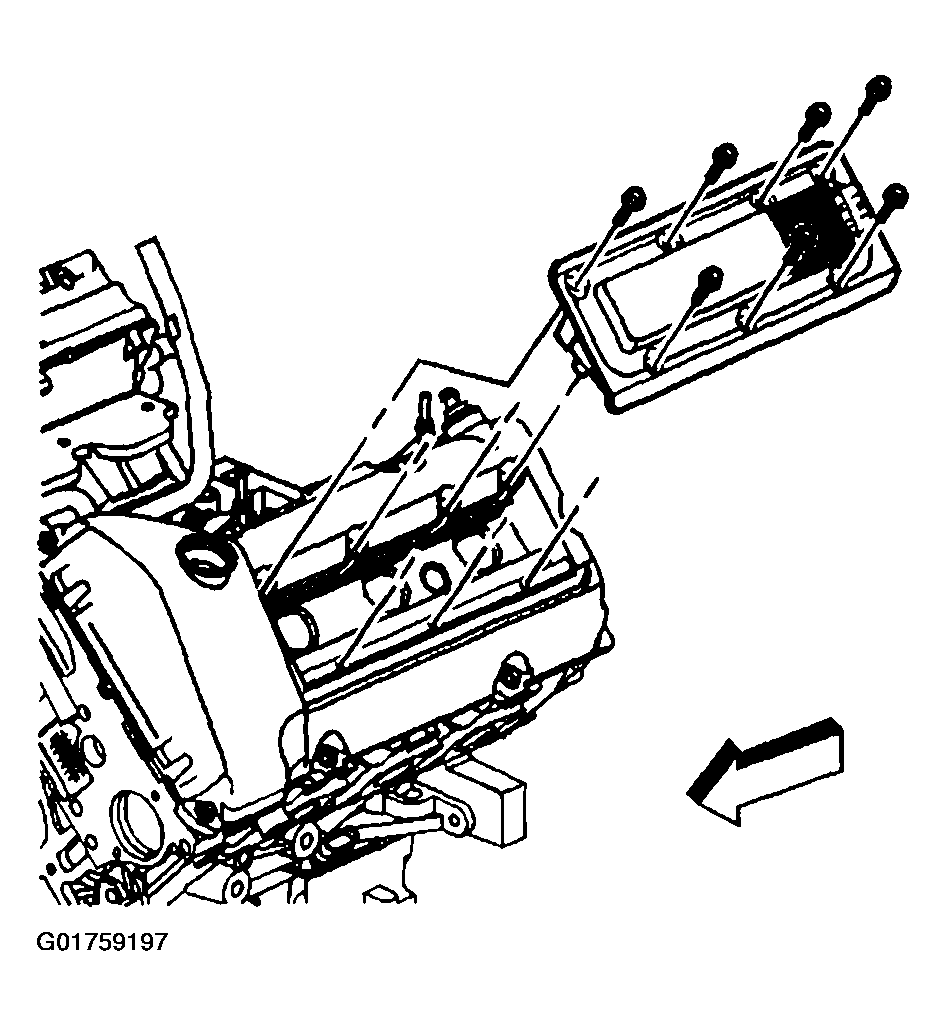

    Fig 2: Installing Ignition Coil Assembly And Bolts (Left)
    G01759197
