Disassembled Views

WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

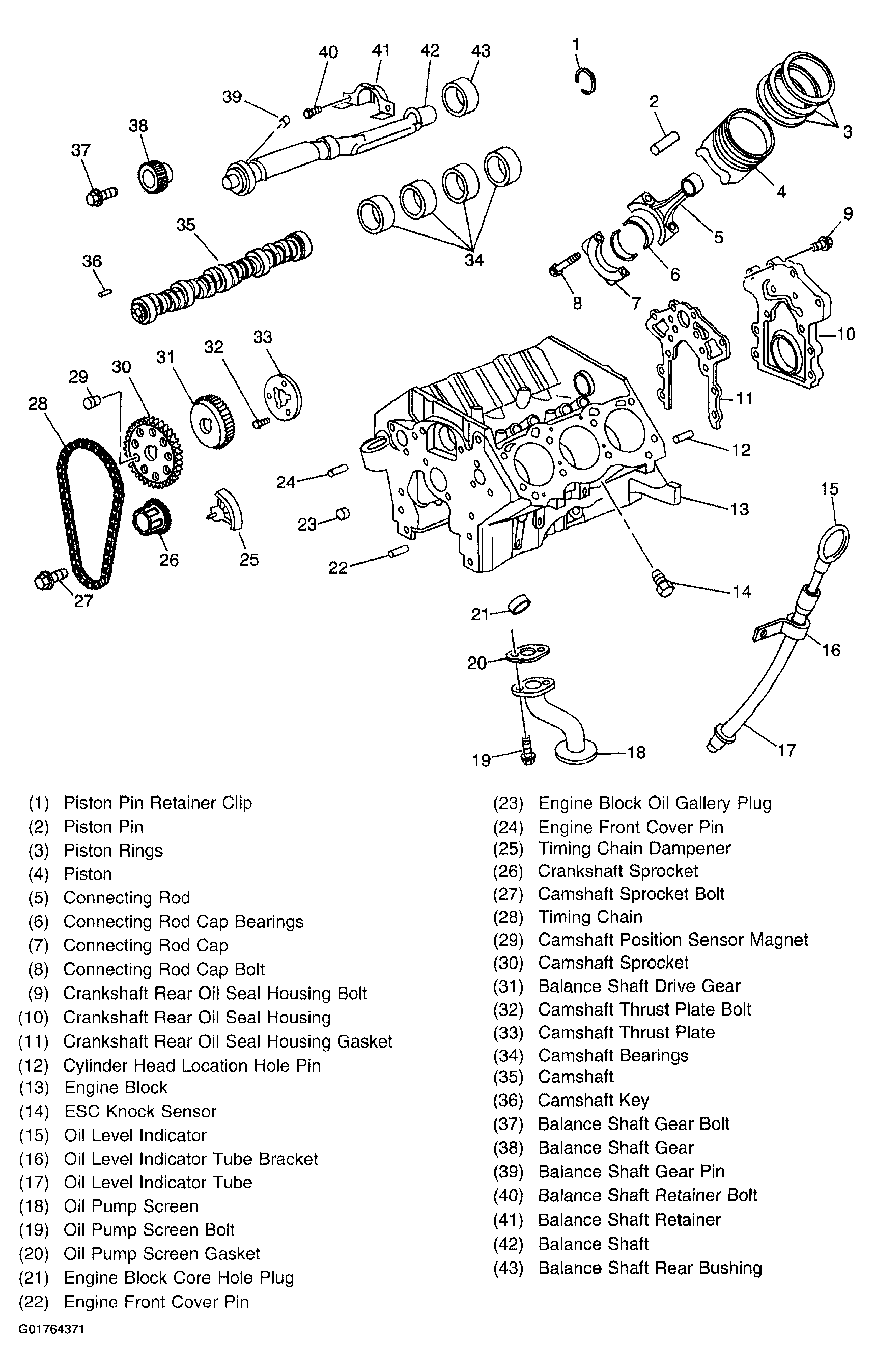

Fig 1: Engine Block and Components

Courtesy of GENERAL MOTORS CORP.

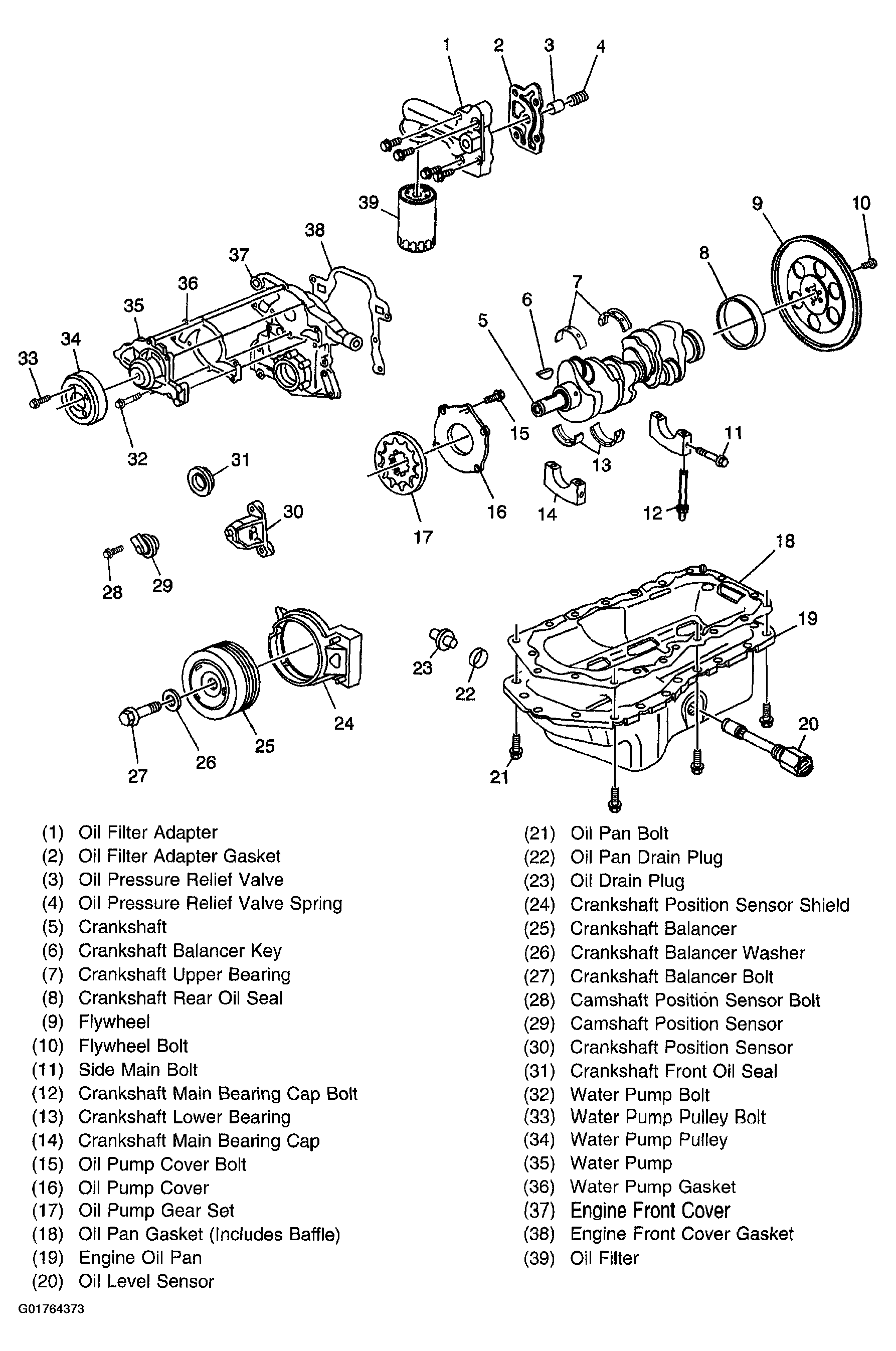

Fig 2: Crankshaft and Components

Courtesy of GENERAL MOTORS CORP.

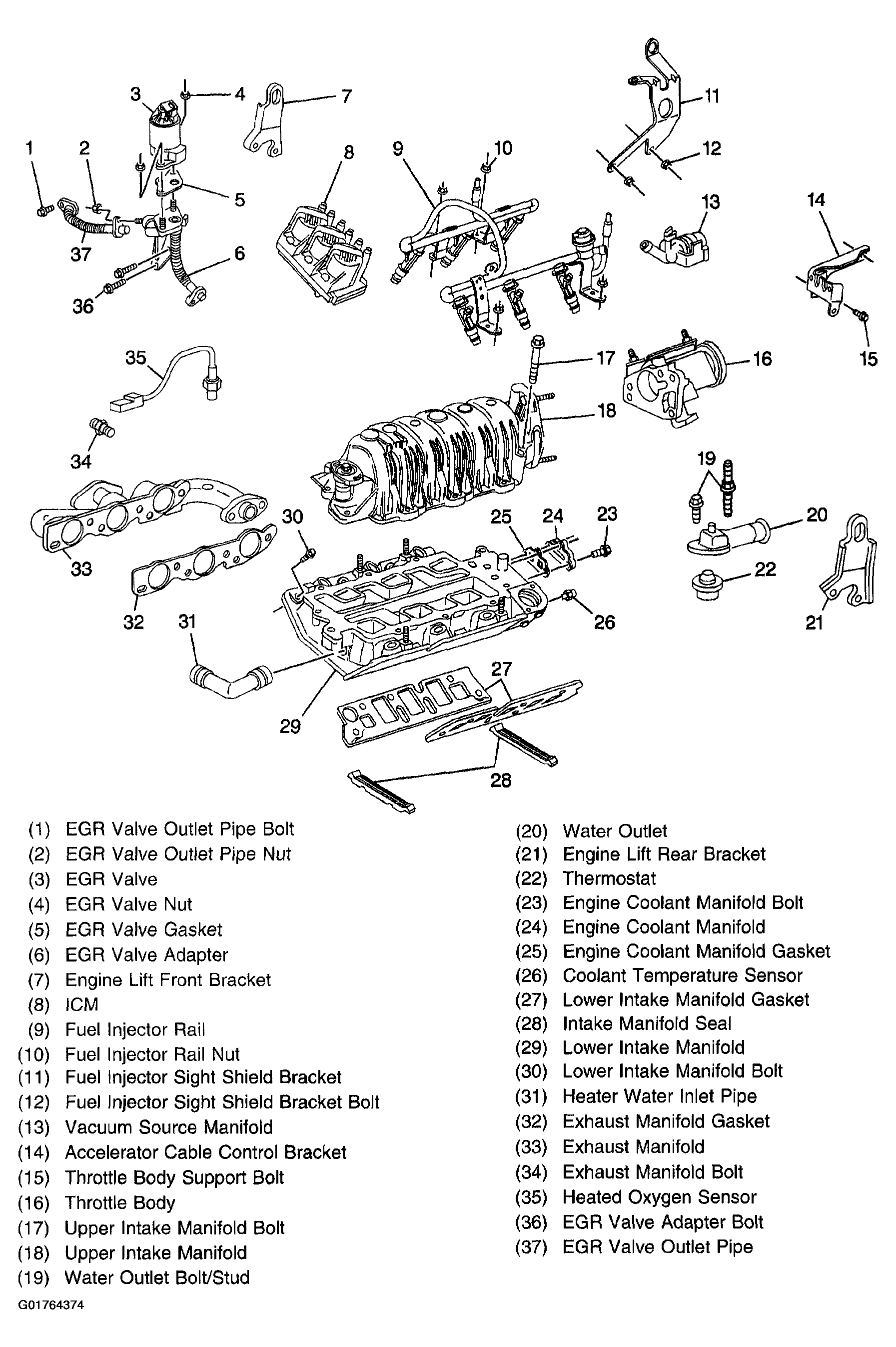

Fig 3: Intake Manifold and Components

Courtesy of GENERAL MOTORS CORP.

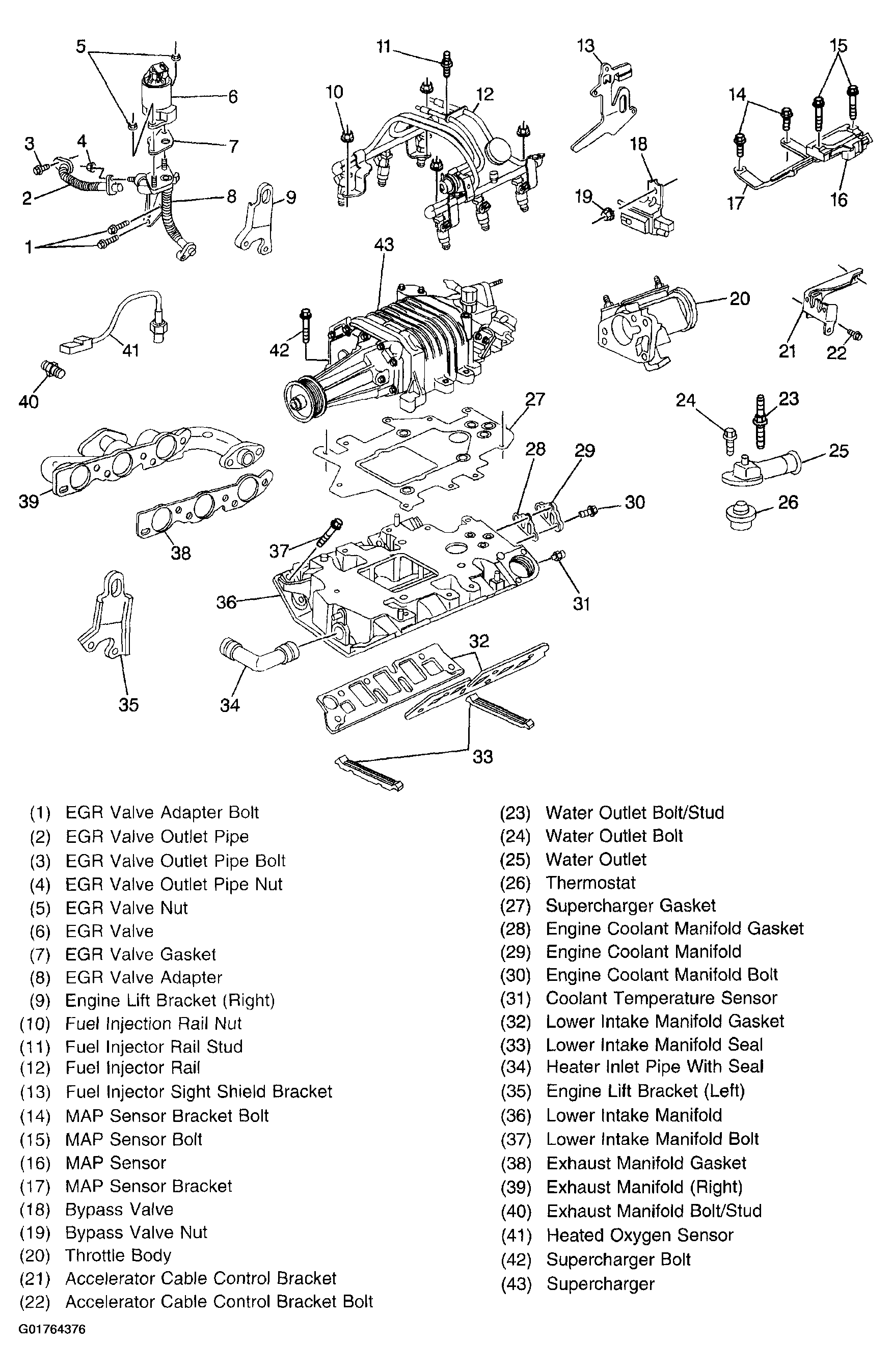

Fig 4: Supercharger and Components (L67)

Courtesy of GENERAL MOTORS CORP.

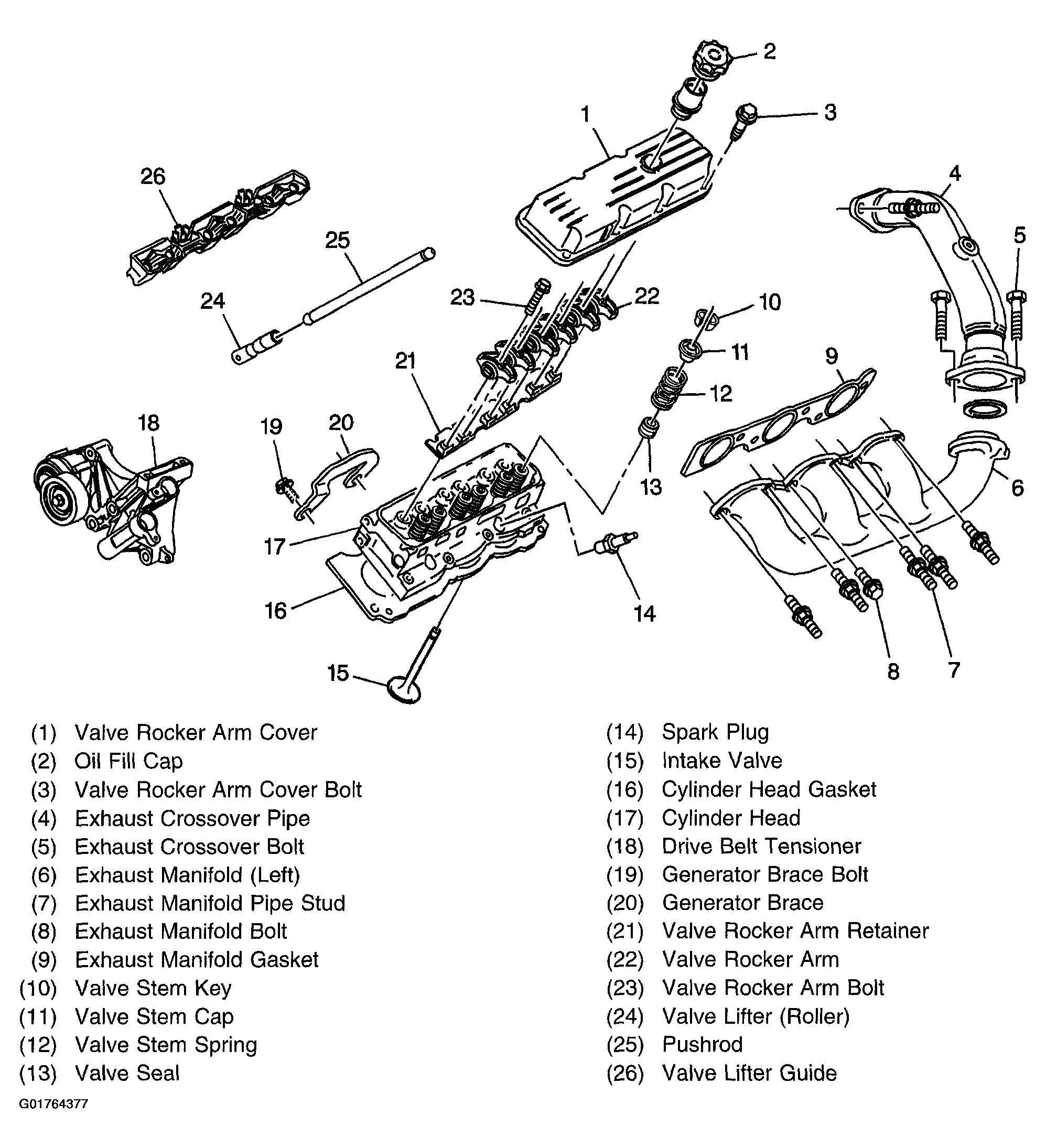

Fig 5: Cylinder Head and Components (L36)

Courtesy of GENERAL MOTORS CORP.

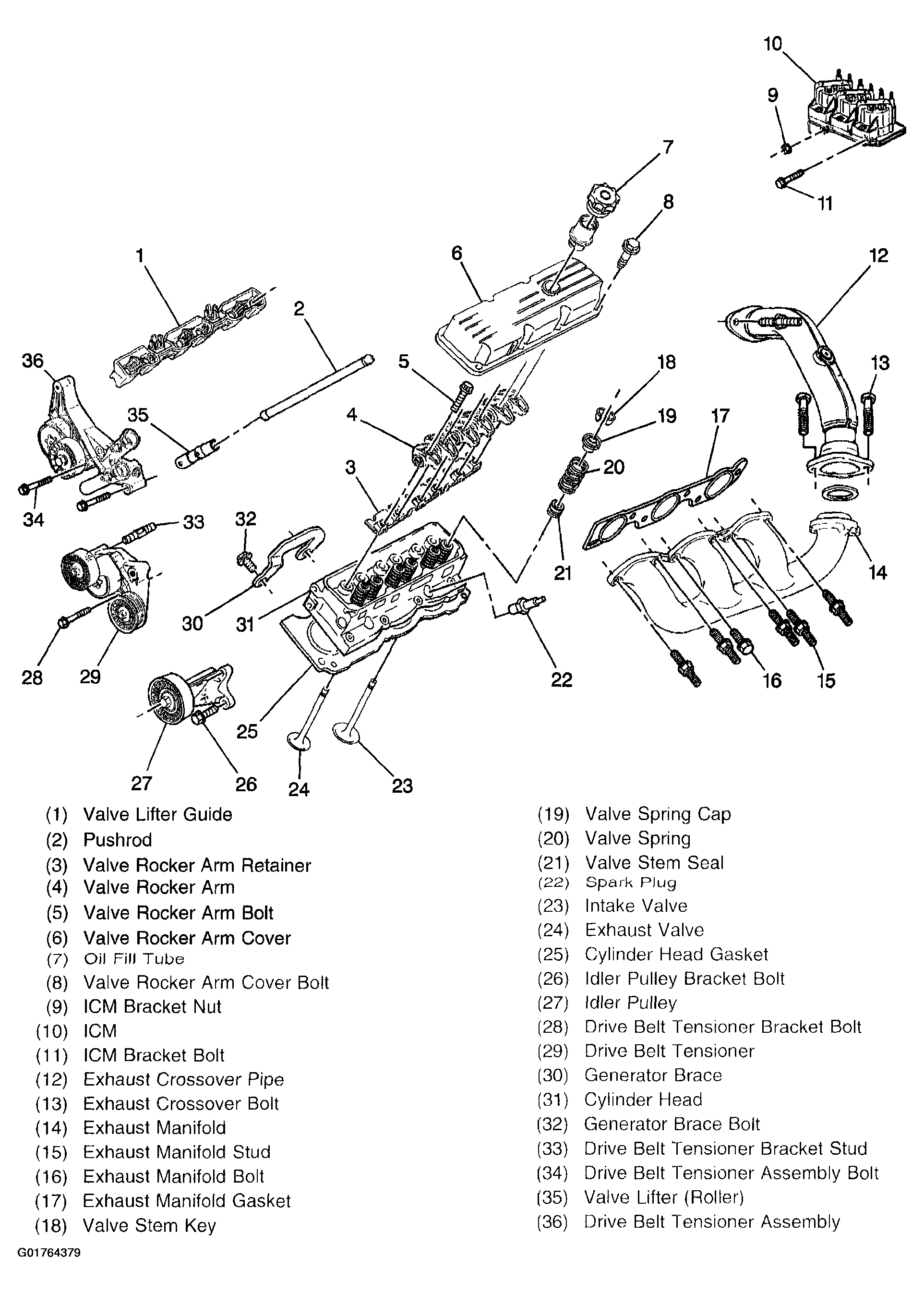

Fig 6: Cylinder Head and Components (L67)

Courtesy of GENERAL MOTORS CORP.
