Coolant Level Switch Connector End View

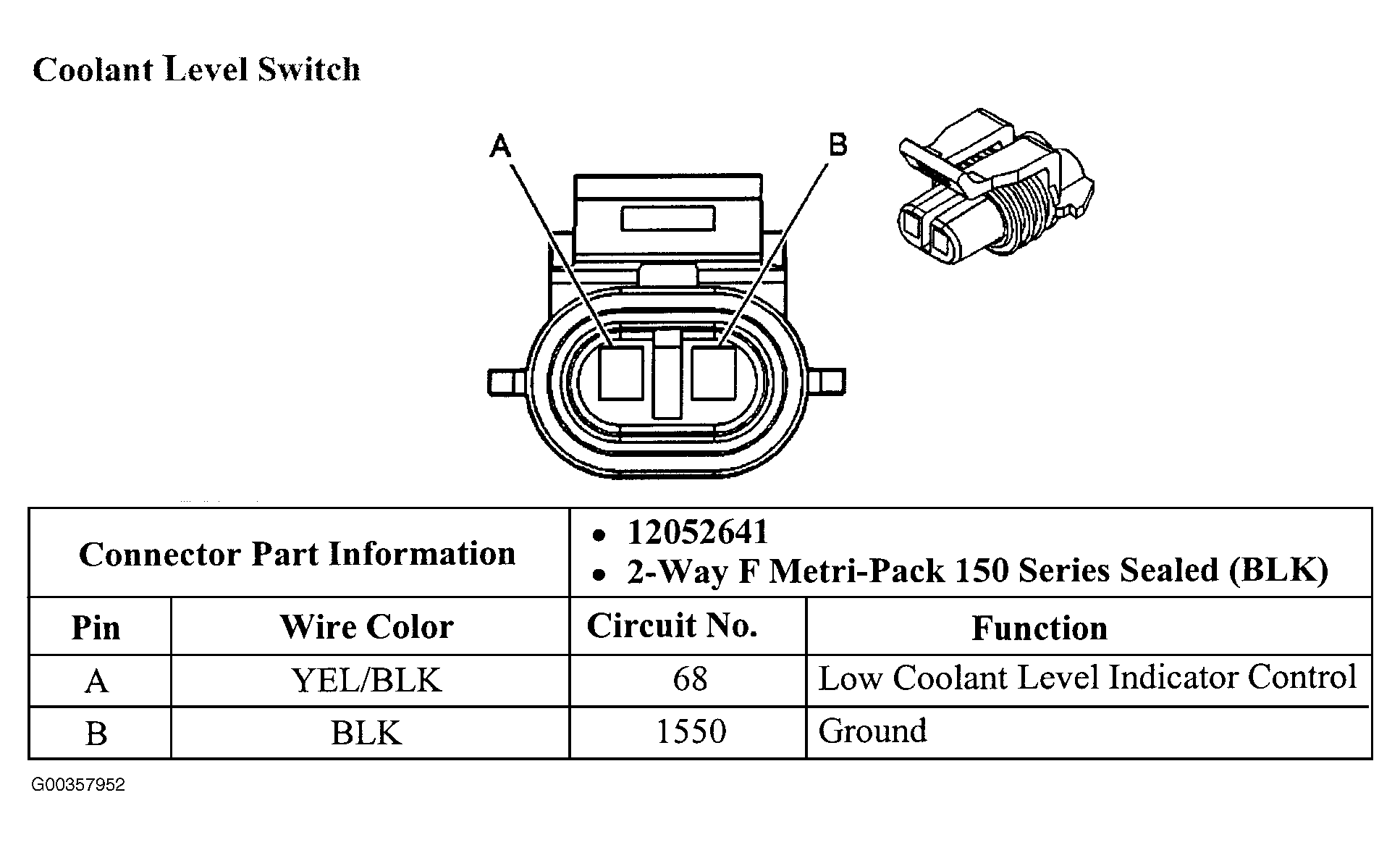

Fig 1: Coolant Level Switch
G00357952Courtesy of GENERAL MOTORS CORP.

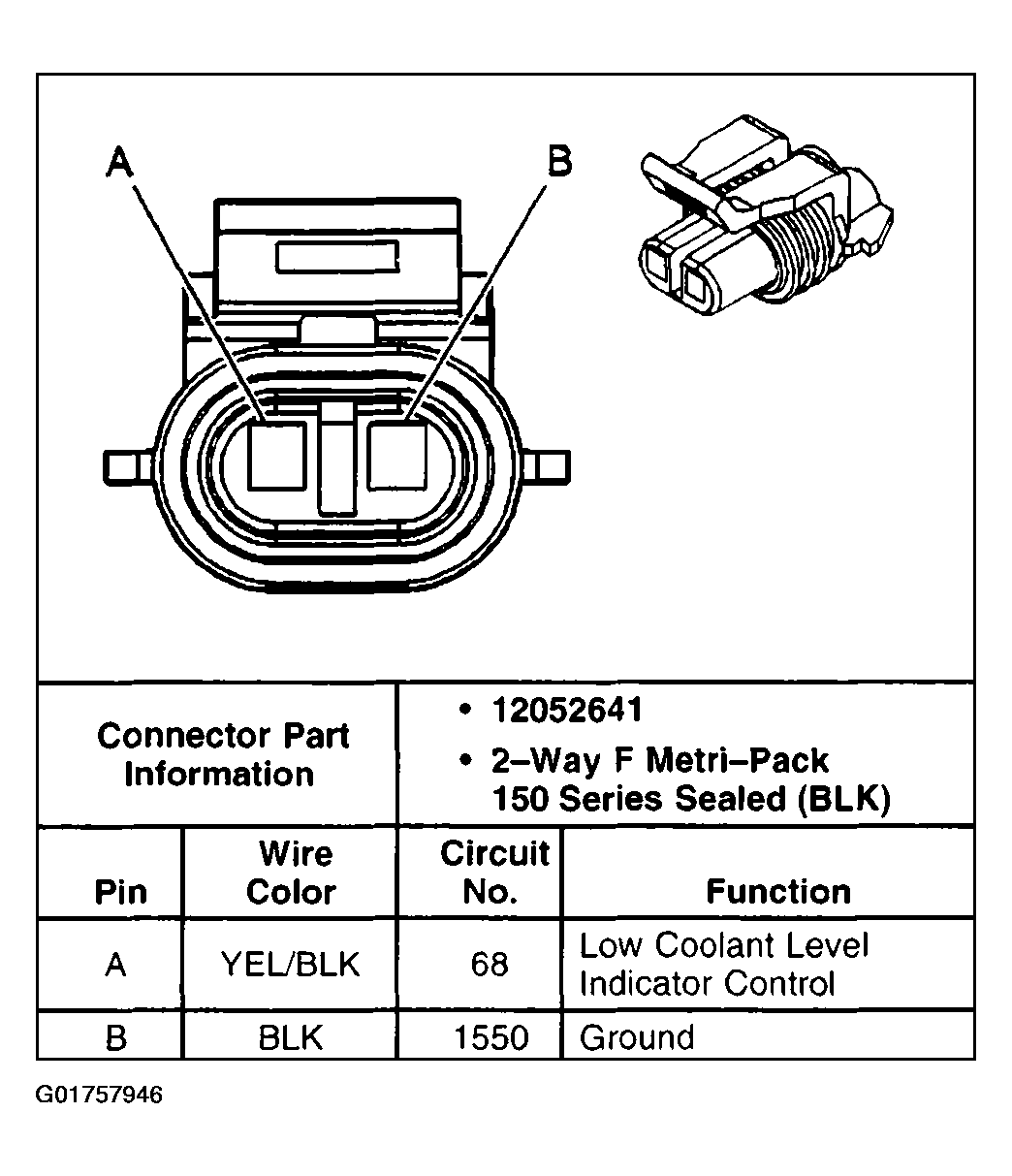

Fig 1: Coolant Level Switch
G01757946Courtesy of GENERAL MOTORS CORP.
