Engine Oil Level Switch Connector End View

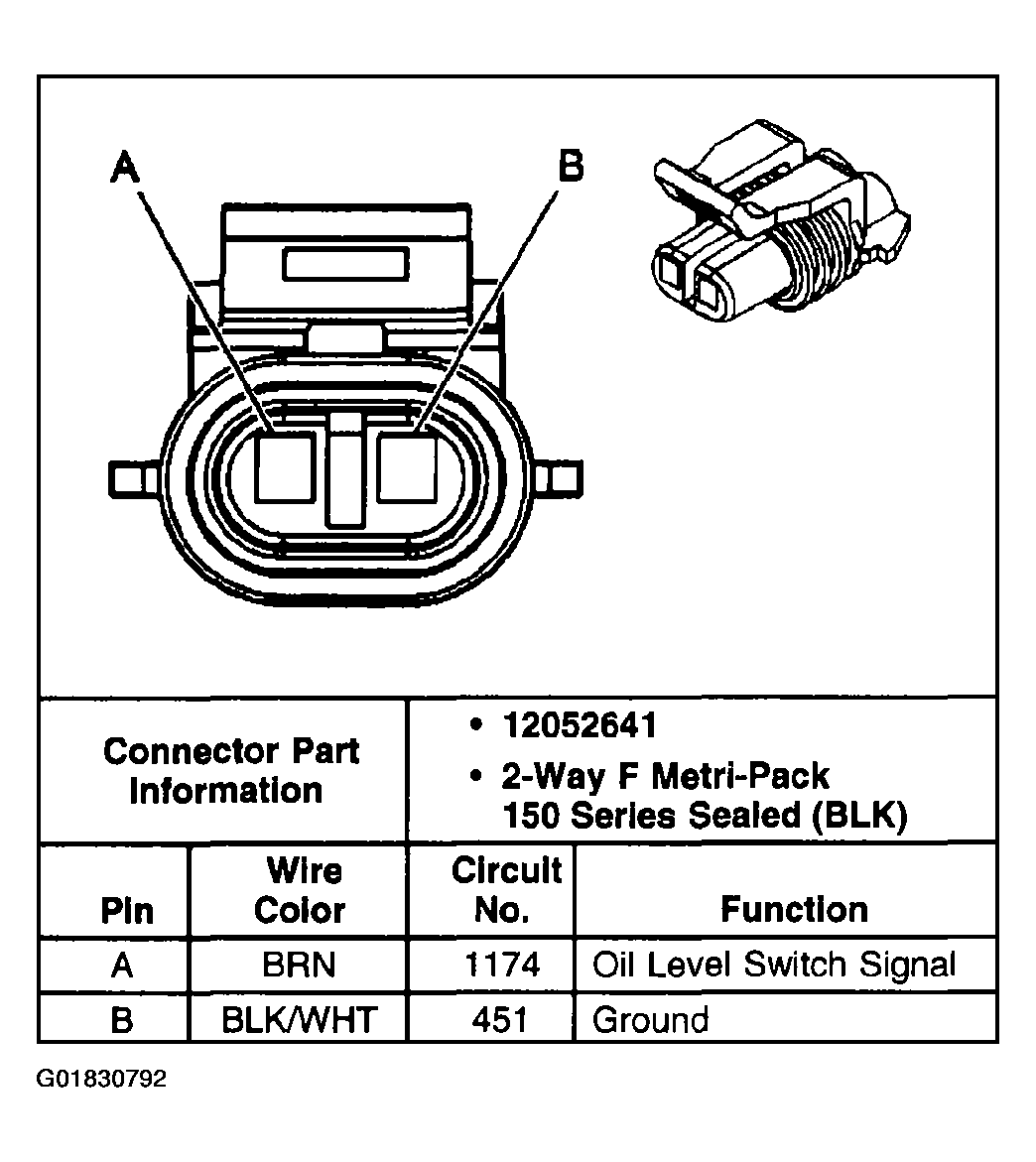

Fig 1: Engine Oil Level Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
