Temperature Actuator Connector End View

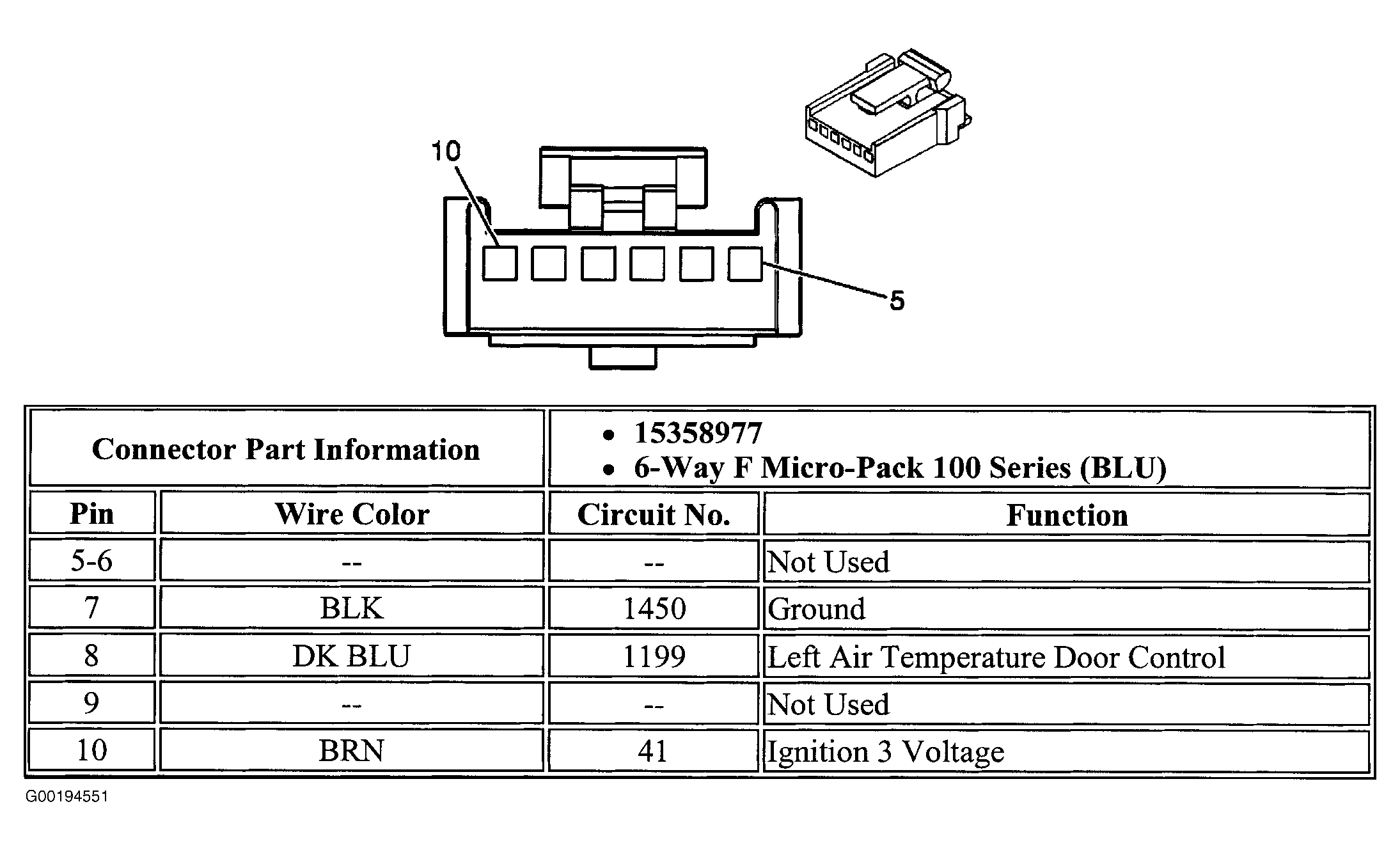

Fig 1: Temperature Actuator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
