Removal & Installation (3.5L)

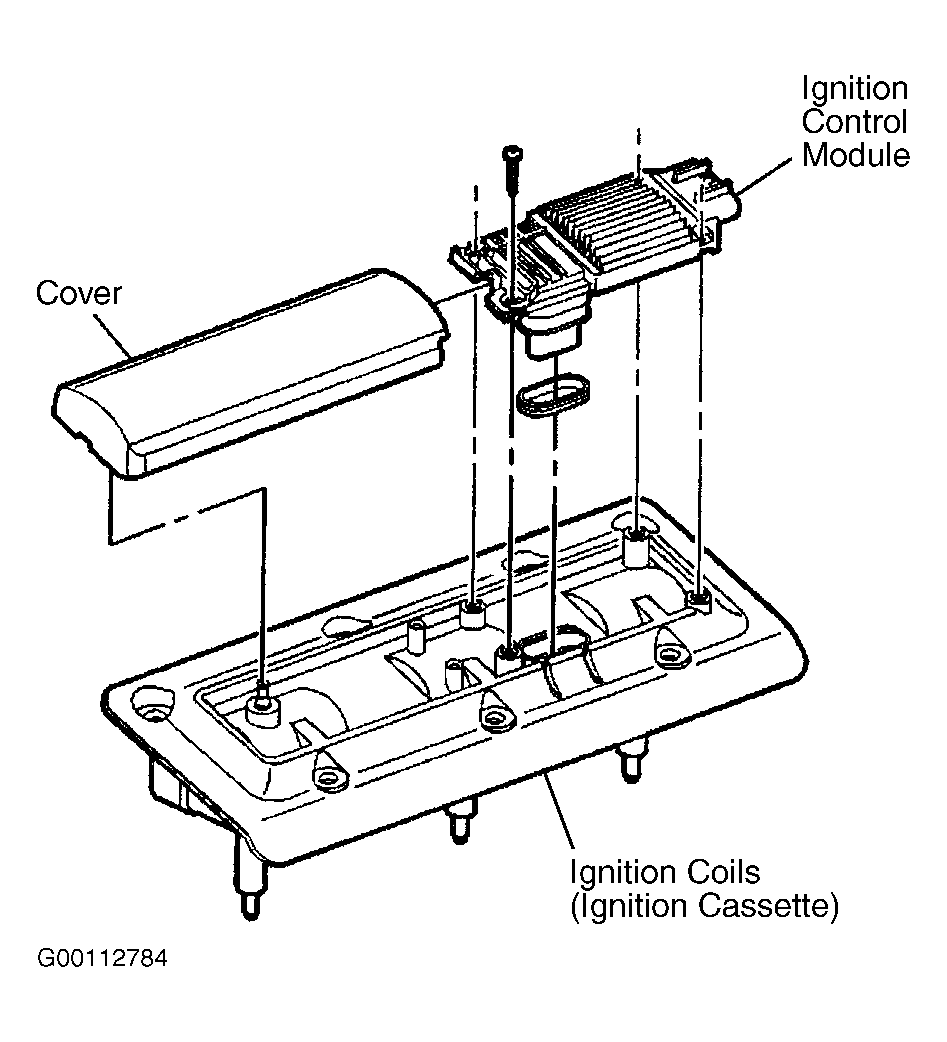

Turn ignition off. Disconnect the electrical connector from the Ignition Control Module (ICM). See Figure. Remove the cover from the ignition coils. Remove the screws retaining the ICM. Remove the ICM. To install, reverse removal procedure.
