Power Seat Systems Connector End Views

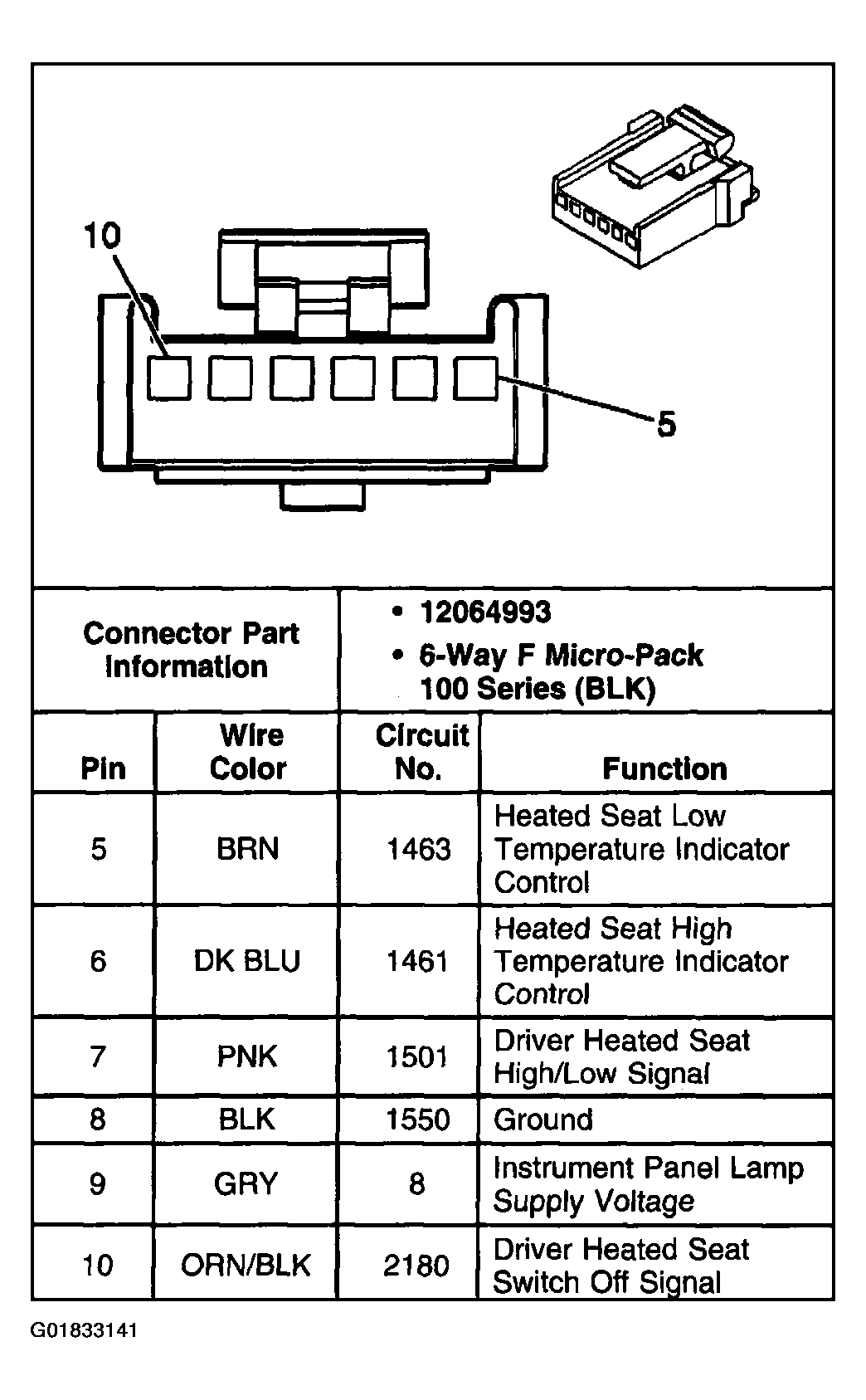

Fig 1: Heated Seat Control Module - Driver C1

Courtesy of GENERAL MOTORS CORP.

Fig 2: Heated Seat Control Module - Driver C2

Courtesy of GENERAL MOTORS CORP.

Fig 3: Heated Seat Control Module-Front Passenger C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Heated Seat Control Module-Front Passenger C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Heated Seat Control Module - Front Passenger C2

Courtesy of GENERAL MOTORS CORP.

Fig 6: Heated Seat Switch-Driver

Courtesy of GENERAL MOTORS CORP.

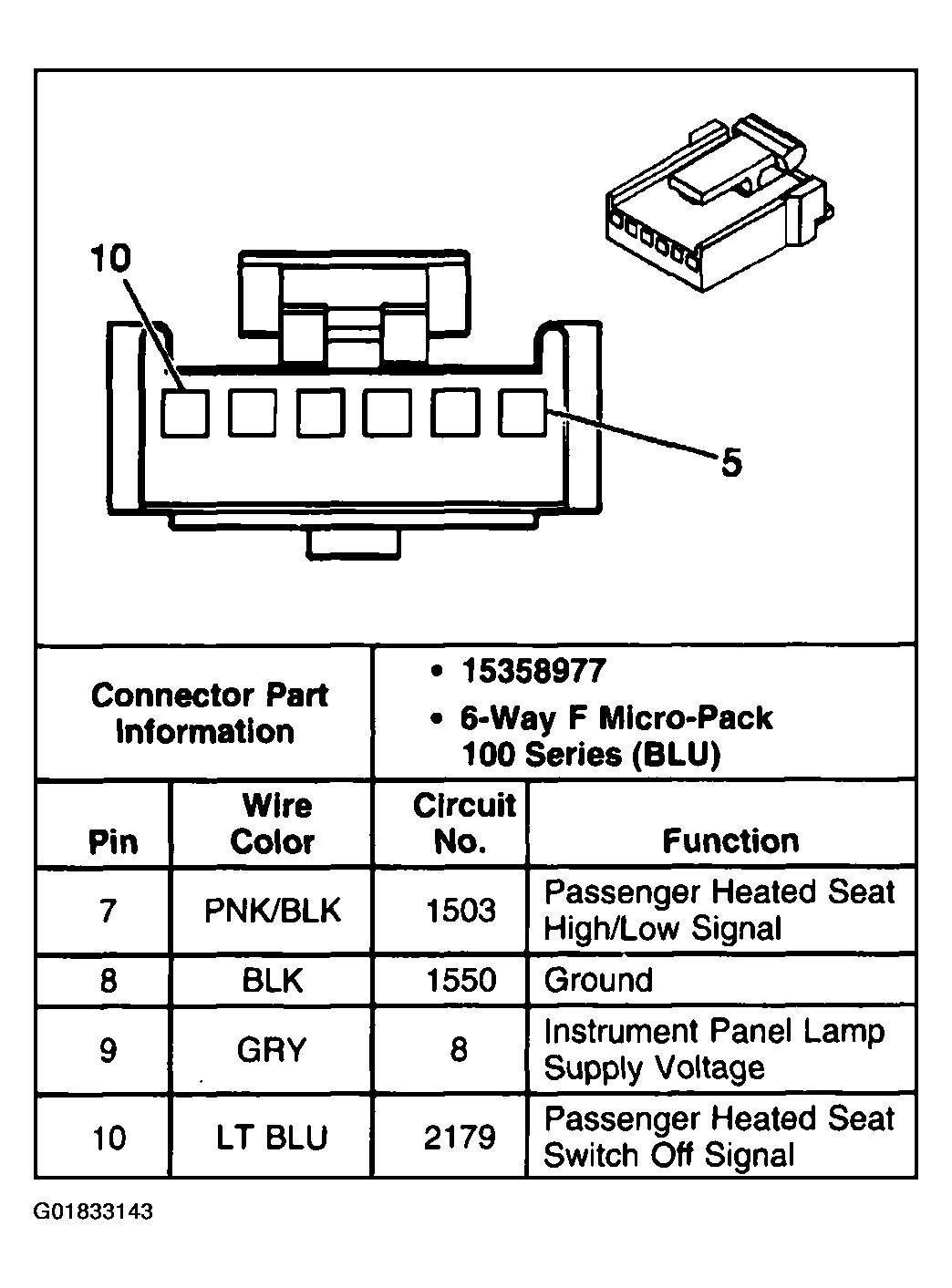

Fig 7: Heated Seat Switch-Front Passenger (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

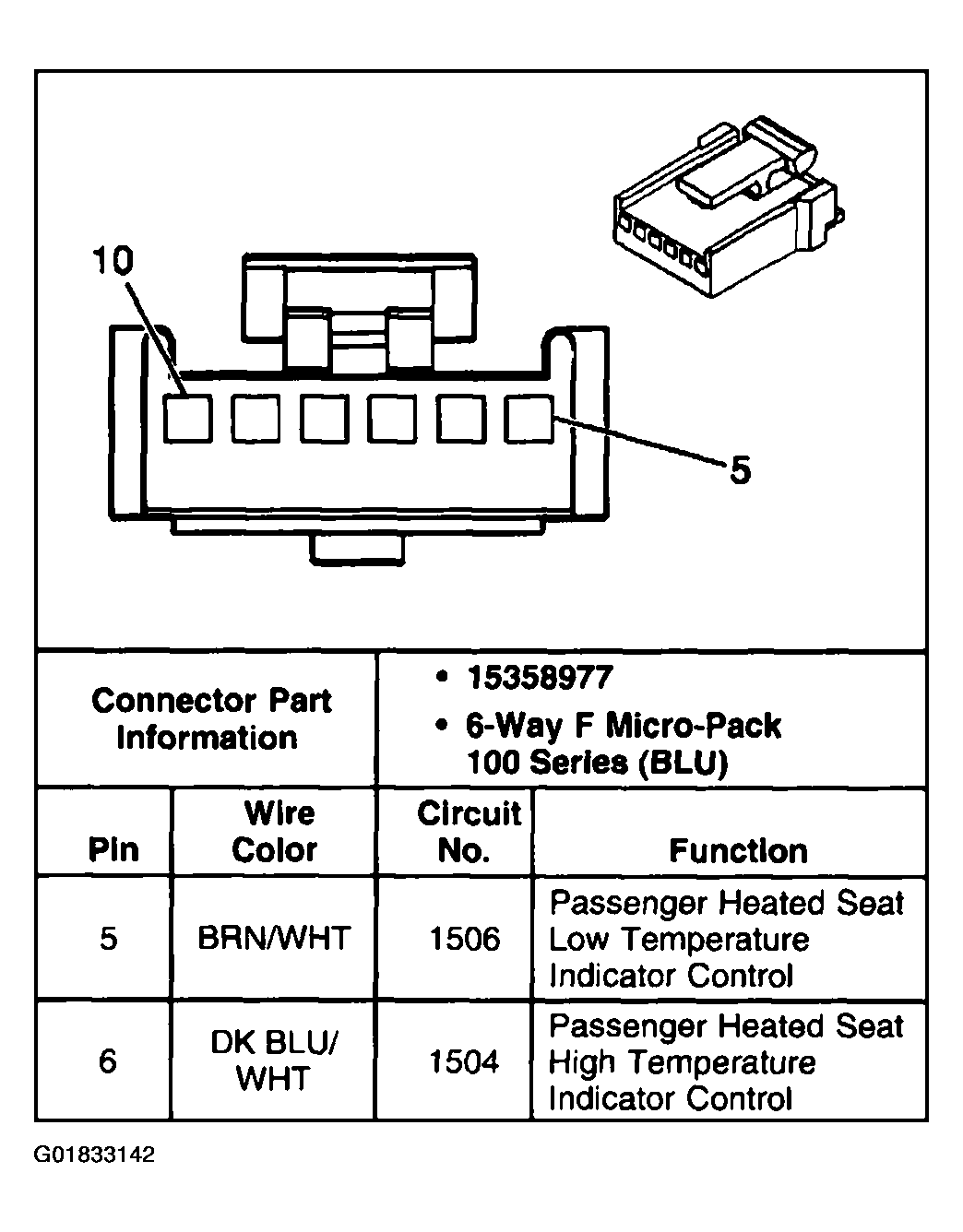

Fig 8: Heated Seat Switch-Front Passenger (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Lumbar Horizontal Adjuster Relay-Driver

Courtesy of GENERAL MOTORS CORP.

Fig 10: Lumbar Motor-Driver

Courtesy of GENERAL MOTORS CORP.

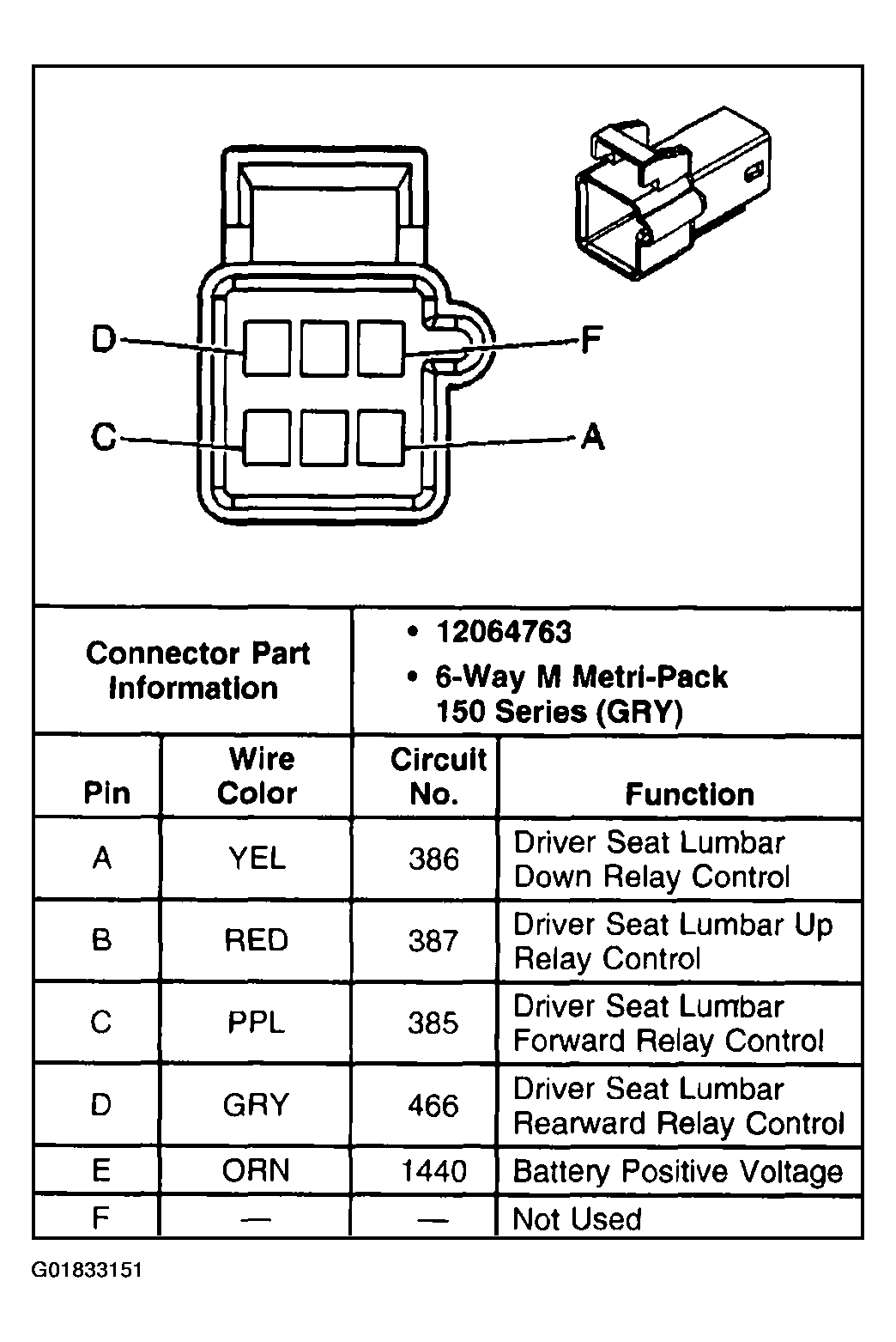

Fig 11: Lumbar Vertical Adjuster Relay-Driver

Courtesy of GENERAL MOTORS CORP.

Fig 12: Seat Adjuster Switch-Driver

Courtesy of GENERAL MOTORS CORP.

Fig 13: Seat Adjuster Switch-Front Passenger (AG2)

Courtesy of GENERAL MOTORS CORP.

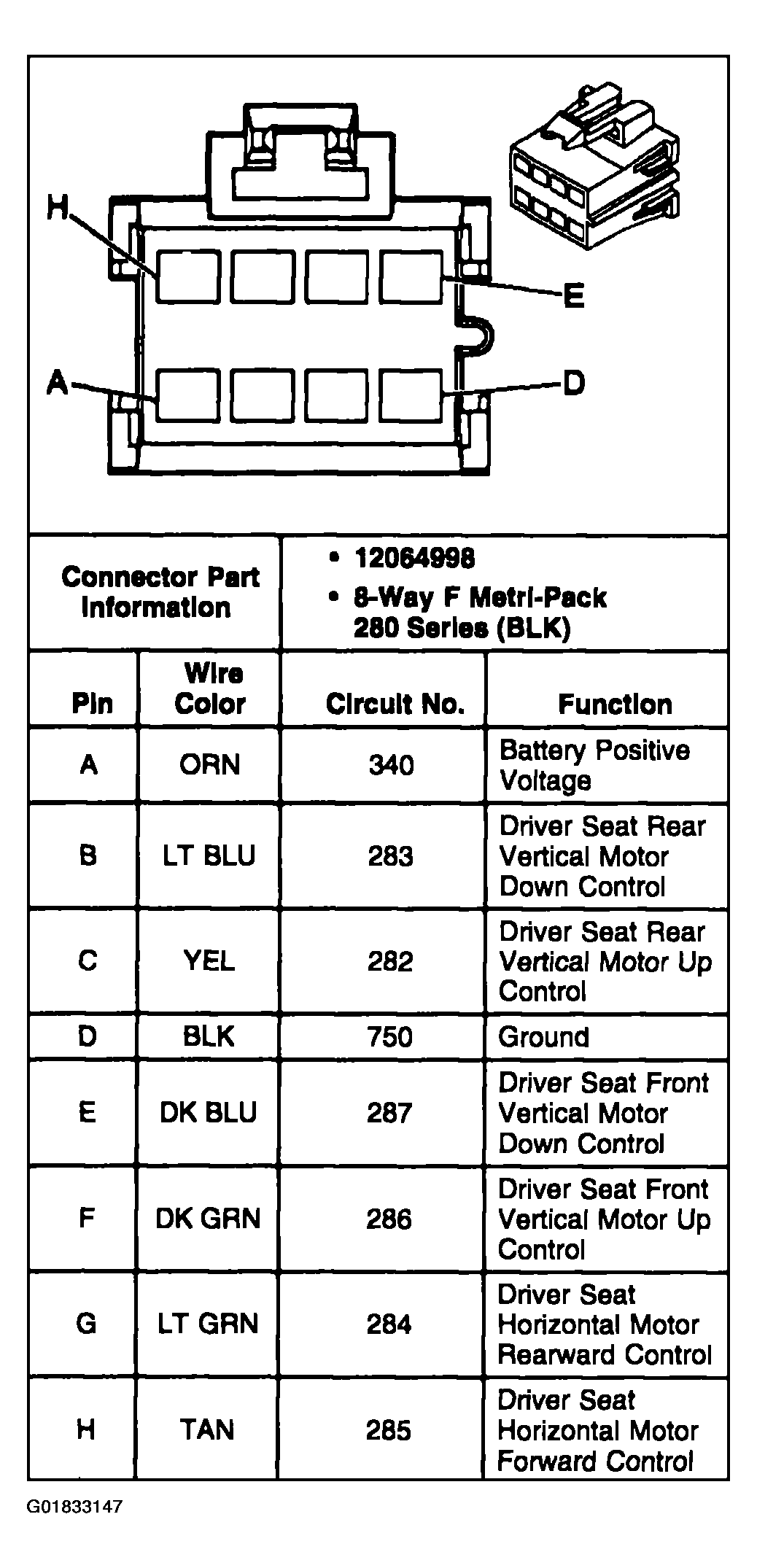

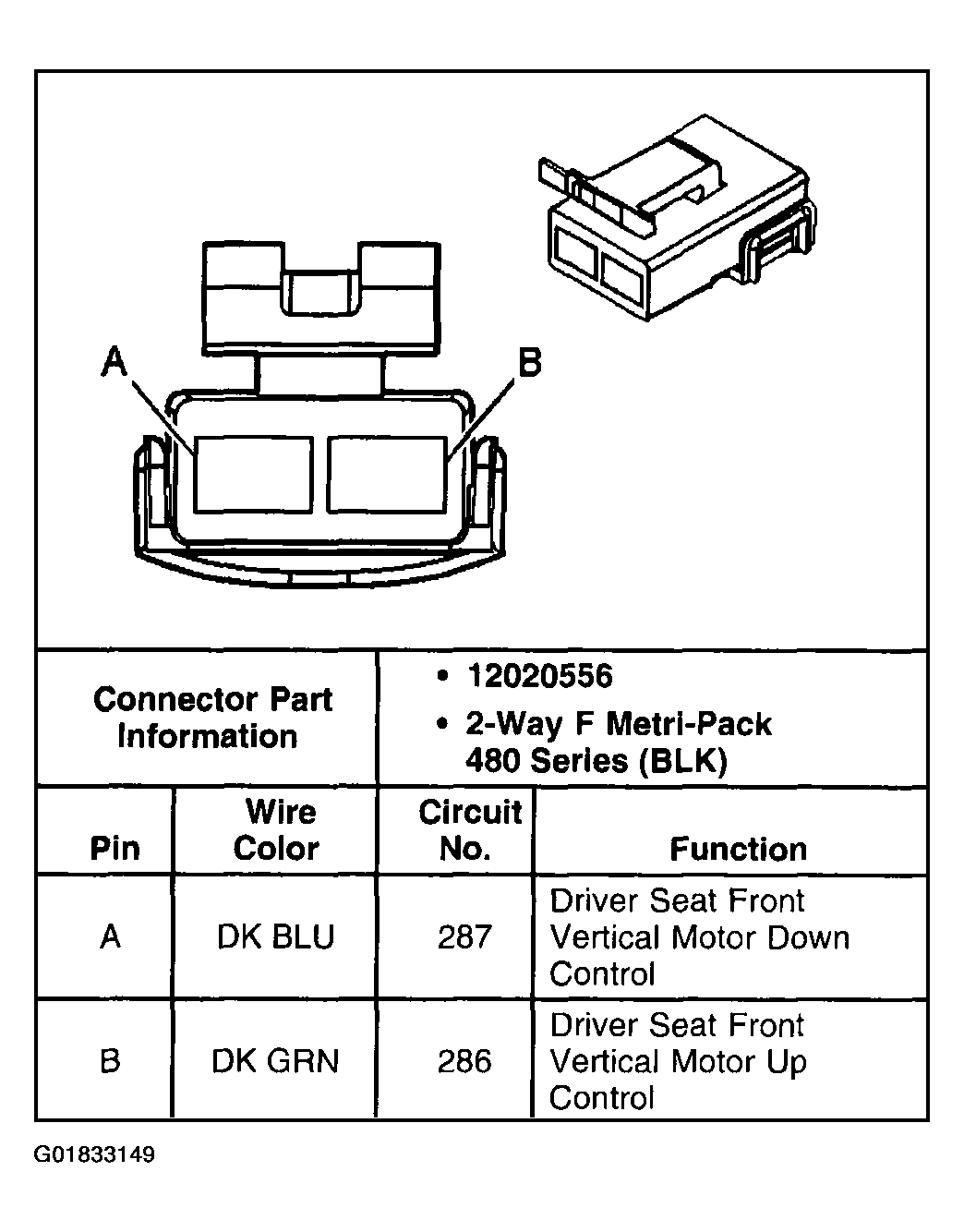

Fig 14: Seat Front Vertical Motor-Driver

Courtesy of GENERAL MOTORS CORP.

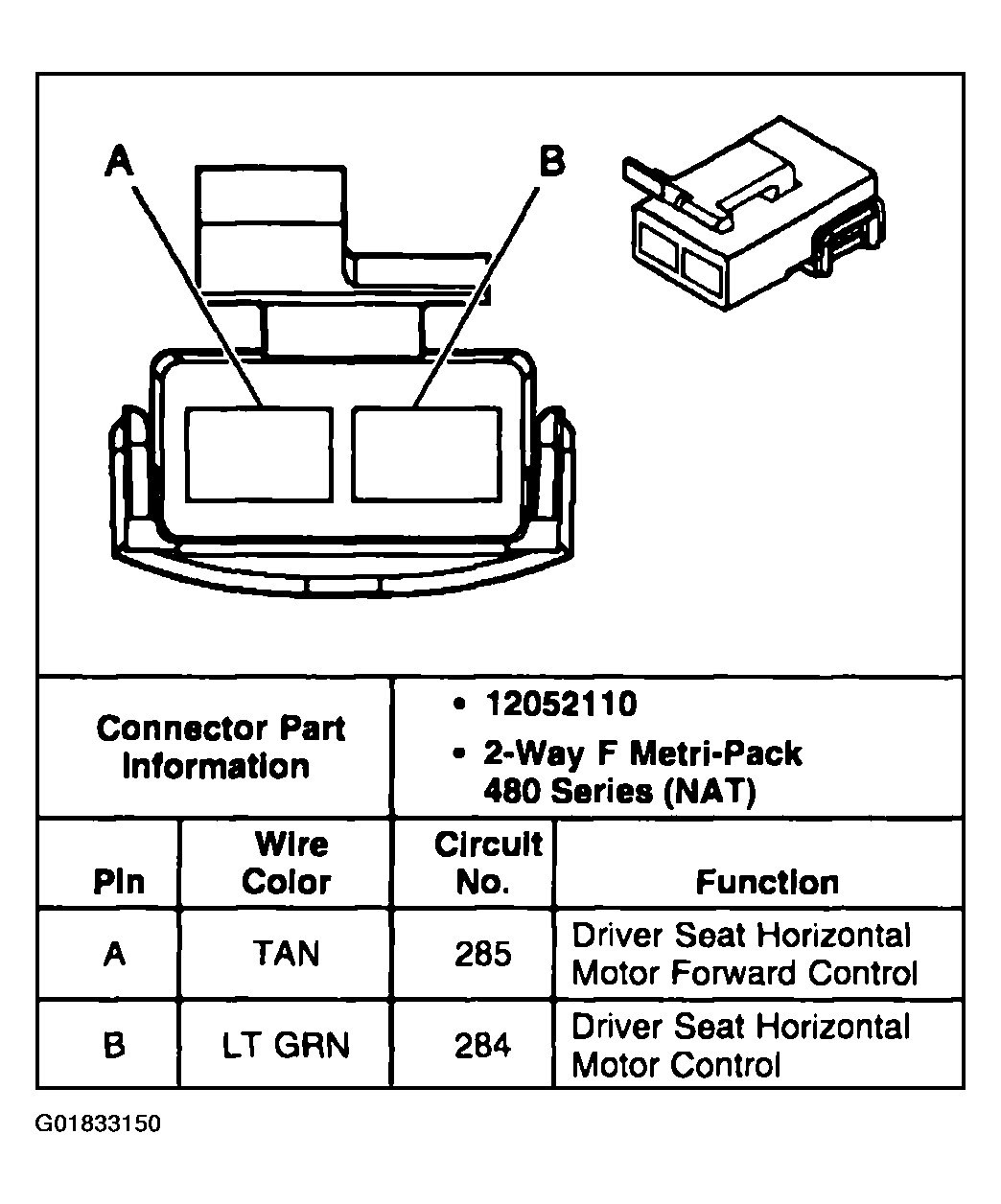

Fig 15: Seat Horizontal Motor-Driver

Courtesy of GENERAL MOTORS CORP.

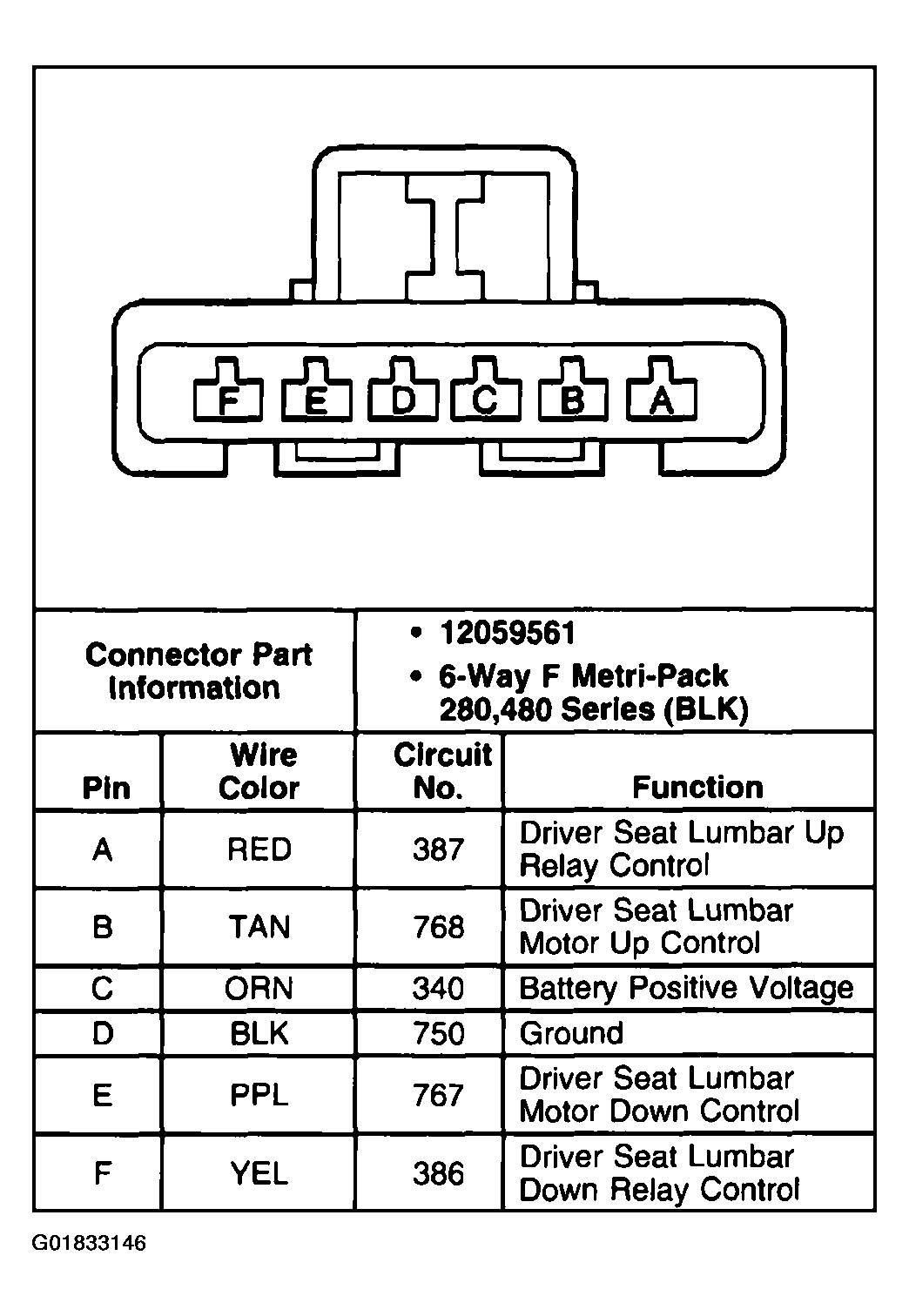

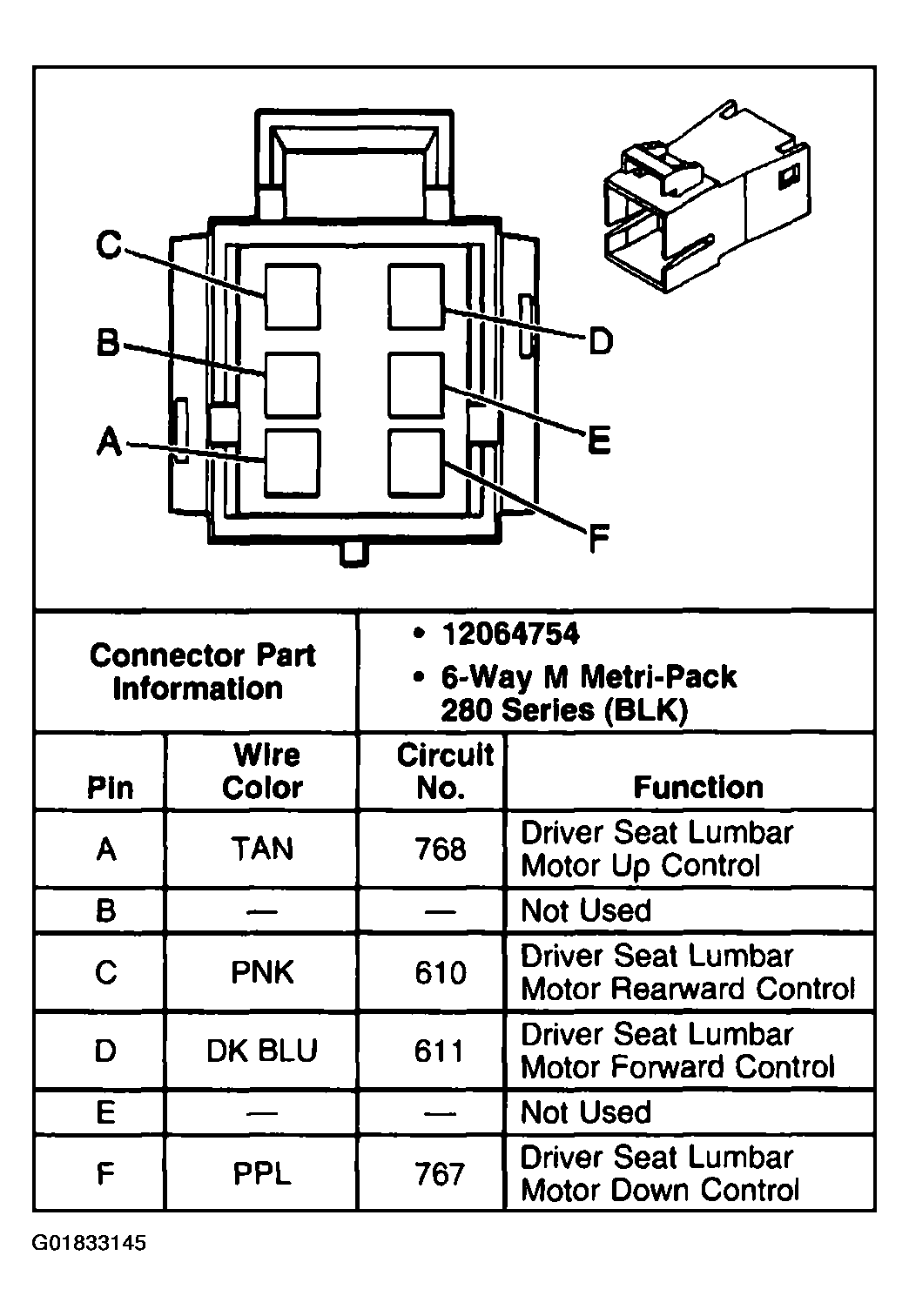

Fig 16: Seat Lumbar Switch-Driver

Courtesy of GENERAL MOTORS CORP.

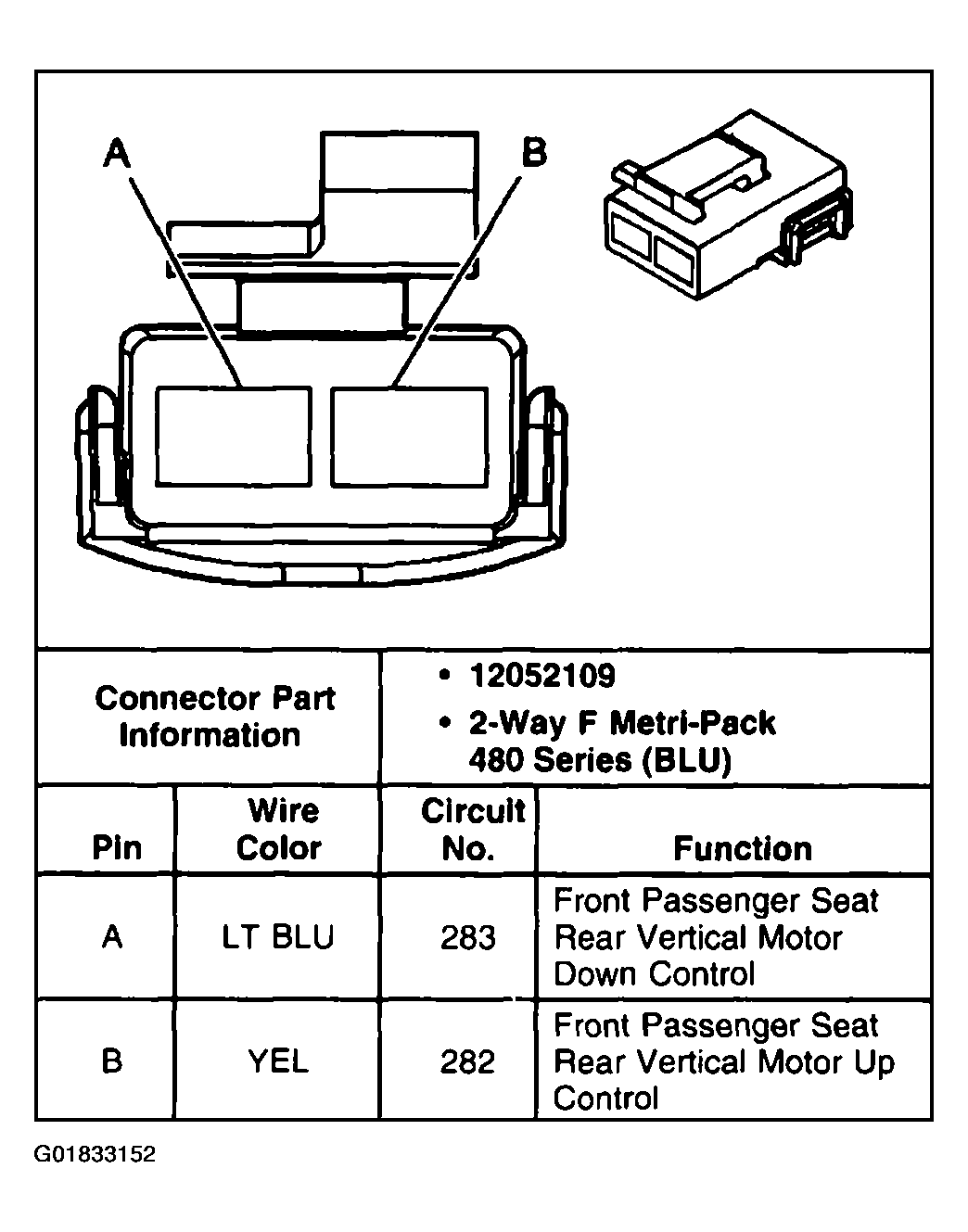

Fig 17: Seat Rear Vertical Motor-Front Passenger

Courtesy of GENERAL MOTORS CORP.
