Installation Procedure

  1. Connect the electrical connector to the lighted rearview mirror, if equipped.
  2. Slide the mirror onto the mirror support.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screw to the base.

    Tighten

    Tighten the mirror screws to 2 N.m (18 lb in).

    Fig 1: Installing Electrical Connector & Screw
    G01831628Courtesy of GENERAL MOTORS CORP.
  4. Install the wire harness cover from the lighted rearview mirror, if equipped.

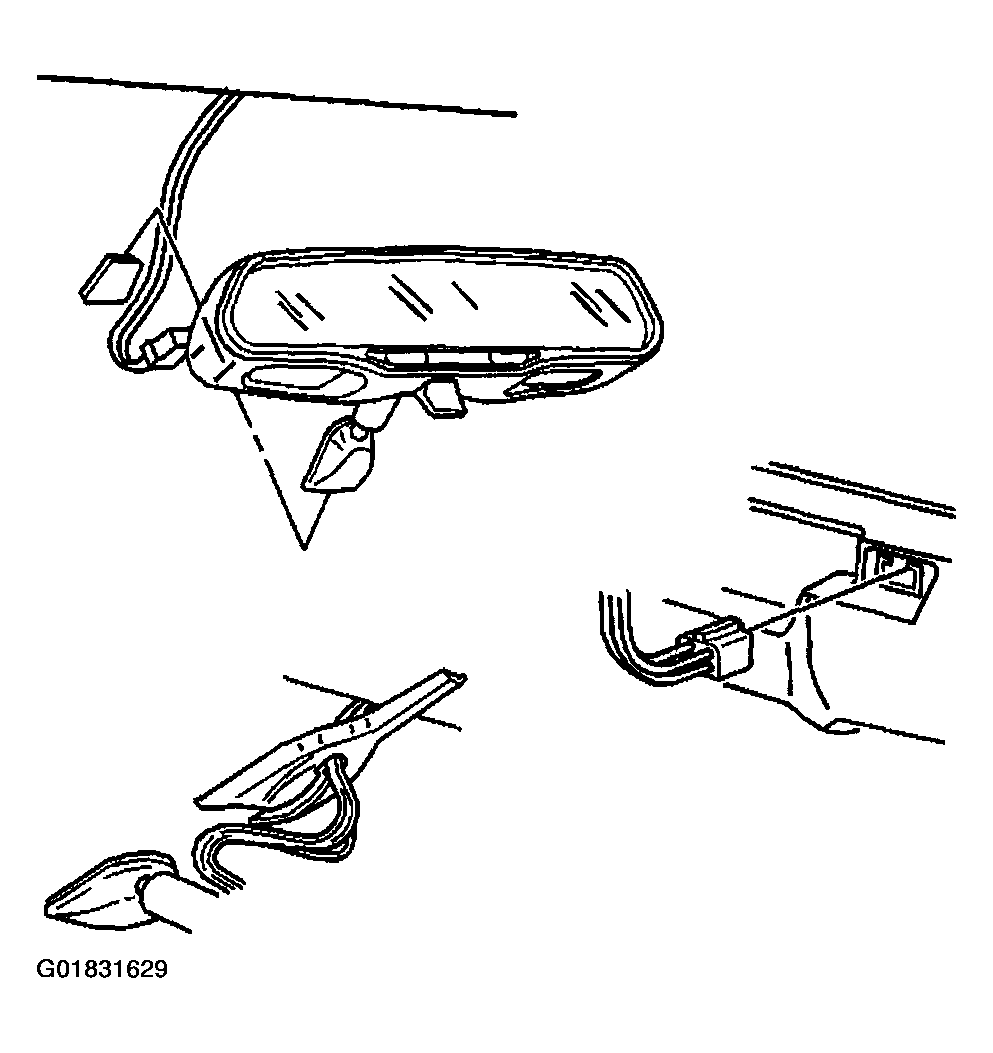

    Fig 2: Installing Wire Harness Cover
    G01831629Courtesy of GENERAL MOTORS CORP.
