Steering Column

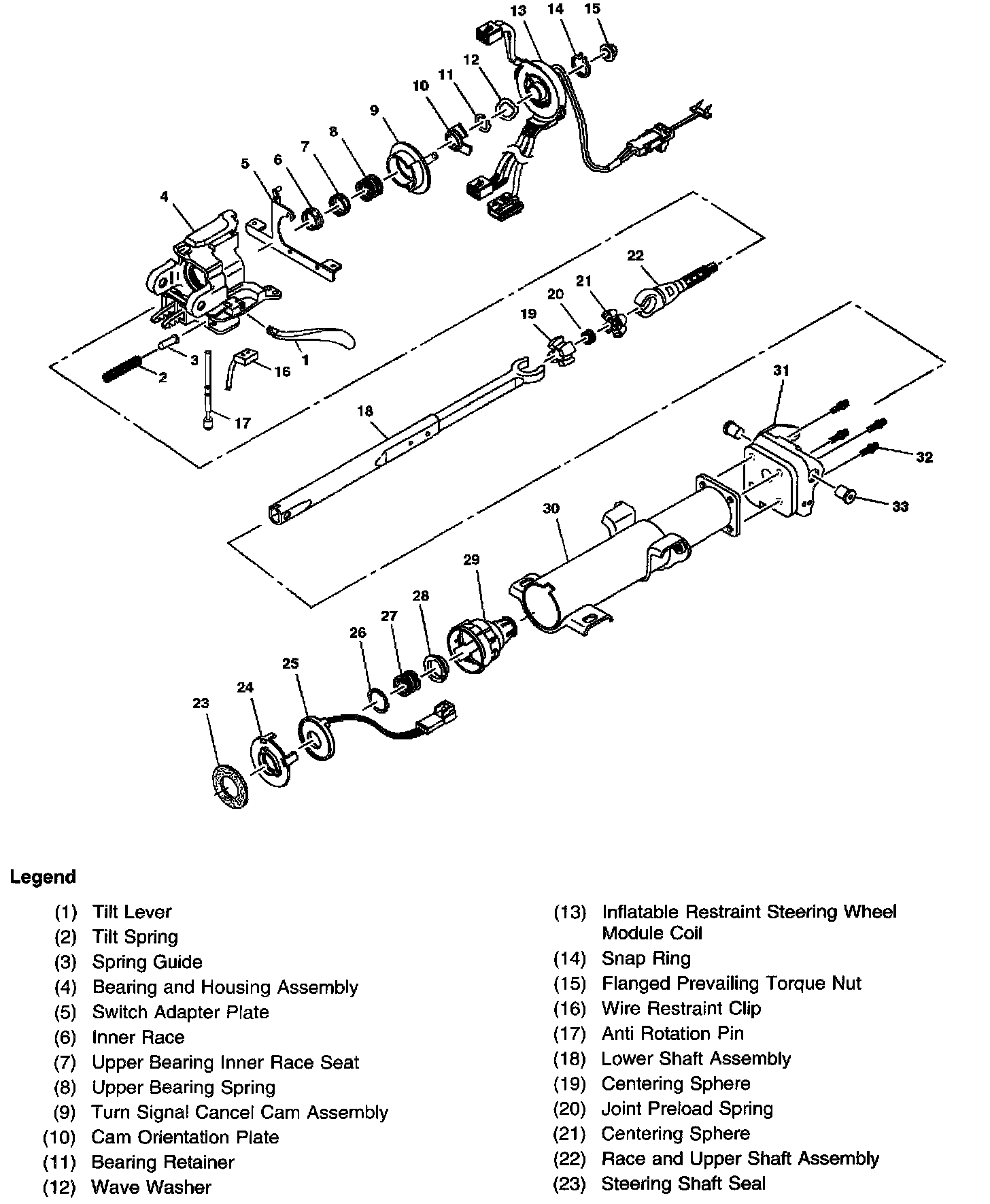

Steering Column Disassembled View





Part 1 of 2





Part 2 of 2

Tilt Steering Column
