Scan Tool Normal Data Values

NORMAL SCAN DATA VALUES

DDM:

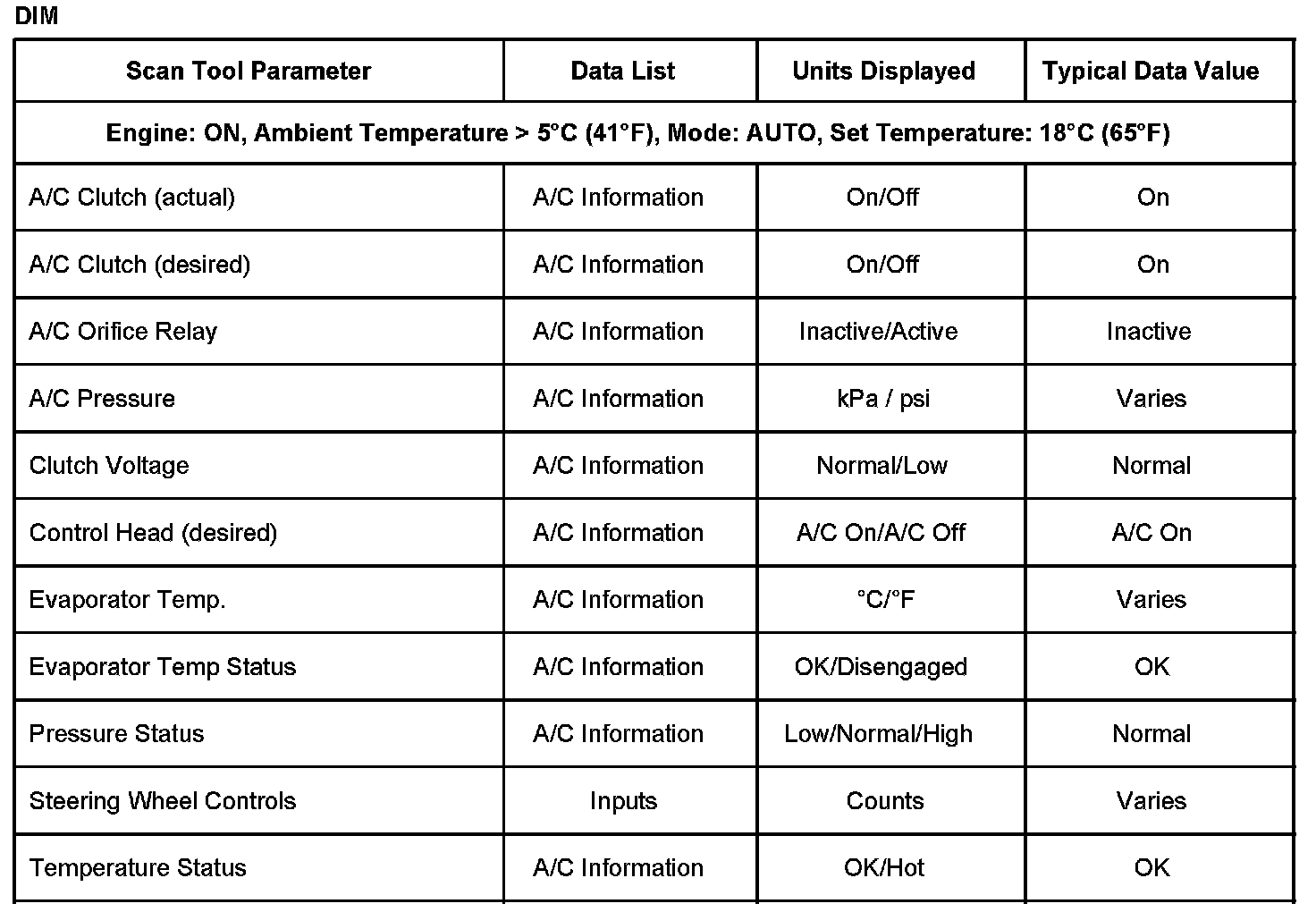

DIM:

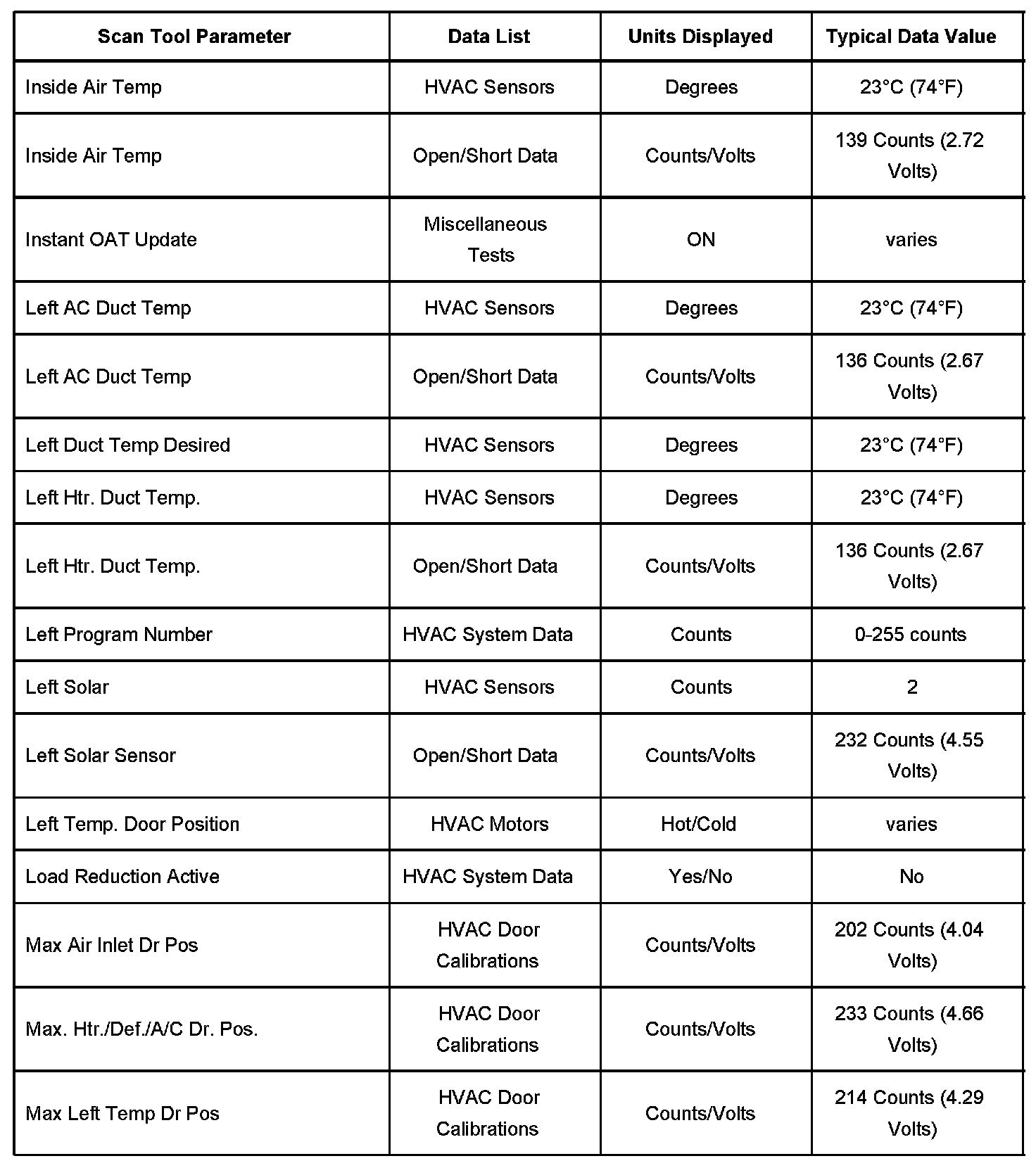

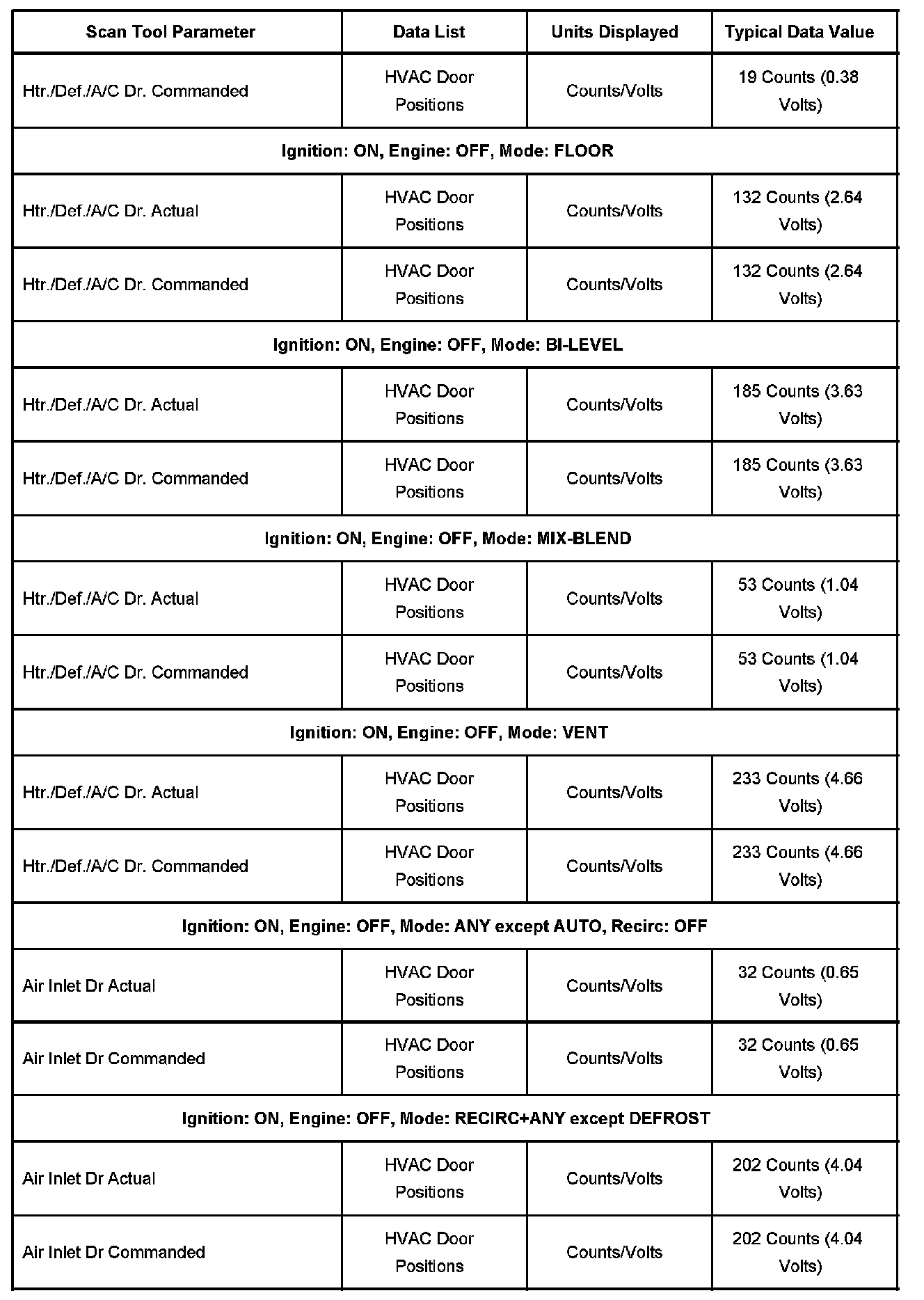

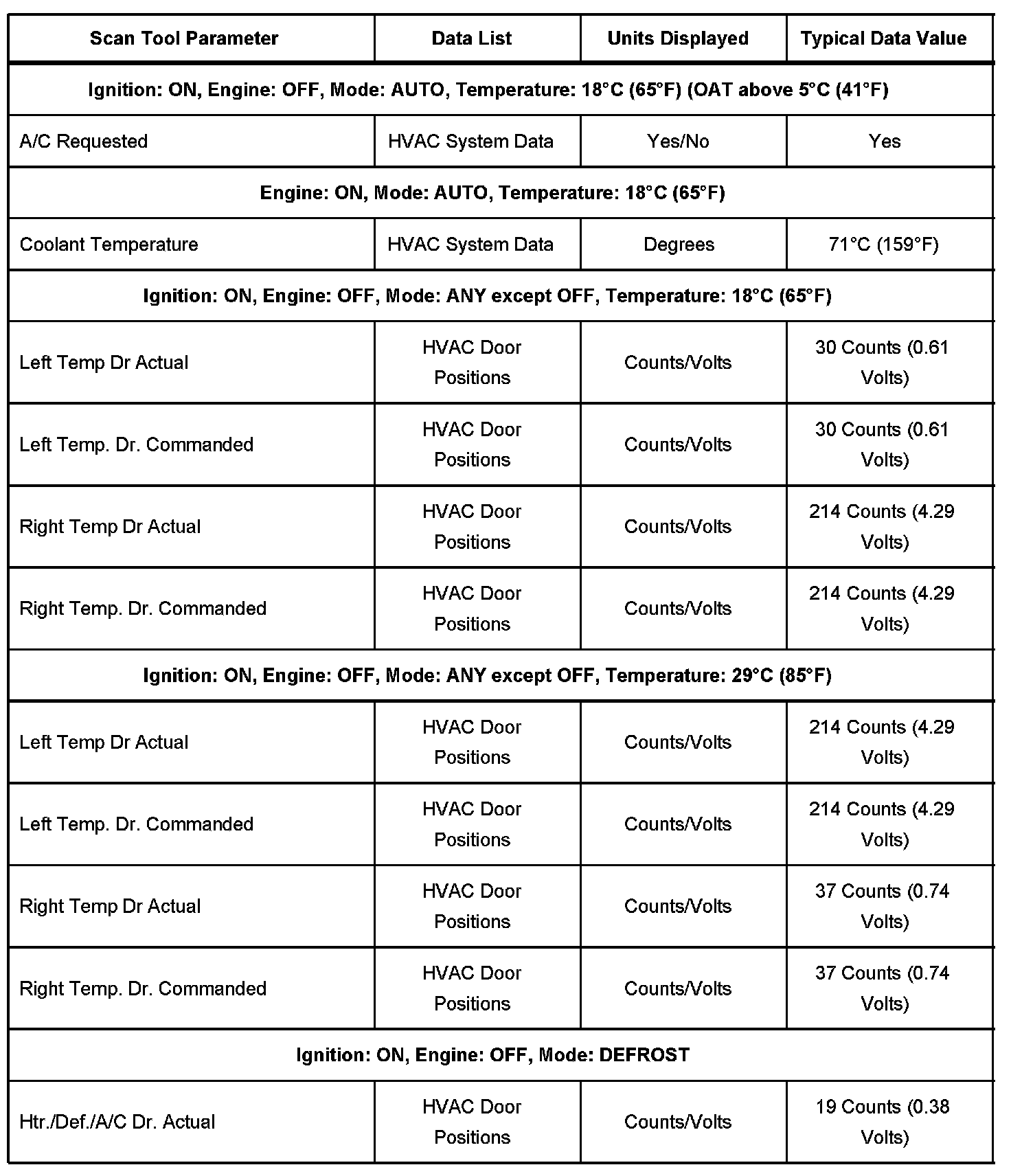

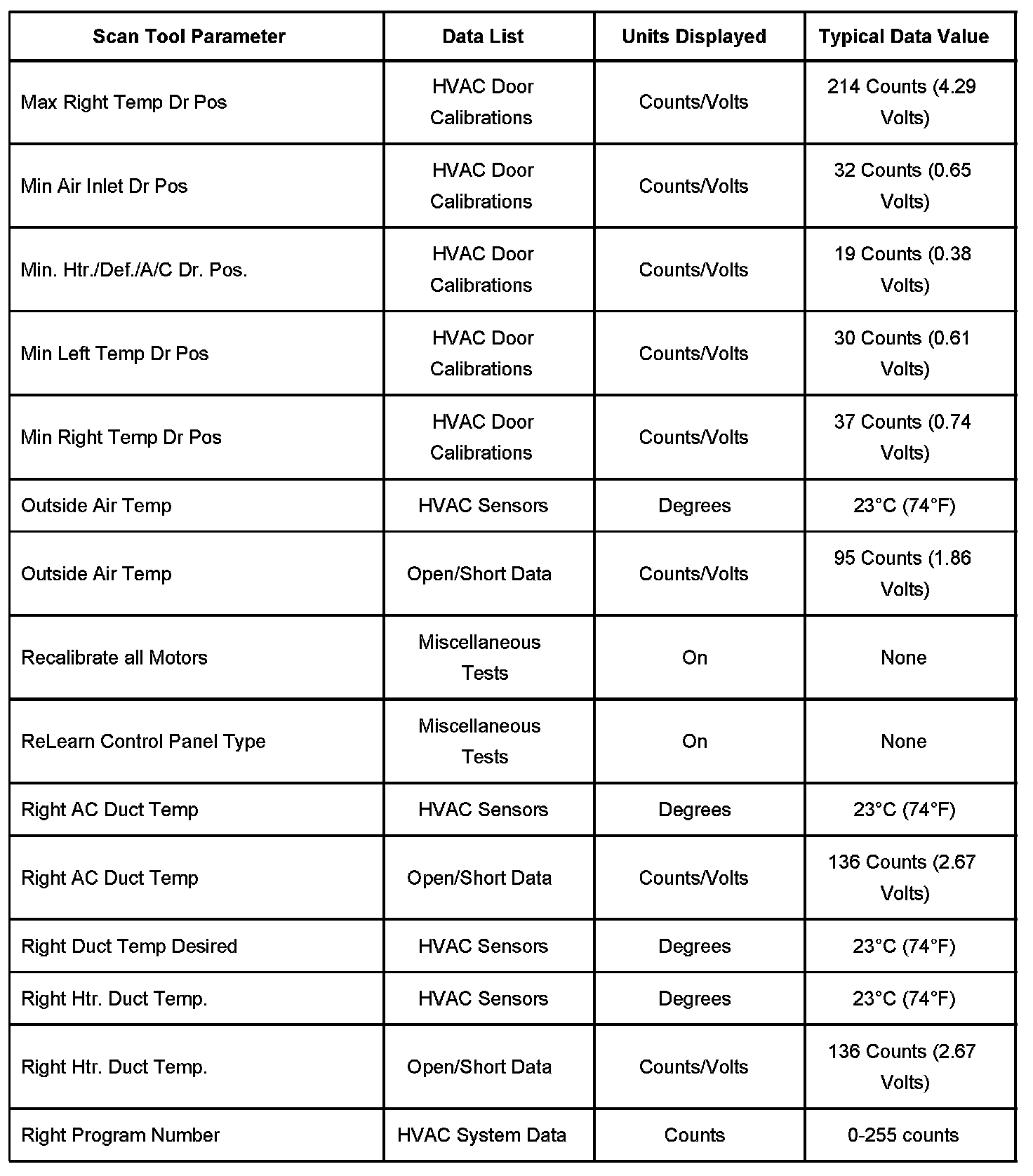

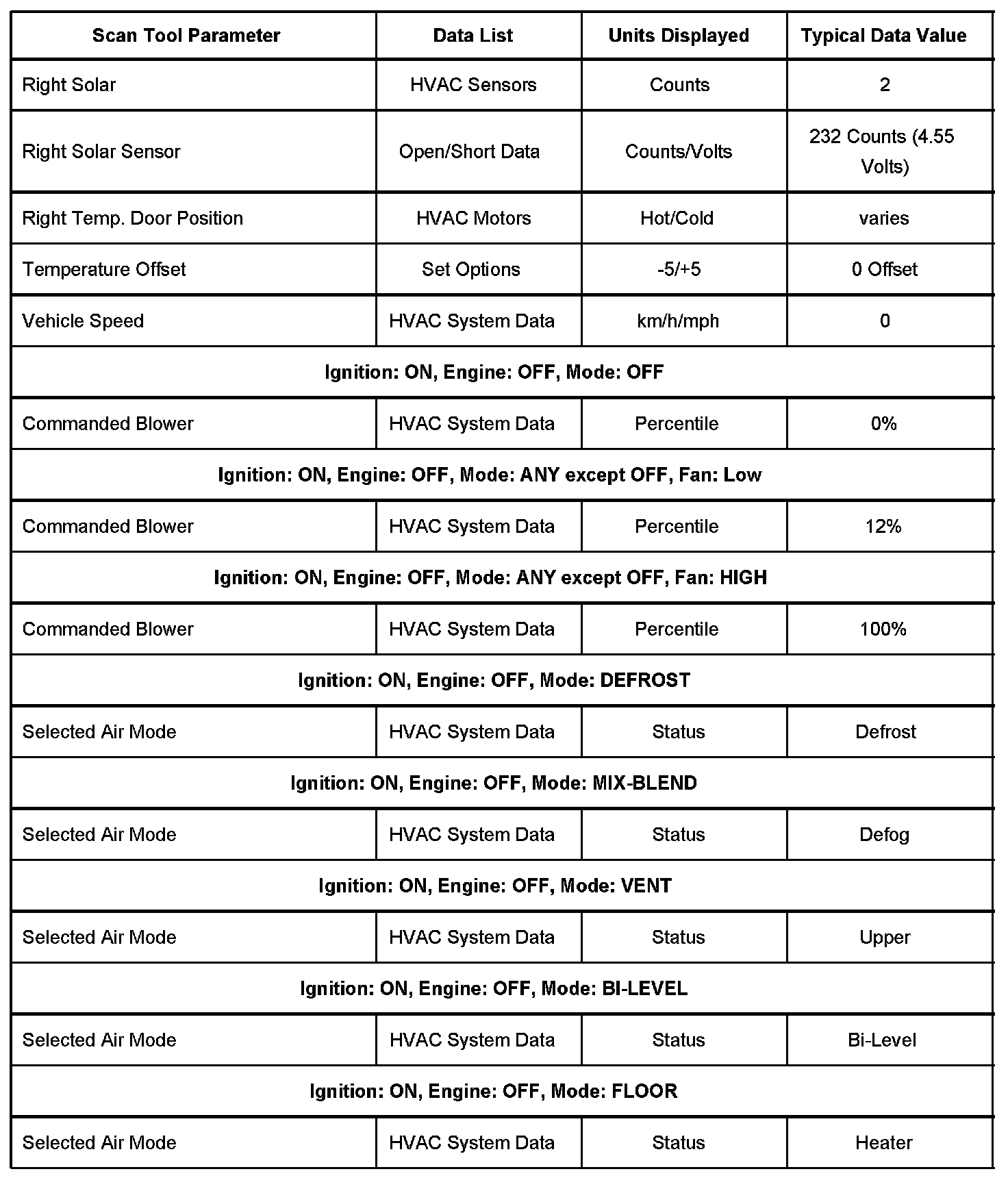

IPM Part 1:




IPM Part 2:




IPM Part 3:




IPM Part 4:




IPM Part 4:




IPM Part 5:

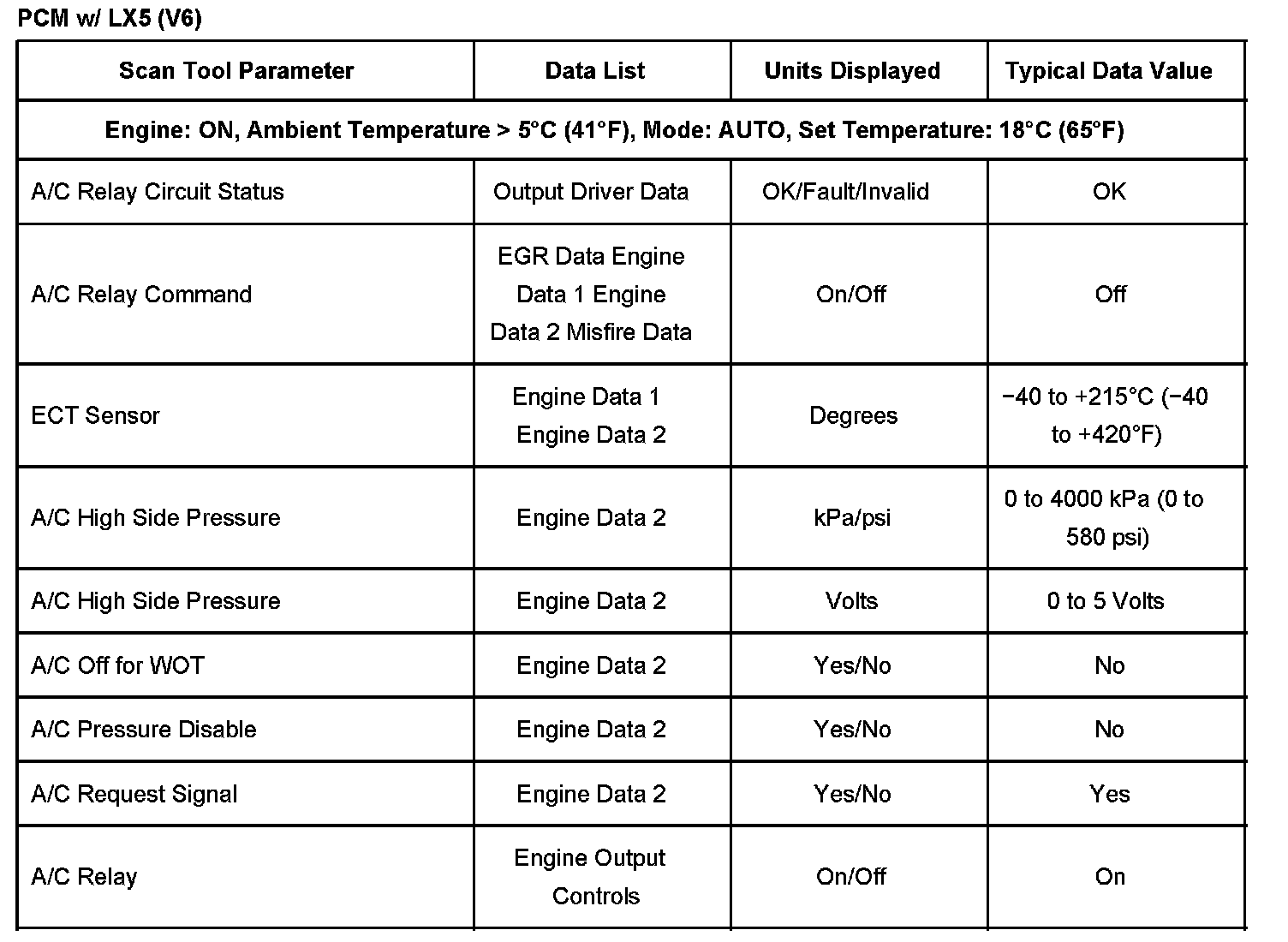

PCM With RPO Code (LX5 (V6)):




PCM With RPO Code (L47 (V8)):
