Instrument Panel Module Replacement

INSTRUMENT PANEL MODULE REPLACEMENT

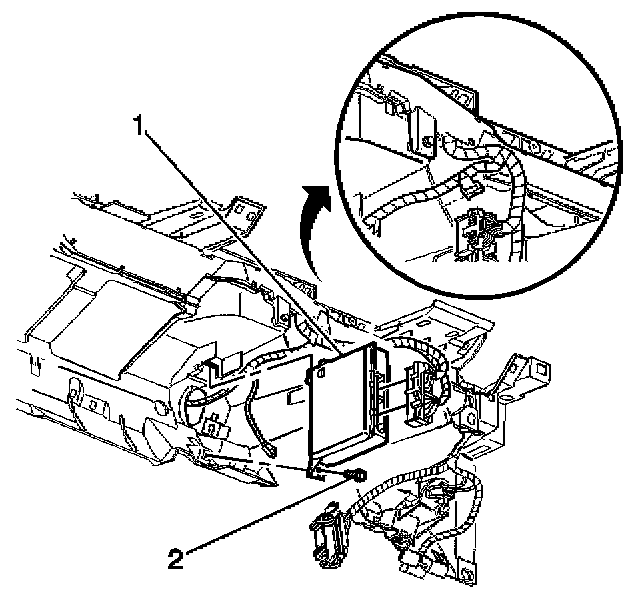

REMOVAL PROCEDURE
1. Remove the left sound insulator.




2. Remove the fastener (2) from the instrument panel module (IPM).
3. Rotate the IPM up and out of the instrument panel (IP) retainer.
4. Disconnect the electrical connectors from the IPM (1).

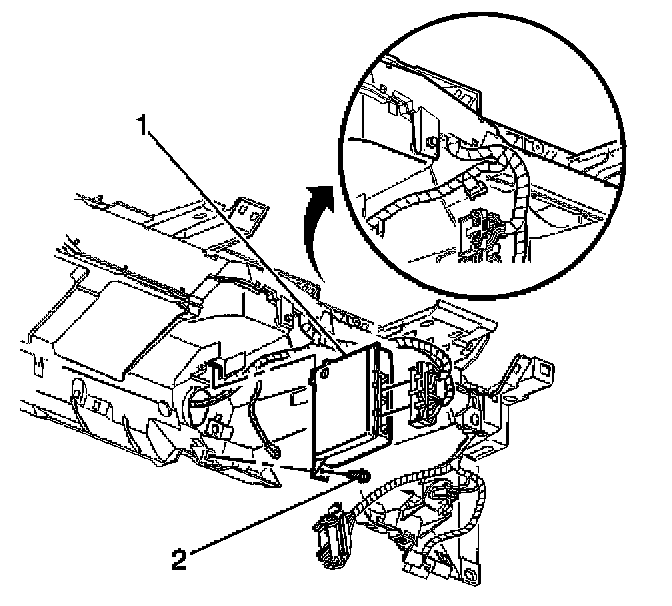

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the instrument panel module (IPM) (1).
2. Install the IPM (1) to the instrument panel (IP) retainer by inserting the top tab of the module into the slot on the IP retainer and rotating down.
3. Install the fastener.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fastener to 2 N.m (18 lb in).

4. Install the left sound insulator.
5. Reprogram the IPM. Refer to Body Control Module (BCM) Programming/RPO Configuration (IPM). Programming and Relearning
