Door Control Module Schematics

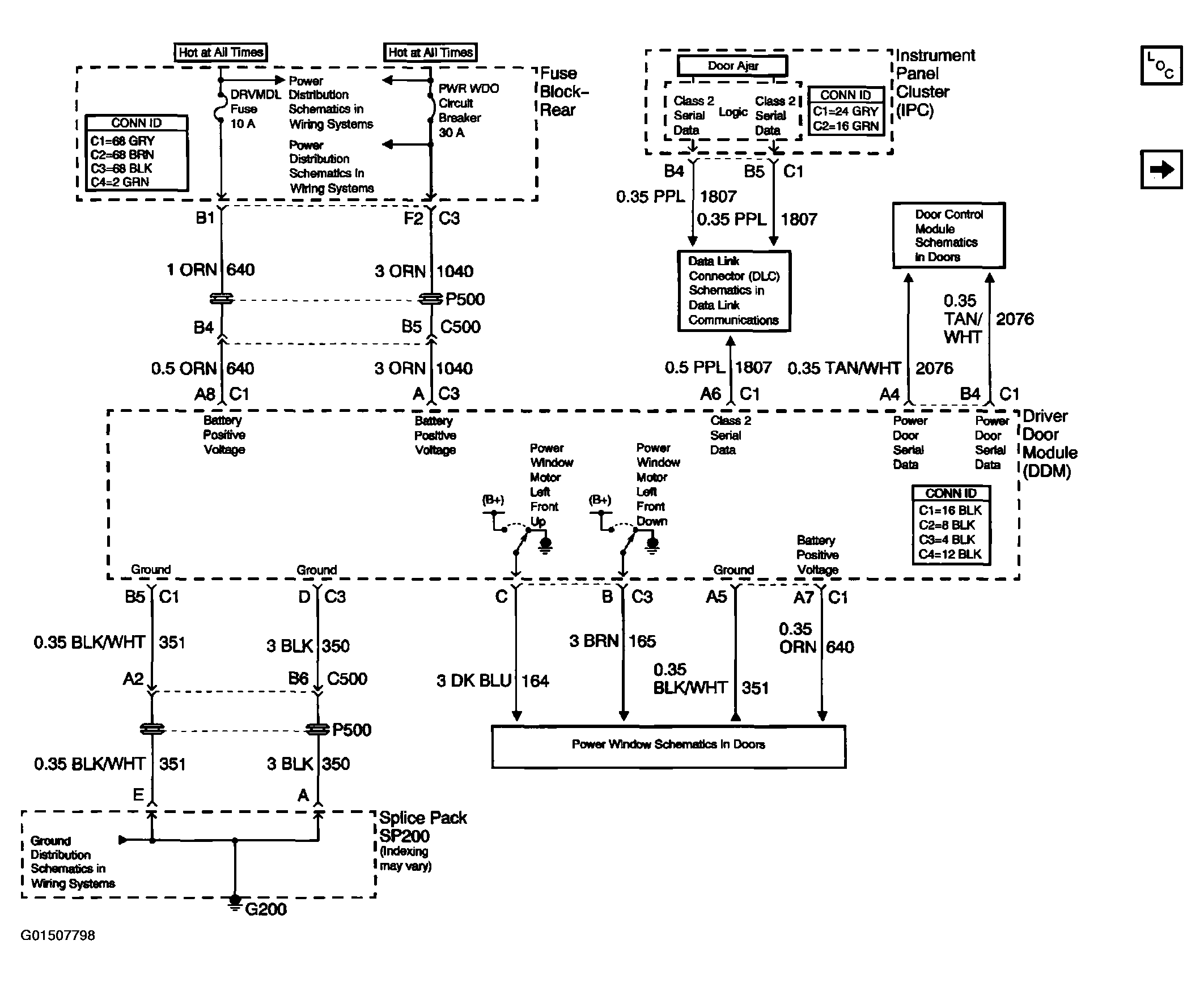

Fig 1: Door Control Module Wiring Schematic - Driver Door Module (DDM) Power & Ground

Courtesy of GENERAL MOTORS CORP.

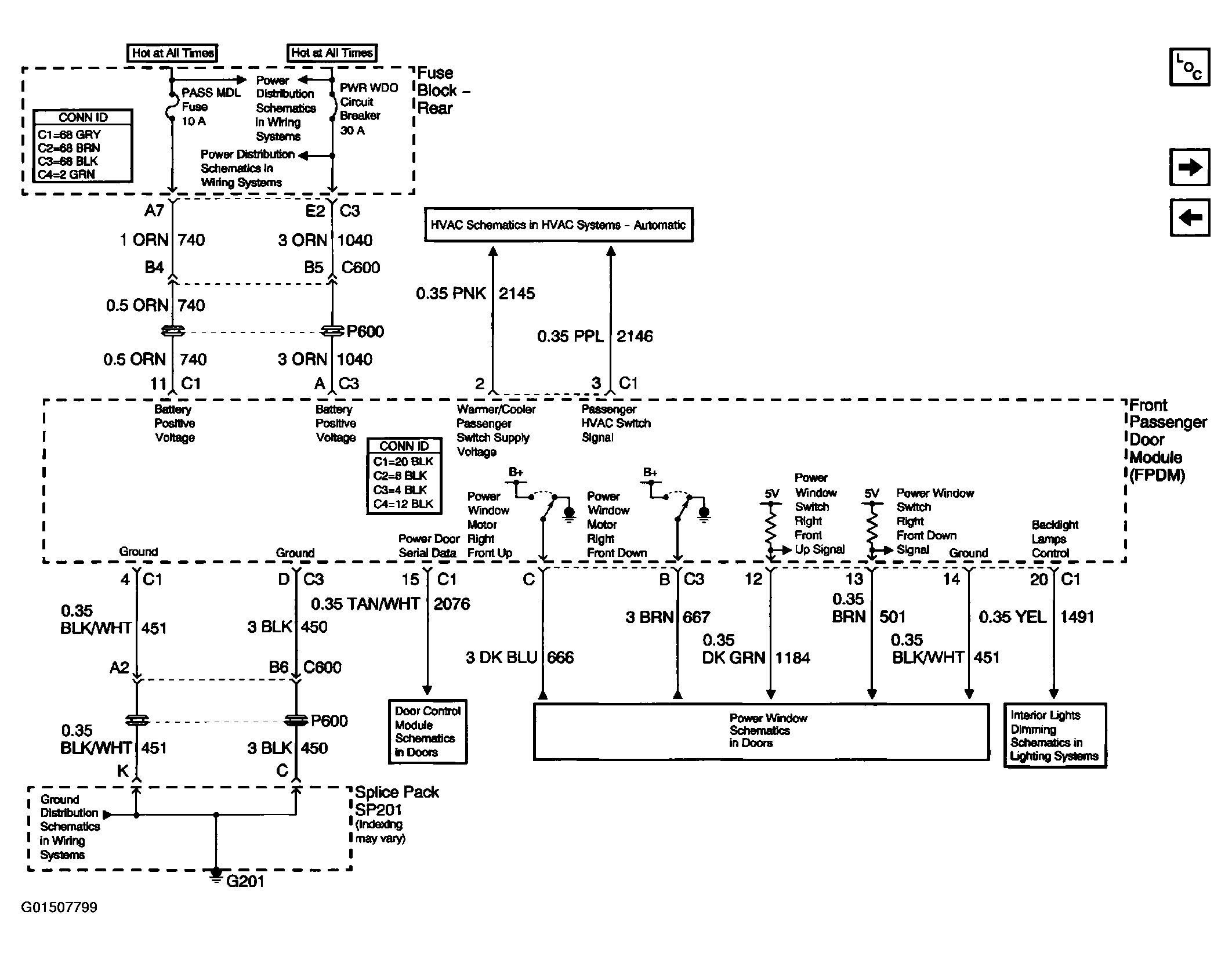

Fig 2: Door Control Module Wiring Schematic - Passenger Door Module (PDM) Power & Ground

Courtesy of GENERAL MOTORS CORP.

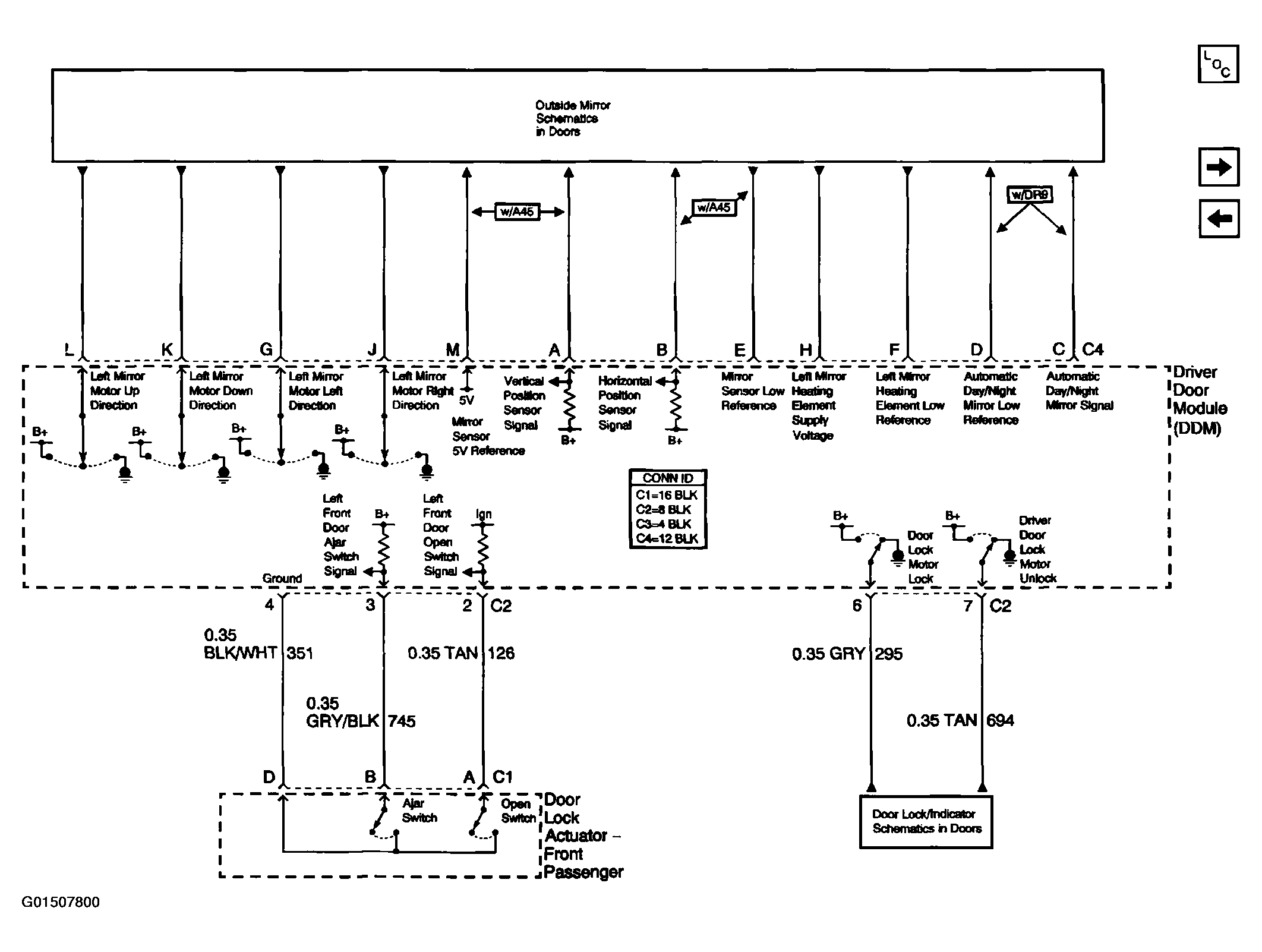

Fig 3: Door Control Module Wiring Schematic - Driver Door Module (DDM) Inputs/Outputs

Courtesy of GENERAL MOTORS CORP.

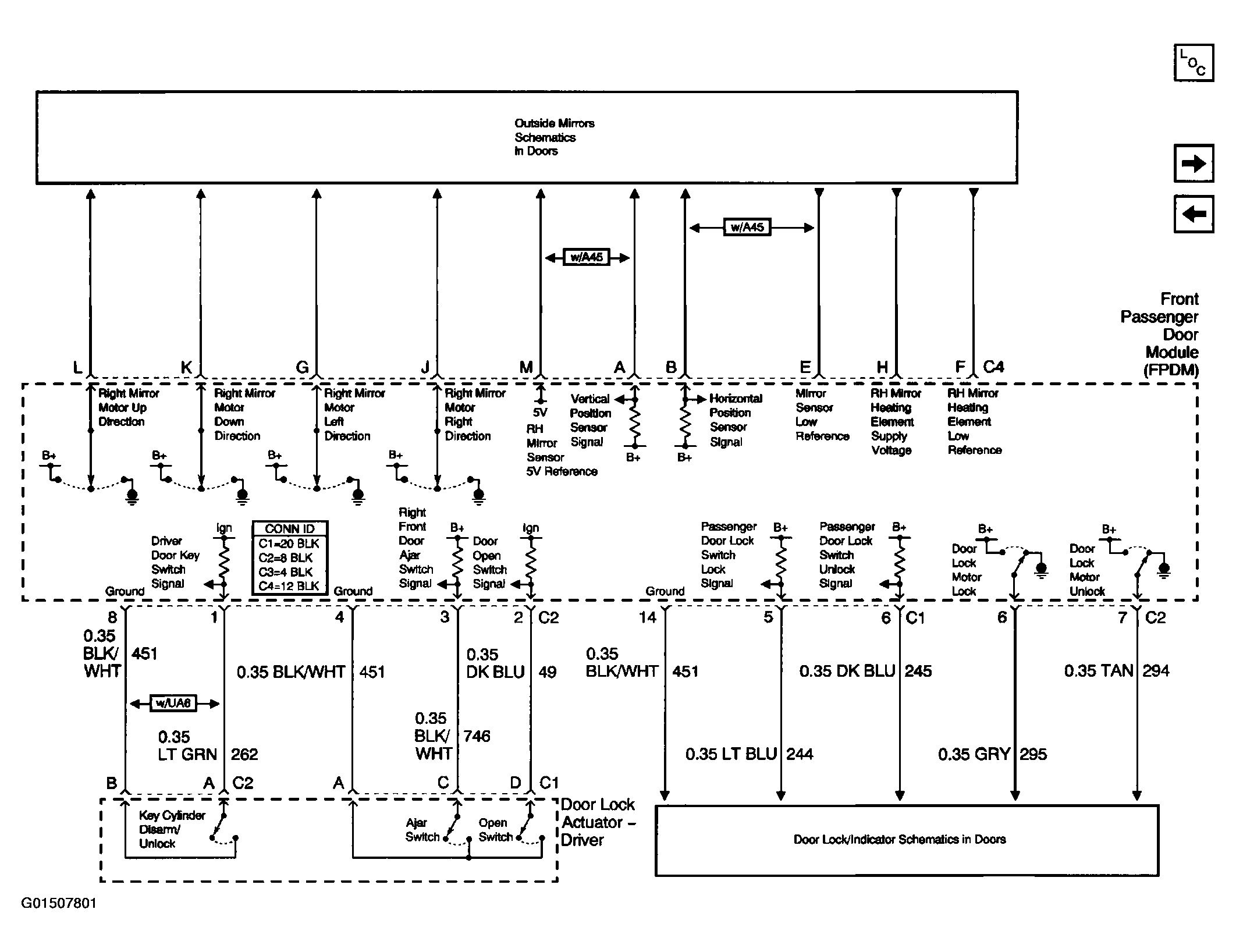

Fig 4: Door Control Module Wiring Schematic - Front Passenger Door Module (FPDM) Inputs/Outputs

Courtesy of GENERAL MOTORS CORP.

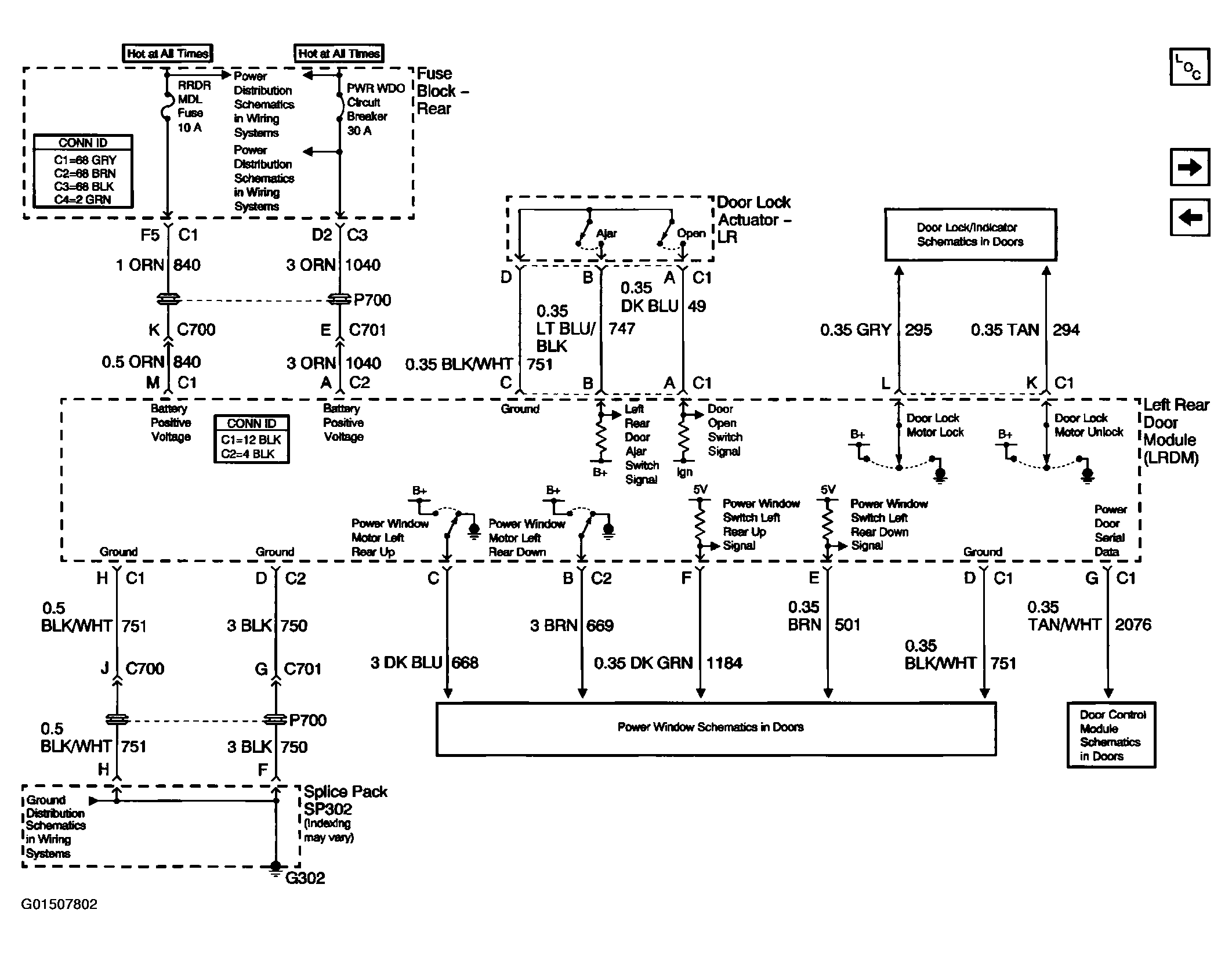

Fig 5: Door Control Module Wiring Schematic - Left Rear Door Module (LRDM) Power, Ground & I/O

Courtesy of GENERAL MOTORS CORP.

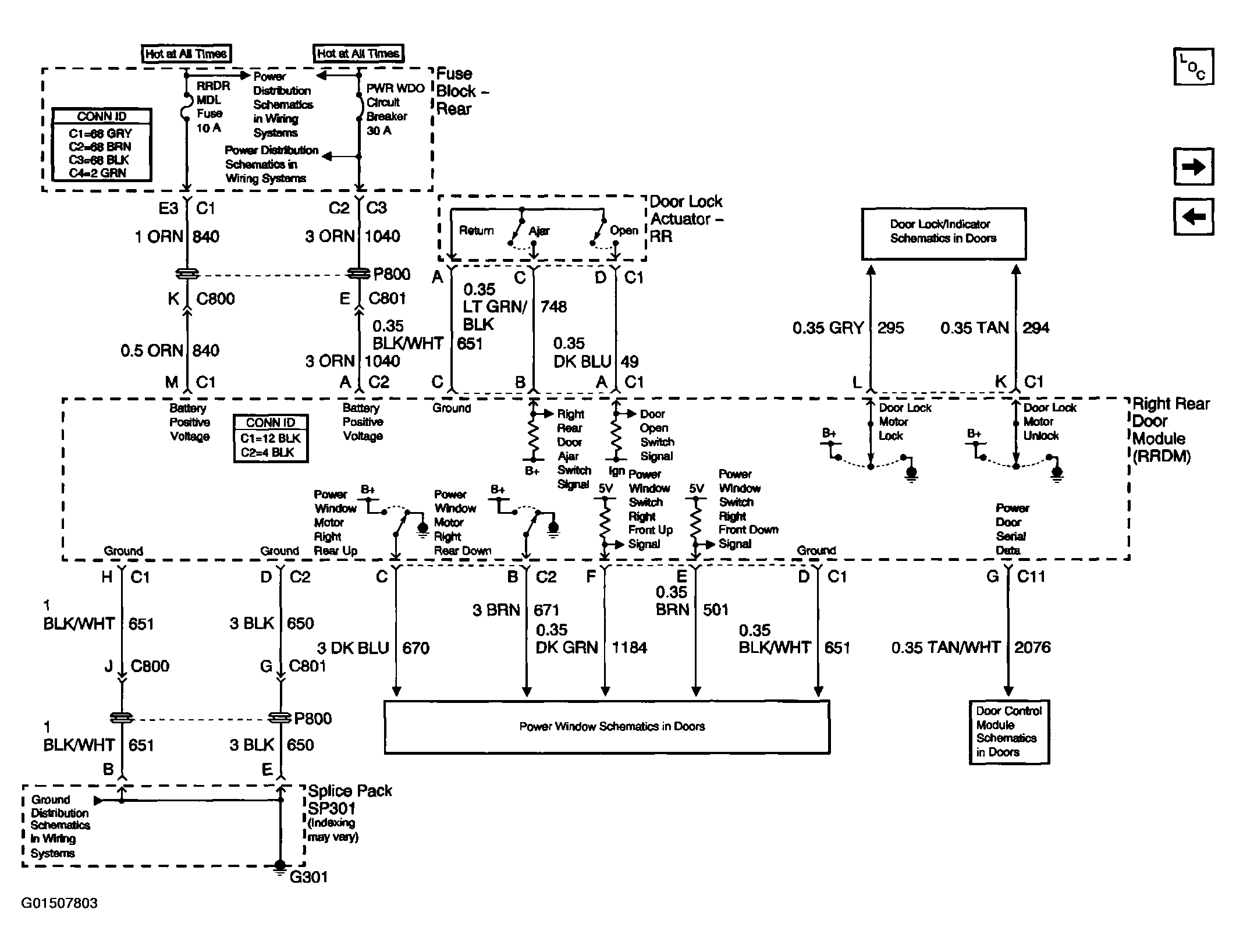

Fig 6: Door Control Module Wiring Schematic - Right Rear Door Module (RRDM) Power, Ground & I/O

Courtesy of GENERAL MOTORS CORP.

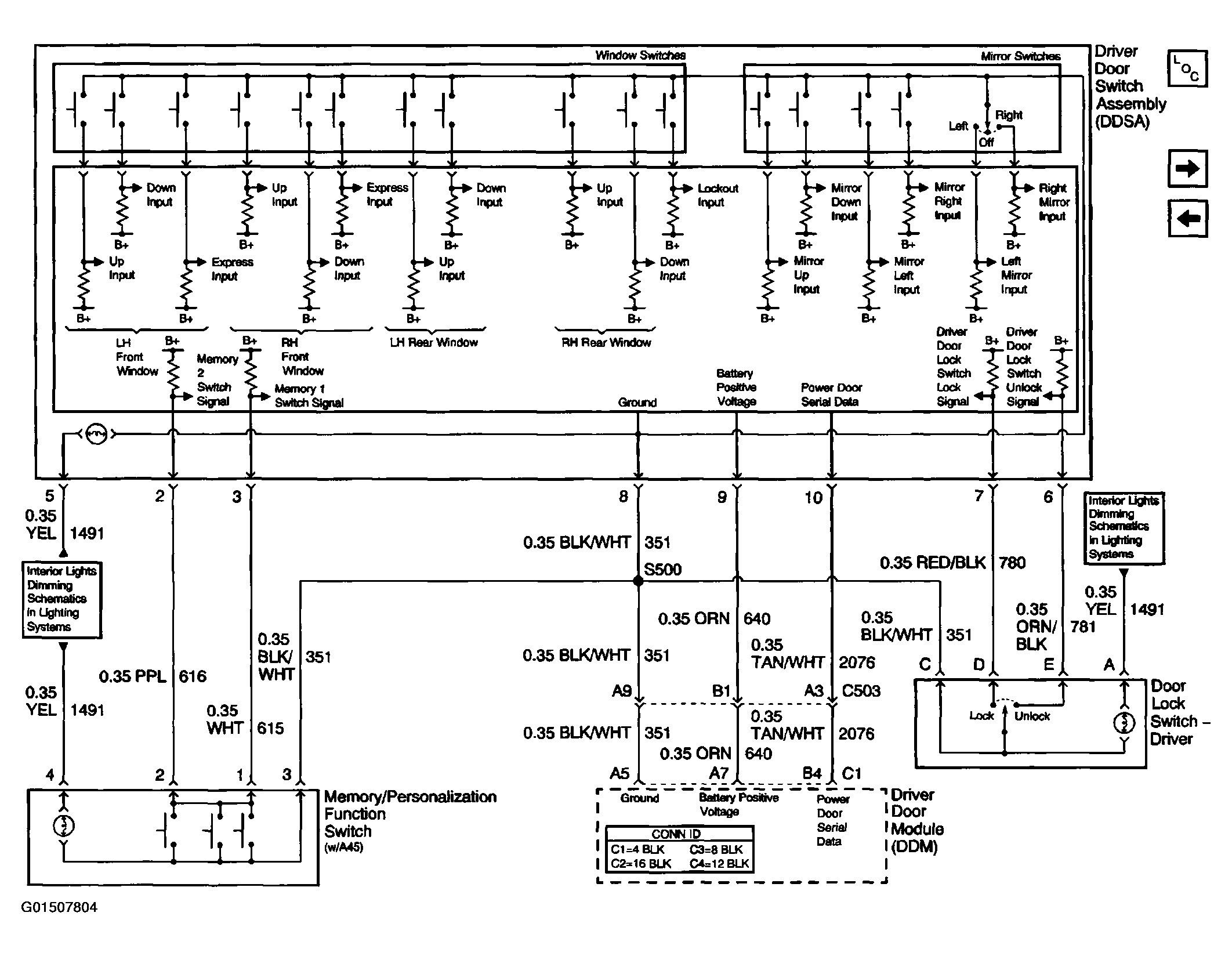

Fig 7: Door Control Module Wiring Schematic - Driver Door Switch Assembly

Courtesy of GENERAL MOTORS CORP.

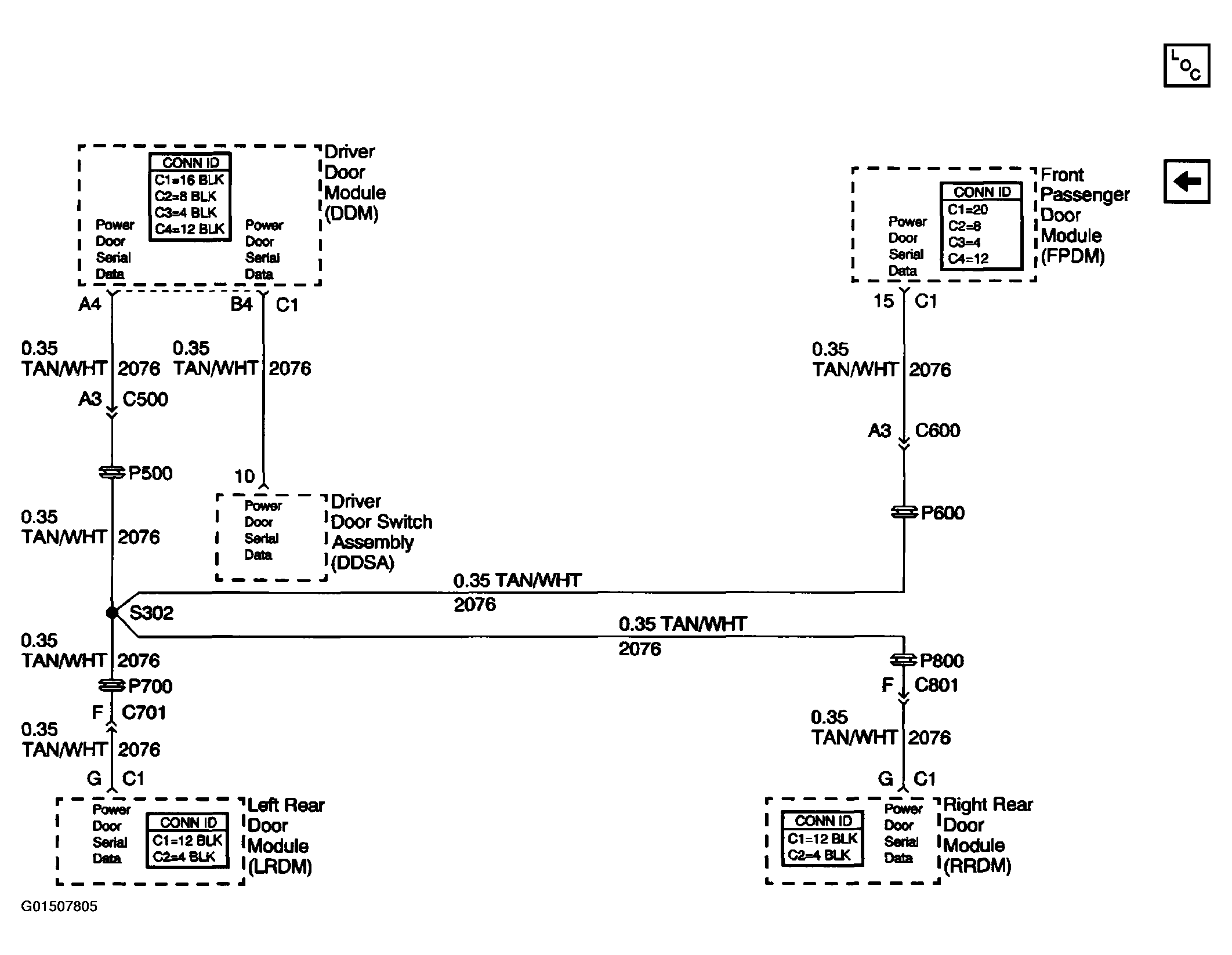

Fig 8: Door Control Module Wiring Schematic - Power Door Serial Data

Courtesy of GENERAL MOTORS CORP.
