Automatic Level Control (ALC) Compressor Connector End View Identification & Specification

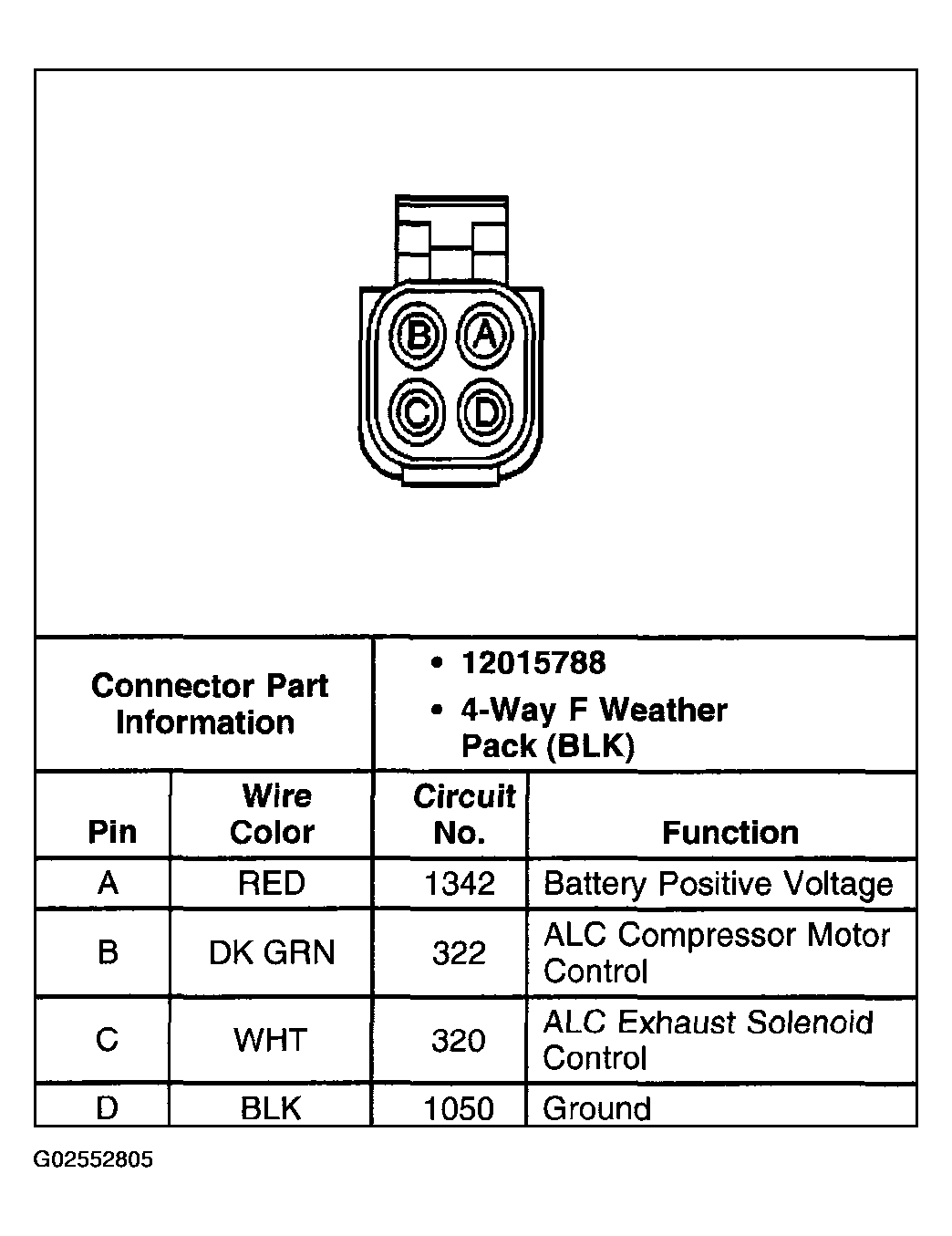

Fig 1: Automatic Level Control (ALC) Compressor Connector End View Identification & Specification
G02552805Courtesy of GENERAL MOTORS CORP.
