Cellular Communication Connector End Views

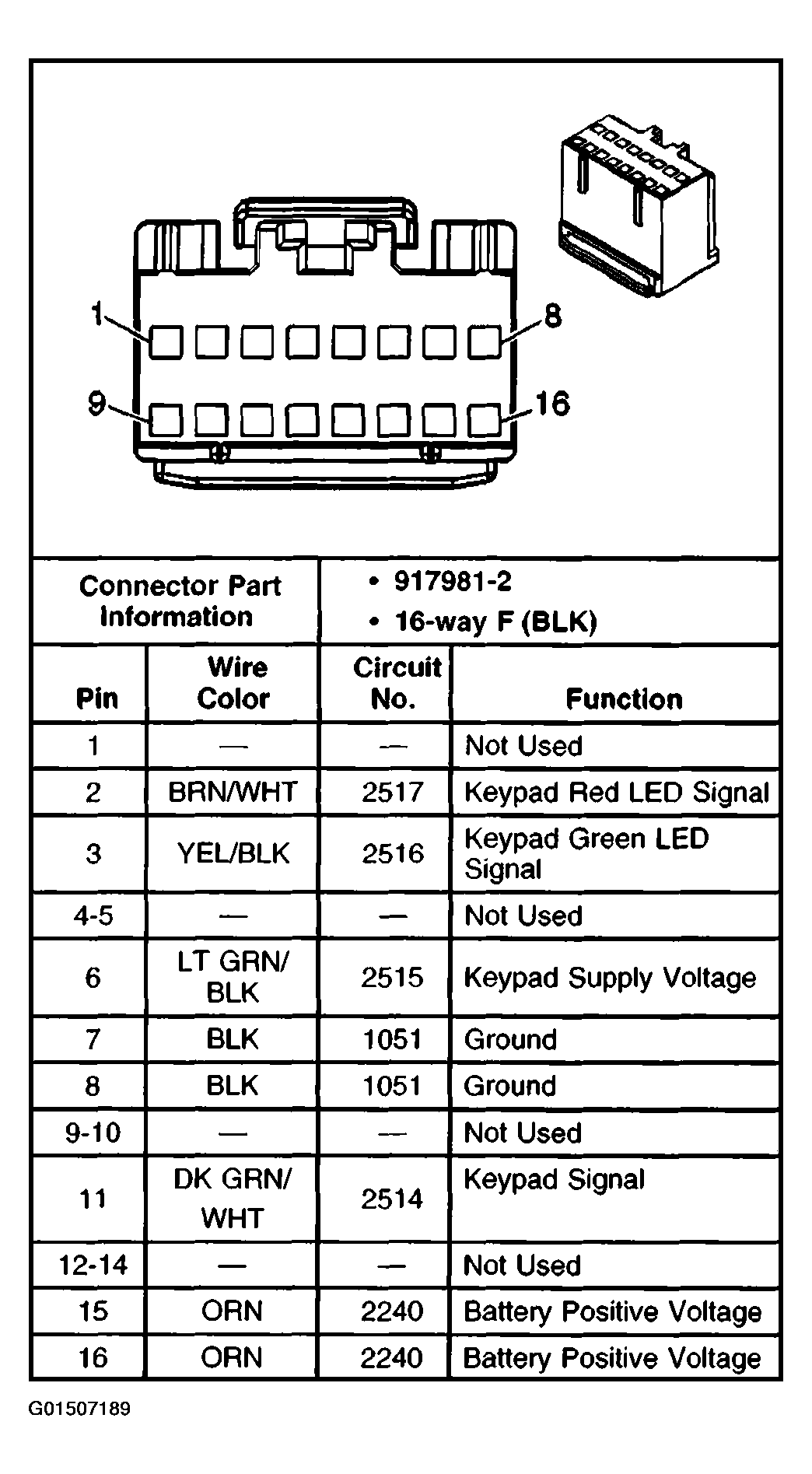

Fig 1: Identifying Cellular Communication Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Vehicle Communication Integration Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
