Power Seat Systems Component Views

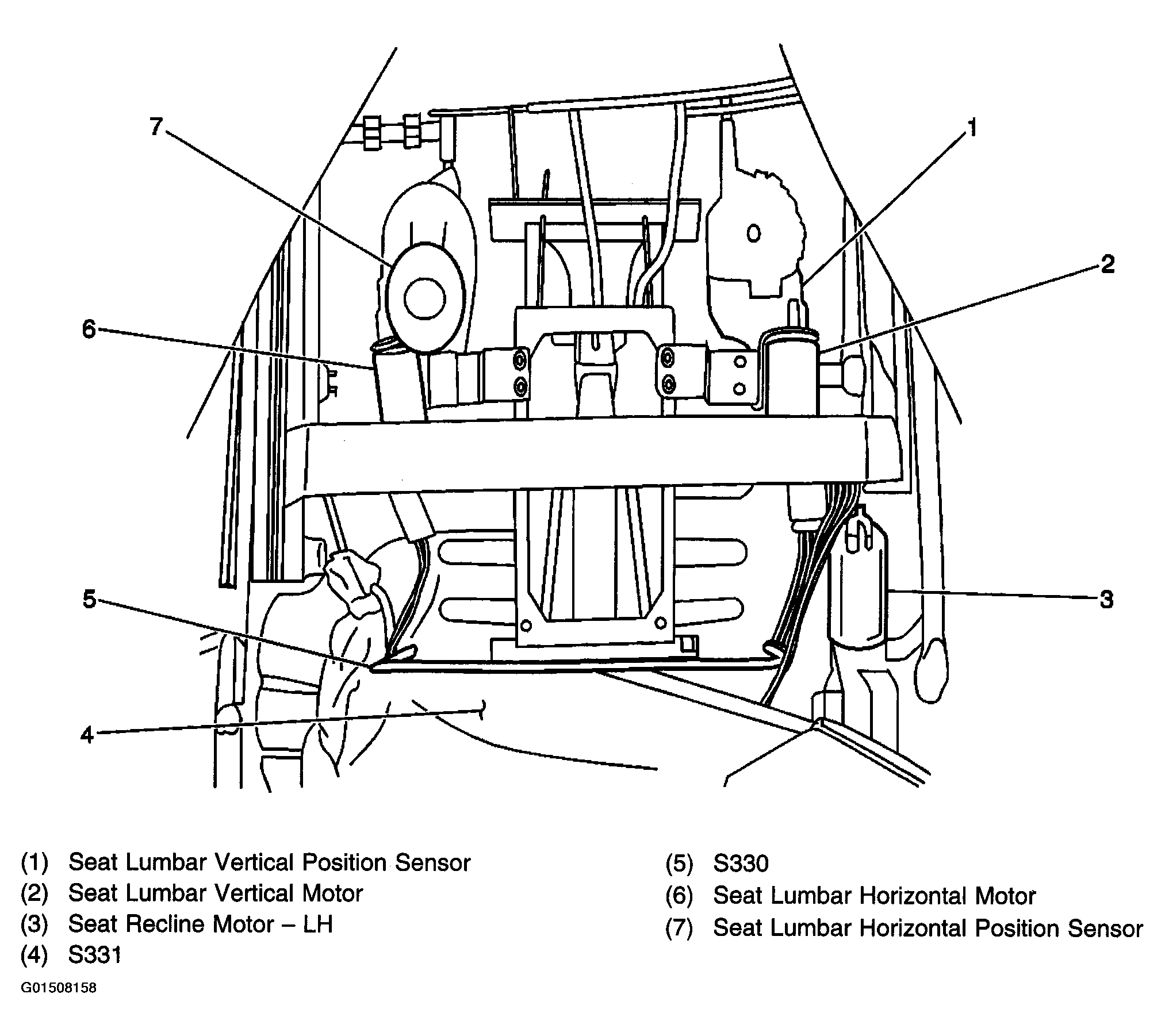

Fig 1: Identifying Driver Seat Back Components - Front Passenger Similar

Courtesy of GENERAL MOTORS CORP.

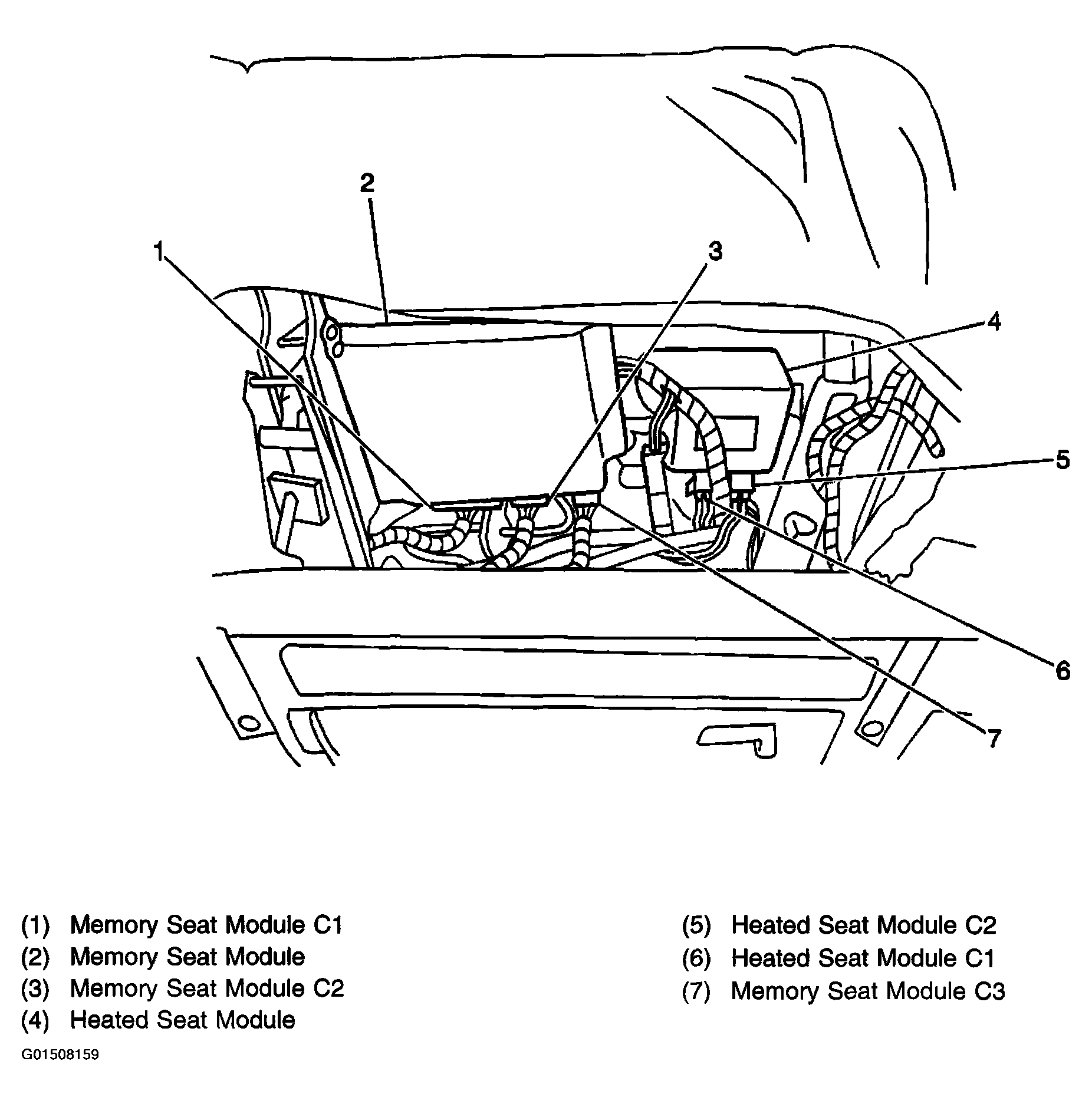

Fig 2: Identifying Memory Seat Module & Heated Seat Module

Courtesy of GENERAL MOTORS CORP.

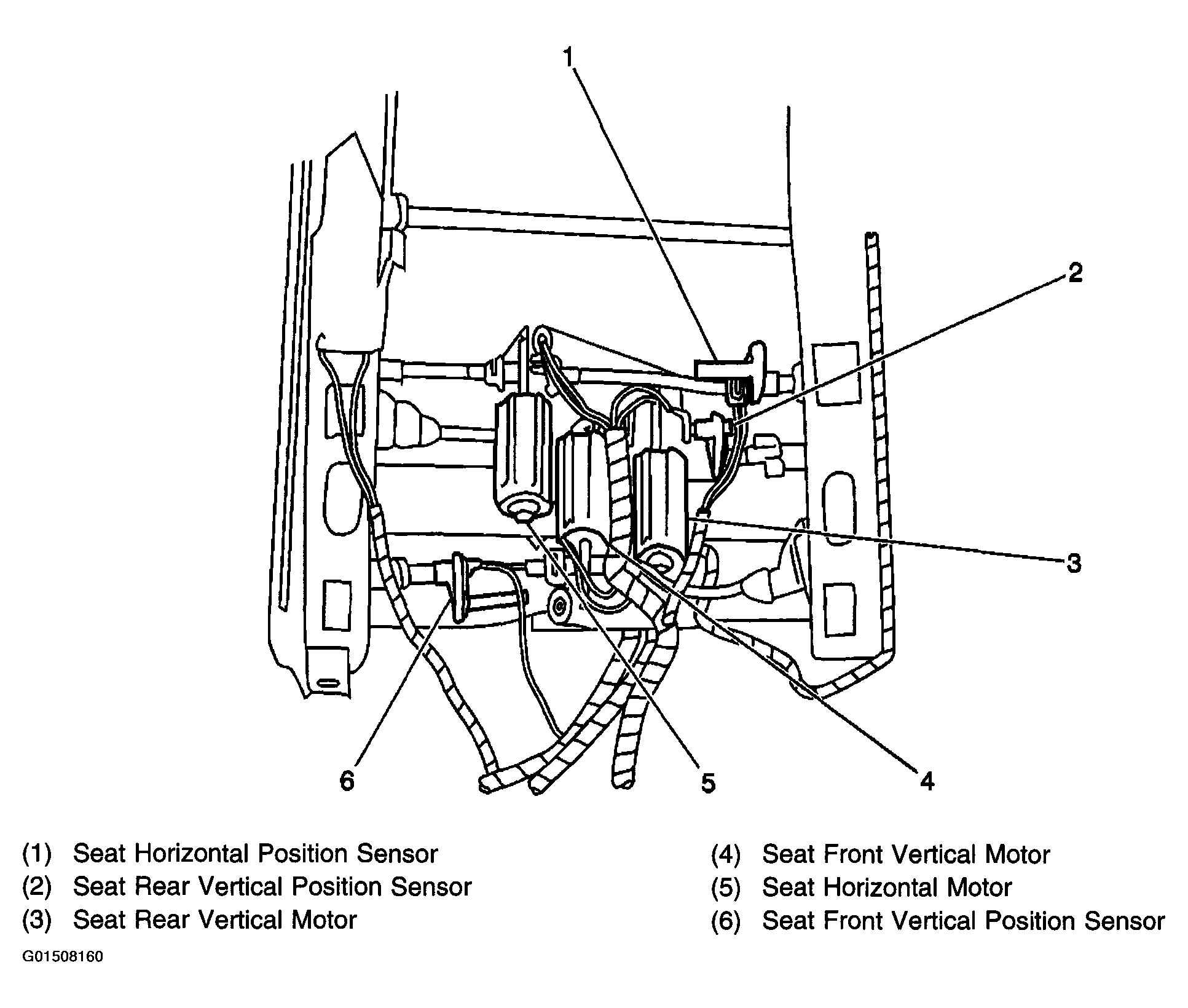

Fig 3: Identifying Driver Seat Horizontal & Vertical Motors & Sensors - Front Passenger Similar

Courtesy of GENERAL MOTORS CORP.

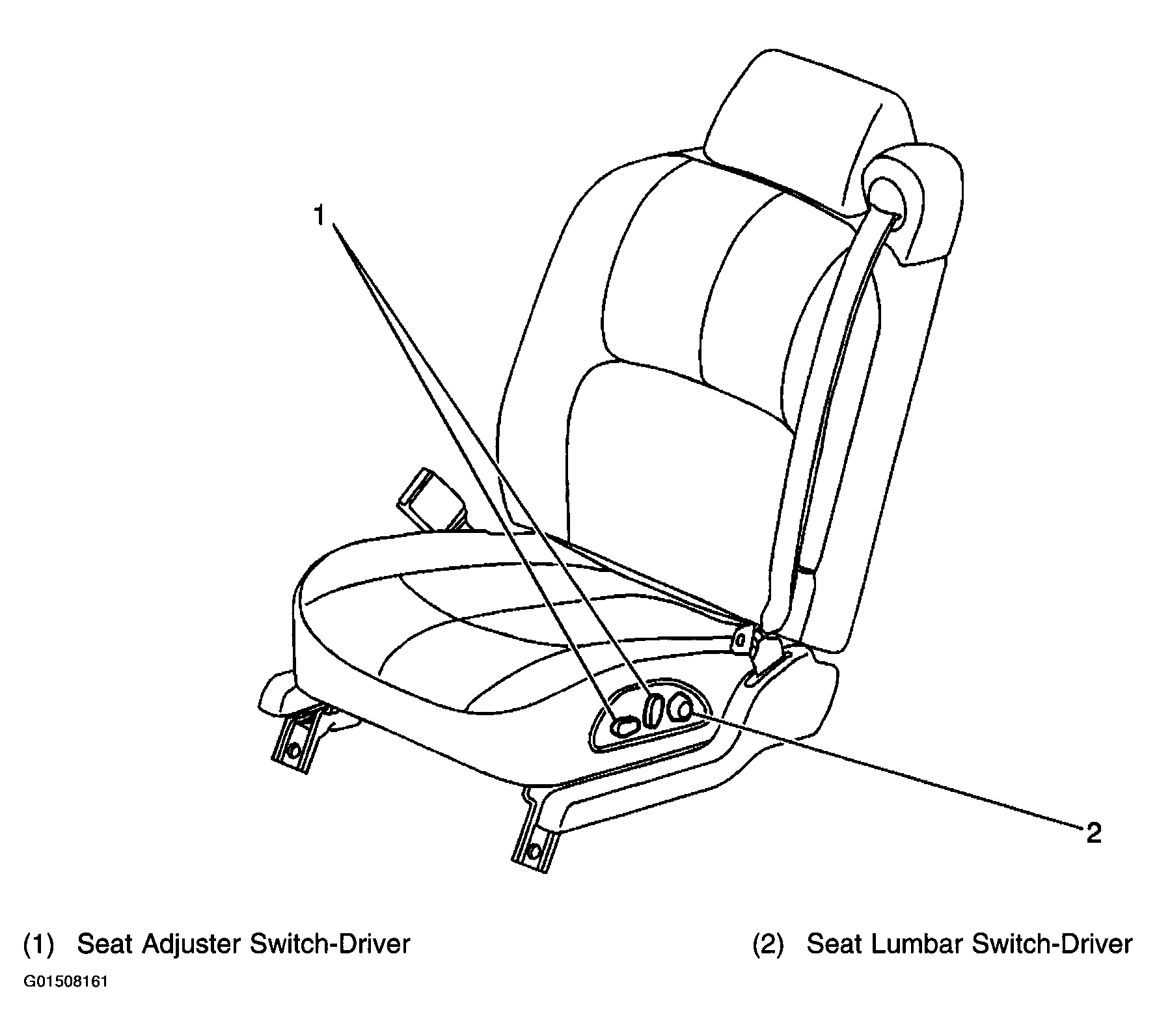

Fig 4: Identifying Driver Seat Adjuster & Lumbar Switches

Courtesy of GENERAL MOTORS CORP.

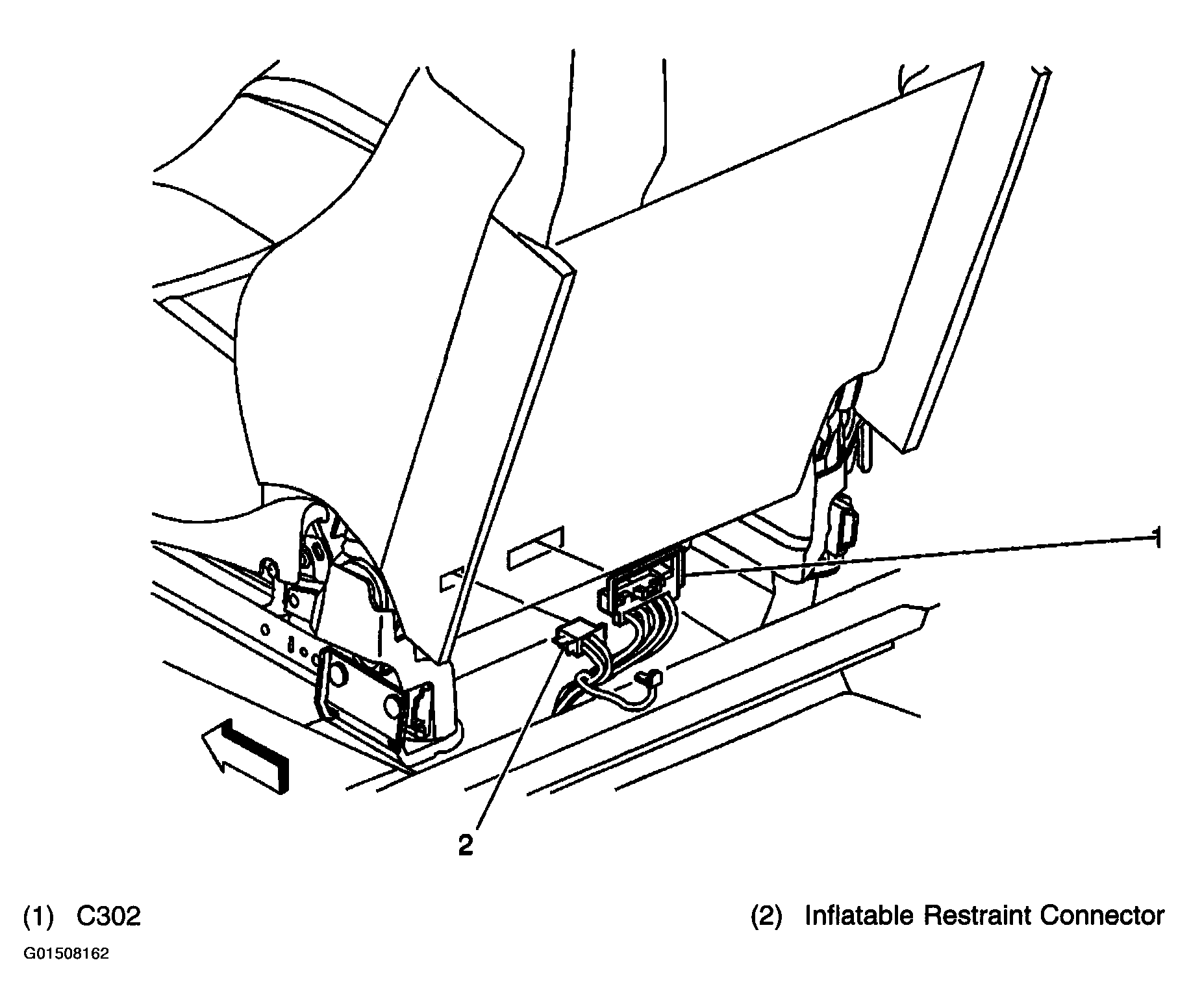

Fig 5: Identifying Driver Seat Connectors

Courtesy of GENERAL MOTORS CORP.

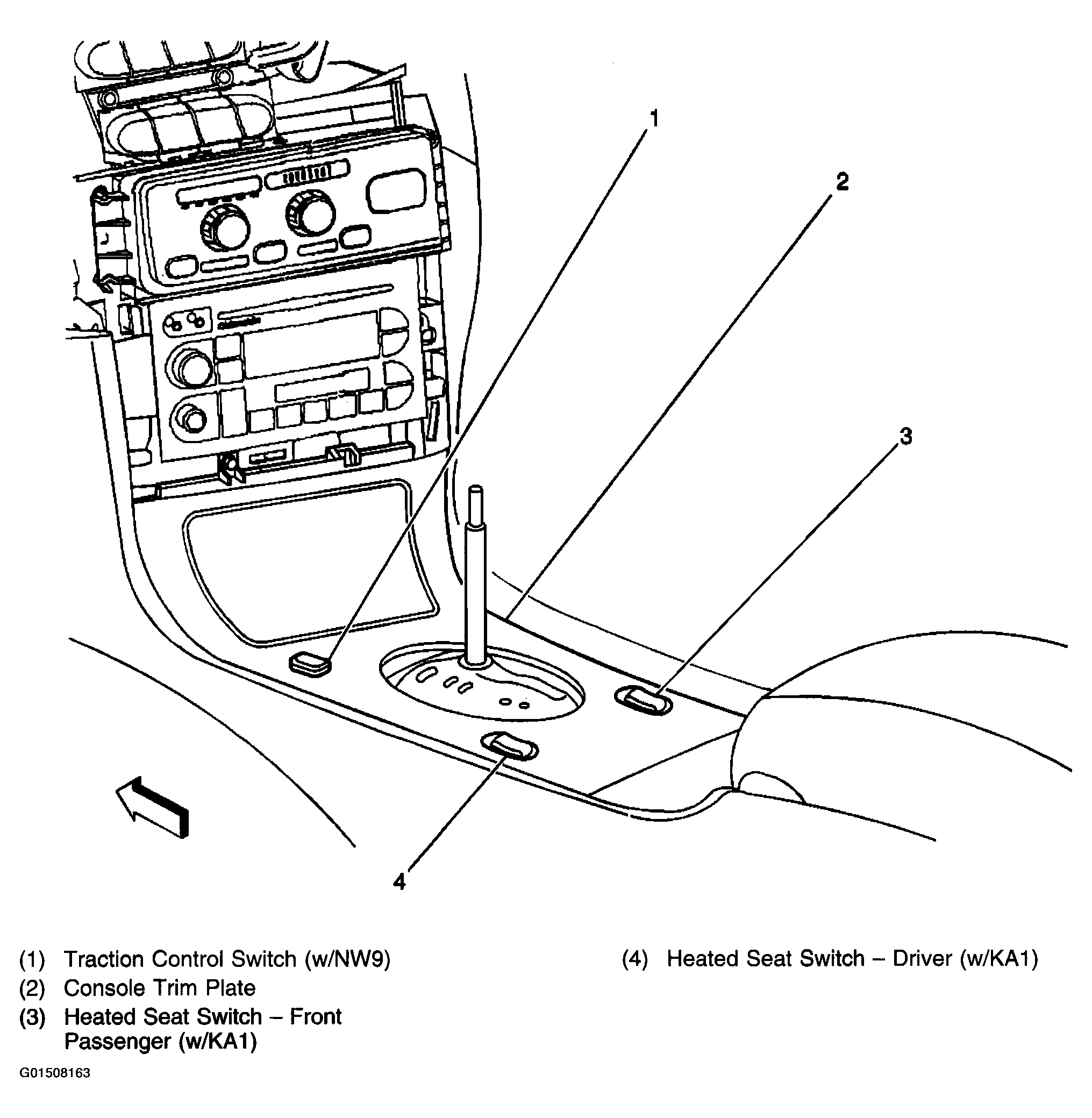

Fig 6: Identifying Traction Control & Heated Seat Switches

Courtesy of GENERAL MOTORS CORP.
