Power Sunroof Express Module Connector End View C2

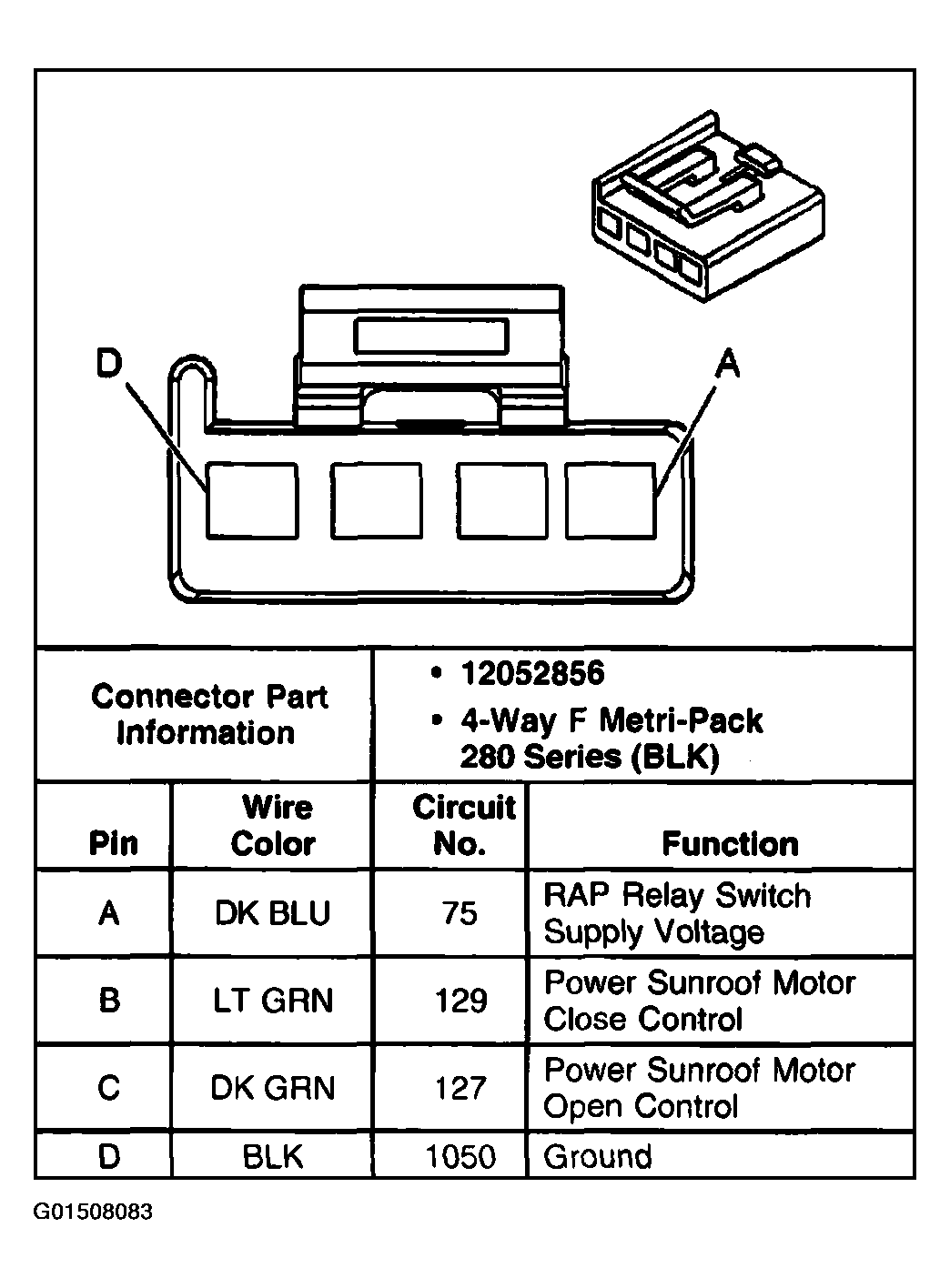

Fig 1: Power Sunroof Express Module Connector End View C2
Courtesy of GENERAL MOTORS CORP.
