Power Steering Pump Disassembled View

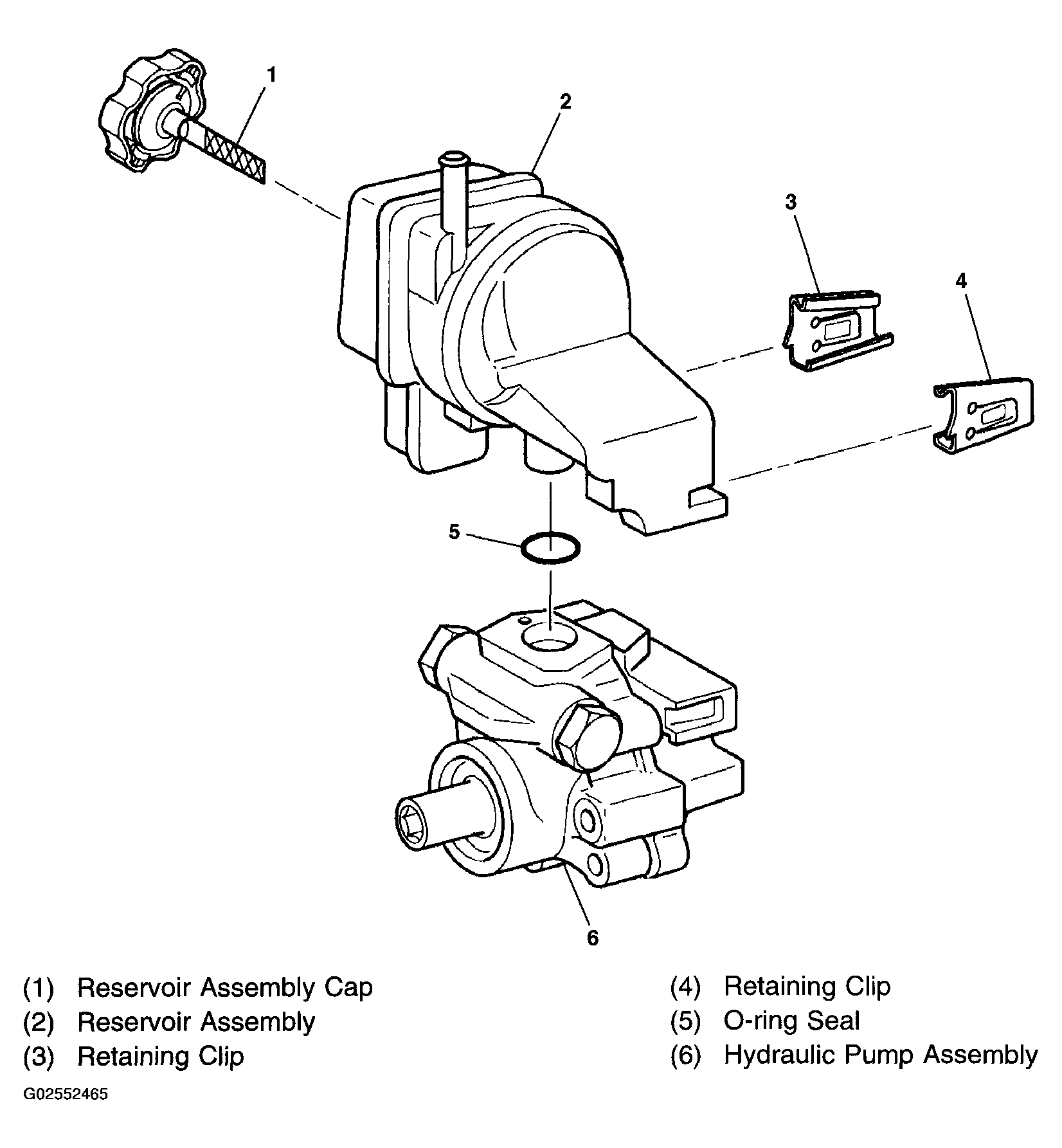

Fig 1: Disassembled View Of Power Steering Pump Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
