Installation Procedure

  1. Install the power steering pulley to the power steering pump using J 25033-C  .

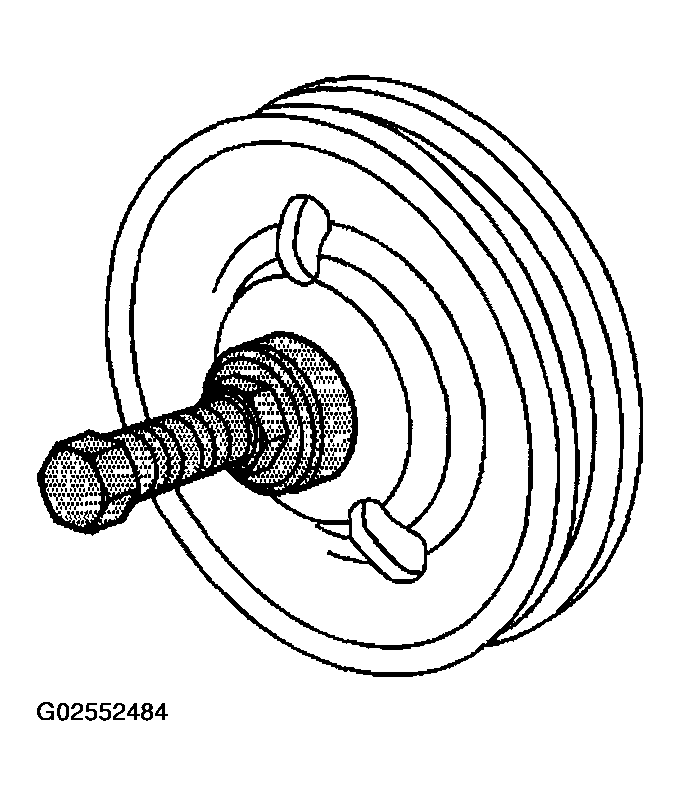

    Fig 1: Installing Power Steering Pulley
    G02552484Courtesy of GENERAL MOTORS CORP.
  2. Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in).

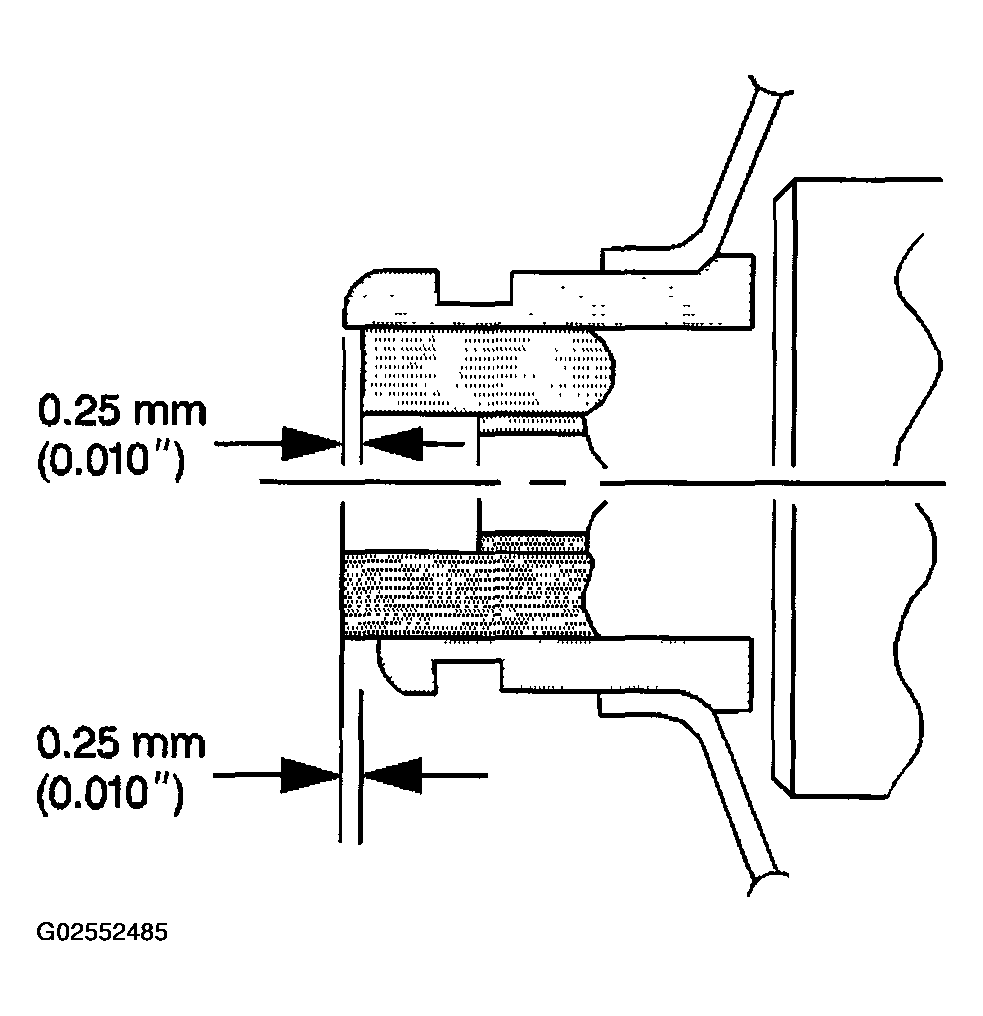

    Fig 2: Identifying Axial Tolerance Of Power Steering Pulley
    G02552485Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (L47)  .
