Installation Procedure

  1. Connect the electrical connector to the steering wheel control switch.

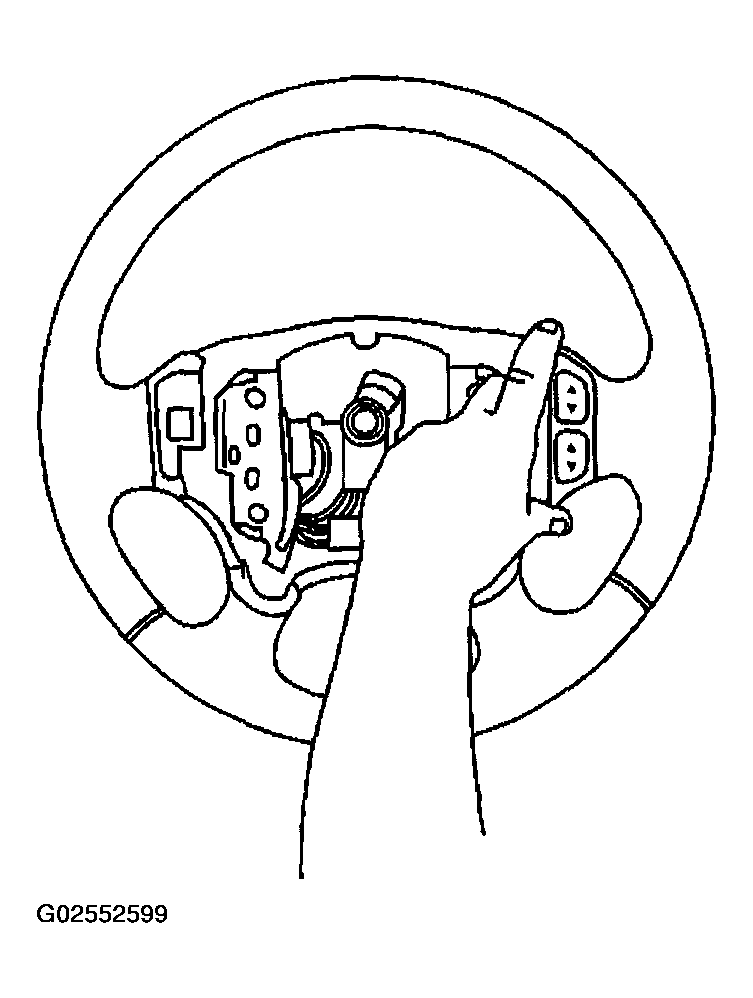

    Fig 1: Installing Steering Wheel Control Switch Assembly
    G02552599Courtesy of GENERAL MOTORS CORP.
  2. Align the control switch engagement tabs to the steering wheel.
  3. Push in on the control switch in order to secure the switch to the steering wheel.
  4. Install the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  5. Enable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
