Disassembled Views

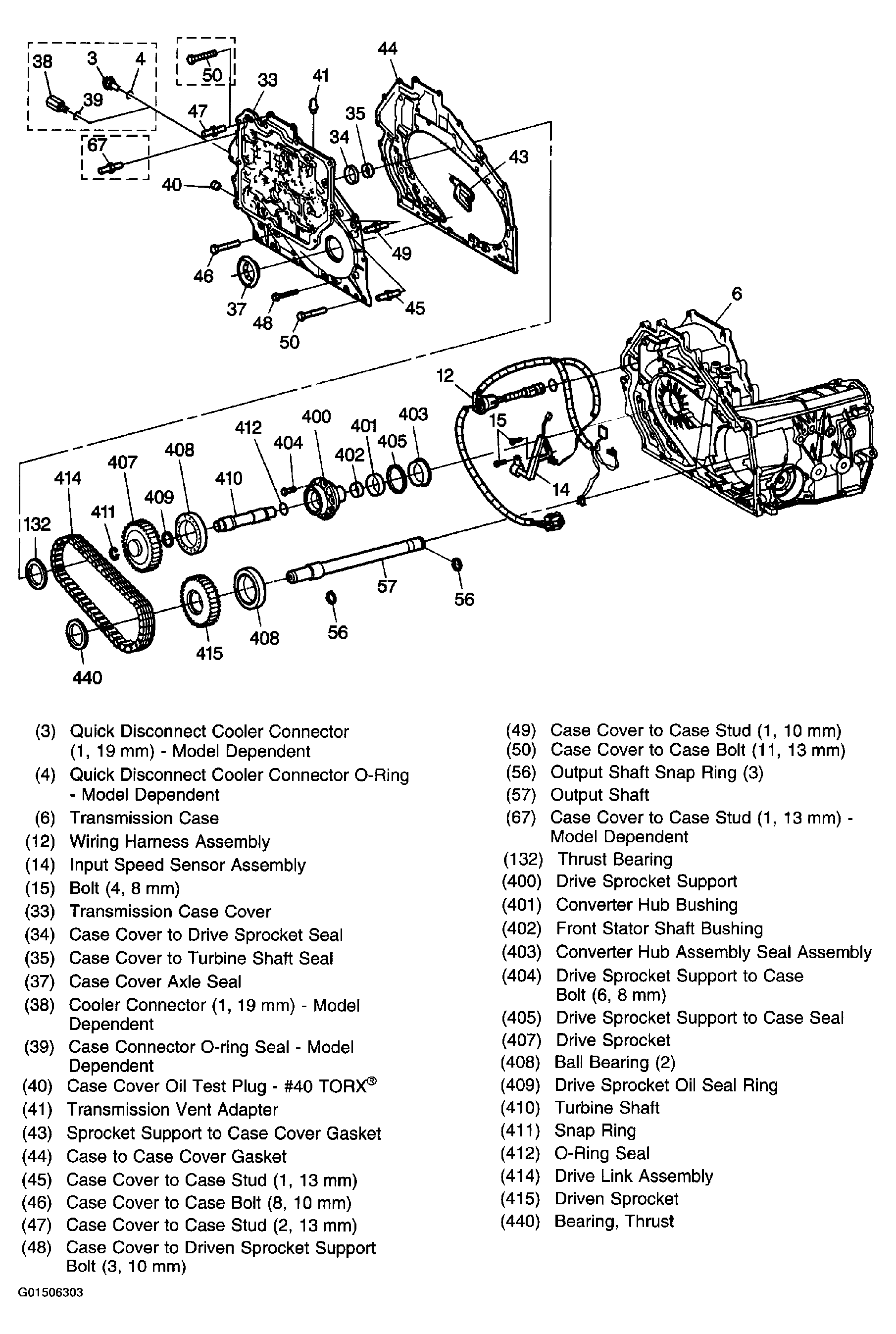

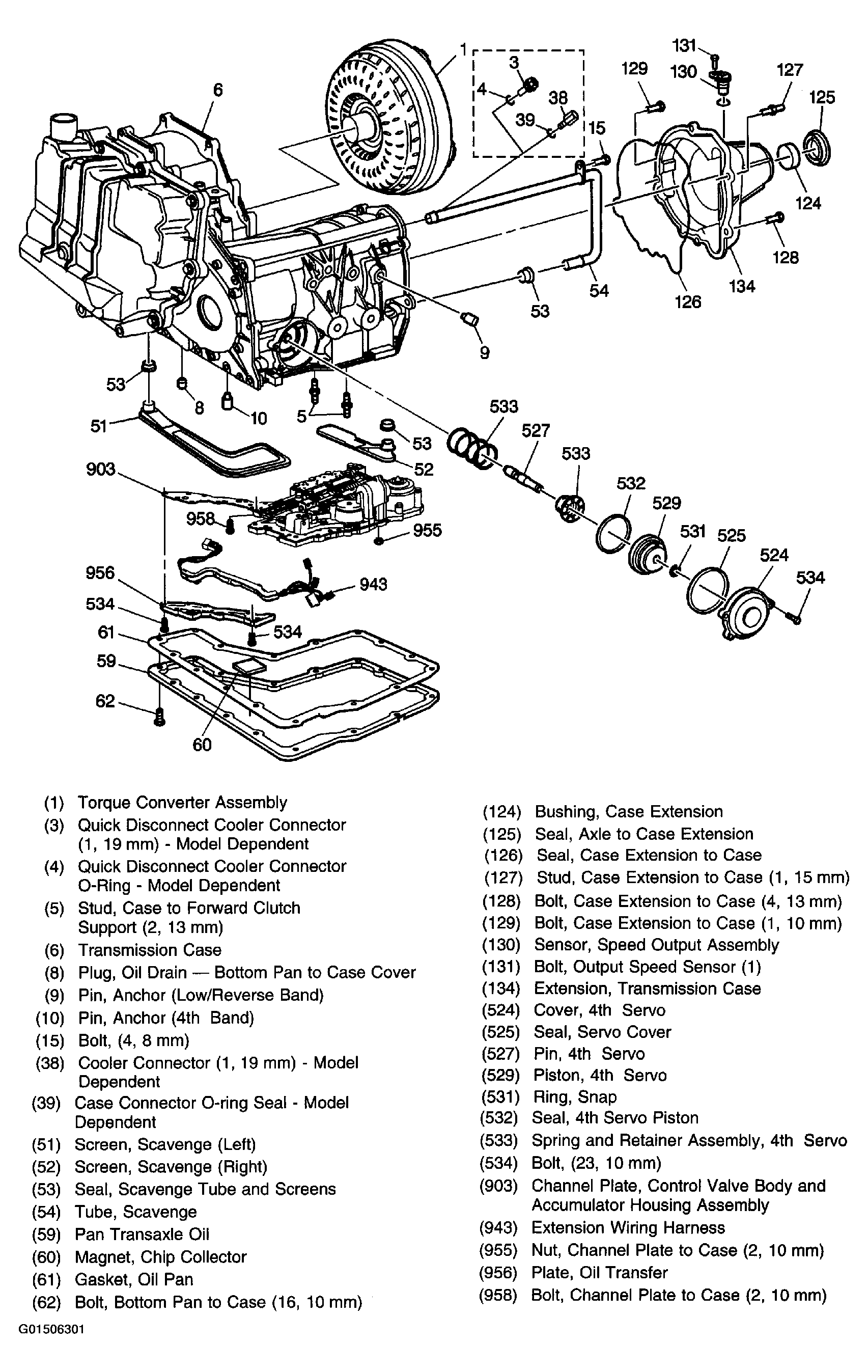

Fig 1: Exploded View Of Transmission Case & Associated Parts (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Exploded View Of Transmission Case & Associated Parts (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Exploded View Of Transmission Case & Associated Parts (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

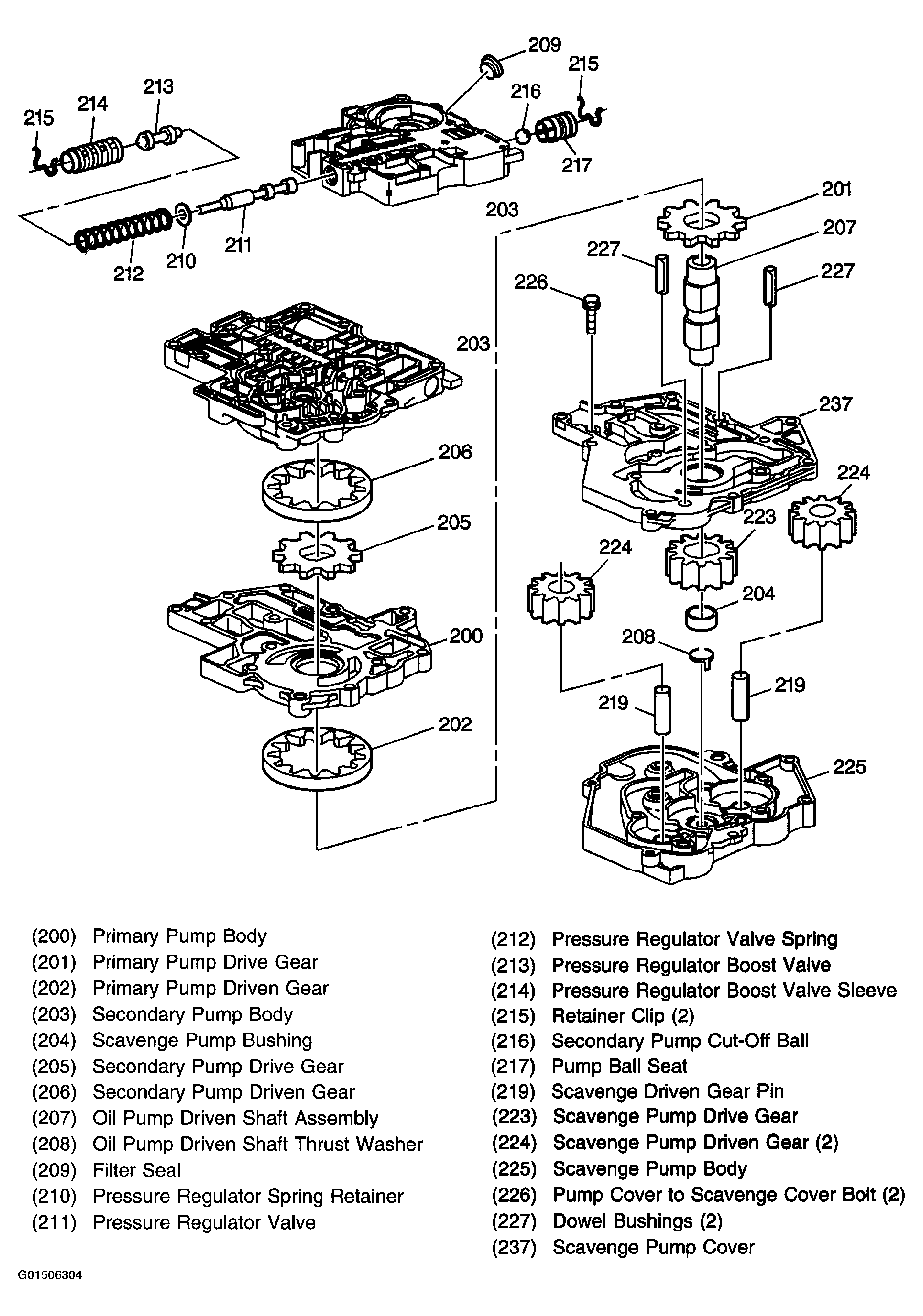

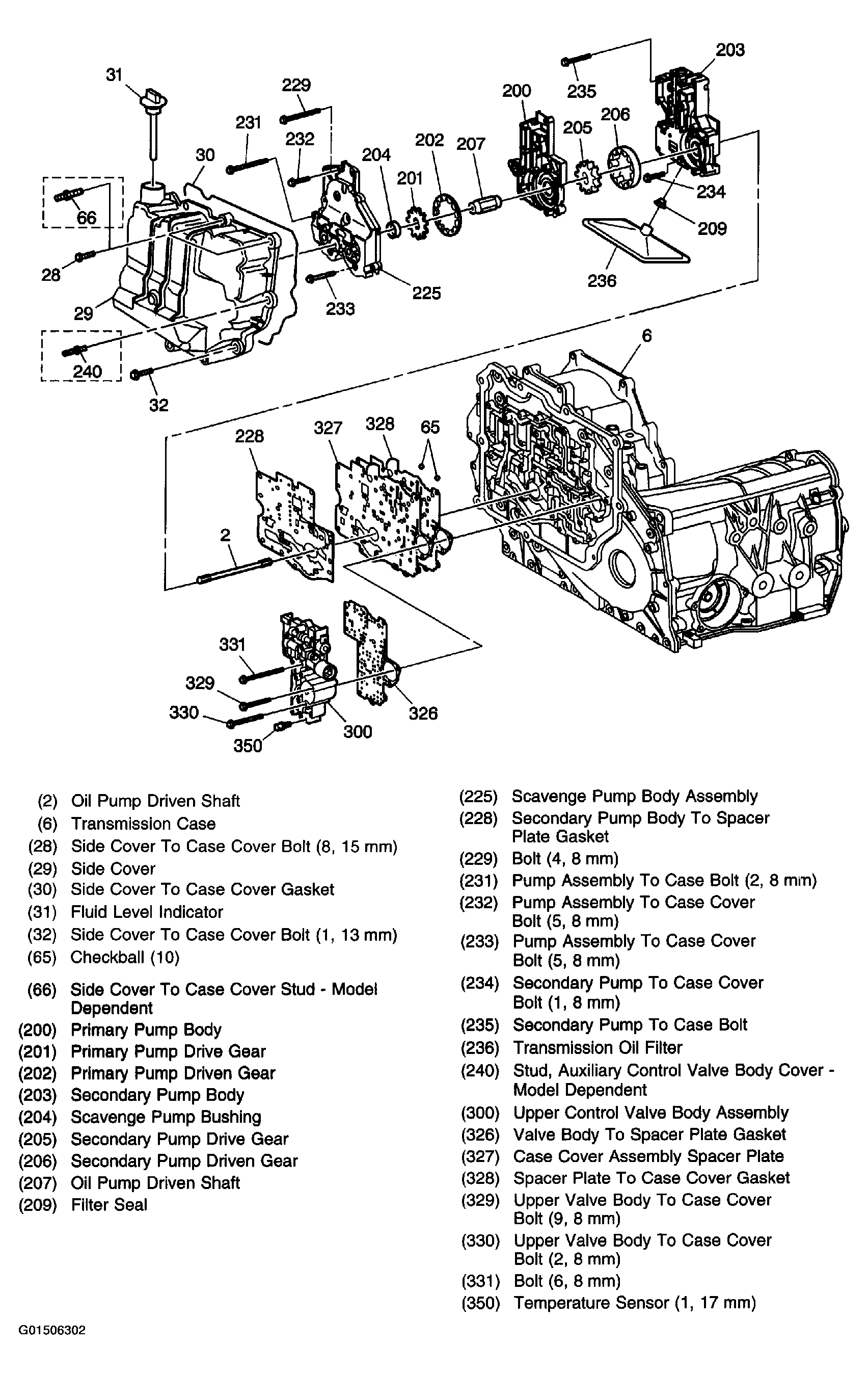

Fig 4: Exploded View Of Scavenge, Primary & Secondary Fluid Pump

Courtesy of GENERAL MOTORS CORP.

Fig 5: Exploded View Of Upper Control Valve Body

Courtesy of GENERAL MOTORS CORP.

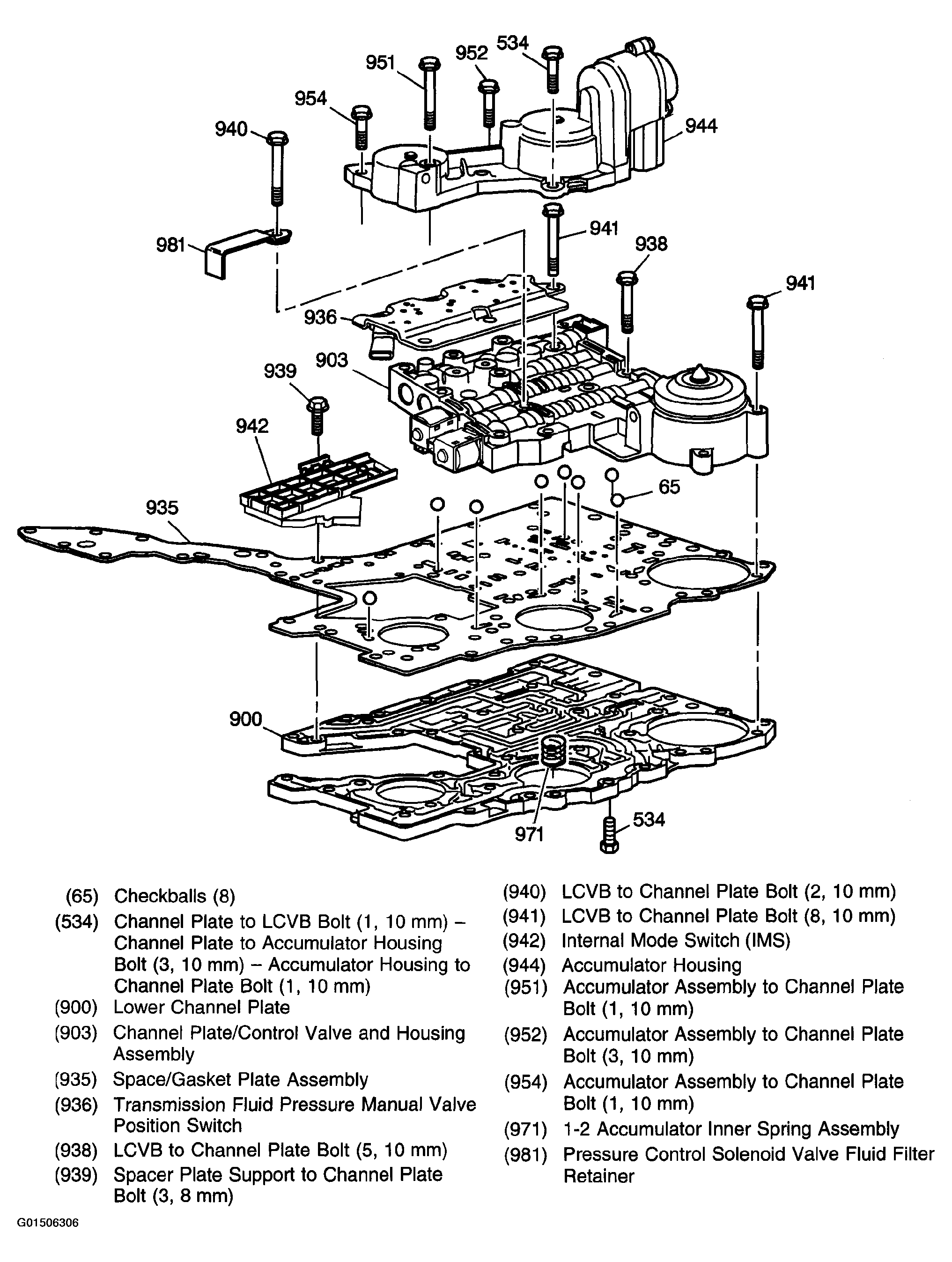

Fig 6: Exploded View Of Lower Channel Plate, Control Valve Body & Accumulator Housing

Courtesy of GENERAL MOTORS CORP.

Fig 7: Exploded View Of Lower Control Valve Body

Courtesy of GENERAL MOTORS CORP.

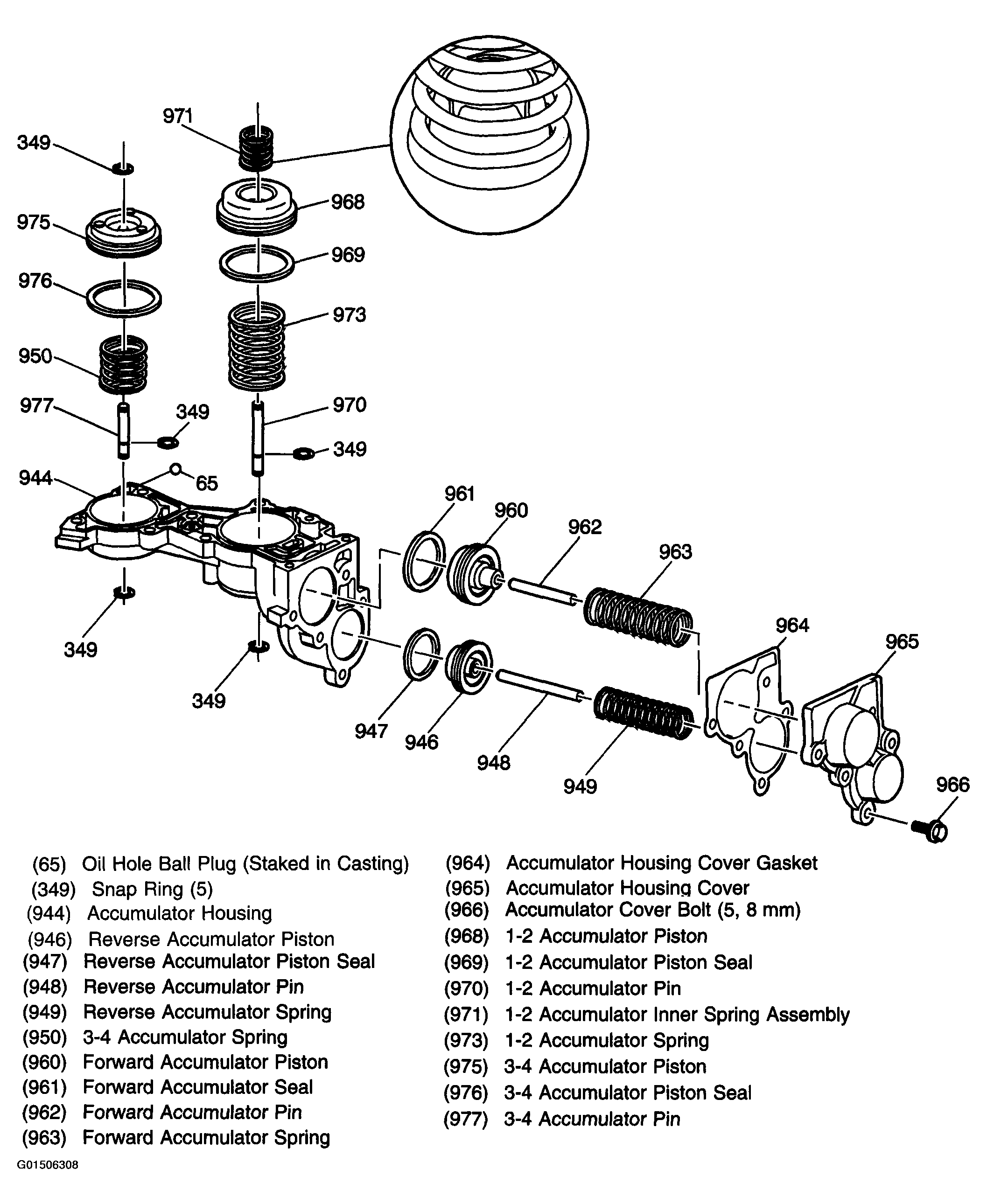

Fig 8: Exploded View Of Accumulator

Courtesy of GENERAL MOTORS CORP.

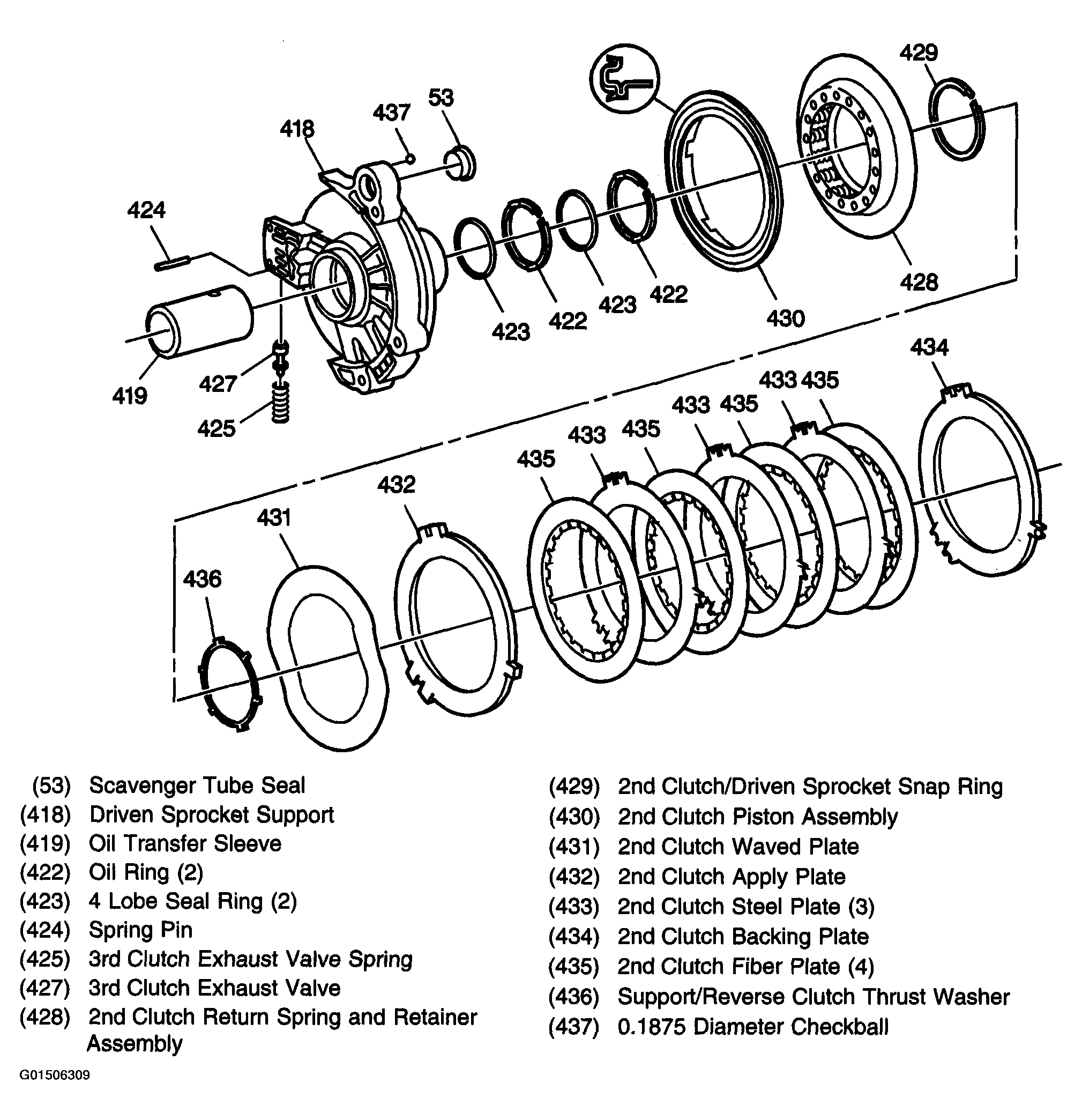

Fig 9: Exploded View Of Driven Sprocket Support & 2nd Clutch

Courtesy of GENERAL MOTORS CORP.

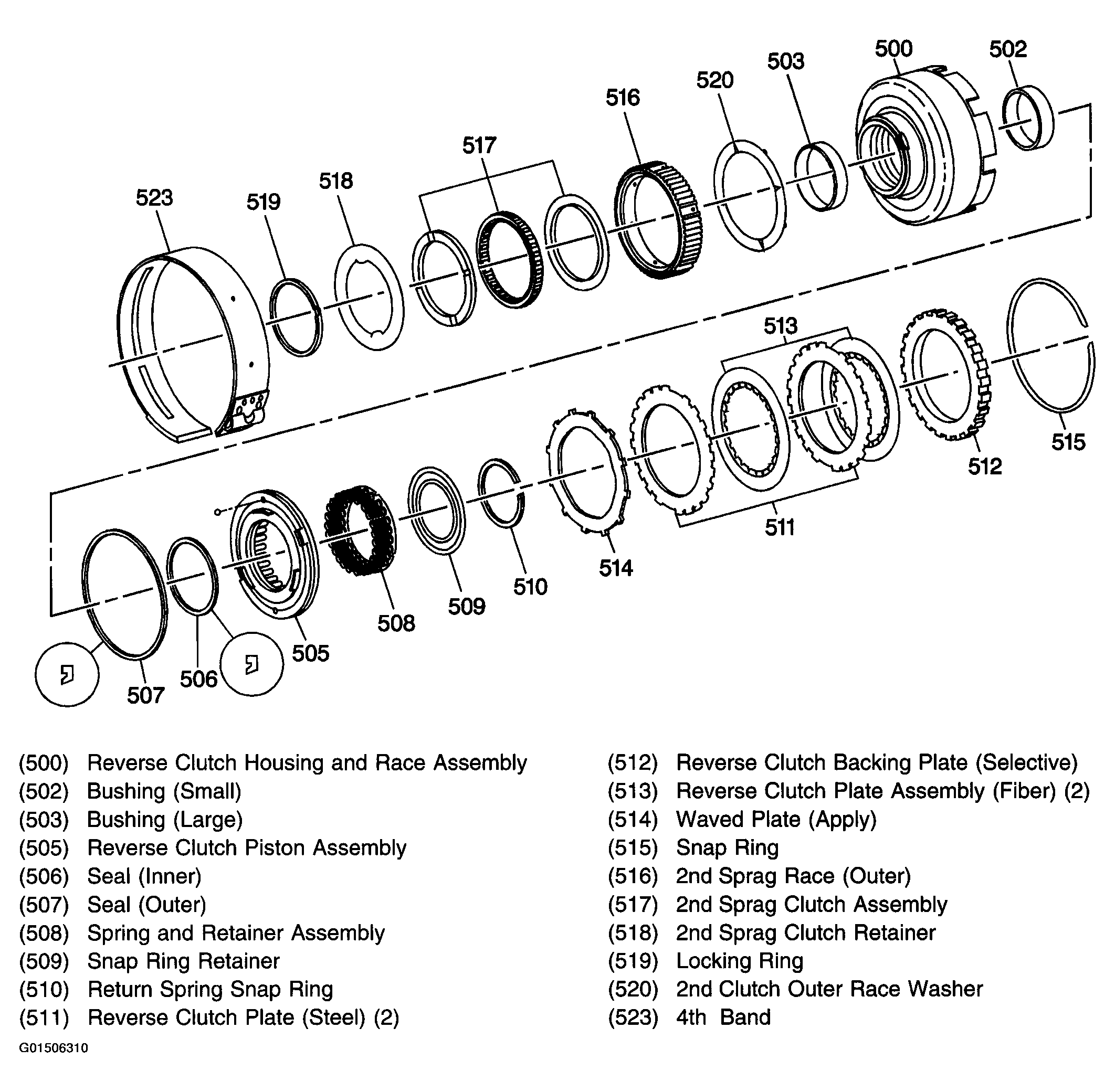

Fig 10: Exploded View Of Reverse Clutch & 2nd Sprag Clutch

Courtesy of GENERAL MOTORS CORP.

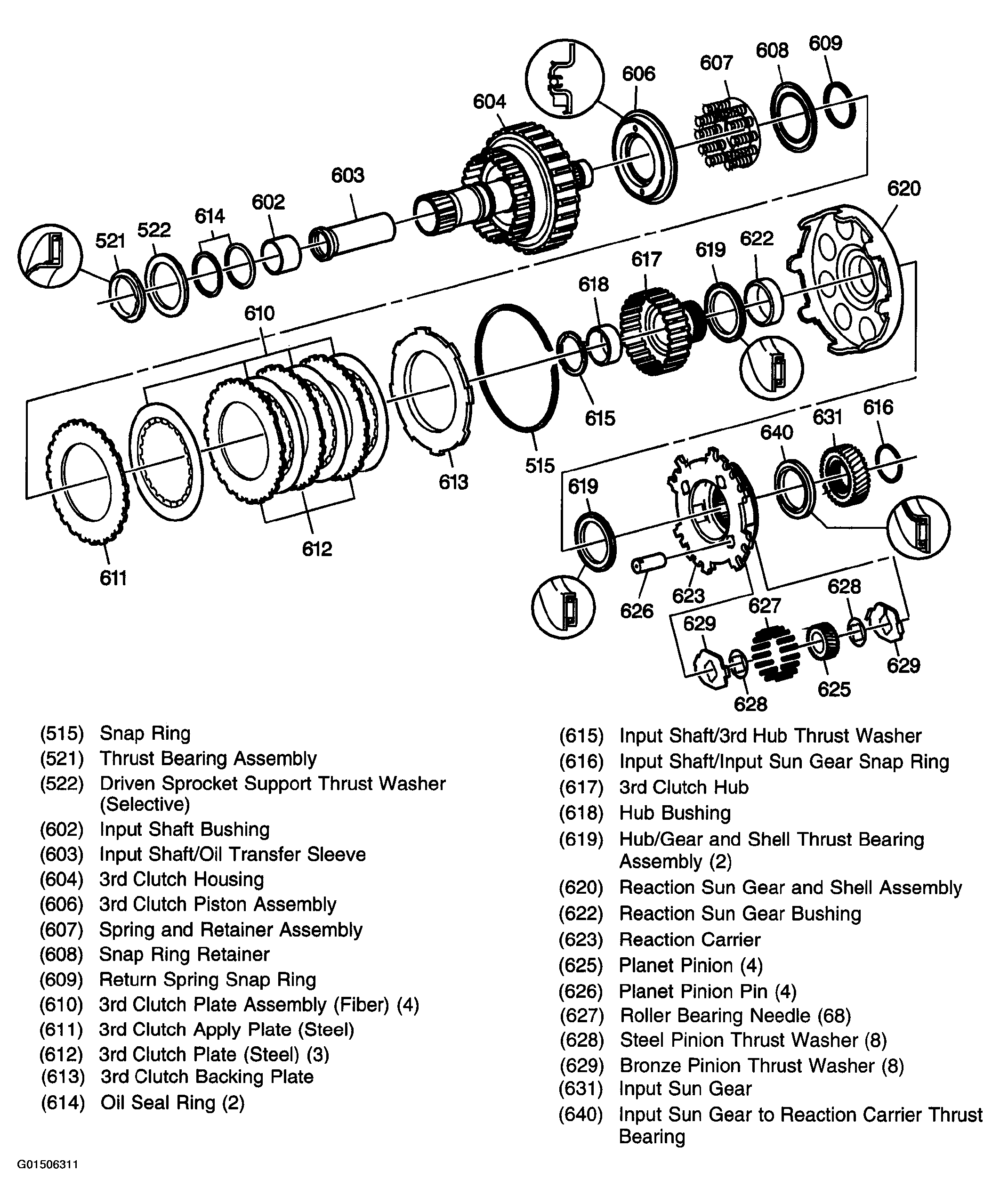

Fig 11: Exploded View Of 3rd Clutch & Reaction Carrier

Courtesy of GENERAL MOTORS CORP.

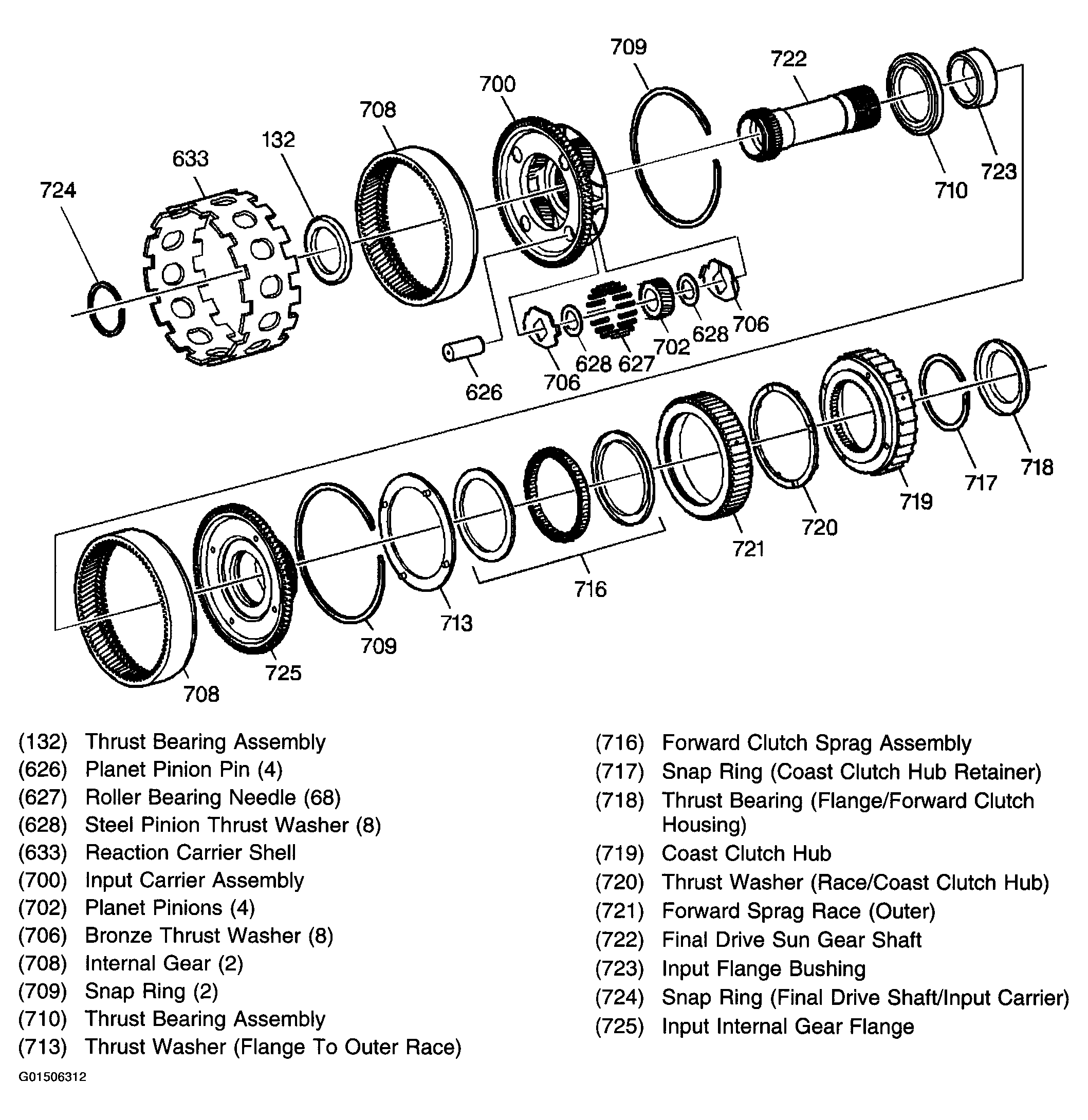

Fig 12: Exploded View Of Input Carrier & Forward Sprag Clutch

Courtesy of GENERAL MOTORS CORP.

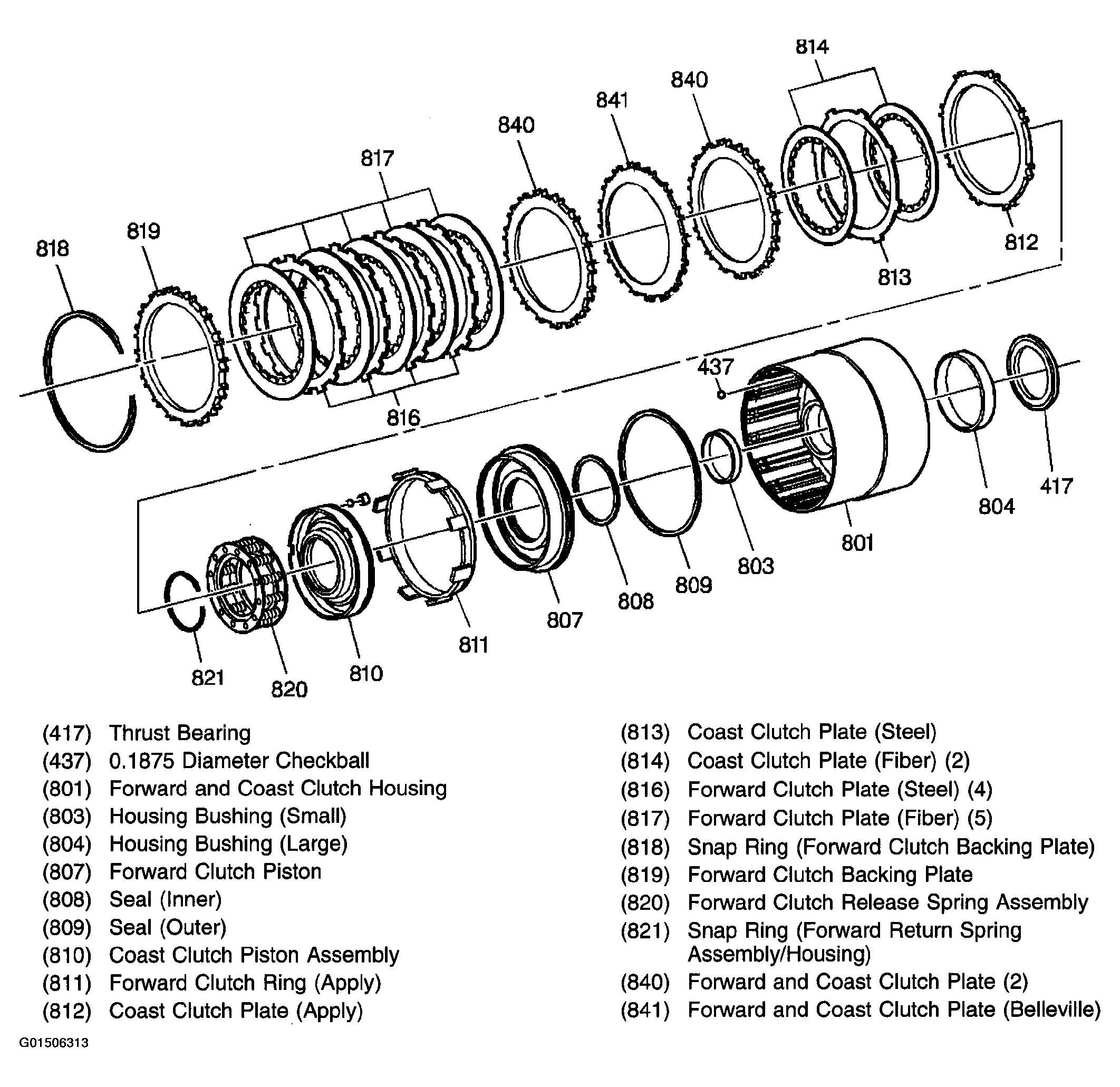

Fig 13: Exploded View Of Forward Clutch

Courtesy of GENERAL MOTORS CORP.

Fig 14: Exploded View Of Forward Clutch Support

Courtesy of GENERAL MOTORS CORP.

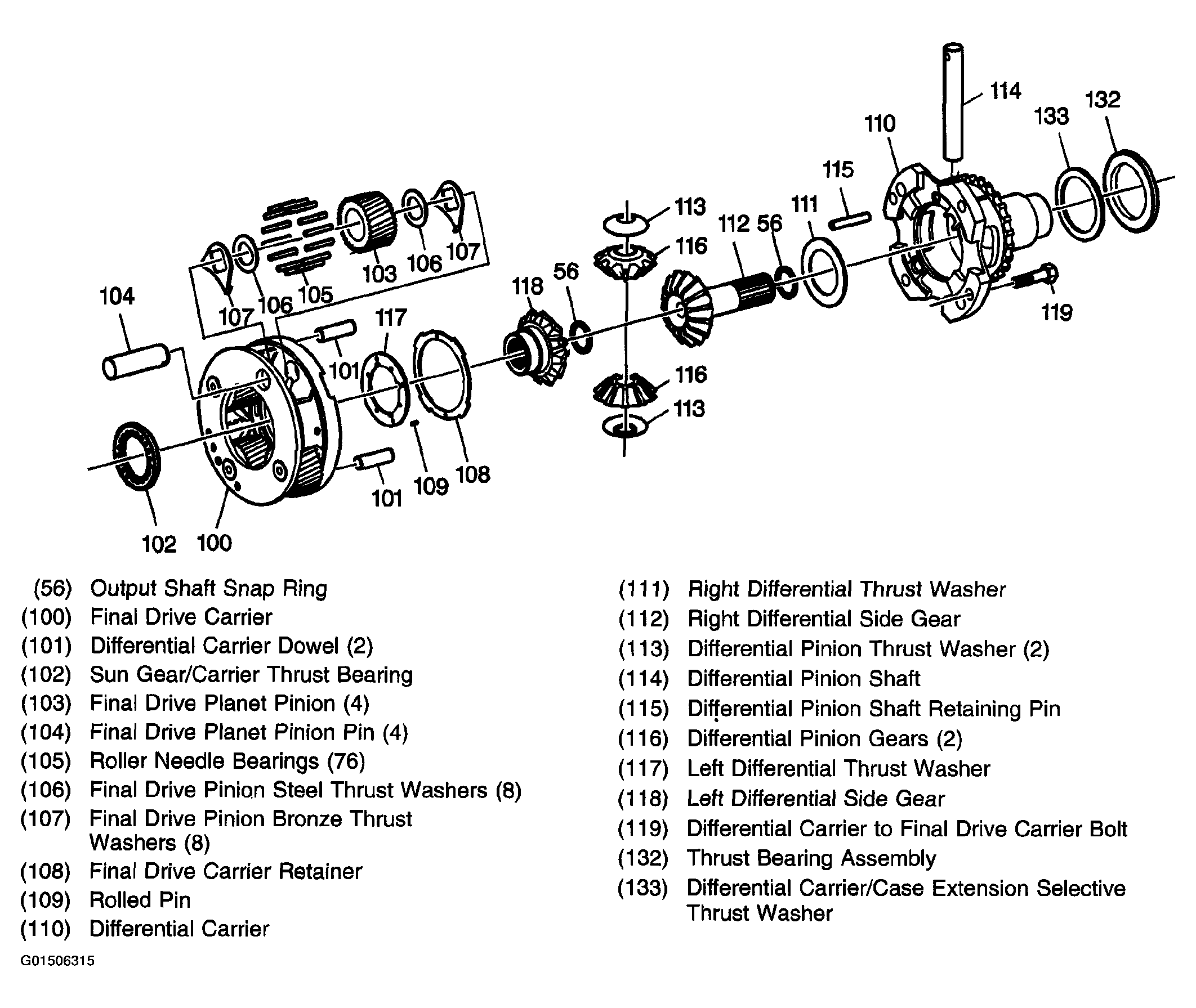

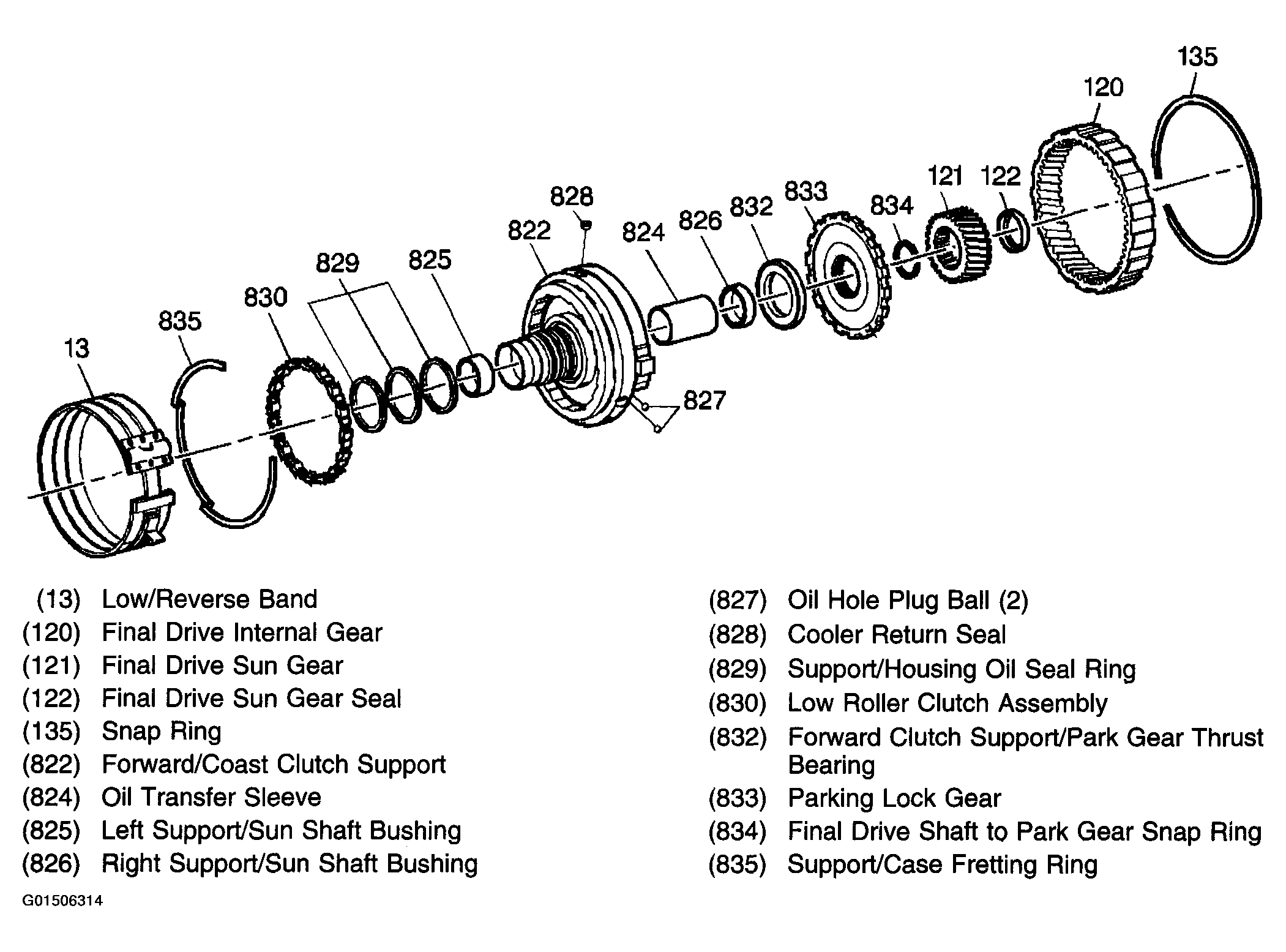

Fig 15: Exploded View Of Final Drive

Courtesy of GENERAL MOTORS CORP.

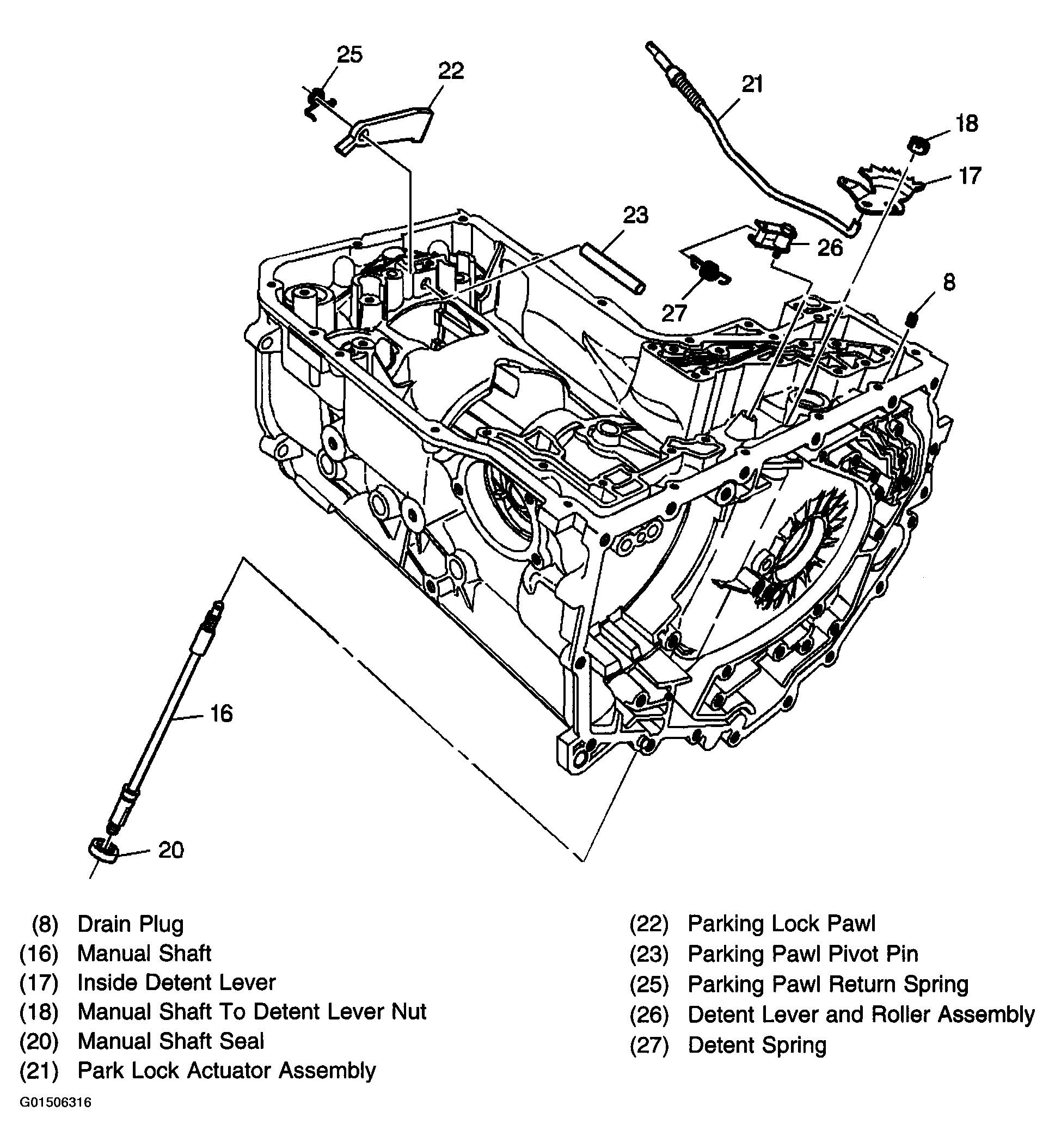

Fig 16: Exploded View Of Parking Pawl, Actuator Assembly & Manual Shaft

Courtesy of GENERAL MOTORS CORP.
