Automatic Transaxle - 4T80-E
>>
Specifications
>>
Line Pressure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Line Pressure

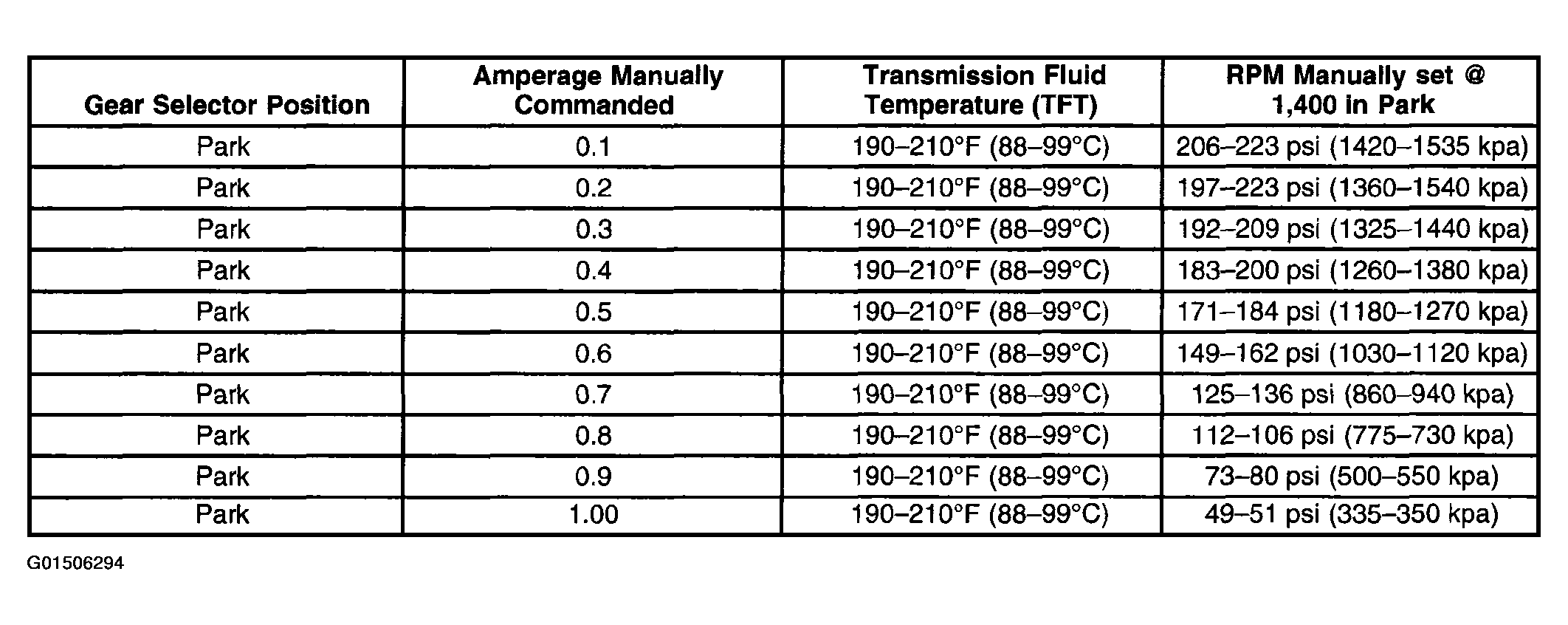

Fig 1: Line Pressure Table
Courtesy of GENERAL MOTORS CORP.
