Transmission Internal Mode Switch Logic

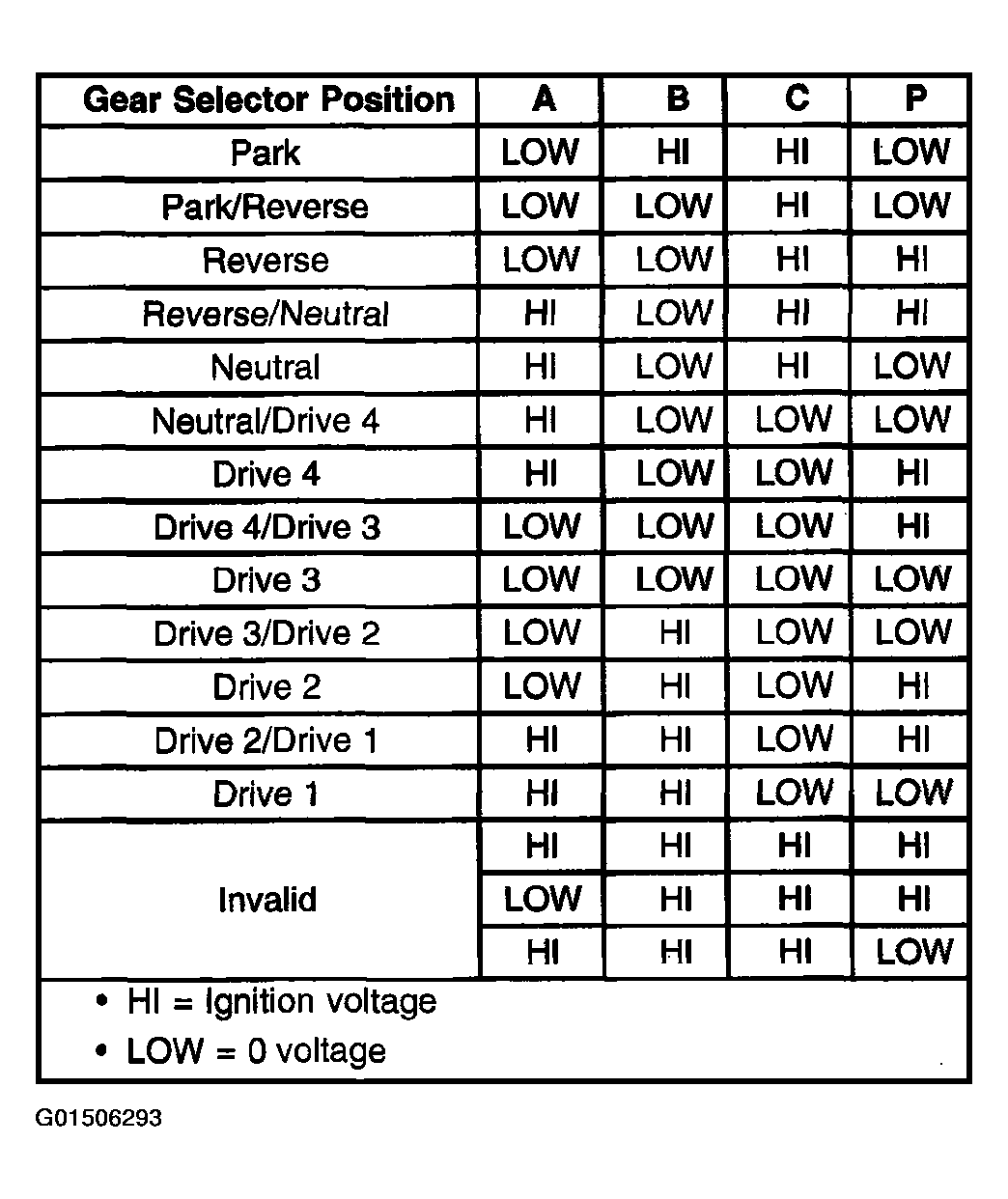

Fig 1: Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic Chart
G01506293Courtesy of GENERAL MOTORS CORP.
