Automatic Transmission Shift Lock Control Schematics

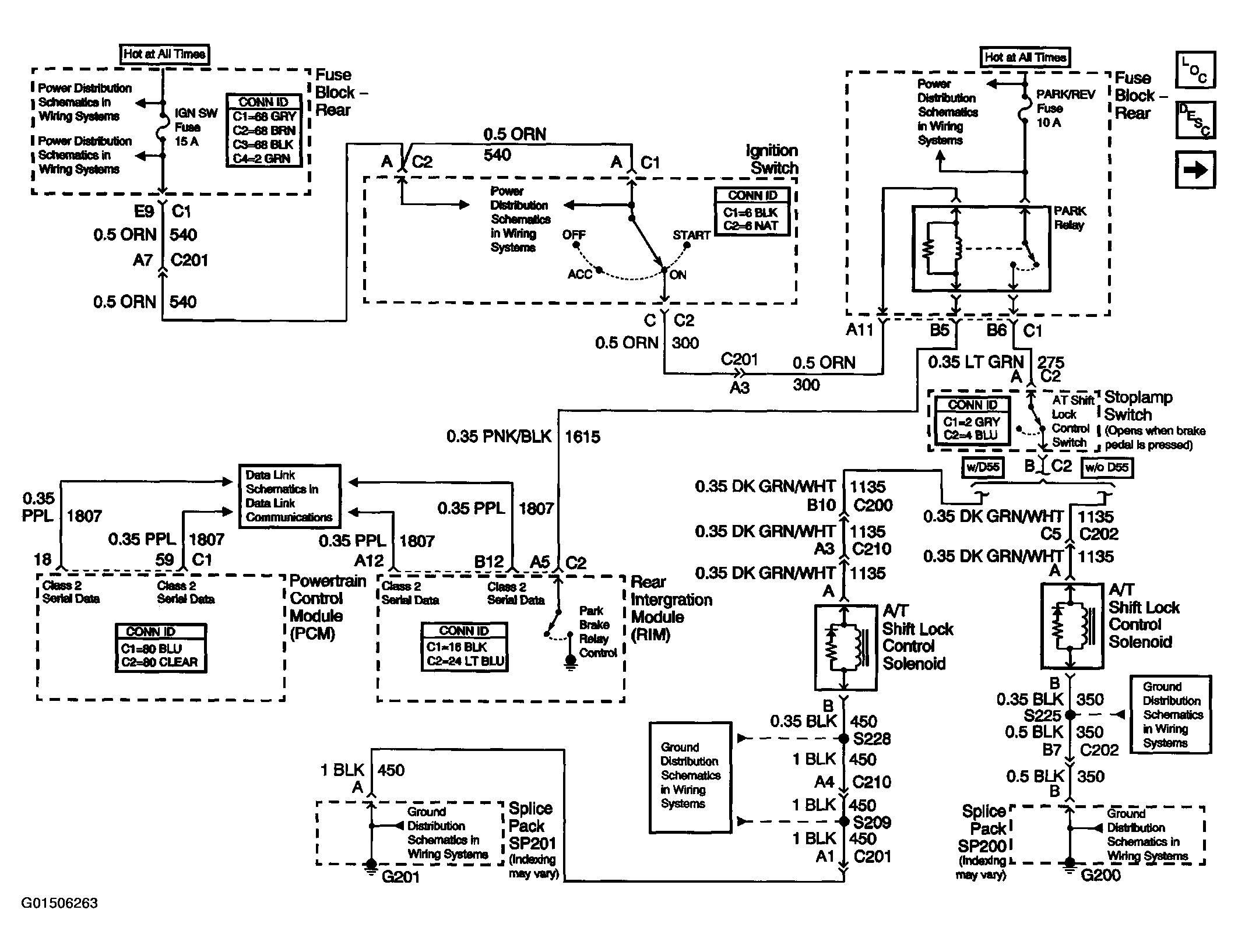

Fig 1: Automatic Transmission Shift Lock Control Wiring Schematic (Power & Grounds)
Courtesy of GENERAL MOTORS CORP.

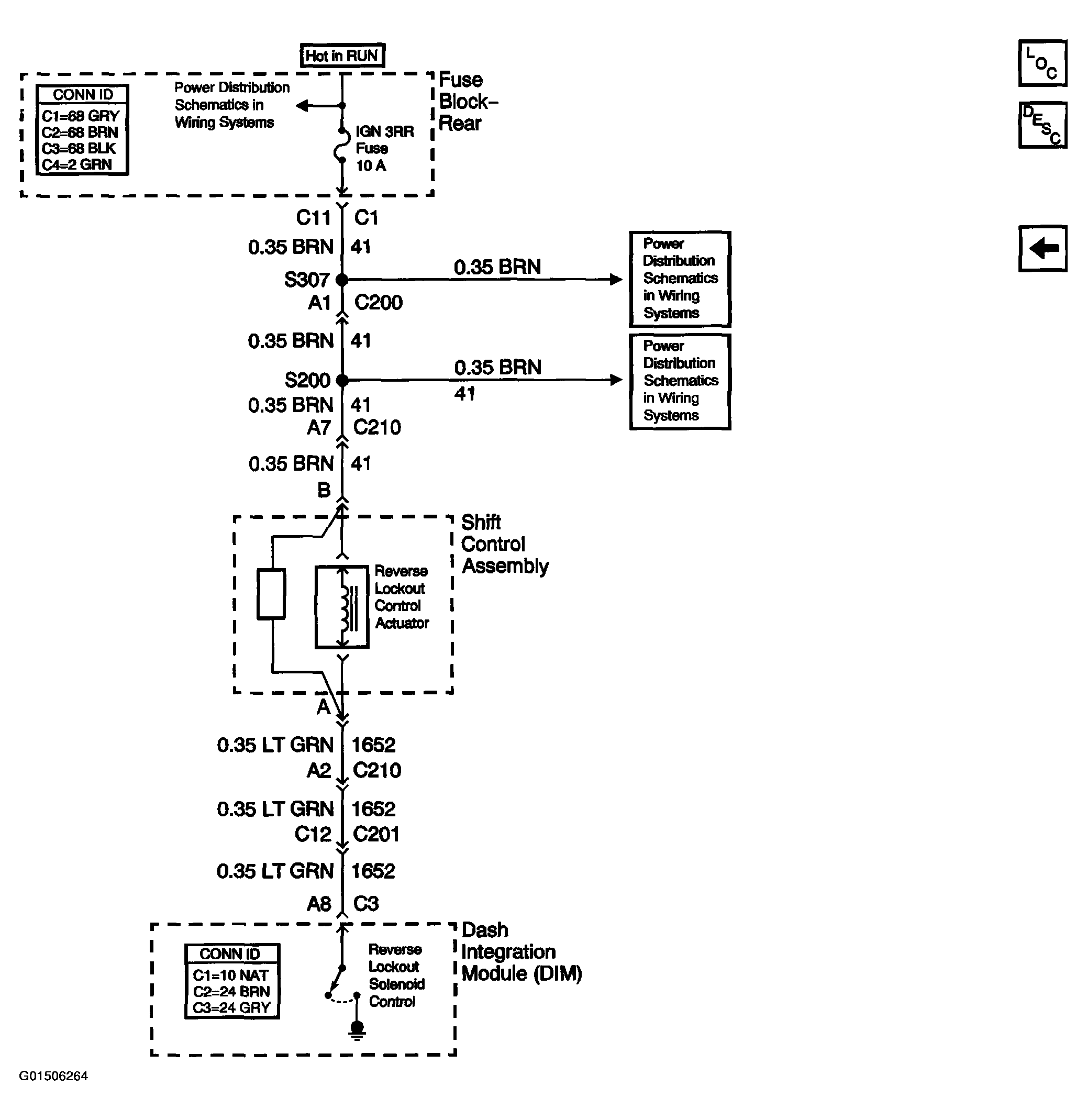

Fig 2: Automatic Transmission Shift Lock Control Wiring Schematic (Reverse Lockout Control)
Courtesy of GENERAL MOTORS CORP.
