Front Passenger Door Module Power and Ground

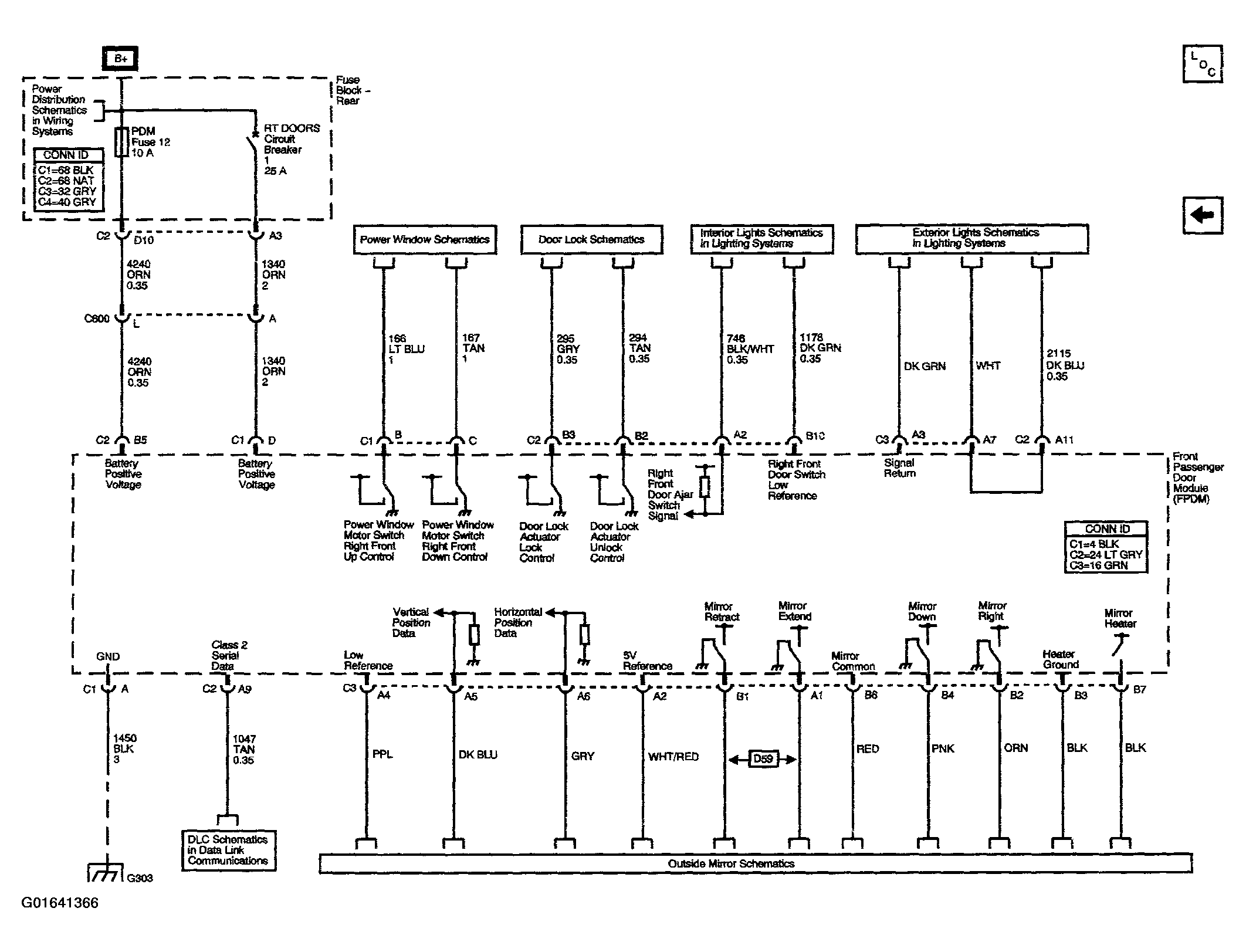

Fig 1: Front Passenger Door Module Power And Ground
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
