Ambient Light/Sunload Sensor Assembly Connector End View

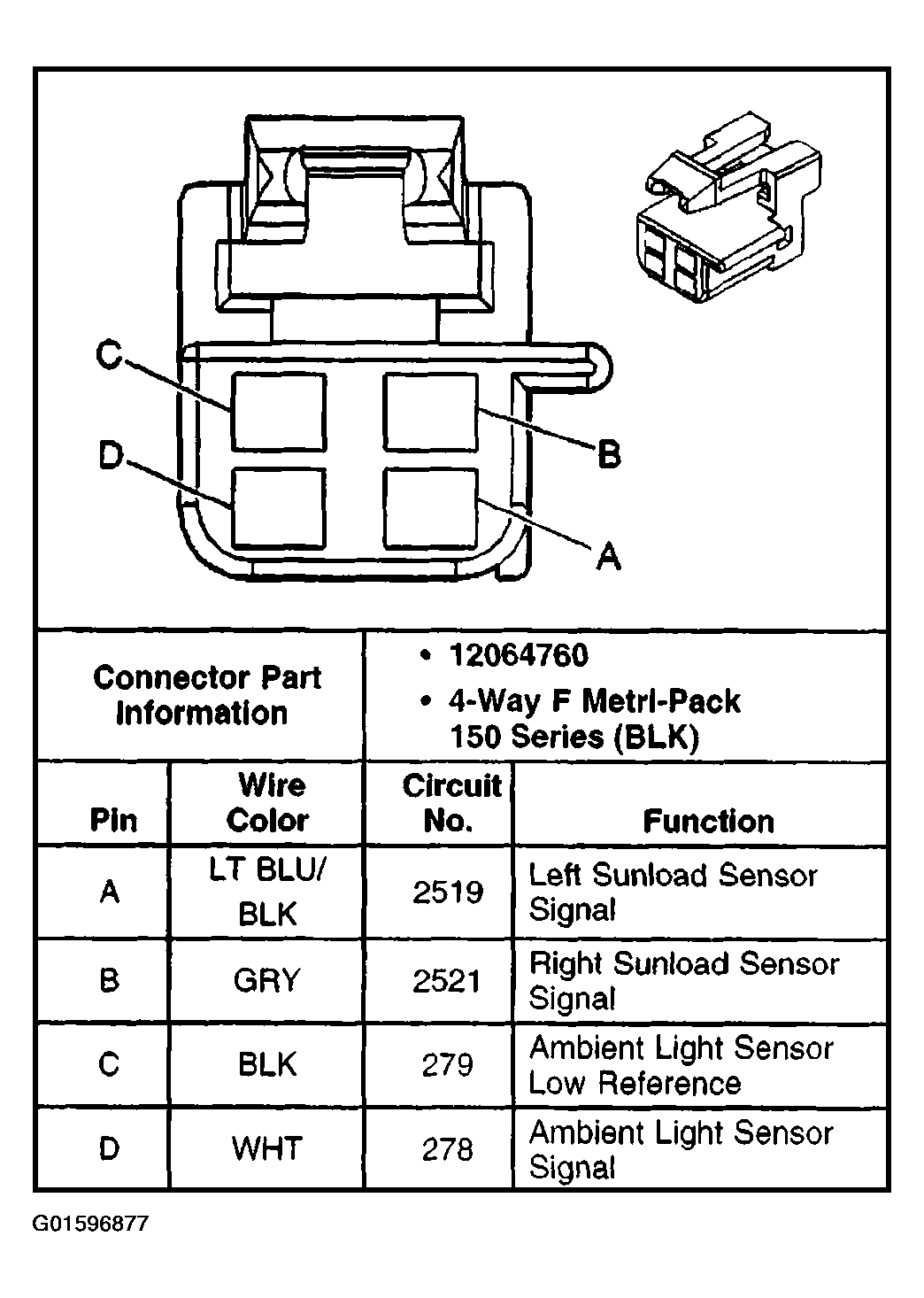

Fig 1: Ambient Light/Sunload Sensor Assembly Connector End View
G01596877Courtesy of GENERAL MOTORS CORP.
