Powertrain Control Module Connector End View C1 (2 Of 4)

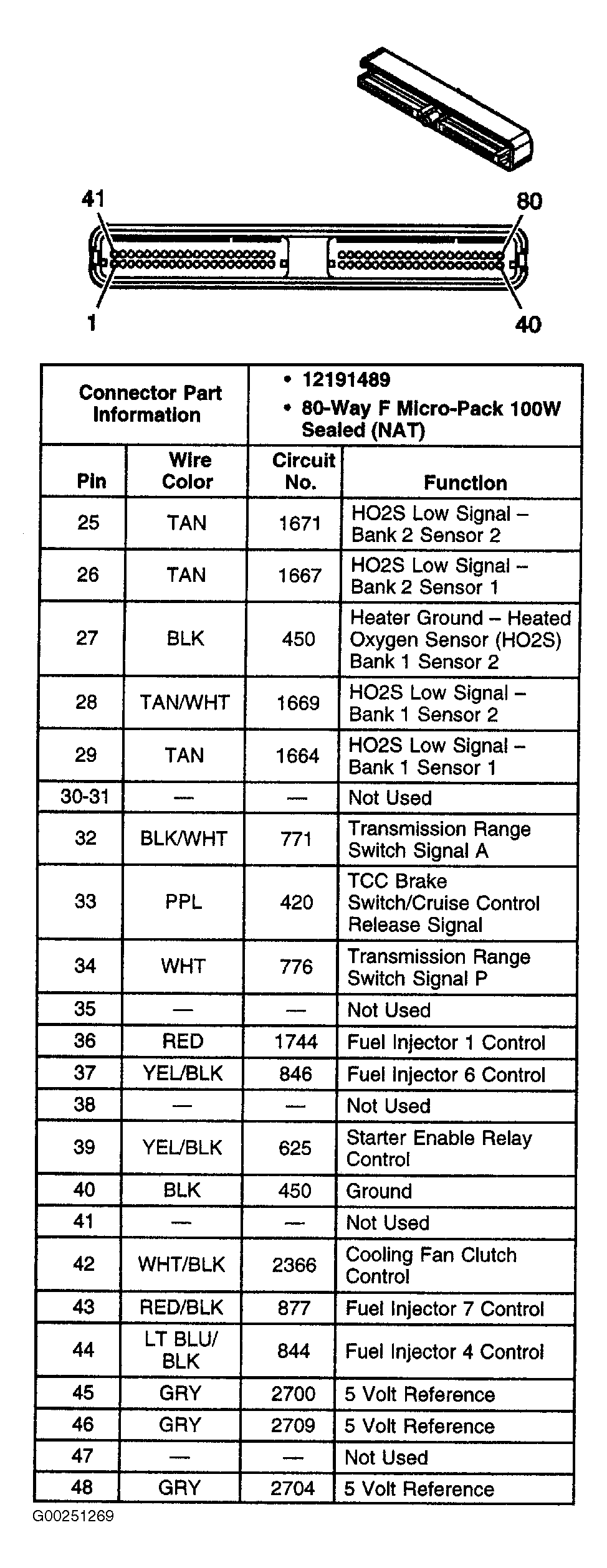

Fig 1: Powertrain Control Module Connector End View C1 (2 Of 4)
G00251269Courtesy of GENERAL MOTORS CORP.
