Powertrain Control Module Connector End View C1 (3 Of 4)

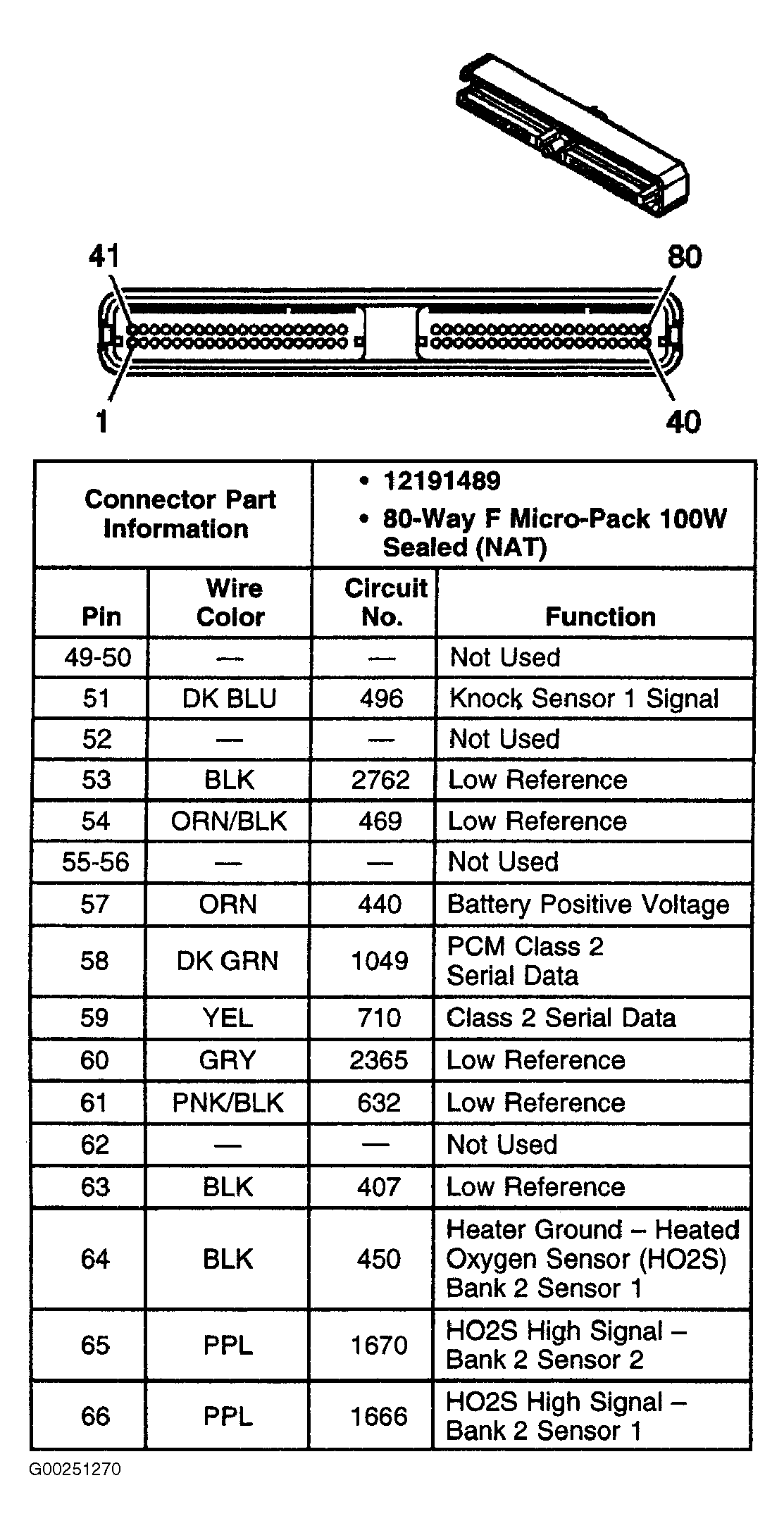

Fig 1: Powertrain Control Module Connector End View C1 (3 Of 4)
G00251270Courtesy of GENERAL MOTORS CORP.
