Powertrain Control Module Connector End View C2 (1 Of 3)

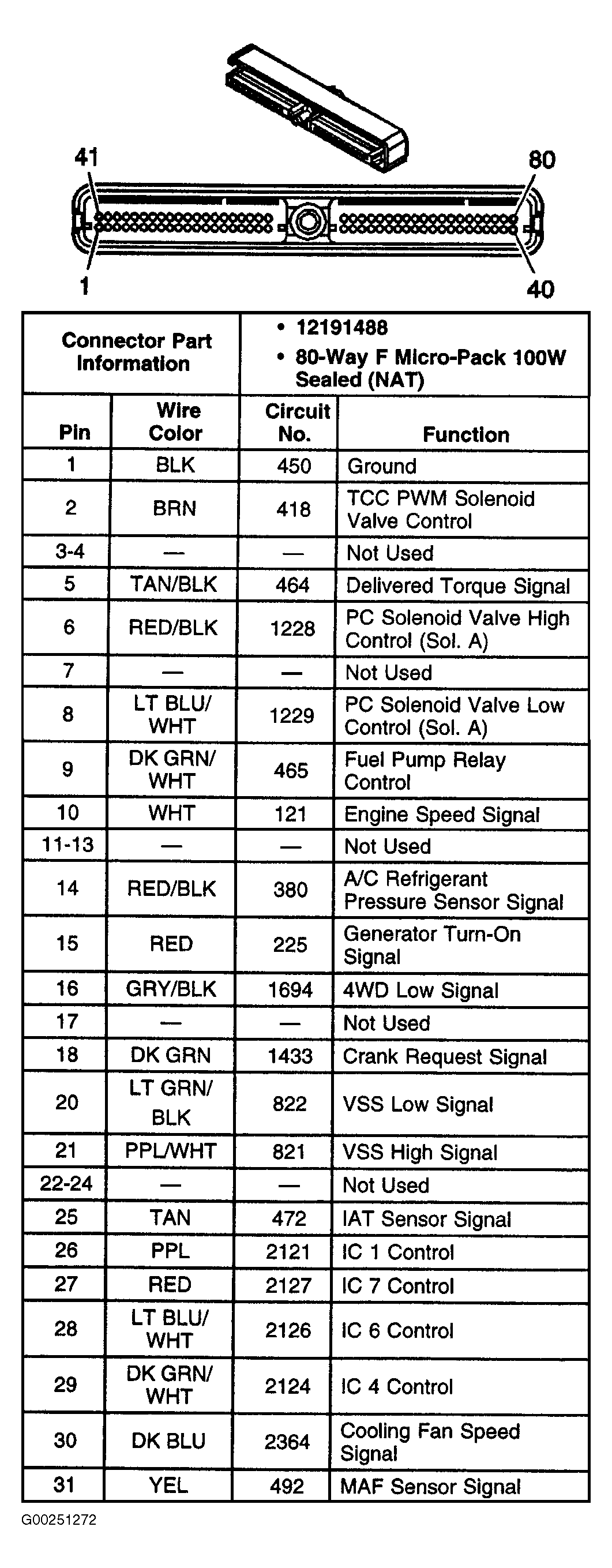

Fig 1: Powertrain Control Module Connector End View C2 (1 Of 3)
G00251272Courtesy of GENERAL MOTORS CORP.
