Throttle Actuator Control Module Connector End View C2

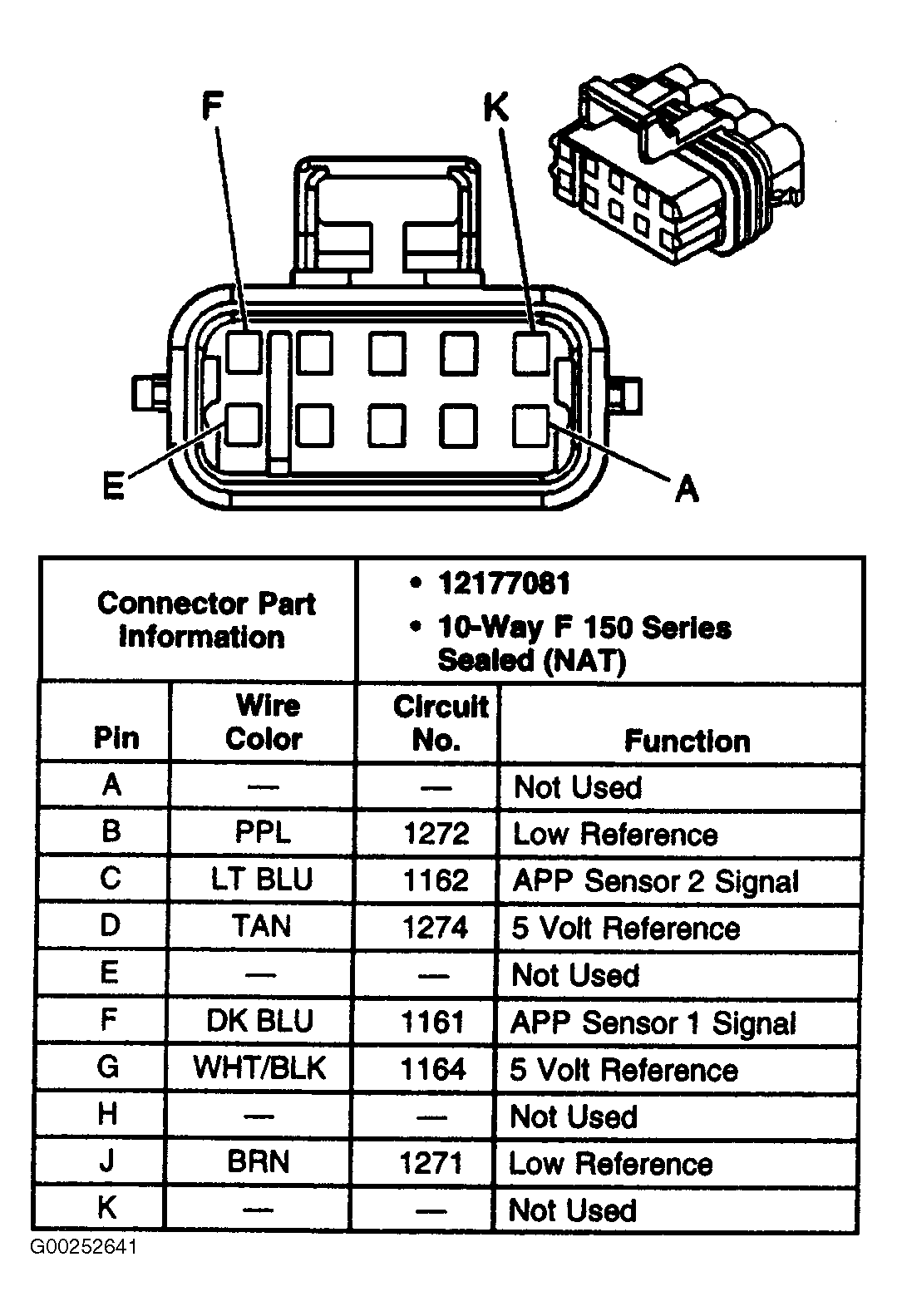

Fig 1: Throttle Actuator Control Module Connector End View C2
G00252641Courtesy of GENERAL MOTORS CORP.
