Installation Procedure

  1. Align and install the locating tabs on the seat control module with the seat pan.
  2. Connect the electrical connectors to the seat control module as necessary.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the screw that retains the seat control module to the seat pan.

    Tighten

    Tighten the seat module screw to 3 N.m (26 lb in).

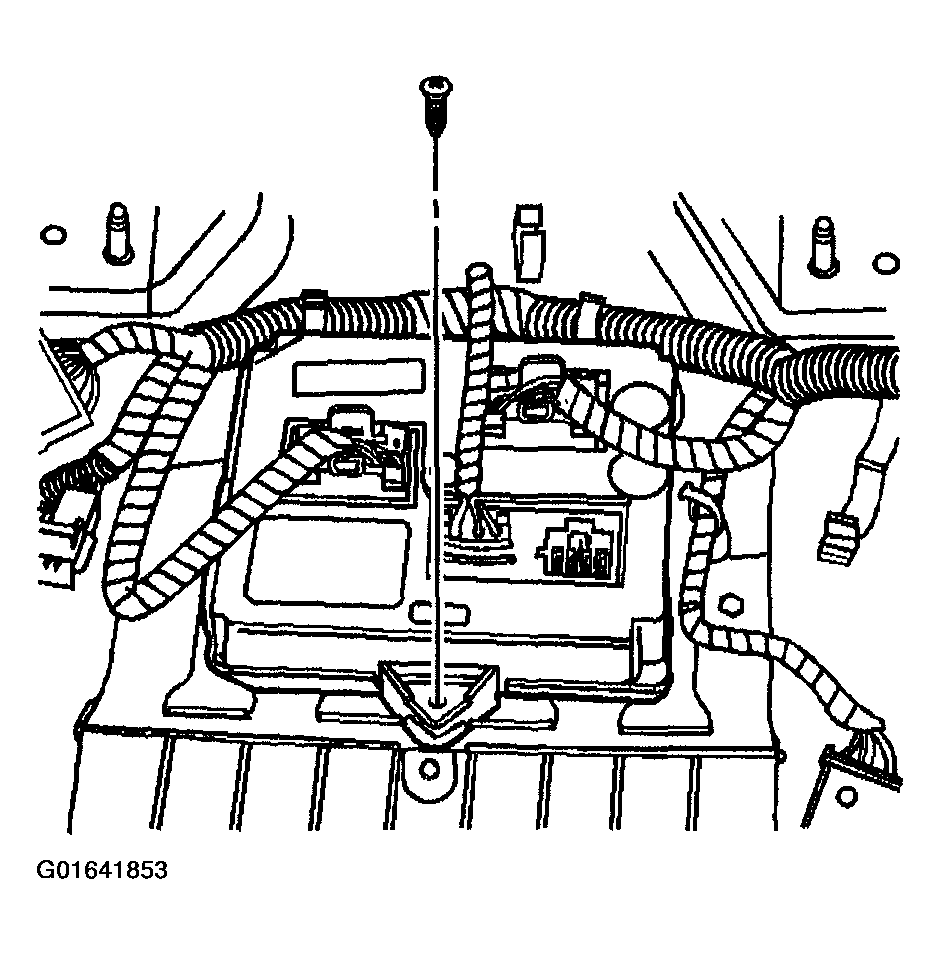

    4. Fig 1: Seat Control Module Retaining Screw
    G01641853Courtesy of GENERAL MOTORS CORP.
  4. Install the seat pan to the seat assembly.
  5. Install the nuts which retain the seat pan to the seat assembly.

    Tighten

    Tighten the seat pan mounting nuts to 25 N.m (18 lb ft).

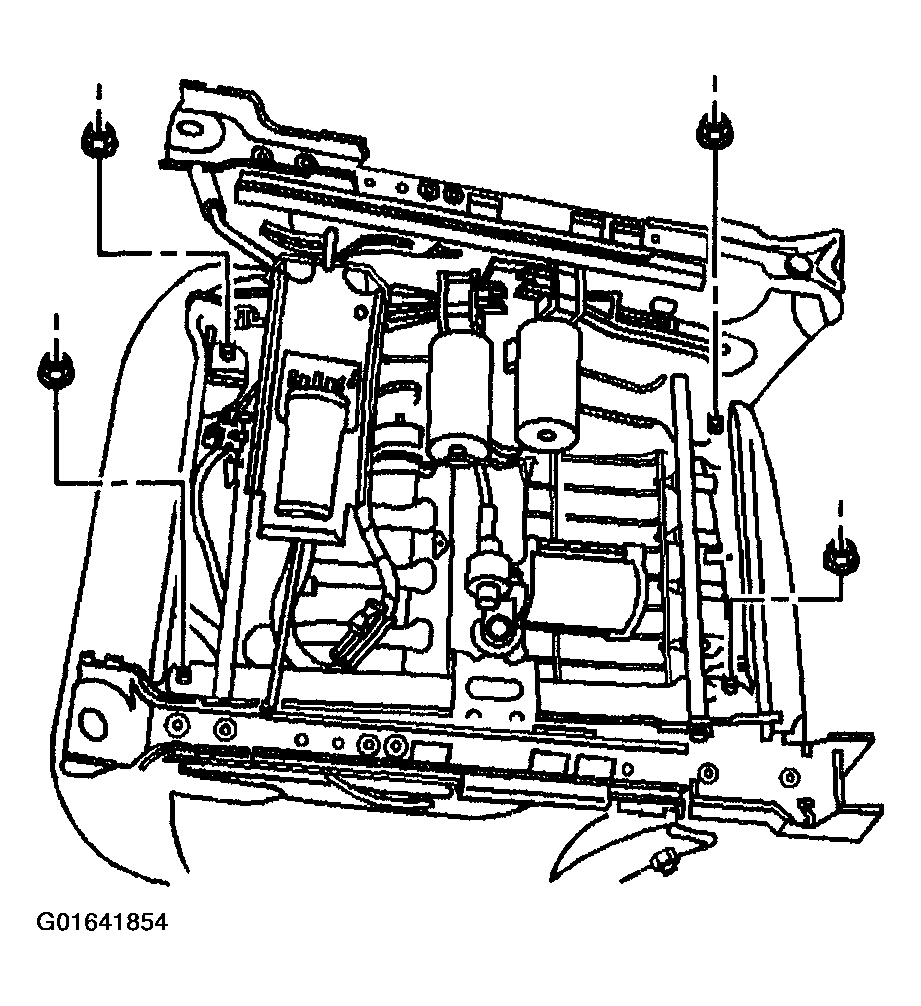

    6. Fig 2: Nuts Seat Pan To Seat Assembly
    G01641854Courtesy of GENERAL MOTORS CORP.
  6. Install the 3 seat switch bezel screws. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
