Removal Procedure

  1. Remove the 3 seat switch bezel screws. Refer to SEAT SWITCH BEZEL REPLACEMENT  .
  2. Remove 4 nuts that attach the seat pan to the seat assembly.

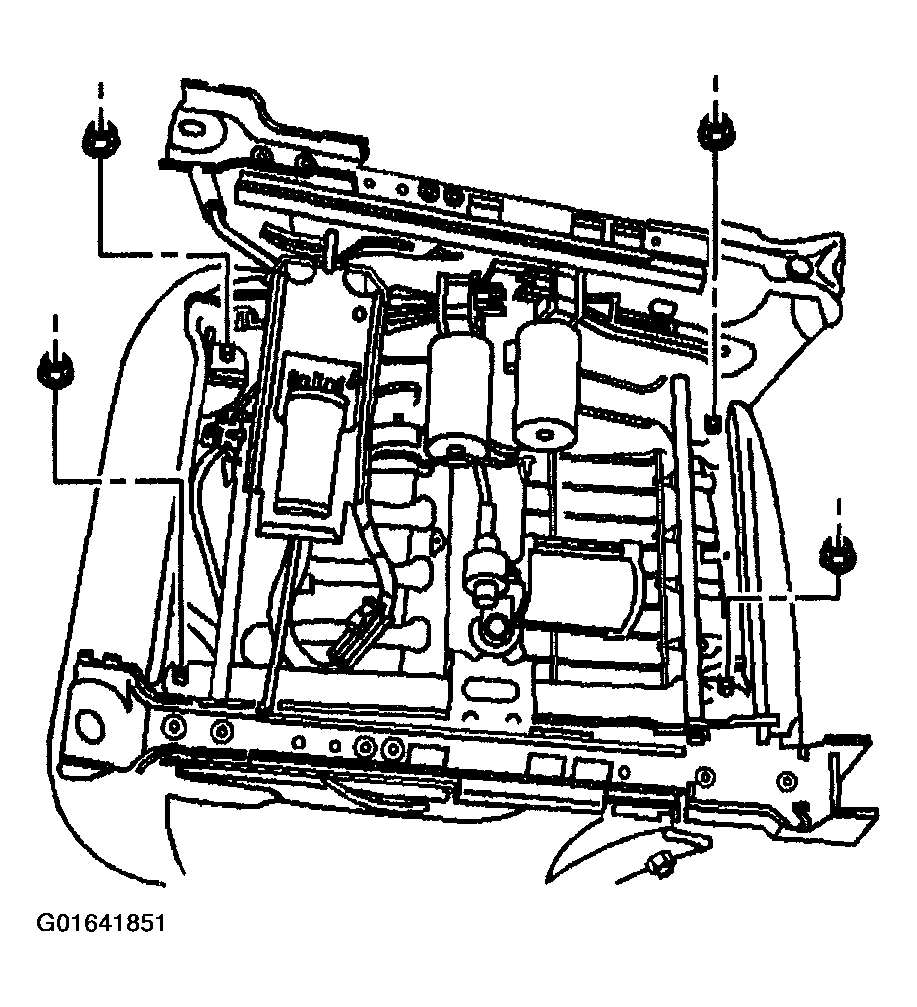

    3. Fig 1: 4 Nuts Attach Seat Pan To Seat Assembly
    G01641851Courtesy of GENERAL MOTORS CORP.
  3. Remove the clip from the front outboard seat pan stud. Discard the clip.
  4. Lift the seat pan up in order to allow access to the seat control module retaining screw.
  5. Remove the seat control module retaining screw.

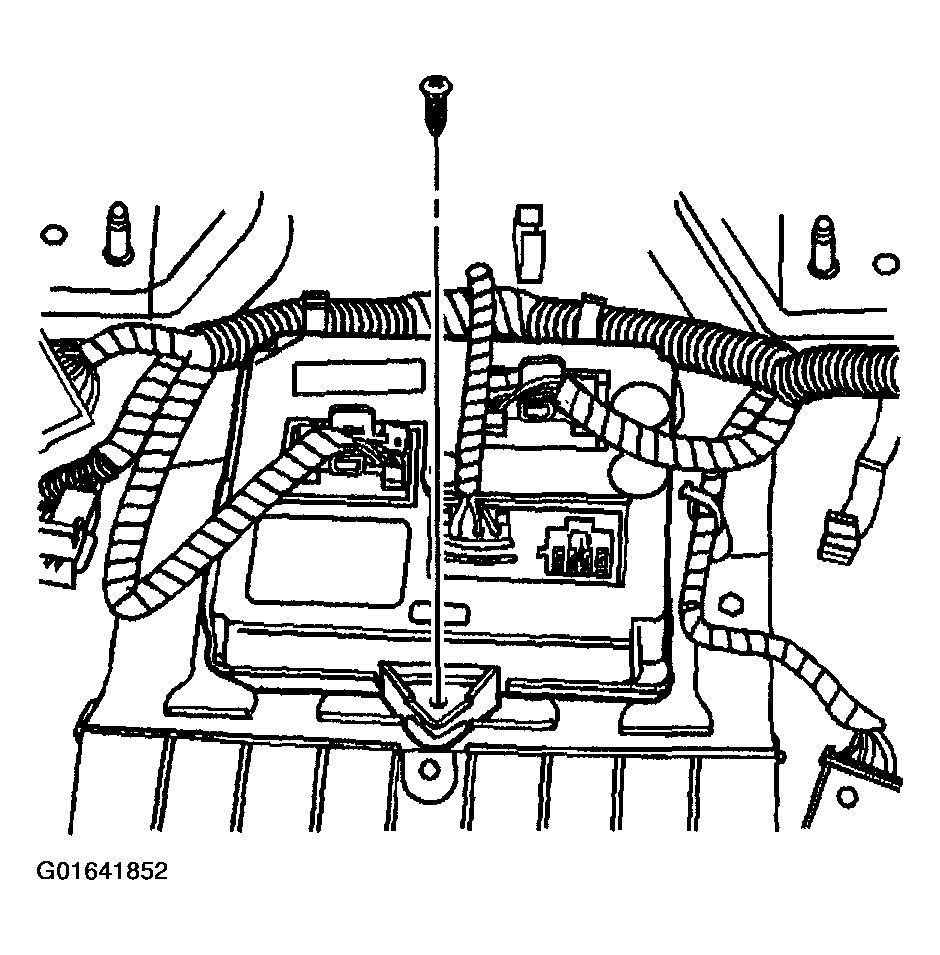

    6. Fig 2: Seat Control Module Retaining Screw
    G01641852Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connectors from the seat control module as necessary.
  7. Remove the seat control module from the seat assembly.
