Ambient Air Temperature Sensor

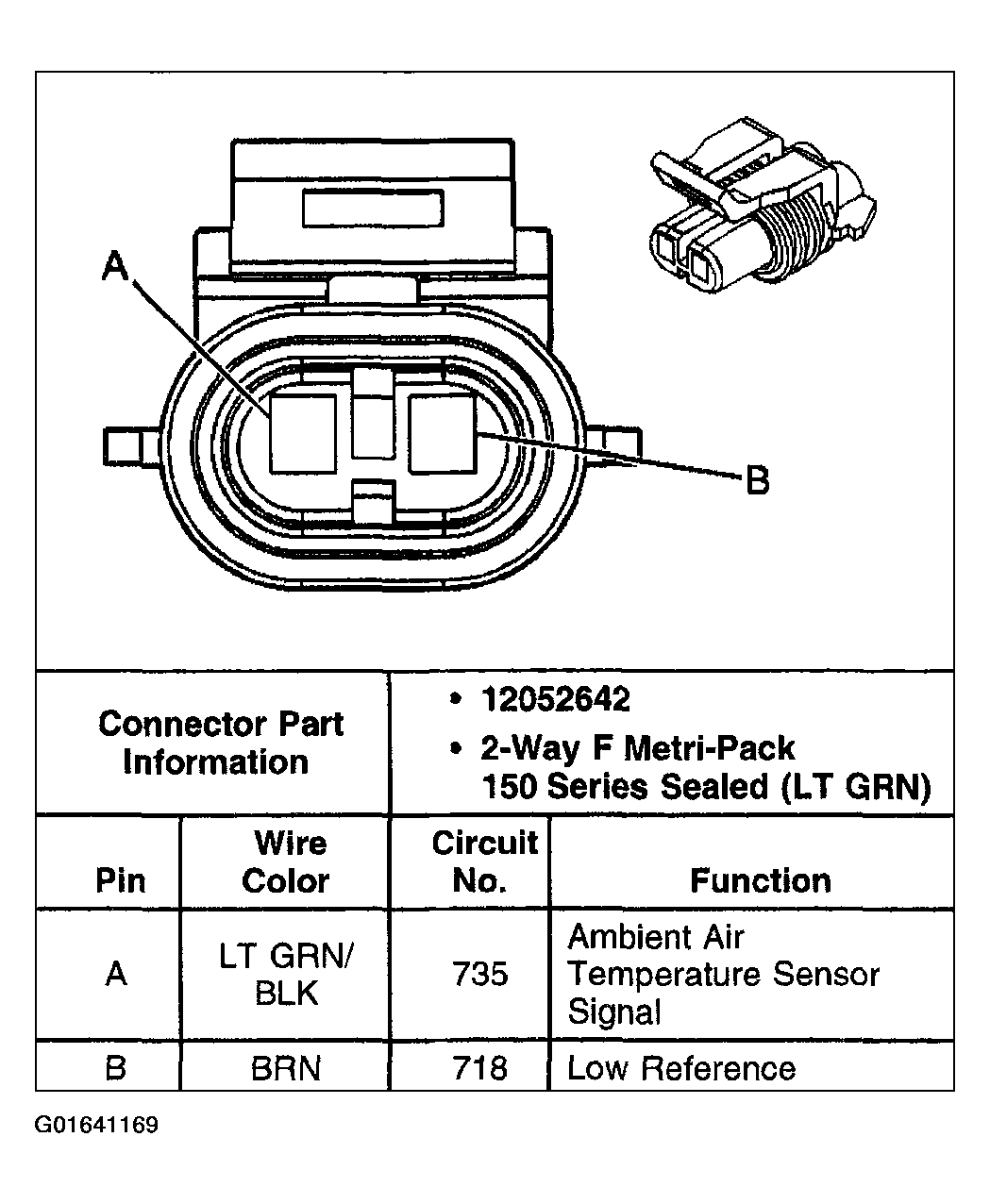

Fig 1: Identifying Ambient Air Temperature Sensor Connector End View
G01641169Courtesy of GENERAL MOTORS CORP.
