A/C Low Pressure Switch Connector End View

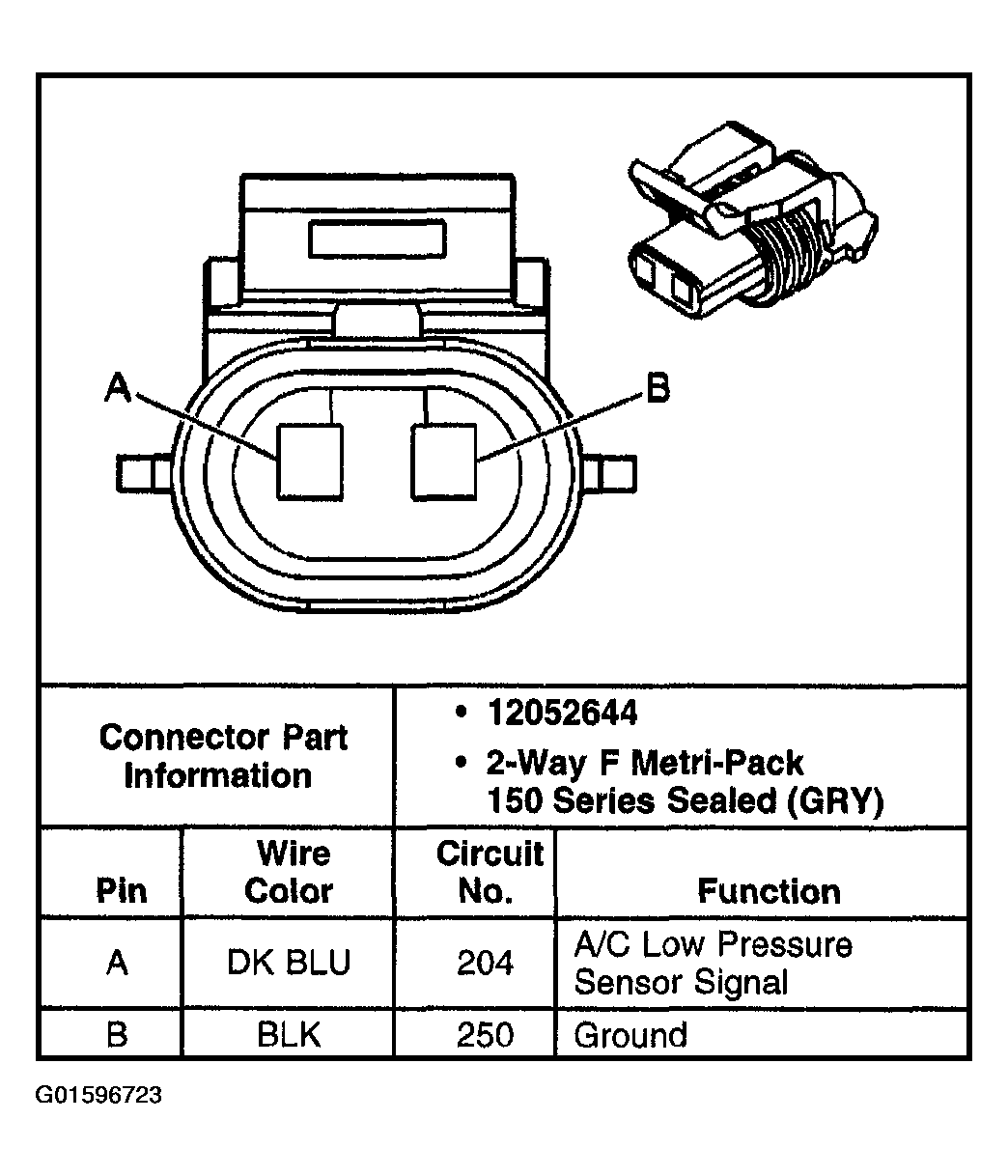

Fig 1: A/C Low Pressure Switch Connector End View
G01596723Courtesy of GENERAL MOTORS CORP.

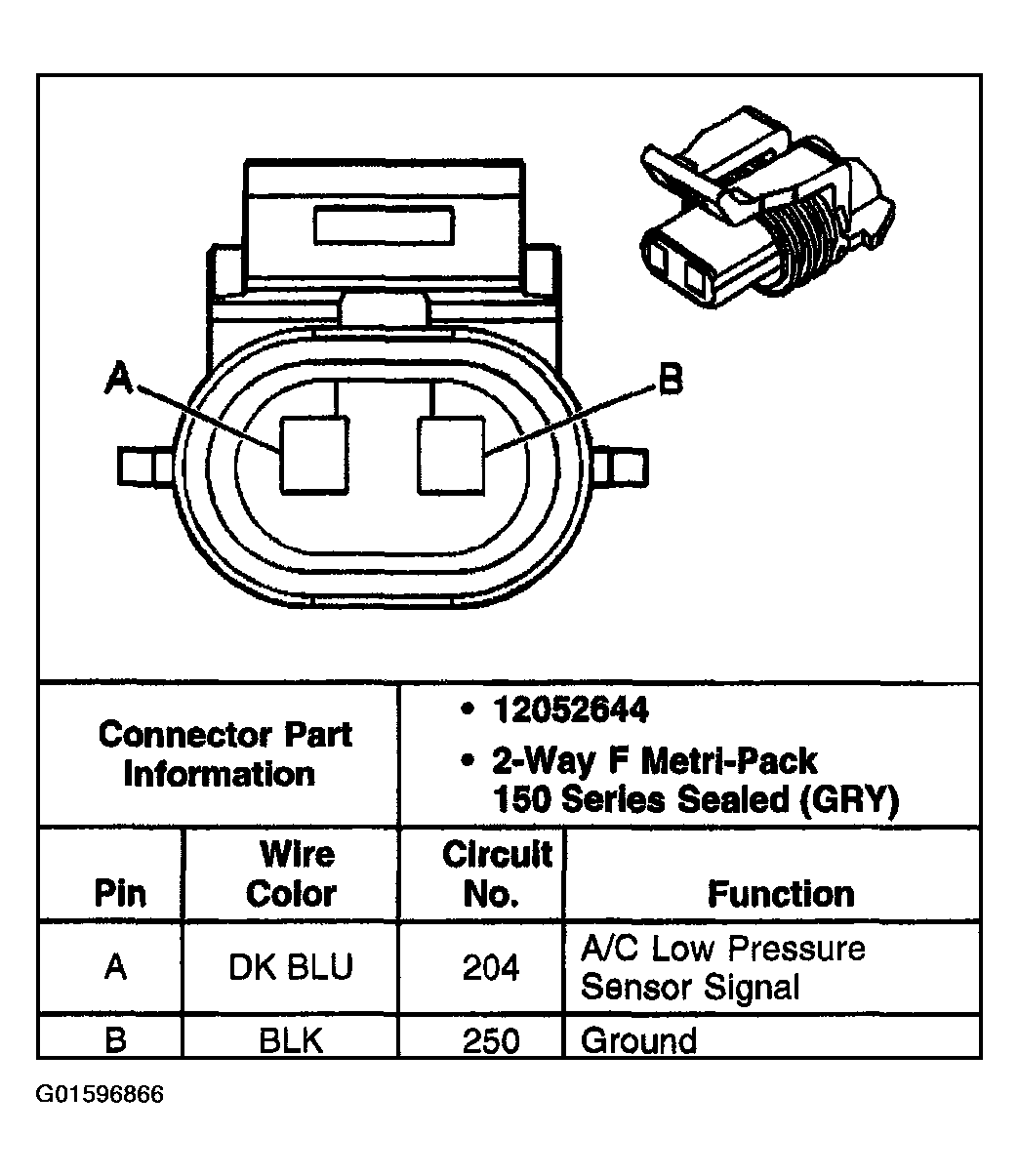

Fig 1: A/C Low Pressure Switch Connector End View
G01596866Courtesy of GENERAL MOTORS CORP.
