Driver Window Motor Connector End View

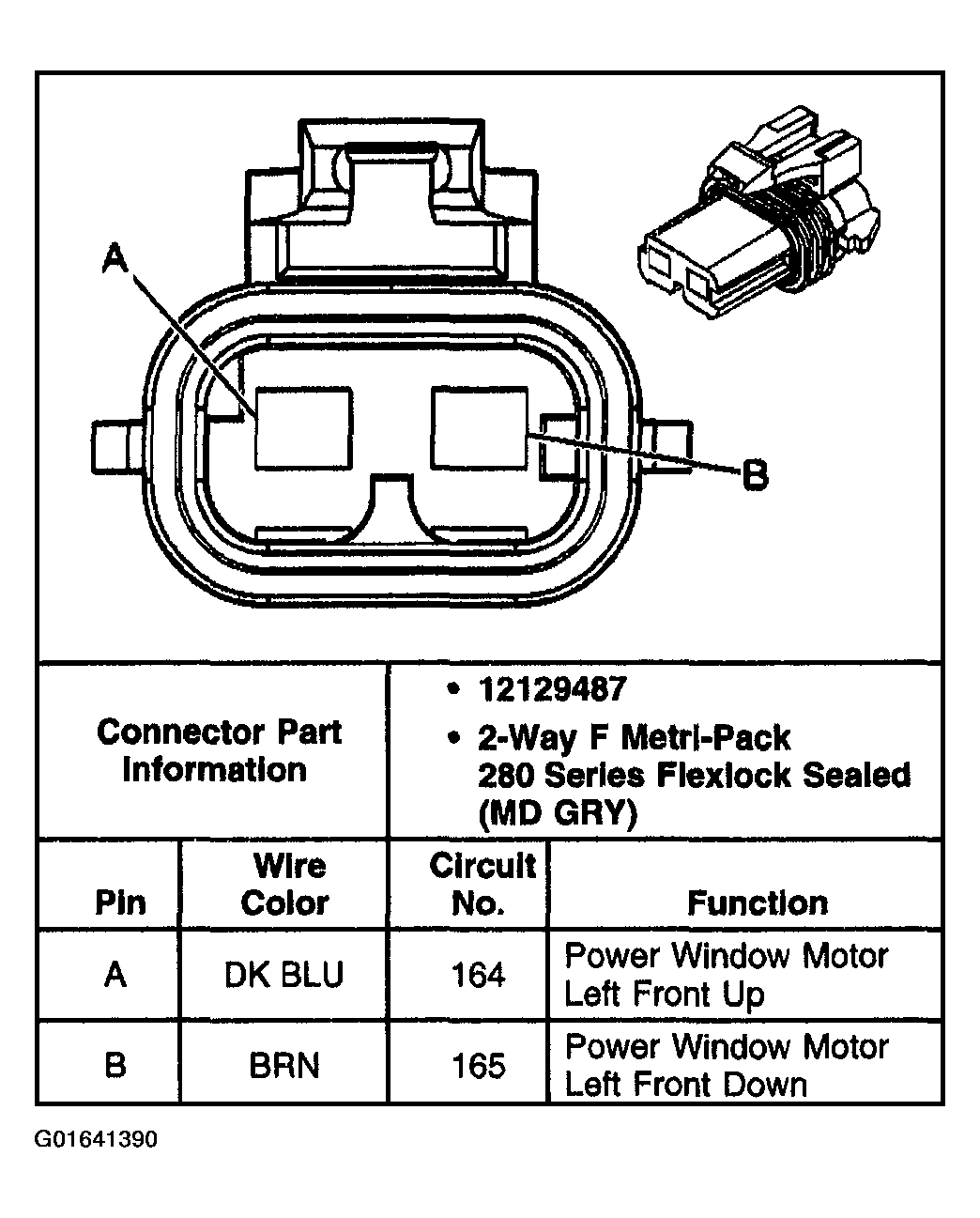

Fig 1: Driver Window Motor Connector End View
Courtesy of GENERAL MOTORS CORP.
