HVAC Control Module Connector End View C1 (1 Of 2)

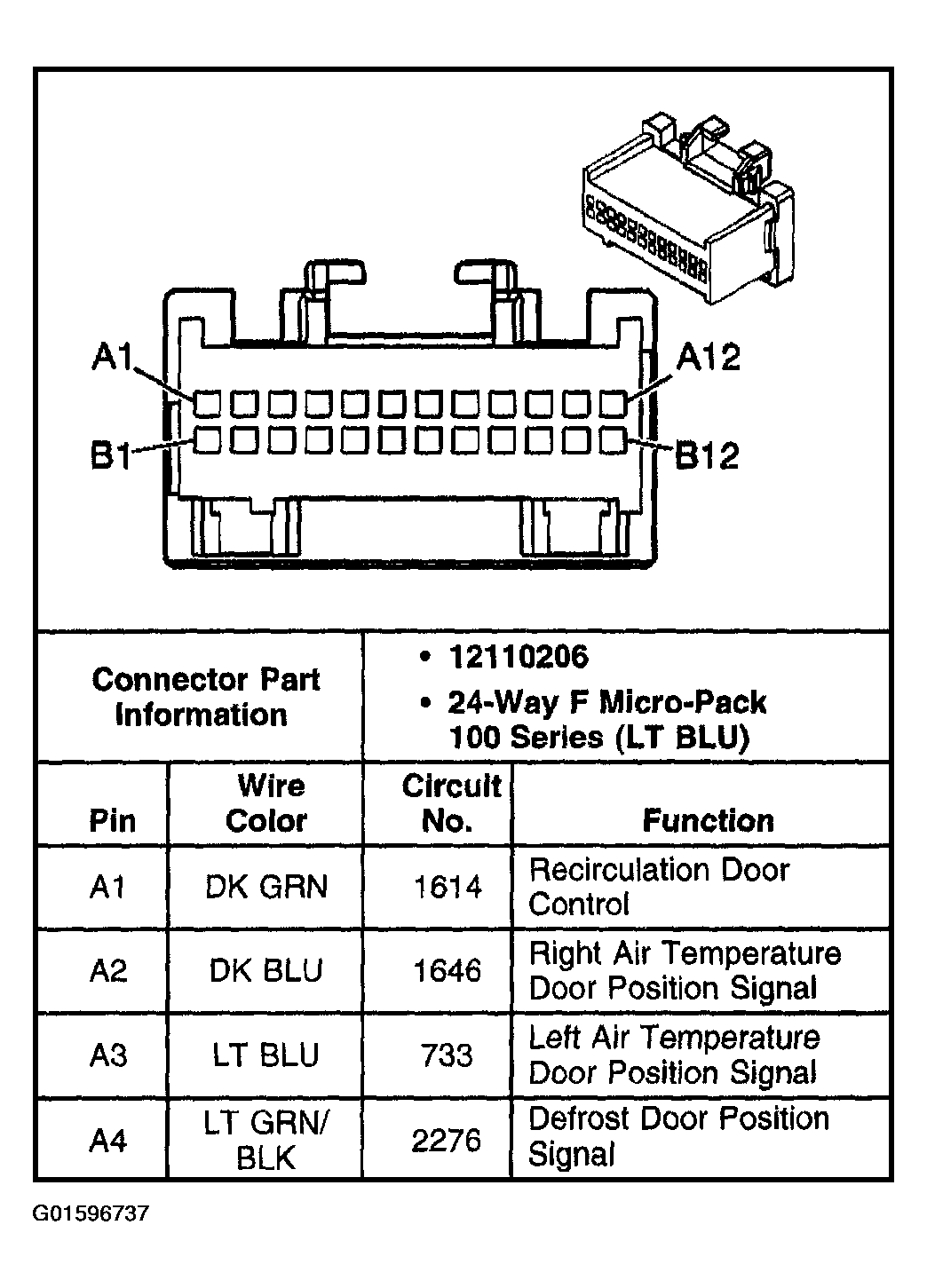

Fig 1: HVAC Control Module Connector End View C1 (1 Of 2)
G01596737Courtesy of GENERAL MOTORS CORP.

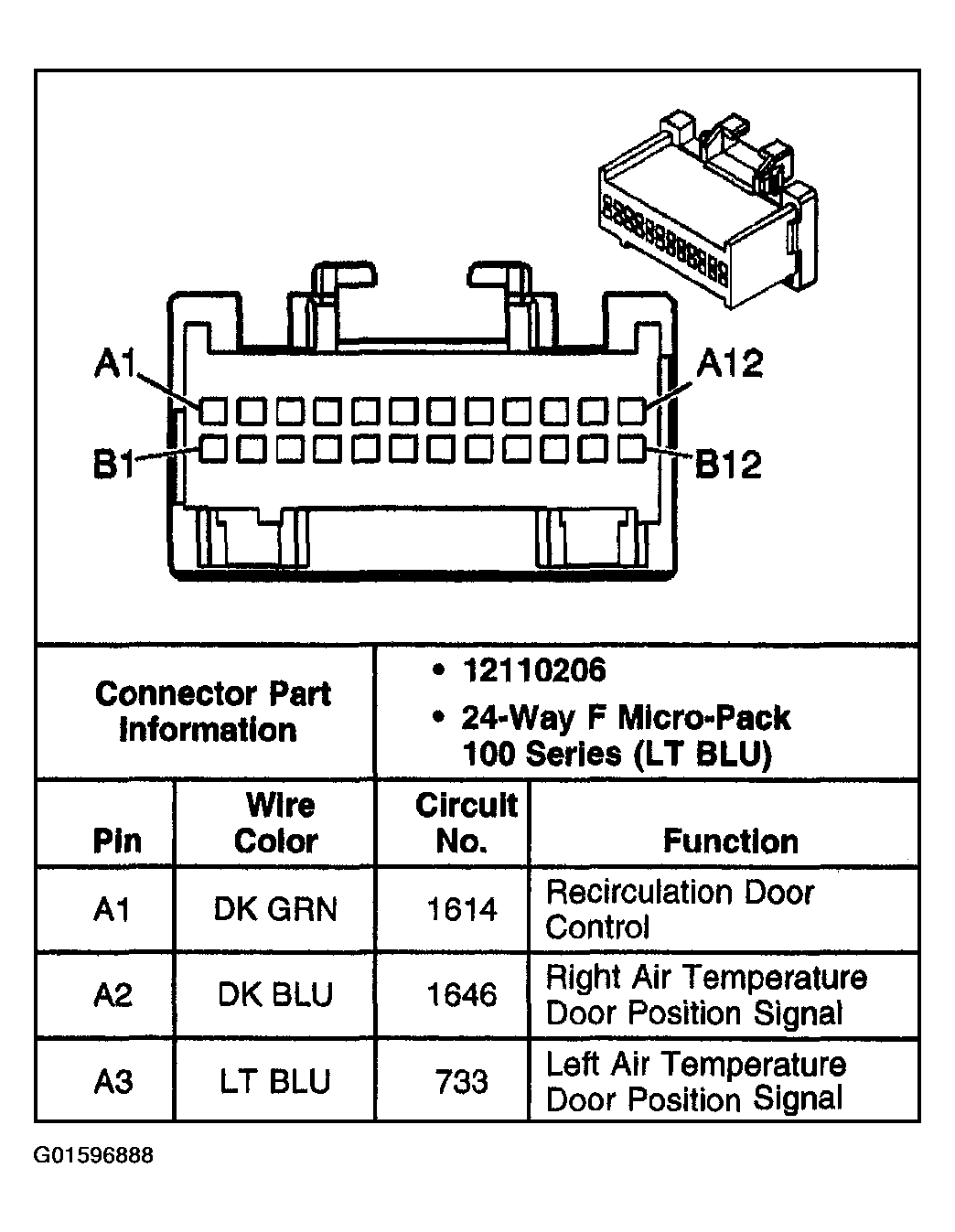

Fig 1: HVAC Control Module Connector End View C1 (1 Of 2)
G01596888Courtesy of GENERAL MOTORS CORP.
