Liftgate Ajar Switch Connector End View

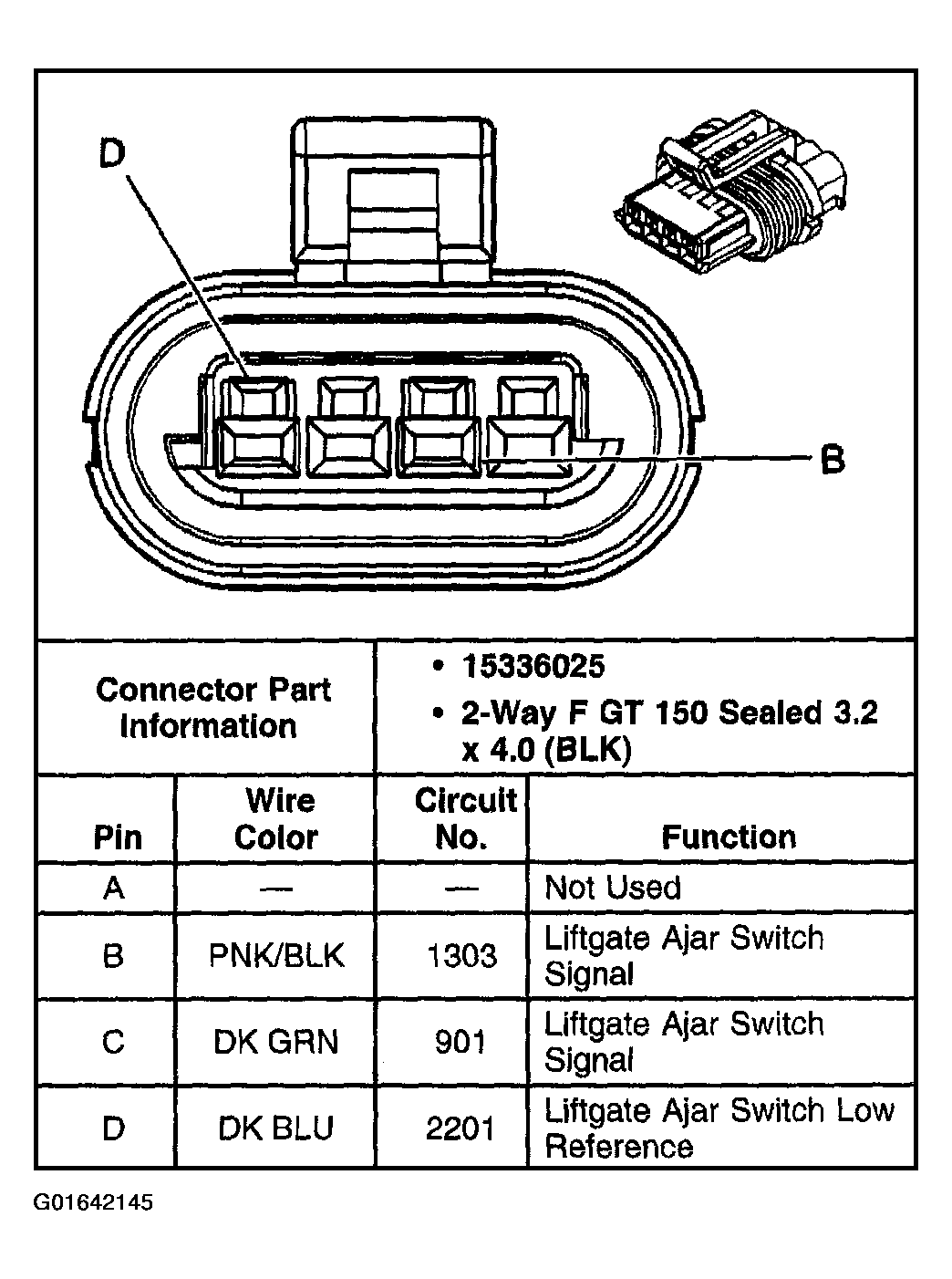

Fig 1: Liftgate Ajar Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
