Liftgate Module (LGM) Connector End View - C2

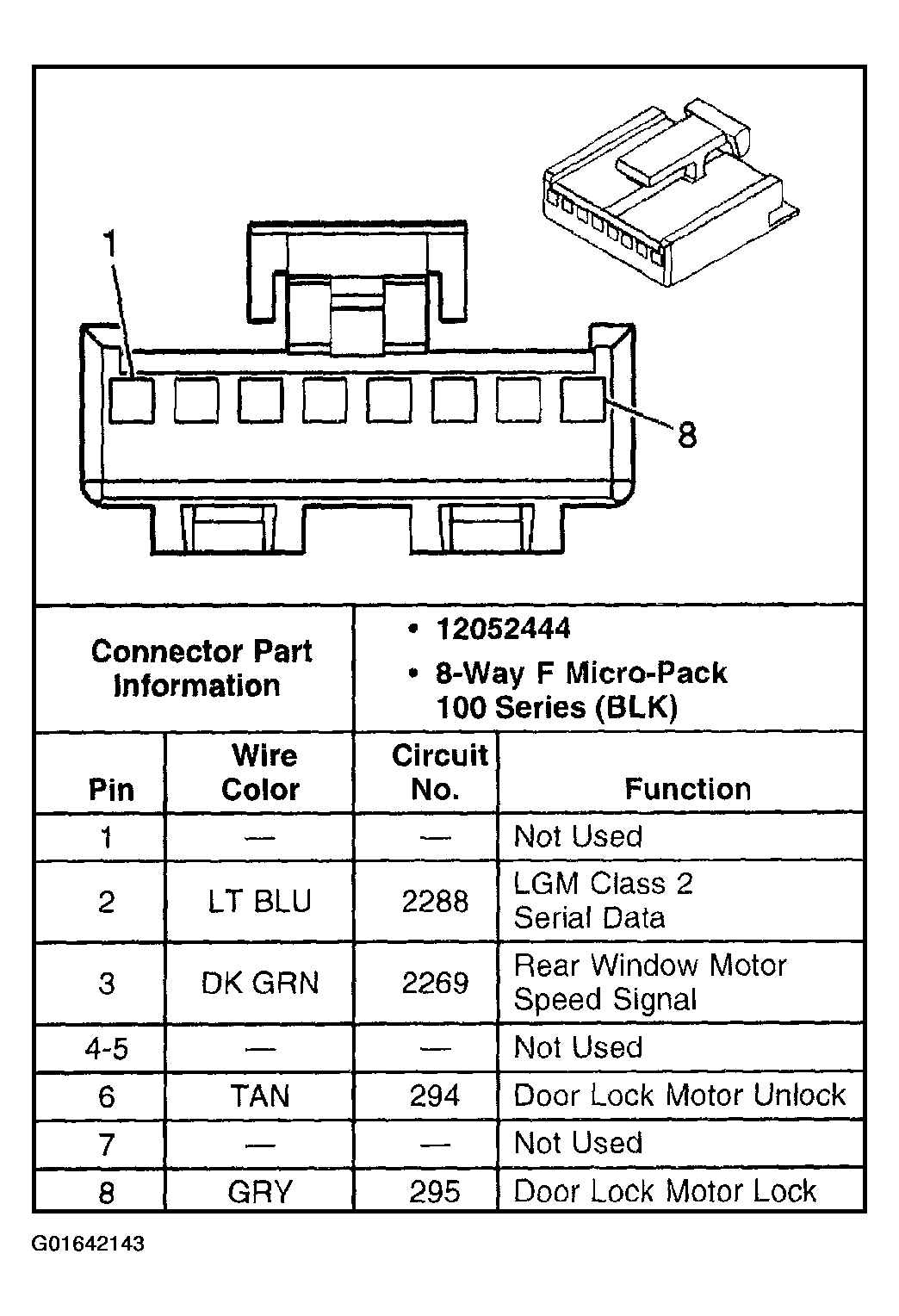

Fig 1: Liftgate Module (LGM) Connector End View - C2
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
