Propshaft Speed Sensor Connector End View (Front)

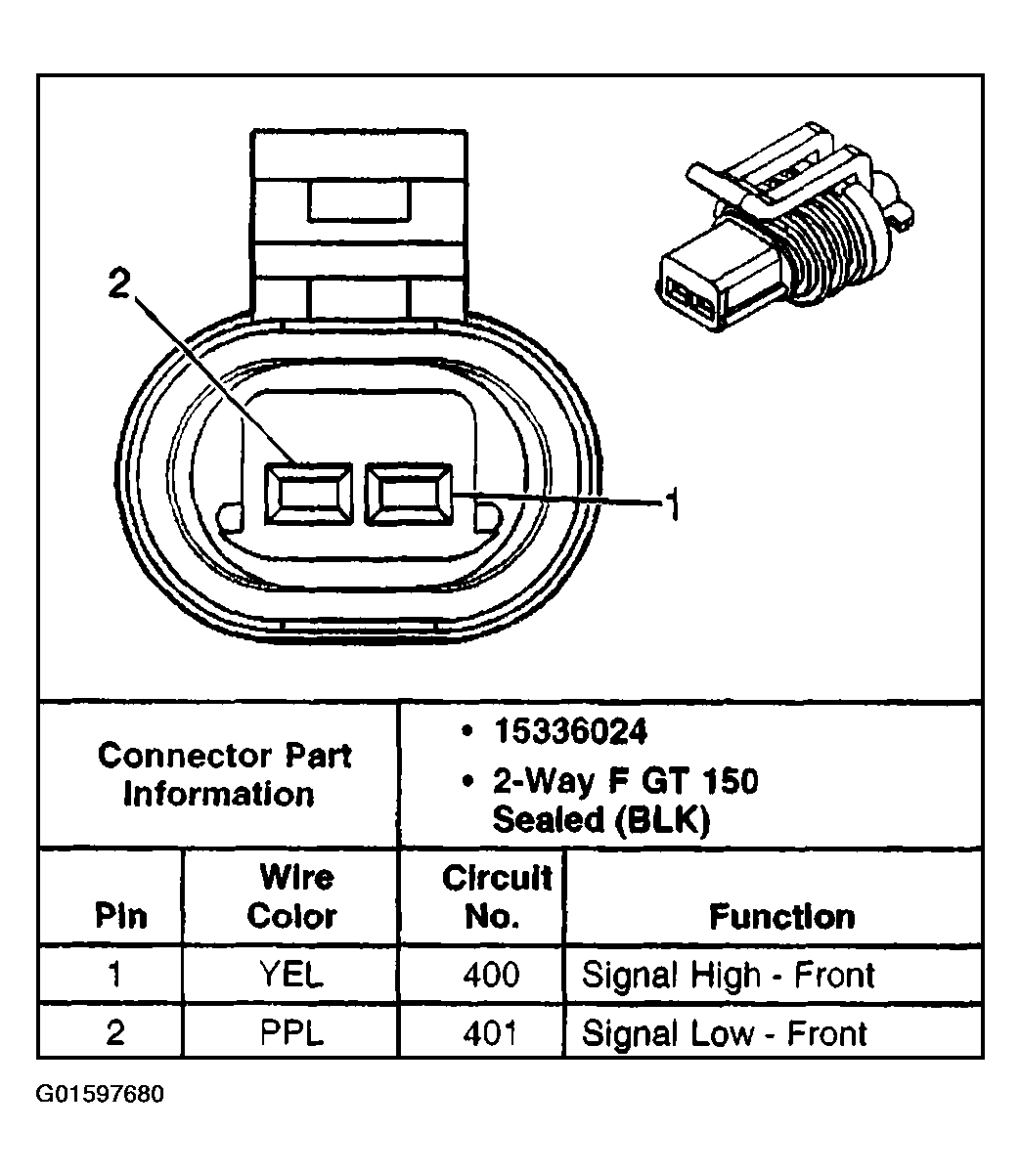

Fig 1: Propshaft Speed Sensor Connector End View (Front)
G01597680Courtesy of GENERAL MOTORS CORP.

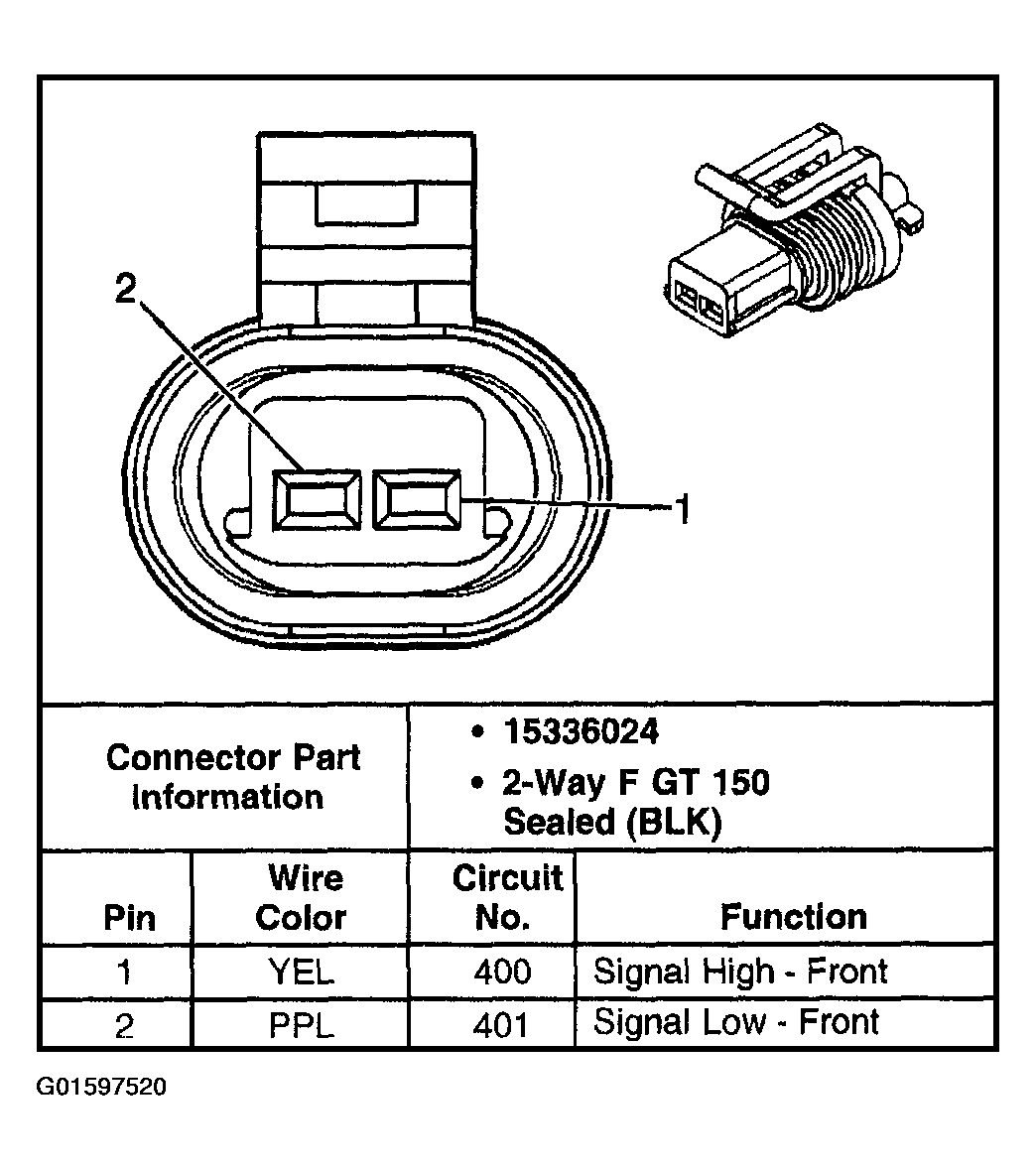

Fig 1: Propshaft Speed Sensor Connector End View (Front)
G01597520Courtesy of GENERAL MOTORS CORP.
