Removal Procedure

Remove the shock module upper retaining nuts.

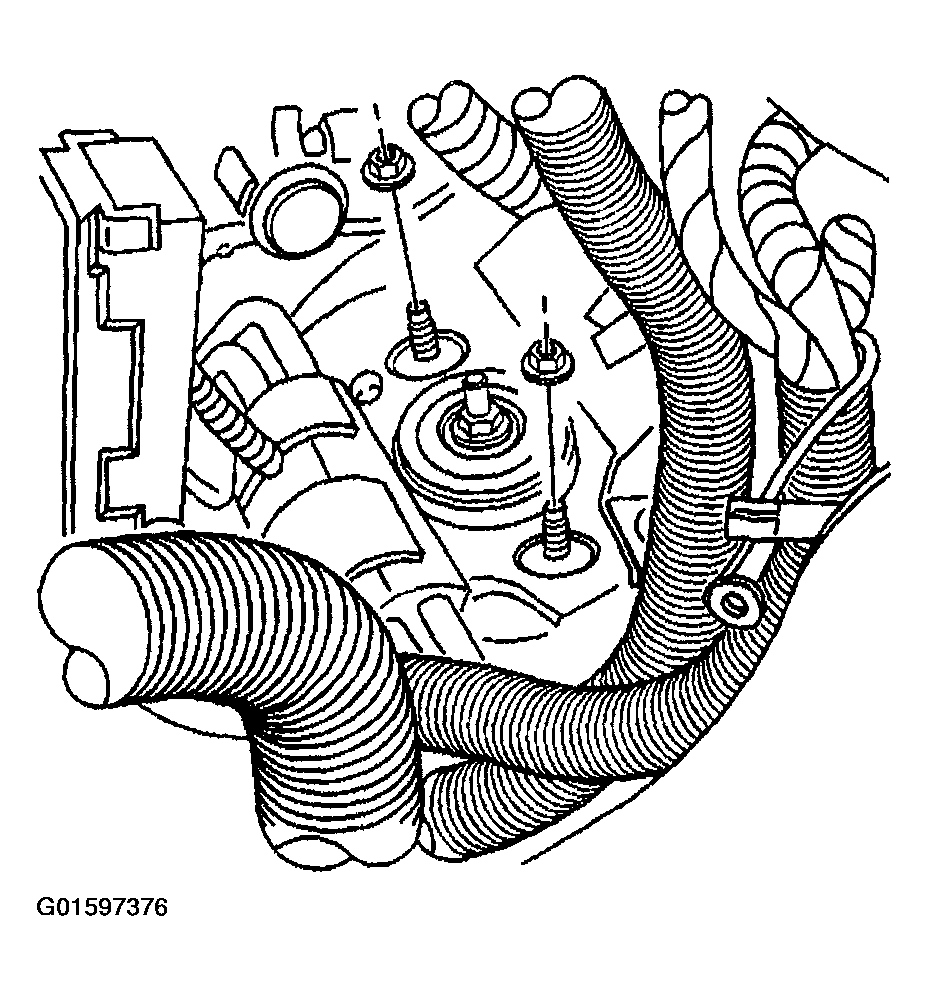

Fig 1: Removing Shock Module Upper Retaining Nuts
Courtesy of GENERAL MOTORS CORP.

NOTE: Use care when handling the coil springs in order to avoid chipping or scratching the coating. Damage to the coating will result in premature failure of the coil springs.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tire and Wheels.
Remove the shock module yoke to lower control arm retaining nut.

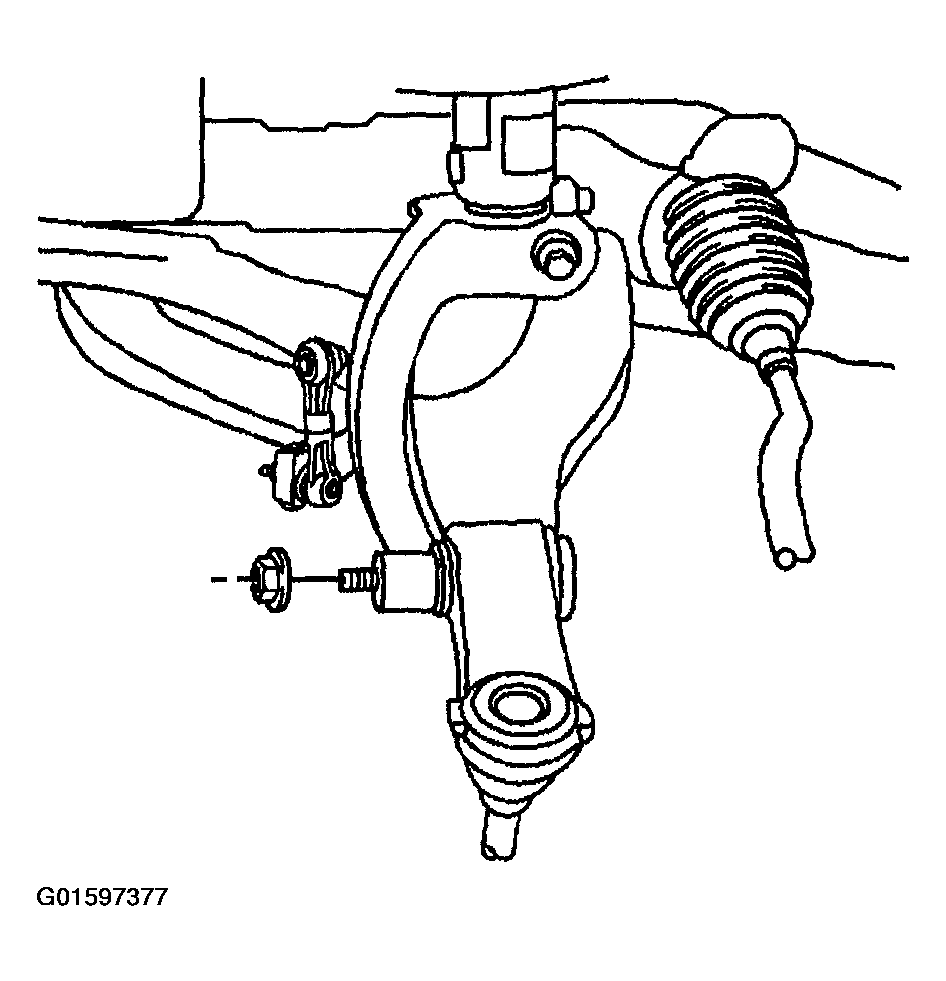

Fig 2: Removing Shock Module Yoke To Lower Control Arm Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Remove the shock module yoke from the lower control arm using J 24319-B.

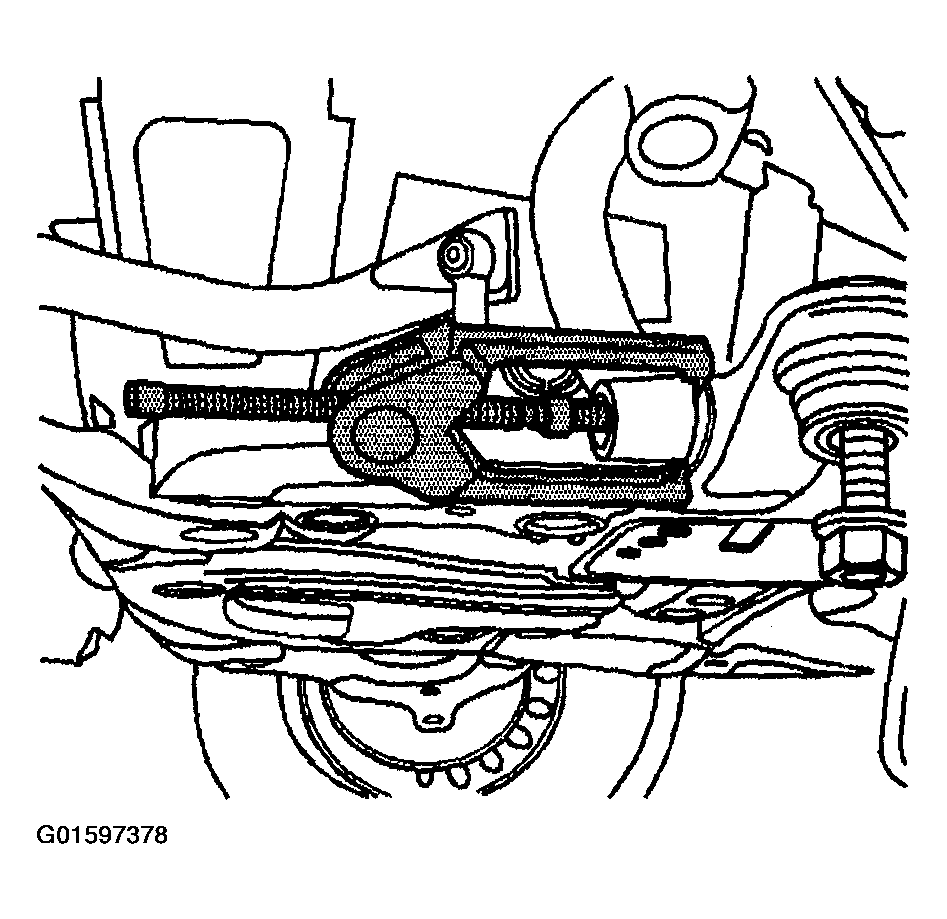

Fig 3: Removing Shock Module Yoke From Lower Control Arm
Courtesy of GENERAL MOTORS CORP.
Remove the shock module from the shock tower and lower control arm.

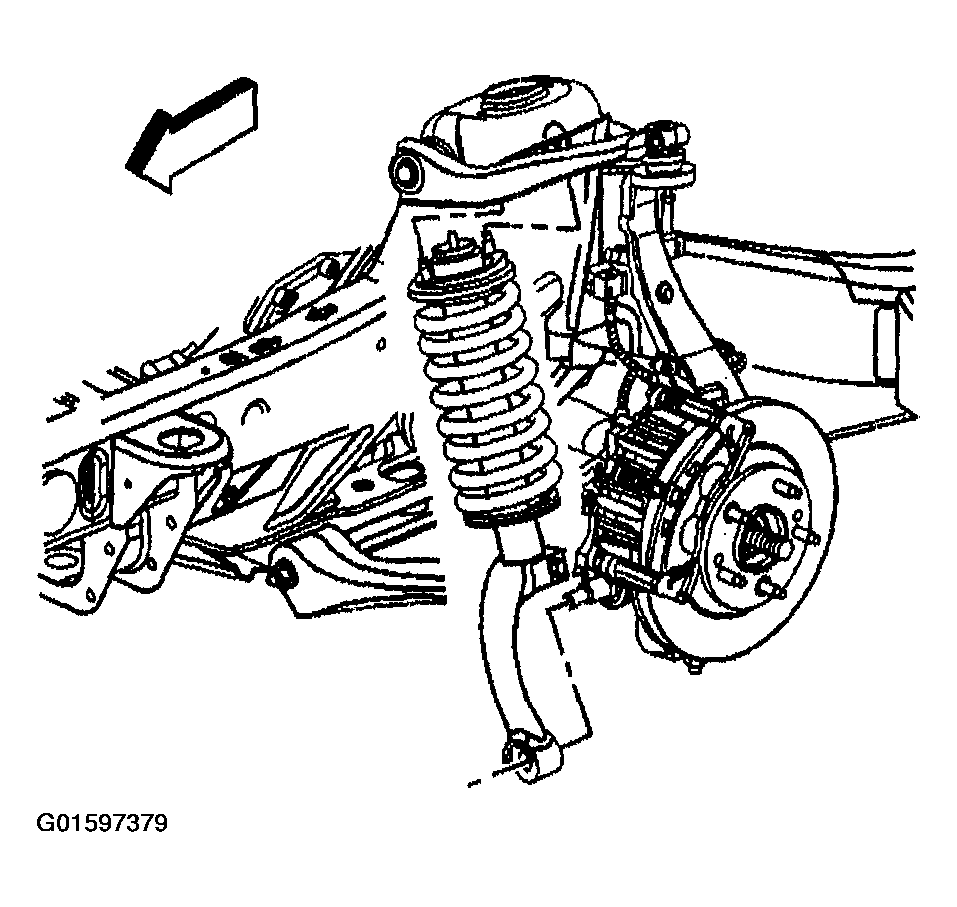

Fig 4: Removing Shock Module From Shock Tower And Lower Control Arm
Courtesy of GENERAL MOTORS CORP.
