Installation Procedure

  1. Install the shock module yoke to the lower control arm stud and shock absorber.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the shock module yoke to shock absorber pinch bolt and nut.

    Tighten

    Tighten the shock module yoke to shock absorber pinch bolt to 70 N.m (52 lb ft).

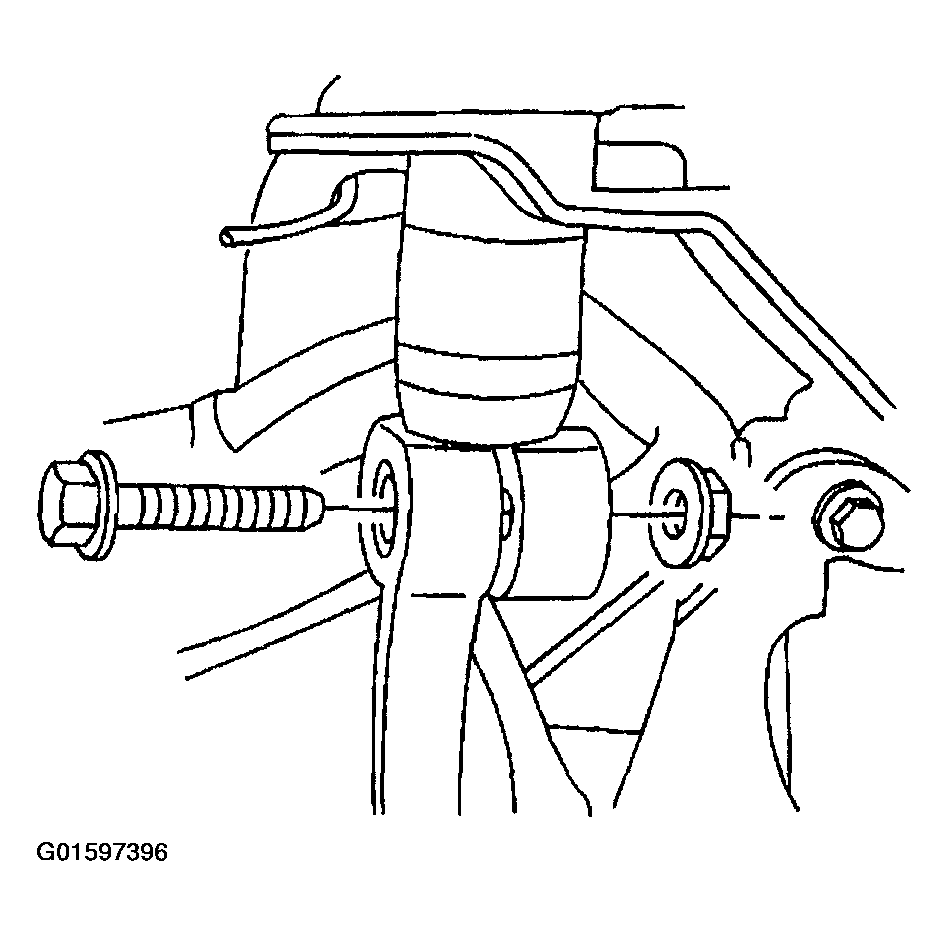

    Fig 1: Installing Shock Module Yoke To Shock Absorber Pinch Bolt And Nut
    G01597396Courtesy of GENERAL MOTORS CORP.
  3. Install the shock module yoke to lower control arm mounting nut.

    Tighten

    Tighten the shock module yoke to lower control arm mounting nut to 110 N.m (81 lb ft).

  4. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION  in Tires and Wheels.
  5. Lower the vehicle.

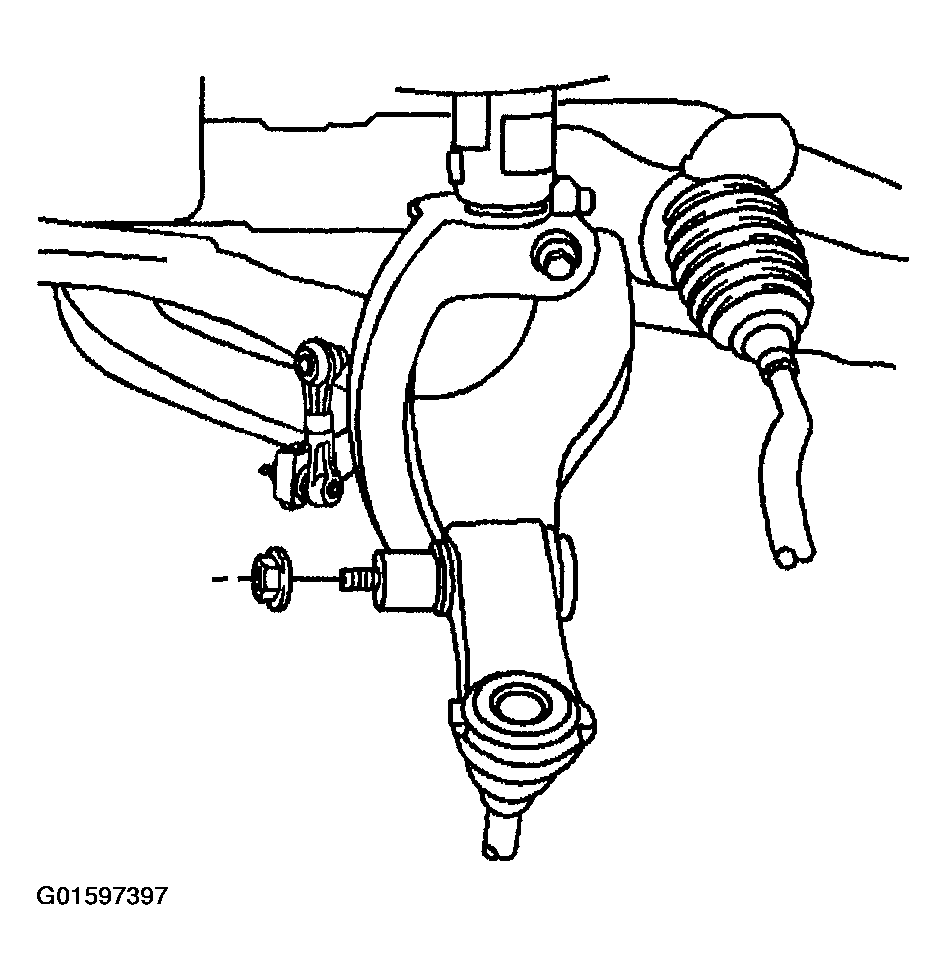

    Fig 2: Installing Shock Module Yoke To Lower Control Arm Mounting Nut
    G01597397Courtesy of GENERAL MOTORS CORP.
