Front Passenger Door Module (FPDM)

Front Passenger Door Module (FPDM) - C1:

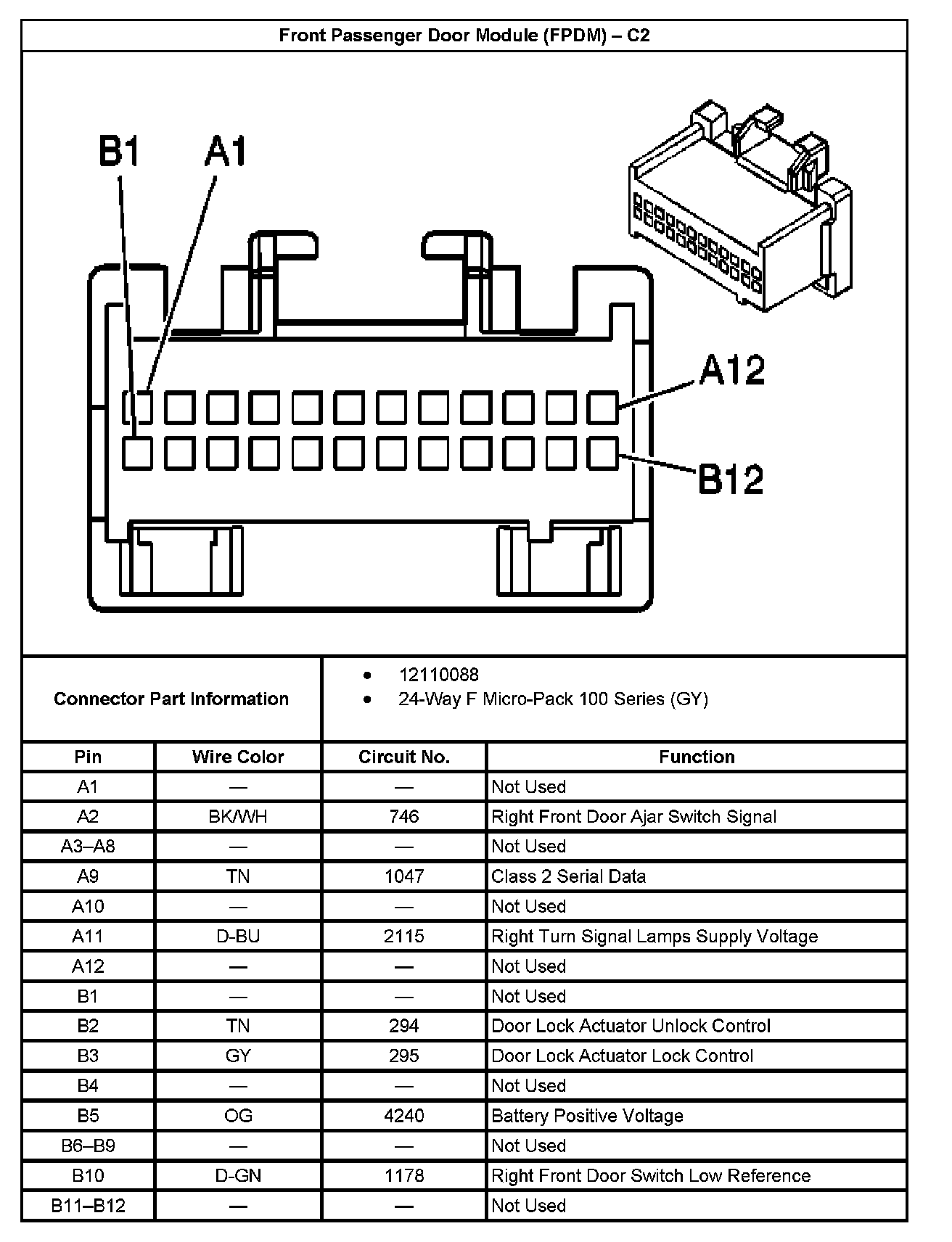

Front Passenger Door Module (FPDM) - C2:

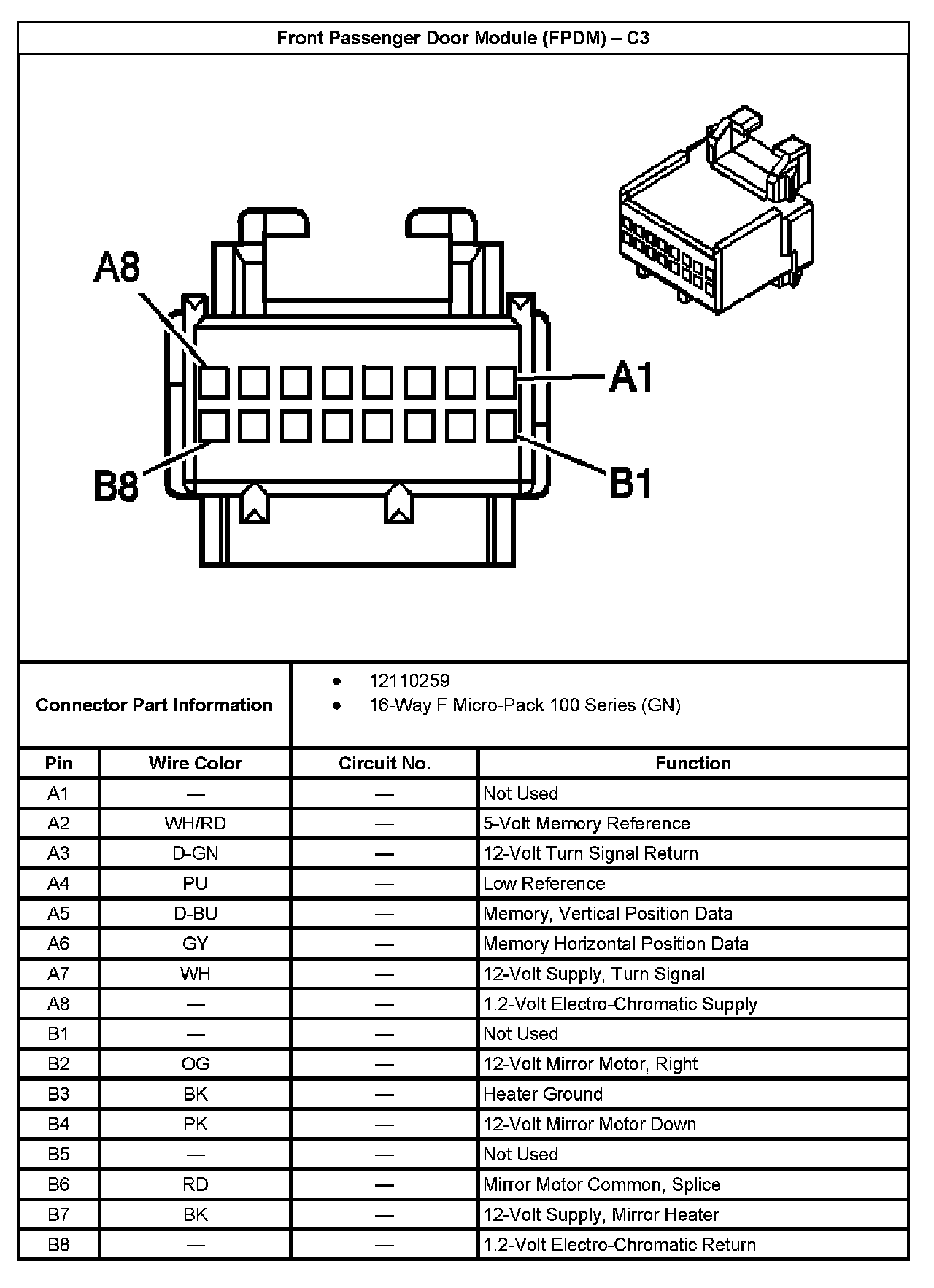

Front Passenger Door Module (FPDM) - C3:
