Front Lights (X88)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

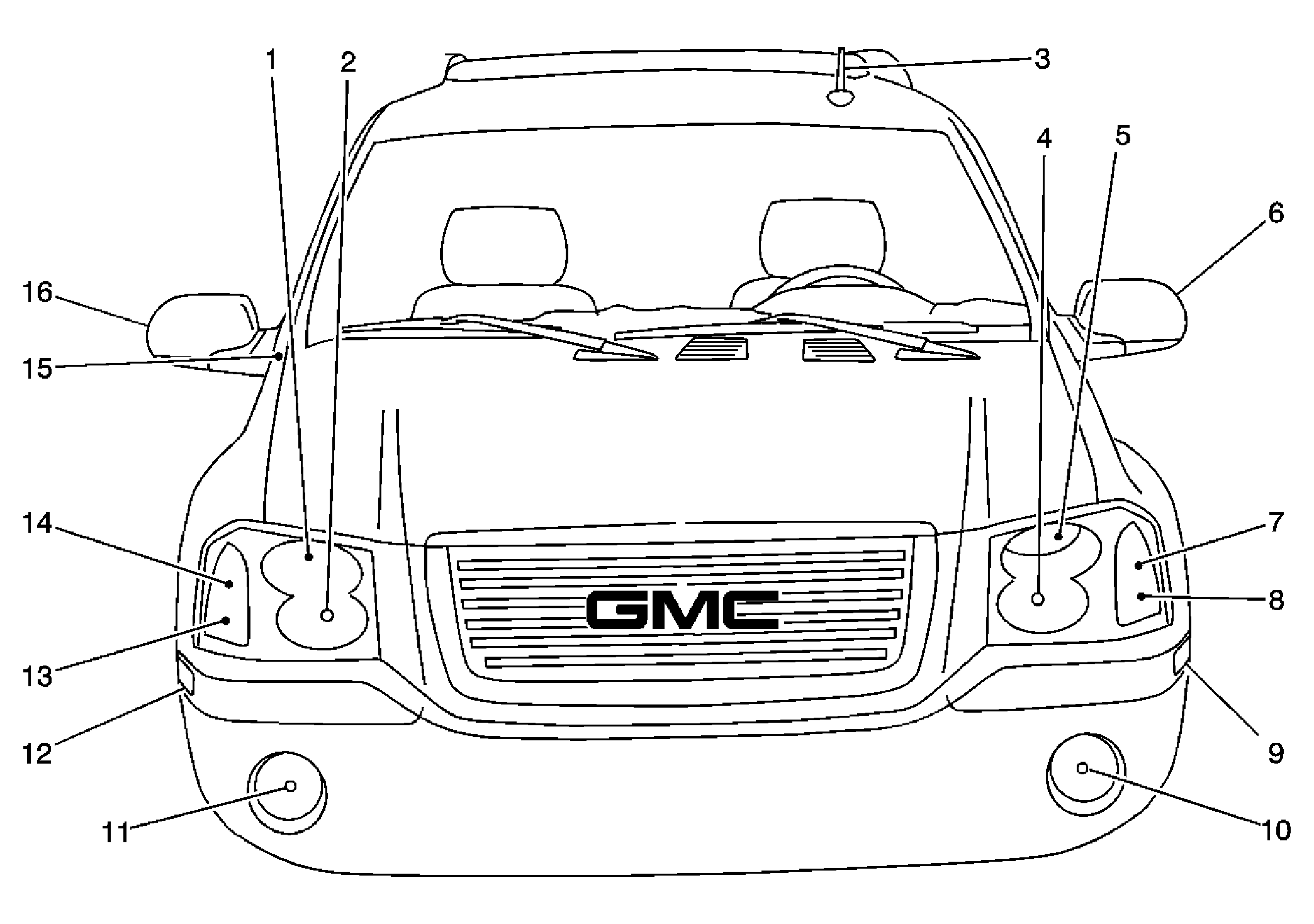

Fig 1: Front of Vehicle (X88)
GM1550918Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Low Beam - Right
2 Headlamp - High Beam - Right
3 Cellular Antenna
4 Headlamp - High Beam - Left
5 Headlamp - Low Beam - Left
6 Outside Rearview Mirror - Driver
7 Marker Lamp - LF
8 Park/Turn Signal Lamp - LF
9 Cornering Lamp - Left (T87)
10 Fog Lamp - LF (T96)
11 Fog Lamp - R (T96)
12 Cornering Lamp - Right)
13 Park/Turn Signal Lamp - RF
14 Marker Lamp - RF
15 Radio Antenna
16 Outside Rearview Mirror - Passenger
