Engine Controls Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Control Module (ECM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM)
2	Engine Control Module (ECM) C3
3	Engine Control Module (ECM) C2
4	Engine Control Module (ECM) C1

Fig 2: Camshaft Position (CMP) Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Sensor
2	Camshaft Position (CMP) Sensor Jumper Harness
3	C110
4	Engine Harness
5	Engine

Fig 3: Upper Left Side of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injector 1
2	Evaporative Emission (EVAP) Canister Purge Solenoid
3	Fuel Injector 3
4	Manifold Absolute Pressure (MAP) Sensor
5	Fuel Injector 5
6	Fuel Injector 7
7	Engine
8	Ignition Coil 7
9	Ignition Coil 5
10	Ignition Coil Harness
11	C109
12	Ignition Coil 3
13	Ignition Coil 1

Fig 4: Lower Left Side of Engine - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G107
2	Knock Sensor (KS) 1 - Left
3	Engine
4	G109
5	Engine Harness

Fig 5: Upper Right Side of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine
2	Fuel Injector 8
3	Fuel Injector 6
4	Fuel Injector 4
5	Fuel Injector 2
6	Throttle Body
7	Ignition Coil 2
8	Ignition Coil 4
9	Ignition Coil Harness
10	C108
11	Ignition Coil 6
12	Ignition Coil 8

Fig 6: Upper Right Side of the Engine - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine
2	Engine Harness
3	Air Duct
4	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Fig 7: Lower Right Side of the Engine - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position (CKP) Sensor
2	Knock Sensor (KS) 2 - Right
3	Engine Harness
4	Starter
5	Engine

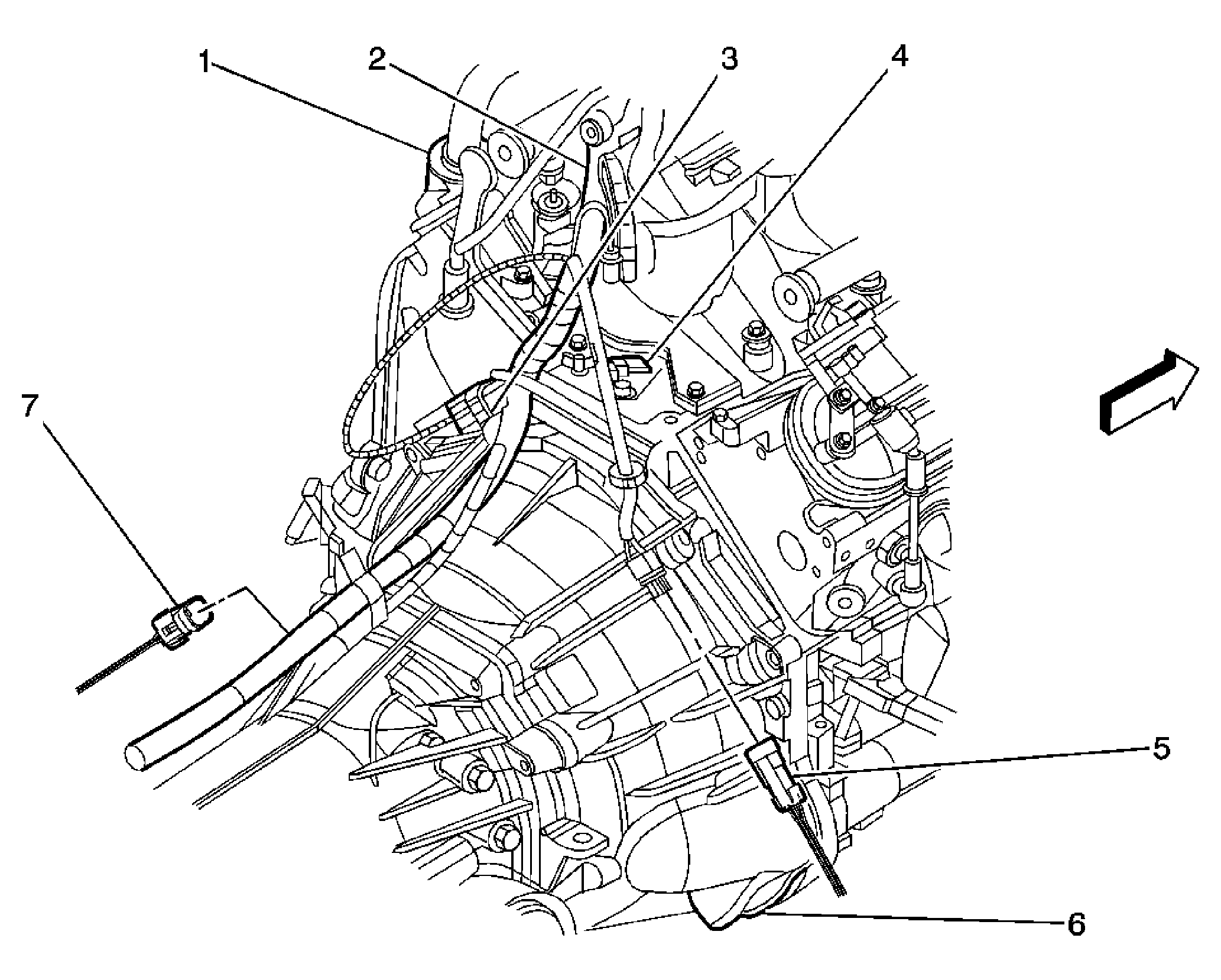

Fig 8: Rear of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine
2	Engine Harness
3	Engine Oil Pressure (EOP) Sensor
4	Valve Lifter Oil Manifold (VLOM) Assembly (DOD)
5	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
6	Transmission
7	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

Fig 9: Right Side of the Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Speed Sensor (VSS)
2	Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
3	Transmission
4	C175
5	Engine Harness

Fig 10: Rear of the Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
2	Transmission Crossmember
3	Transmission
4	Engine Harness

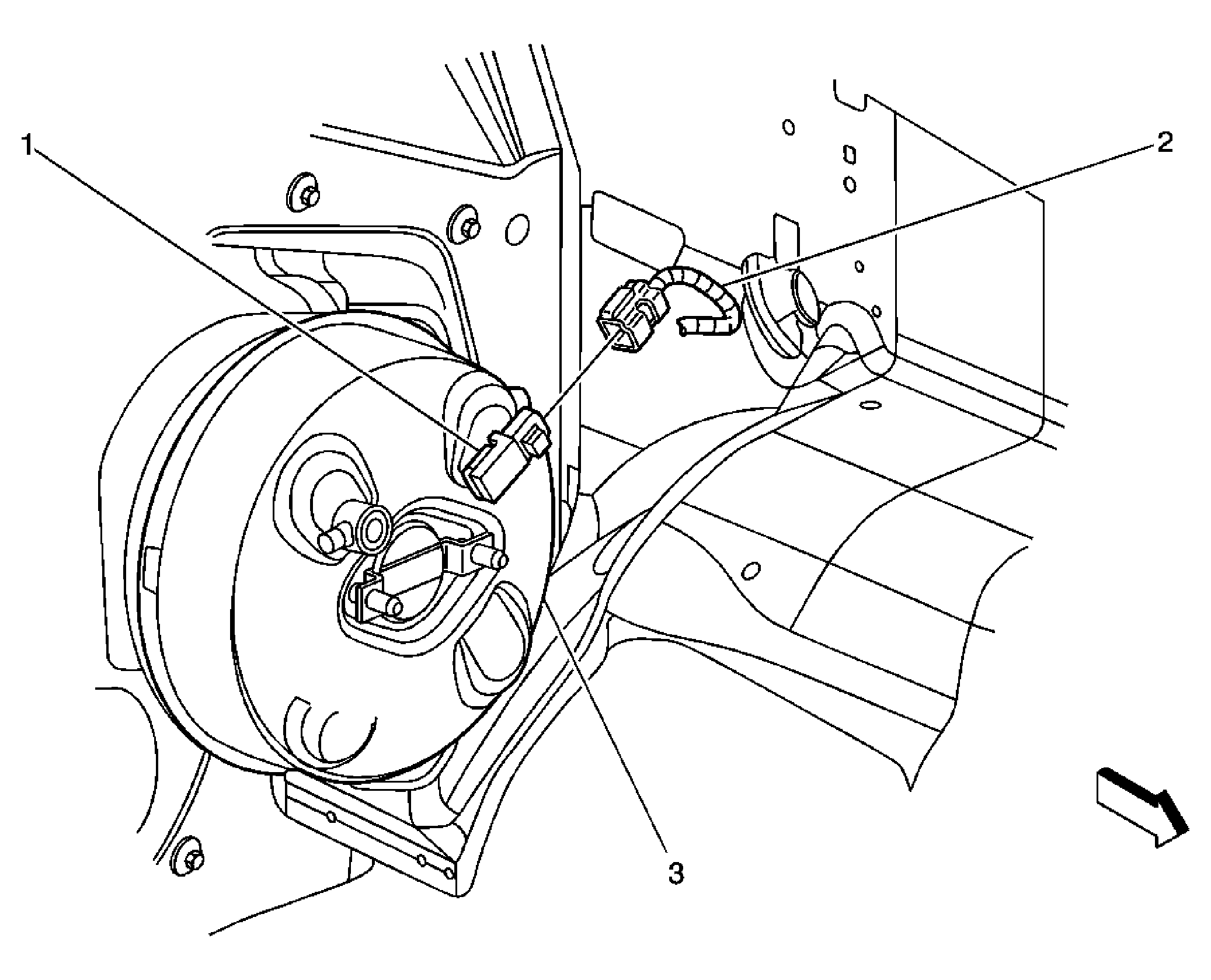

Fig 11: Power Brake Booster (DOD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Booster Vacuum Sensor
2	Engine Harness
3	Power Brake Booster

Fig 12: Accelerator and Brake Pedals

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Harness
2	Accelerator Pedal Position (APP) Sensor
3	Accelerator Pedal
4	Brake Pedal
5	Stop Lamp Switch

Fig 13: Fuel Tank (Short Wheel Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressue (FTP) Sensor
2	Fuel Pump and Sender Assembly
3	Chassis Harness
4	Fuel Tank
5	Evaporative Emission (EVAP) Canister Vent Solenoid

Fig 14: Fuel Tank (Long Wheel Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressue (FTP) Sensor
2	Evaporative Emission (EVAP) Canister Vent Solenoid
3	Chassis Harness
4	Fuel Pump and Sender Assembly
5	Fuel Tank
