Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

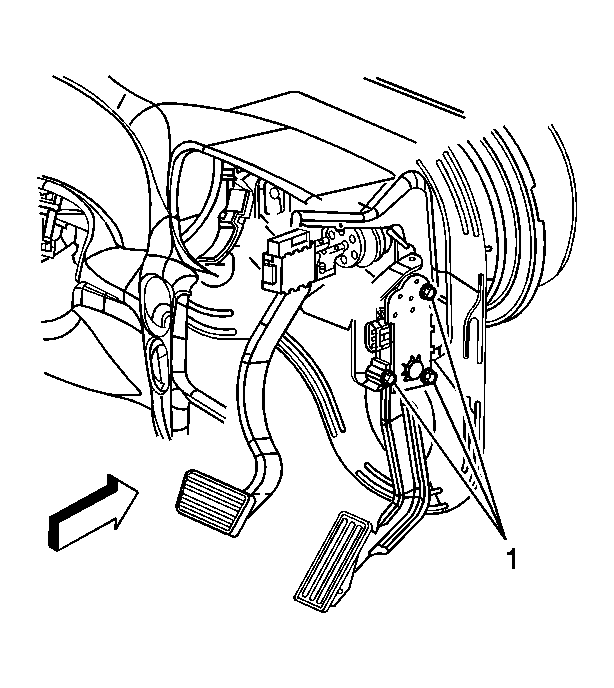

    Fig 1: Locating APP Sensor Bolts
    GM899728Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the APP sensor.
  2. Install the 3 APP sensor bolts (1).

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

    3. Fig 2: View Of APP Sensor Electrical Connector
    GM899725Courtesy of GENERAL MOTORS CORP.
  3. Connect the APP sensor electrical connector.
  4. Verify that the vehicle meets the following conditions:
    • The vehicle is not in a reduced engine power mode.
    • The ignition is ON.
    • The engine is OFF.
  5. Connect a scan tool in order to test for a proper throttle-opening and throttle-closing range.
  6. Operate the accelerator pedal and monitor the throttle angles. The accelerator pedal should operate freely, without binding, between a closed throttle, and a wide open throttle.
